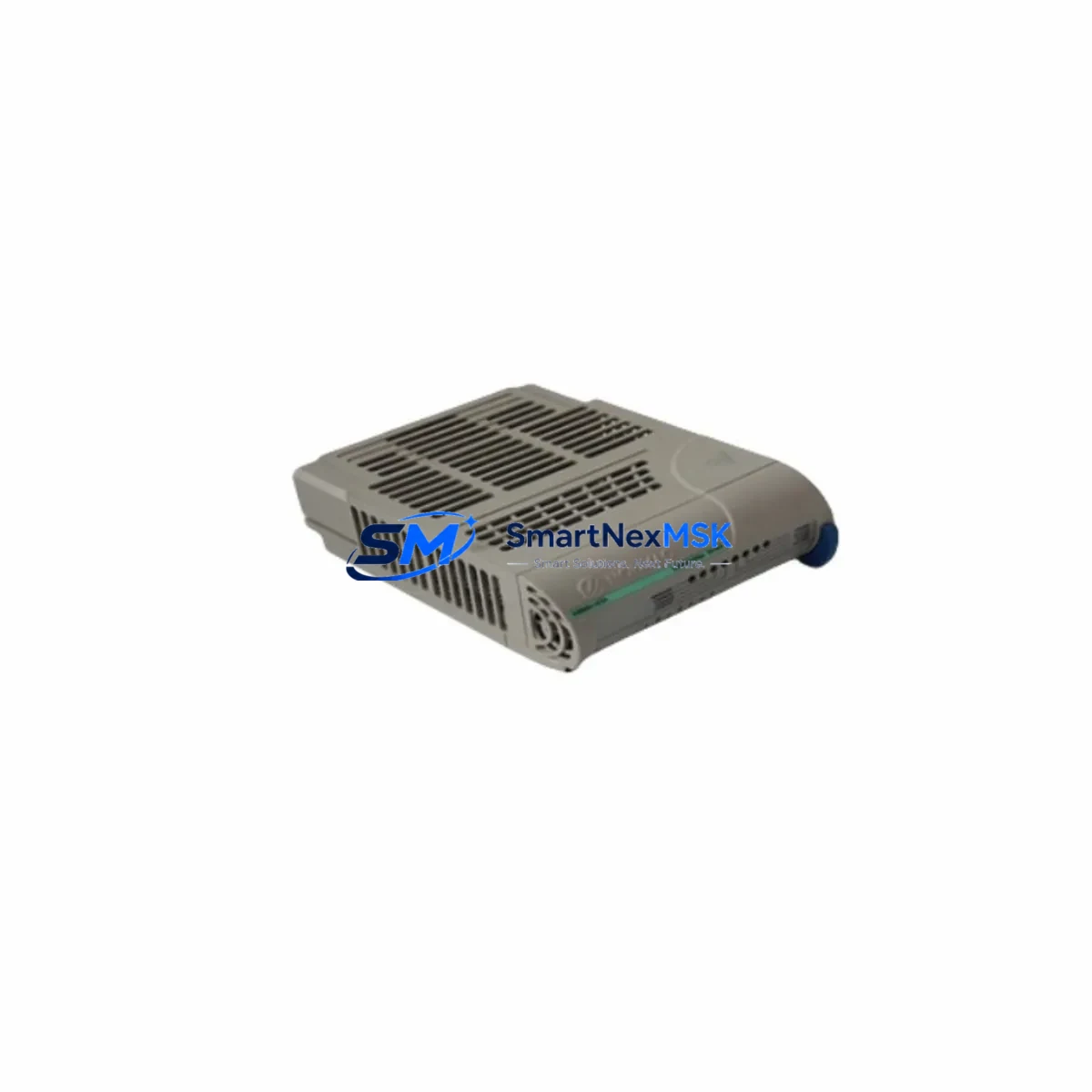

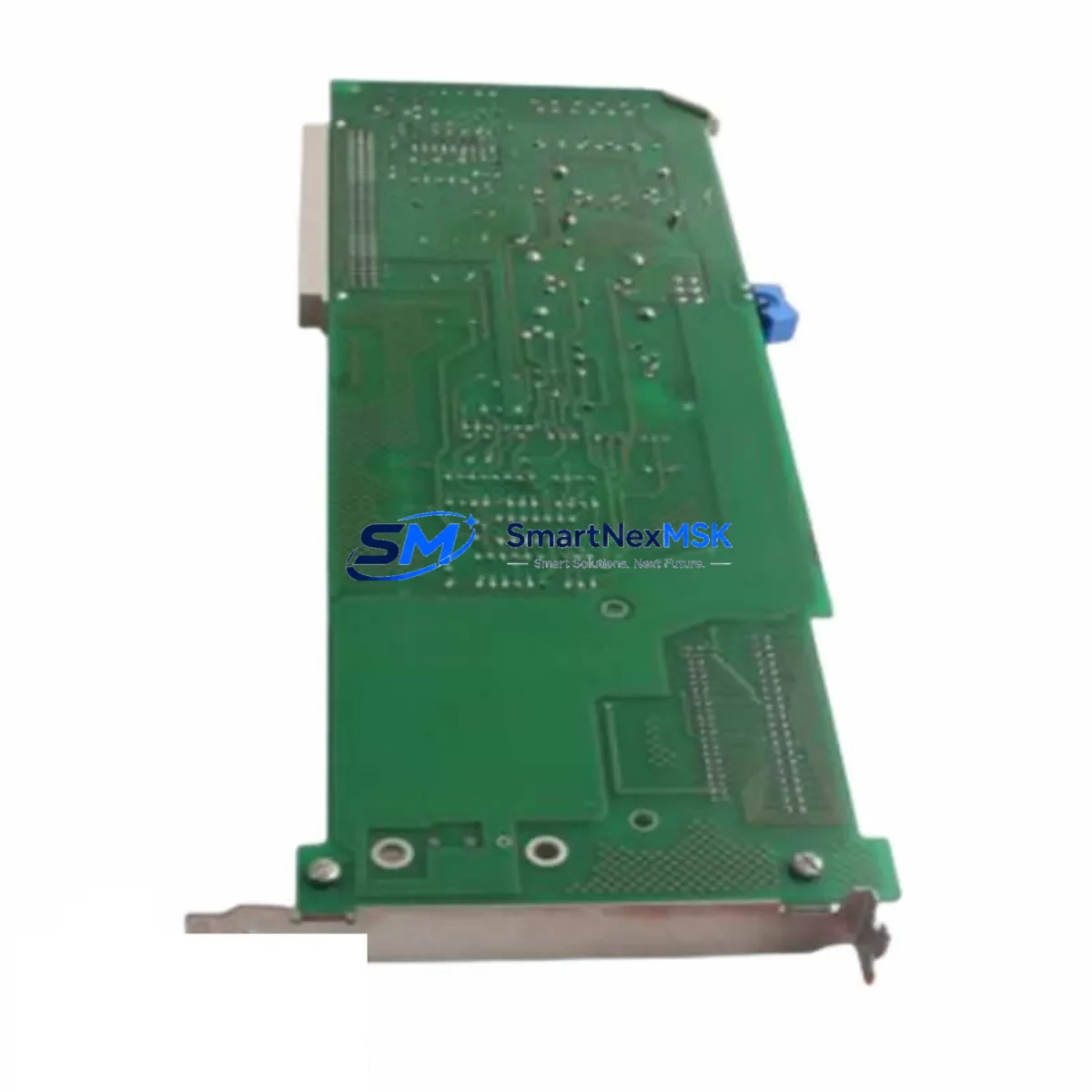

Westinghouse 1C31194G03 Retrofit-Ready DCS Module

Westinghouse 1C31194G03 Retrofit-Ready DCS Module for WDPF/Ovation Control Systems

The Westinghouse 1C31194G03 is a DCS Electronics Module engineered for seamless integration into legacy WDPF and Ovation distributed control system architectures. As aging WDPF platforms approach end-of-support milestones and spare parts become increasingly scarce, the 1C31194G03 serves as a critical retrofit component for power generation facilities, petrochemical plants, and process industries that depend on continuous, uninterrupted control system operation. Whether you are executing a planned upgrade, responding to an unplanned module failure, or consolidating spare inventory ahead of a scheduled outage, this module provides a verified, drop-in compatible solution backed by a 12-month warranty and pre-shipment functional testing.

Sourced from controlled inventory channels and subject to rigorous incoming inspection, each 1C31194G03 unit is validated against original Westinghouse specifications before dispatch. Our team supports engineers and procurement specialists through the full retrofit lifecycle — from initial compatibility assessment through post-installation commissioning verification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1C31194G03 into an existing control system requires methodical pre-installation planning. Begin by auditing the target rack assembly — typically a WDPF Distributed Processing Unit (DPU) chassis or an Ovation I/O rack — to confirm available slot positions and backplane revision compatibility. Cross-reference the existing wiring termination drawings against the module’s terminal block layout to identify any field wiring adaptation requirements before the maintenance window opens.

Power budget verification is a non-negotiable step. Calculate the aggregate current draw of all installed modules within the rack, including the 1C31194G03, and confirm that the rack power supply — such as the 1C31166G01 Power Supply Module — has sufficient headroom. Overloaded power supplies are a leading cause of intermittent module faults in aging WDPF installations and must be addressed before introducing additional load.

For sites migrating from WDPF to the Ovation platform, the 1C31194G03 may serve as a transitional I/O module during a phased cutover. In this scenario, the Ovation OCR400 or OCR1100 controller must be configured to recognize the module’s I/O addresses, and the corresponding Ovation Developer Studio database entries must be validated against the legacy WDPF point list. Pay particular attention to analog input scaling, engineering unit conversion, and alarm setpoint migration — discrepancies here are a common source of post-cutover process upsets.

Communication link integrity should be verified at each stage of the retrofit. The WDPF Data Highway coaxial network and the Ovation Ethernet-based control network have fundamentally different physical layer requirements. If the retrofit involves transitioning communication infrastructure, ensure that the 1C31233G01 or equivalent communication interface module is correctly configured and that network redundancy is maintained throughout the migration window. Alongside the 1C31194G03, sites frequently require companion modules such as the 1C31197G01 Analog Input Module, 1C31116G01 Digital Output Module, and 1C31122G01 Digital Input Module to complete I/O channel restoration. HMI workstations running Ovation Operator Station software must also be updated to reflect any point address changes introduced during the retrofit.

Terminal block wiring should be documented photographically before any disconnection. Where field wiring uses legacy WDPF marshalling panels, confirm that signal levels and loop power configurations are compatible with the 1C31194G03’s input specifications. In some installations, the 1C31218G01 Termination Assembly or equivalent marshalling module may require replacement or re-jumpered to match the new module’s channel configuration.

Downtime Control During System Migration

Minimizing process downtime during a DCS module replacement or platform migration requires a structured, pre-validated approach. Before the maintenance window, create a full backup of the Ovation controller database using Ovation Developer Studio, or export the WDPF engineering database from the Engineering Workstation. This backup preserves all control logic, PID tuning parameters, alarm configurations, and I/O assignments — ensuring that the original program logic can be restored within minutes if an unexpected issue arises during the swap.

Where process conditions permit, place affected control loops in manual mode at the DCS operator station before removing the 1C31194G03. This prevents uncontrolled process excursions during the module exchange interval. For critical loops where manual operation is not feasible, coordinate with the process team to implement temporary field bypass arrangements or portable control measures to maintain process continuity.

The physical module swap itself — removing the failed unit and inserting the replacement 1C31194G03 — typically takes under five minutes in a properly prepared rack. The majority of the maintenance window should be allocated to post-installation verification: confirming module recognition by the controller, validating I/O channel status in the Ovation Operator Station or WDPF Operator Console, performing loop checks on critical analog and digital channels, and returning control loops to automatic mode in a controlled sequence. Document all steps taken during the maintenance window for the site’s change management records.

For multi-module replacements or full rack retrofits, a staged approach — replacing and verifying one module at a time before proceeding to the next — significantly reduces the risk of compounding faults and simplifies troubleshooting if an issue is encountered. This approach also allows the process to remain partially operational throughout the retrofit, reducing the total production impact of the maintenance activity.

Retrofit Support FAQ

Q: Is the 1C31194G03 a direct drop-in replacement for the original Westinghouse part?
A: Yes. The 1C31194G03 is manufactured to original Westinghouse specifications and is designed for direct slot-for-slot replacement in WDPF DPU racks and compatible Ovation I/O racks. No mechanical modification or adapter hardware is required. Verify the firmware revision of the replacement unit against the site controller’s compatibility matrix before installation.

Q: What pre-shipment testing is performed on each unit?
A: Every 1C31194G03 unit undergoes functional testing prior to dispatch, including power-on self-test verification, I/O channel continuity checks, and communication interface validation. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical applications.

Q: How do I confirm wiring compatibility before installation?
A: Compare the field wiring termination drawing for the existing module slot against the 1C31194G03 terminal block pinout from the Westinghouse hardware manual. Pay particular attention to analog input loop power configuration, digital I/O voltage levels, and any shield grounding requirements. If the site uses a termination assembly such as the 1C31218G01, verify that the assembly revision is compatible with the replacement module.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com with the unit serial number and a description of the fault condition.
