Westronics SBGA-6P1WM Spare for SBGA Automation

Westronics SBGA-6P1WM Spare for SBGA Automation

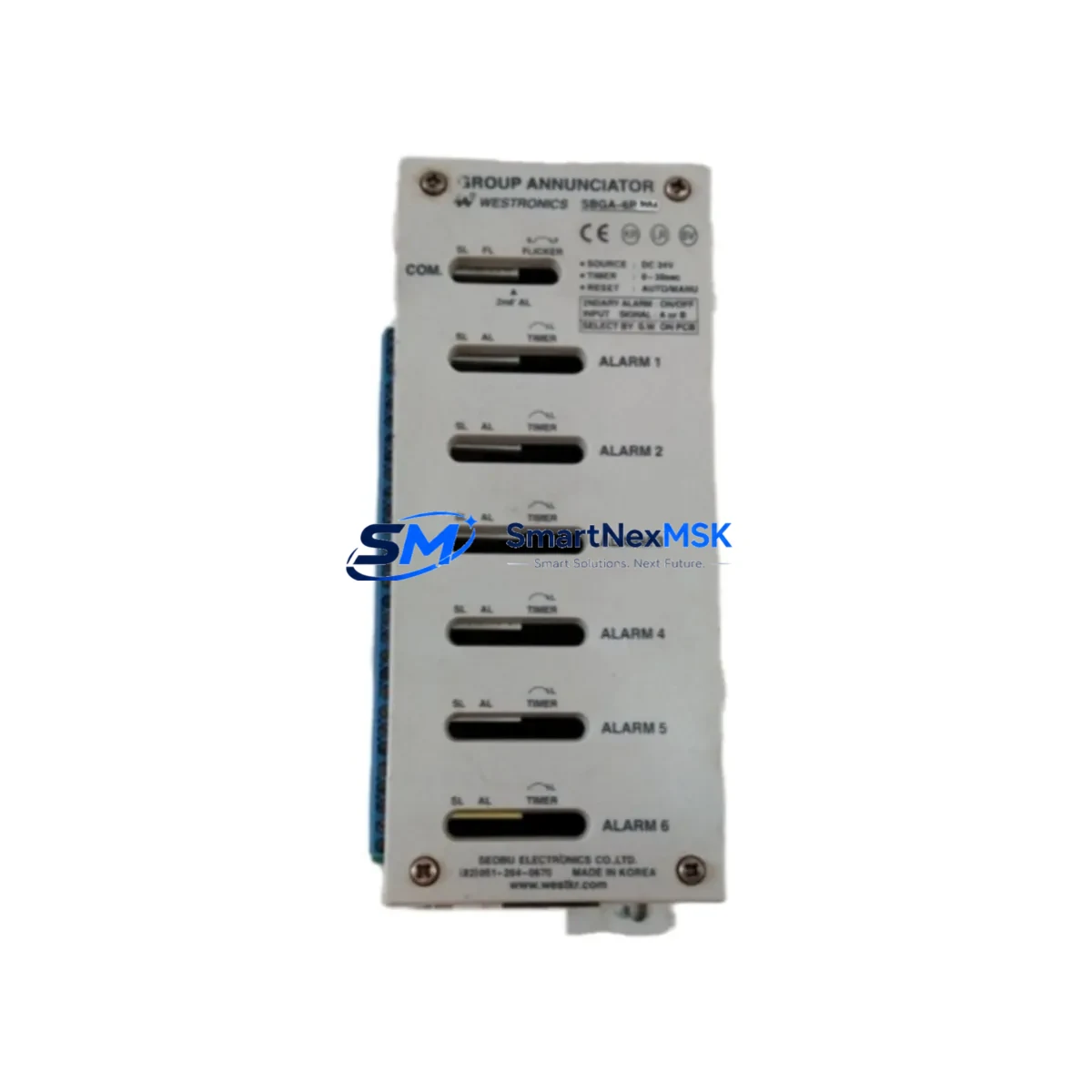

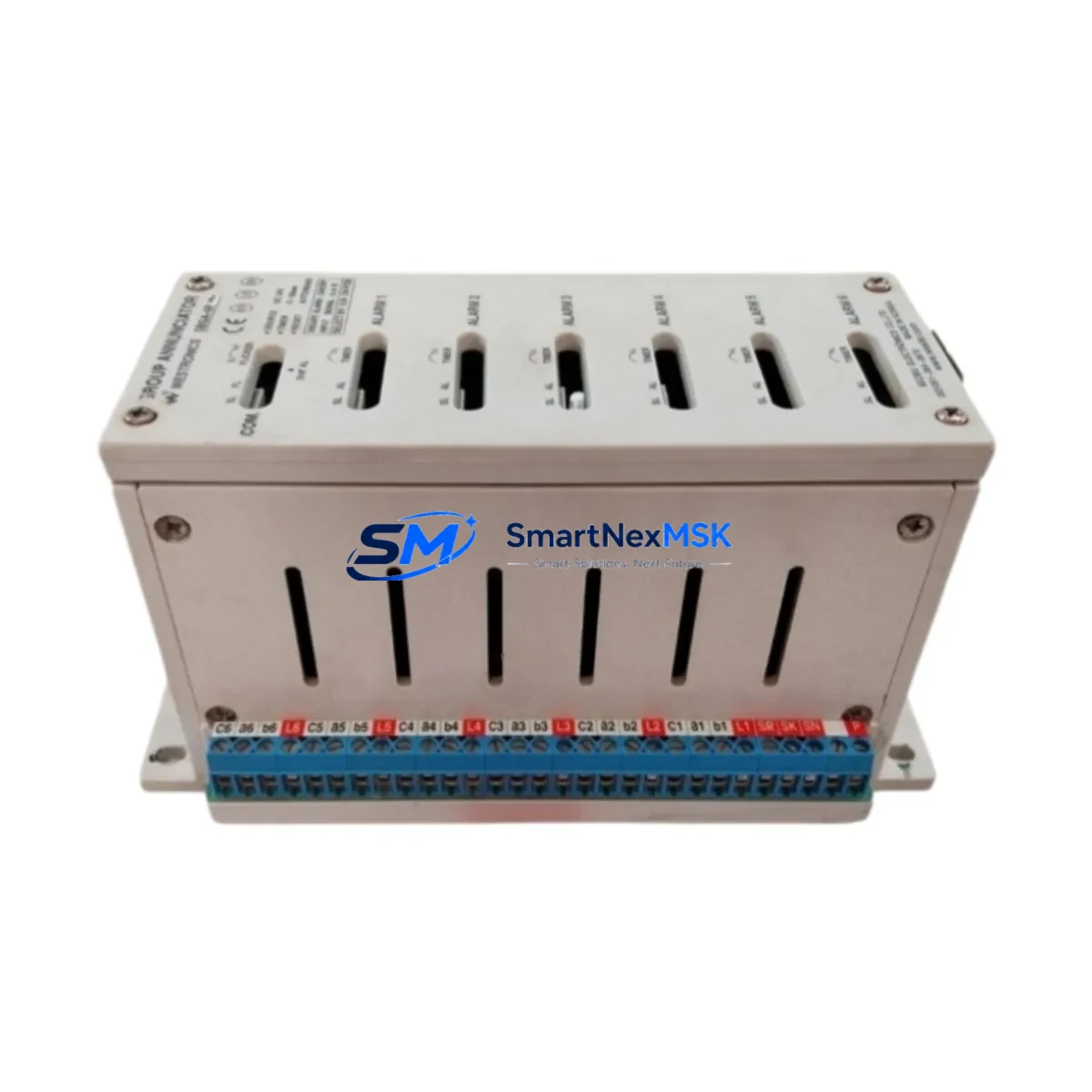

The Westronics SBGA-6P1WM is a 6-point industrial alarm annunciator module designed for continuous-duty process control environments. As a maintenance-ready spare, it is engineered to serve as a direct replacement for aging or failed units within the SBGA series annunciator platform — one of the most widely deployed alarm management solutions in petrochemical, power generation, water treatment, and heavy manufacturing facilities. For maintenance engineers managing aging control infrastructure, having a verified spare of the SBGA-6P1WM on hand is a critical element of any proactive downtime-reduction strategy.

The SBGA-6P1WM operates as a self-contained alarm window module, accepting discrete input signals from field instruments, relay contacts, or PLC digital output cards. Its 6-point configuration makes it suitable for compact control panels where alarm density must be balanced against cabinet space. Each point provides visual annunciation with audible alarm capability, supporting first-out sequence logic that is essential for fault isolation in multi-loop process systems. The module is compatible with standard SBGA series chassis and backplane wiring, allowing it to be swapped into an existing annunciator rack without rewiring the field terminal blocks.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for annunciator-based alarm systems requires more than simply stocking the SBGA-6P1WM module itself. When a maintenance or procurement engineer schedules a replacement of this unit, a thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure system reliability after the swap.

Begin with the panel power supply feeding the SBGA annunciator rack. A degraded or undersized 24 VDC power supply unit is a common root cause of annunciator module failures, particularly in older control cabinets where the original power supply has been in service for more than a decade. Verify output voltage stability under load before installing the new SBGA-6P1WM. If the power supply shows ripple or voltage sag, replace it concurrently to avoid stressing the new module.

Next, inspect the field wiring terminal blocks connected to each of the 6 alarm input points. Loose terminations, corroded contacts, or undersized wire ferrules can introduce intermittent signal faults that mimic module failure. Clean and re-torque all terminals, and replace any damaged terminal block sections within the SBGA rack wiring harness. If the panel uses plug-in relay bases for signal conditioning between field instruments and the annunciator inputs, check each relay coil and contact set for wear — relay output modules and plug-in relay sockets are frequently overlooked during annunciator maintenance.

For systems where the SBGA-6P1WM receives inputs from a PLC digital output card or a DCS I/O module, confirm that the source card is functioning correctly and delivering clean, bounce-free contact closures. A faulty digital output module can generate false alarms or fail to trigger the annunciator, making it appear that the SBGA-6P1WM itself is defective. Similarly, if signal isolators or signal conditioners are installed between field transmitters and the annunciator input circuit, verify their output levels and isolation integrity.

In control cabinets where the SBGA annunciator panel is integrated with an HMI display or SCADA system, confirm that the alarm acknowledgment and reset logic is correctly mapped after module replacement. Some HMI configurations store alarm point addresses that may need to be re-verified if the replacement module occupies a different slot position within the rack. Communication modules linking the annunciator system to a supervisory network should also be checked for active connections and correct node addressing.

Finally, inspect the panel fusing protecting the annunciator power circuit. Miniature circuit breakers or fuse holders feeding the SBGA rack should be tested for correct trip rating and replaced if they show signs of thermal stress or contact oxidation. A complete spare parts kit for the SBGA annunciator system should include the SBGA-6P1WM module, a matched power supply unit, a set of plug-in relay modules, spare terminal block sections, signal isolators for critical input loops, and panel fuses — ensuring that any combination of component failures can be addressed during a single planned maintenance window.

Site Replacement Workflow

Replacing the SBGA-6P1WM on-site is a straightforward procedure when the correct preparation steps are followed. Before beginning, obtain the panel wiring diagram and confirm the alarm point assignments for the module being replaced. Document the current alarm status of all 6 points and notify the control room operator that the annunciator will be temporarily out of service during the swap.

De-energize the annunciator rack power supply and verify zero voltage at the module terminals using a calibrated multimeter. Disconnect the field wiring from the terminal block associated with the SBGA-6P1WM, labeling each wire clearly to prevent miswiring during reinstallation. Remove the module from the rack by releasing the retention mechanism and sliding it free of the backplane connector.

Insert the replacement SBGA-6P1WM into the same rack slot, ensuring full engagement with the backplane connector. Reconnect the field wiring in the correct sequence, re-torque all terminal screws, and restore power to the rack. Perform a point-by-point alarm test by simulating an input signal at each of the 6 field terminals and confirming that the corresponding alarm window illuminates, the audible alarm activates, and the first-out sequence logic operates correctly. Acknowledge and reset each alarm point before proceeding to the next. Once all 6 points are verified, notify the control room that the annunciator is back in service and document the replacement in the maintenance log.

This workflow minimizes system downtime to typically under 30 minutes for a prepared maintenance team, and ensures that the replacement module is fully verified before the panel is returned to normal operation. All SBGA-6P1WM units supplied by SMARTNEXMSK are pre-tested prior to shipment and include a functional test report, supporting rapid site acceptance and reducing the risk of commissioning delays.

Spare Parts Support FAQ

Q1: Is the SBGA-6P1WM a direct drop-in replacement for the original Westronics unit in my existing SBGA rack?
Yes. The SBGA-6P1WM is supplied to original Westronics specification and is designed for direct installation into existing SBGA series annunciator racks without modification to the backplane wiring or rack structure. Alarm point assignments and input wiring remain unchanged.

Q2: What compatibility checks should I perform before ordering?
Confirm that your existing rack is an SBGA series chassis and that the power supply voltage matches the 24 VDC nominal input requirement of the SBGA-6P1WM. If your system uses a different supply voltage or a non-standard backplane configuration, contact our technical team with your panel drawings for verification before placing an order.

Q3: How is the module tested before shipment?
Every SBGA-6P1WM unit undergoes a functional test covering all 6 alarm input points, annunciation logic, first-out sequence operation, and power supply compatibility prior to dispatch. A test report is available on request and can be included with the shipment documentation for site acceptance records.

Q4: What warranty and long-term supply support is available?
All SBGA-6P1WM units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. SMARTNEXMSK maintains ongoing inventory of SBGA series spare modules to support long-term maintenance programs, and can provide scheduled supply agreements for facilities requiring regular stock replenishment.
