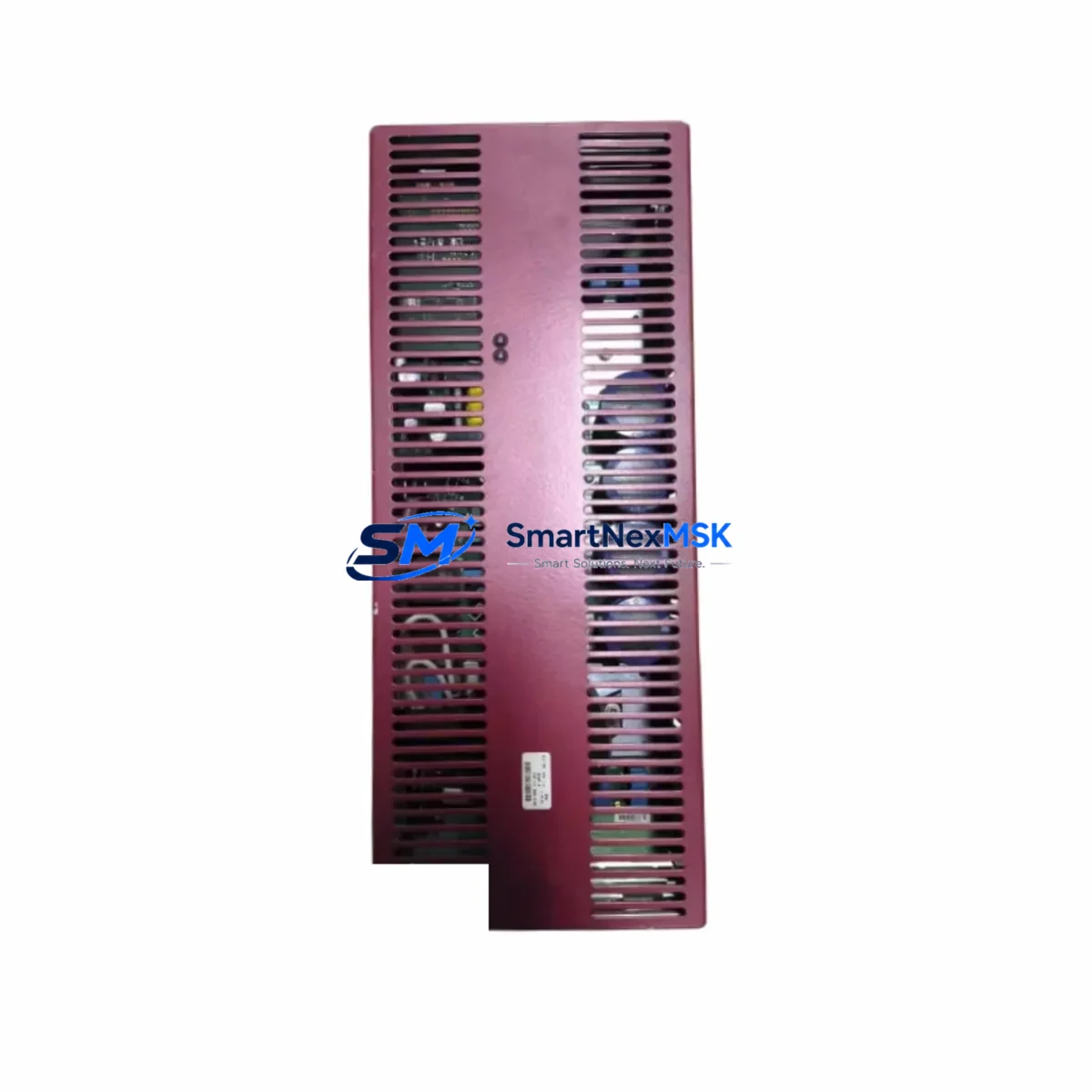

Wittmann EU-189 W-DRIVE 20A/20A/20A Safety Servo Drive

Wittmann EU-189 W-DRIVE 20A/20A/20A Safety Servo Drive: Reliable Control for Harsh Industrial Sites

The Wittmann EU-189 W-DRIVE 20A/20A/20A is a three-axis servo drive controller engineered for continuous, safety-critical operation in demanding industrial environments. Designed to meet the rigorous requirements of high-load automation systems, this module delivers stable, precise motion control even under conditions of strong electromagnetic interference, power fluctuations, and extreme ambient temperatures. Whether deployed in a heavy-duty control cabinet, a critical interlock circuit, or a high-cycle robotic cell, the EU-189 W-DRIVE 20A/20A/20A is built to minimize control interruptions and protect the integrity of your production process.

With a rated output of 20A per axis across all three channels, this drive provides consistent torque delivery and velocity regulation for servo motor systems operating in synchronous or asynchronous multi-axis configurations. Its ruggedized design addresses the core failure modes that cause unplanned downtime in industrial plants: signal drift under thermal stress, module mis-triggering from voltage transients, surge impulse damage from inductive loads, and communication anomalies on shared fieldbus networks. The EU-189 W-DRIVE is a proven solution for engineers who cannot afford field stoppages.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the Wittmann EU-189 W-DRIVE 20A/20A/20A functions as the motion control backbone, but its reliability depends on the quality of the surrounding protection architecture. To ensure uninterrupted servo operation, system integrators typically pair this drive with a Wittmann W-POWER 24VDC regulated power supply to maintain stable logic-level voltage across all control nodes. Upstream, a Wittmann line filter module or equivalent EMC suppression choke is installed to attenuate conducted interference from variable-frequency drives and switching power supplies sharing the same cabinet.

For fieldbus integrity, the EU-189 W-DRIVE communicates over a shielded CANopen or PROFIBUS network. In multi-axis systems, a Wittmann W-CONTROL C6 or C8 series robot controller typically serves as the master, coordinating axis synchronization and safety state management. To protect against inductive kickback from servo motor braking, a braking resistor module is mounted externally or integrated within the drive’s regenerative circuit, preventing DC bus overvoltage faults during rapid deceleration cycles.

Safety interlock circuits in the same cabinet often include a Pilz PNOZ safety relay or equivalent dual-channel emergency stop module wired to the drive’s STO (Safe Torque Off) input. This ensures that in the event of a guard door opening, E-stop activation, or safety PLC fault signal, the drive immediately disables torque output without requiring a full system power cycle — a critical feature for CE-compliant machinery. Alongside the EU-189, engineers frequently install a Wittmann W-SERVO feedback encoder interface card to maintain closed-loop position accuracy even under high-vibration or thermally stressed conditions. A 24VDC UPS buffer module is also recommended to ride through brief power dips without triggering a drive fault and production halt.

Critical Industrial Safety Applications

The Wittmann EU-189 W-DRIVE 20A/20A/20A is deployed across a wide range of safety-critical and continuous-production industrial environments:

Plastics Injection Molding & Robotic Handling: As a core component of Wittmann robot systems, the EU-189 W-DRIVE controls the precise multi-axis movements of part-removal robots operating in synchronization with injection molding machines. In 24/7 production cells, the drive’s thermal stability and STO safety function are essential for maintaining cycle accuracy and operator safety during mold changes.

Petrochemical & Refinery Automation: In hazardous-area control systems where servo-driven valve actuators and positioning systems must operate reliably under high ambient temperatures and corrosive atmospheres, the EU-189 W-DRIVE’s EMI shielding and surge protection prevent spurious axis movements that could compromise process safety interlocks.

Power Generation & Utilities: Servo drives in turbine governor systems, cooling tower positioning, and fuel feed mechanisms require zero-fault-tolerance operation. The EU-189 W-DRIVE’s stable velocity loop and fieldbus communication reliability make it suitable for integration into DCS-supervised motion control nodes in power plant environments.

Mining & Mineral Processing: In conveyor positioning, crusher feed control, and ore sorting systems, servo drives are exposed to heavy vibration, dust ingress, and wide voltage swings. The EU-189 W-DRIVE’s robust hardware design and overvoltage protection allow it to maintain accurate position control in these mechanically aggressive conditions.

Metallurgy & Steel Processing: Rolling mill servo axes, coiler tension control, and slab positioning systems demand high-current, high-dynamic servo drives capable of handling regenerative braking energy. The EU-189 W-DRIVE’s 20A-per-axis rating and regenerative energy management make it a reliable choice for these high-inertia load applications.

Water Treatment & Municipal Infrastructure: Servo-driven dosing pumps, valve actuators, and filter press mechanisms in water treatment plants require drives that can operate continuously with minimal maintenance intervention. The EU-189 W-DRIVE’s long MTBF design and 12-month warranty support the lifecycle requirements of municipal infrastructure operators.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Wittmann EU-189 W-DRIVE 20A/20A/20A?
All units are covered by a 12-month full functional warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we provide replacement or repair support. Our warranty covers manufacturing defects, component failure, and functional non-conformance verified through our pre-shipment testing protocol.

Q2: What pre-shipment testing is performed before dispatch?
Every EU-189 W-DRIVE 20A/20A/20A unit undergoes a multi-point outgoing inspection before shipment, including power-on functional verification, axis enable and disable cycle testing, communication interface check, and visual inspection for physical integrity. Units that do not pass all test points are quarantined and not dispatched. A test record is available upon request for quality-critical procurement.

Q3: Is the EU-189 W-DRIVE compatible with existing Wittmann robot controllers and servo motors?
Yes. The EU-189 W-DRIVE is designed for use within the Wittmann W-DRIVE servo system architecture and is compatible with Wittmann W-CONTROL series robot controllers and Wittmann-matched servo motors. For integration into third-party control systems, compatibility depends on the fieldbus protocol and encoder interface standard in use. Our technical team can advise on interface requirements prior to purchase.

Q4: Can you guarantee long-term supply and spare parts availability for this model?
We maintain dedicated stock of the Wittmann EU-189 W-DRIVE 20A/20A/20A to support both new installations and ongoing spare parts programs for existing production lines. For customers with planned maintenance schedules or multi-unit replacement programs, we offer reserved stock arrangements and priority dispatch. Contact our sales team to discuss long-term supply agreements tailored to your plant’s maintenance cycle.
