YAMATAKE SAB10-TS16J3 Maintenance-Ready Spare for SDS Automation

YAMATAKE SAB10-TS16J3 Maintenance-Ready Spare for SDS Automation

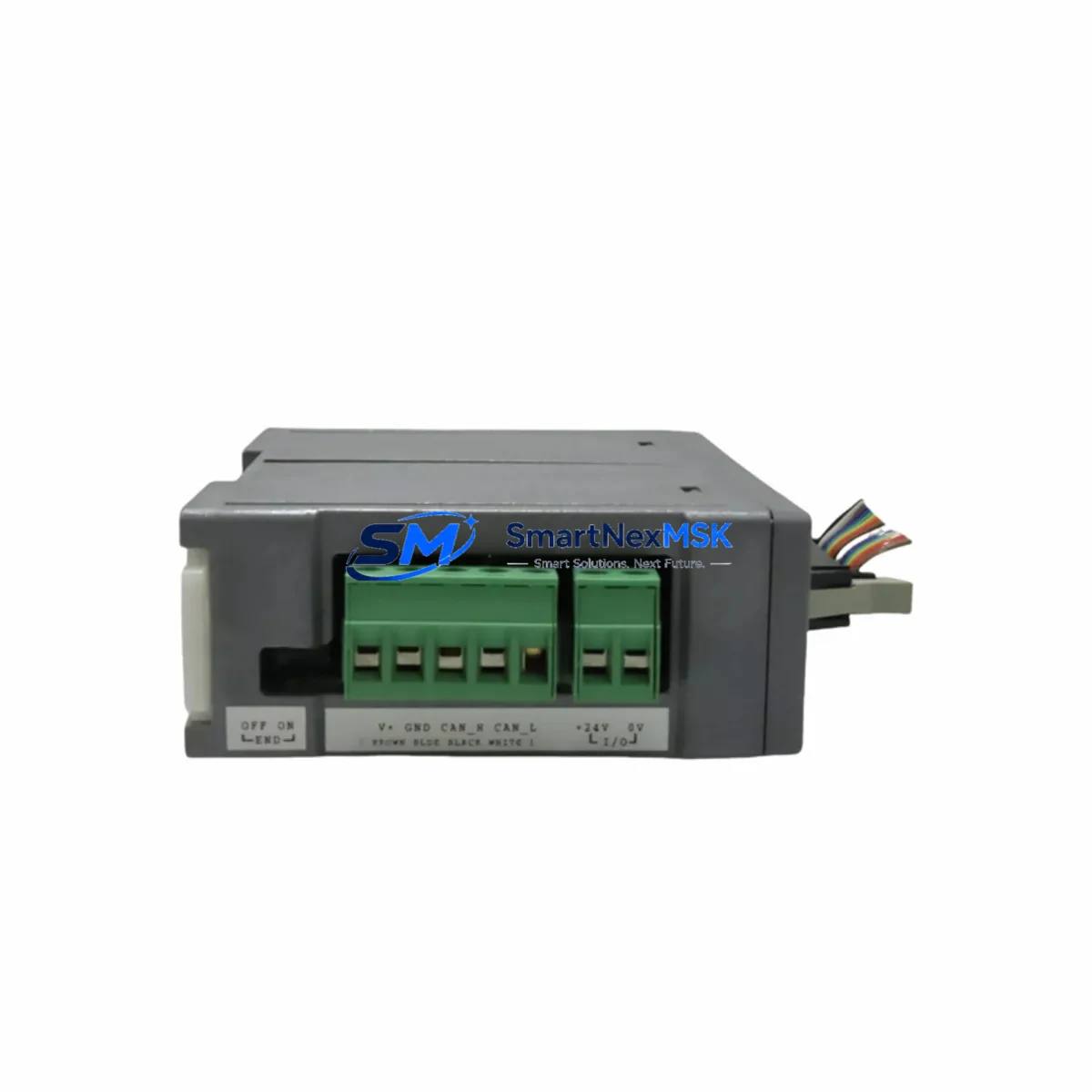

The YAMATAKE SAB10-TS16J3 is a 16-point distributed I/O module engineered for the Azbil SDS (Smart Distributed System) fieldbus architecture. In industrial automation environments — from chemical processing plants to building management systems — this module serves as a critical node in distributed control loops. When an SAB10-TS16J3 fails or degrades, the downstream impact is immediate: field signals are lost, the DCS loses visibility into process variables, and unplanned downtime begins accumulating costs. Maintaining a verified spare on the shelf is the single most effective strategy for rapid fault recovery.

For maintenance engineers and procurement teams managing aging SDS-based control systems, sourcing a genuine replacement SAB10-TS16J3 with confirmed compatibility is non-trivial. SMARTNEXMSK supplies original YAMATAKE (Azbil Corporation) components with full traceability, pre-shipment functional testing, and a 12-month warranty — ensuring your replacement module performs identically to the unit it replaces, without the risk of counterfeit or refurbished parts introducing new failure modes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an SAB10-TS16J3 in the field is rarely an isolated task. Experienced maintenance engineers know that a failed distributed I/O module is often a symptom of broader stress in the control cabinet or fieldbus segment. Before returning the system to service, a structured inspection of adjacent components is essential to prevent repeat failures and ensure long-term stability.

Begin with the SDS fieldbus power supply module — the SAB10-TS16J3 depends on stable bus voltage, and a degraded power supply is a common root cause of I/O module faults. Verify output voltage and ripple against YAMATAKE specifications. Next, inspect the SDS bus trunk cable and drop connectors: damaged shielding or loose termination resistors can cause intermittent communication errors that mimic module failure. If the system uses a YAMATAKE SAB10-CP16J3 or similar SDS coupler/repeater, confirm its status indicators show healthy bus communication before and after module swap.

On the I/O side, check the terminal block assemblies and field wiring connected to the 16 I/O points. Corroded terminals or over-torqued screws are a frequent source of signal degradation. If the module interfaces with 24VDC discrete sensors or solenoid outputs, verify that field device current draw remains within the module’s rated load capacity. For applications involving signal isolation, inspect any inline signal isolators or surge protection barriers in the I/O loop — these components absorb transient energy and may require replacement after a fault event.

At the controller level, confirm that the YAMATAKE SDS master station or DCS controller card has correctly re-recognized the replacement module after power-up. Review the controller’s diagnostic log for any residual bus errors. If the system includes a YAMATAKE HMI or operator station, verify that all 16 I/O tags associated with the SAB10-TS16J3 are displaying correctly and that no stale or frozen values remain in the process display. Finally, check the cabinet grounding bus and EMC bonding straps — poor grounding is a silent contributor to fieldbus instability and I/O module premature failure in industrial environments.

Site Replacement Workflow

The SAB10-TS16J3 is a direct replacement for legacy YAMATAKE SDS I/O modules of the same point count and connector type. Follow this workflow to minimize downtime and ensure a clean handover:

Step 1 — Isolation: Notify the control room operator and place the affected SDS segment in manual or safe-state mode. De-energize the field wiring connected to the module’s terminal block. Do not de-energize the entire SDS bus unless required — other modules on the segment can remain operational.

Step 2 — Documentation: Photograph the existing wiring layout and record the module’s address configuration (DIP switch or rotary switch settings) before removal. The replacement SAB10-TS16J3 must be configured to the identical node address to ensure the SDS master recognizes it without requiring a system reconfiguration.

Step 3 — Physical Swap: Remove the failed module, install the replacement SAB10-TS16J3, and reconnect field wiring per the documented layout. Torque terminal screws to specification. Reconnect the SDS bus drop connector.

Step 4 — Commissioning: Re-energize the module and observe the SDS bus status LEDs. Confirm the master station acknowledges the new module within the expected scan cycle. Perform a point-by-point I/O verification against the process P&ID to confirm all 16 channels are responding correctly.

Step 5 — Return to Service: Release the segment from manual mode, confirm stable operation over a 15-minute observation window, and update the maintenance log with the replacement date, module serial number, and any observations noted during the swap.

This workflow is compatible with both planned maintenance windows and emergency fault-response scenarios. The SAB10-TS16J3’s plug-and-play compatibility within the SDS architecture means no firmware upload or bus reconfiguration is required when the node address is correctly set — significantly reducing mean time to repair (MTTR).

Spare Parts Support FAQ

Q1: Is the SAB10-TS16J3 still in production, and how long can I expect supply continuity?
The YAMATAKE SDS product line has reached mature lifecycle status. SMARTNEXMSK maintains dedicated stock of the SAB10-TS16J3 to support customers operating legacy SDS systems through their planned decommission horizon. We recommend procurement teams secure a minimum 2-unit buffer stock to cover both planned replacements and emergency fault scenarios. Contact us for volume pricing and long-term supply agreements.

Q2: How do I verify compatibility before installation?
Confirm that your SDS network uses the same bus protocol revision and that the master station firmware supports the SAB10-TS16J3 module type. Check the node address range supported by your master — the replacement module must be assigned the same address as the failed unit. If you have the original system documentation or YAMATAKE project engineering files, share them with our technical team for pre-sale compatibility confirmation.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, fault description, and site photos. We will arrange return logistics and dispatch a replacement unit to minimize your downtime.

Q4: Is pre-shipment testing performed on every unit?
Yes. Every SAB10-TS16J3 dispatched by SMARTNEXMSK undergoes functional verification prior to shipment. This includes bus communication testing and I/O point continuity checks. A test report is available upon request for customers with quality management system (QMS) documentation requirements.
