Yaskawa JANCD-YCP21-E Spare for DX200 Automation

Yaskawa JANCD-YCP21-E Spare for DX200 Automation: Precision Spare Parts for Downtime Recovery

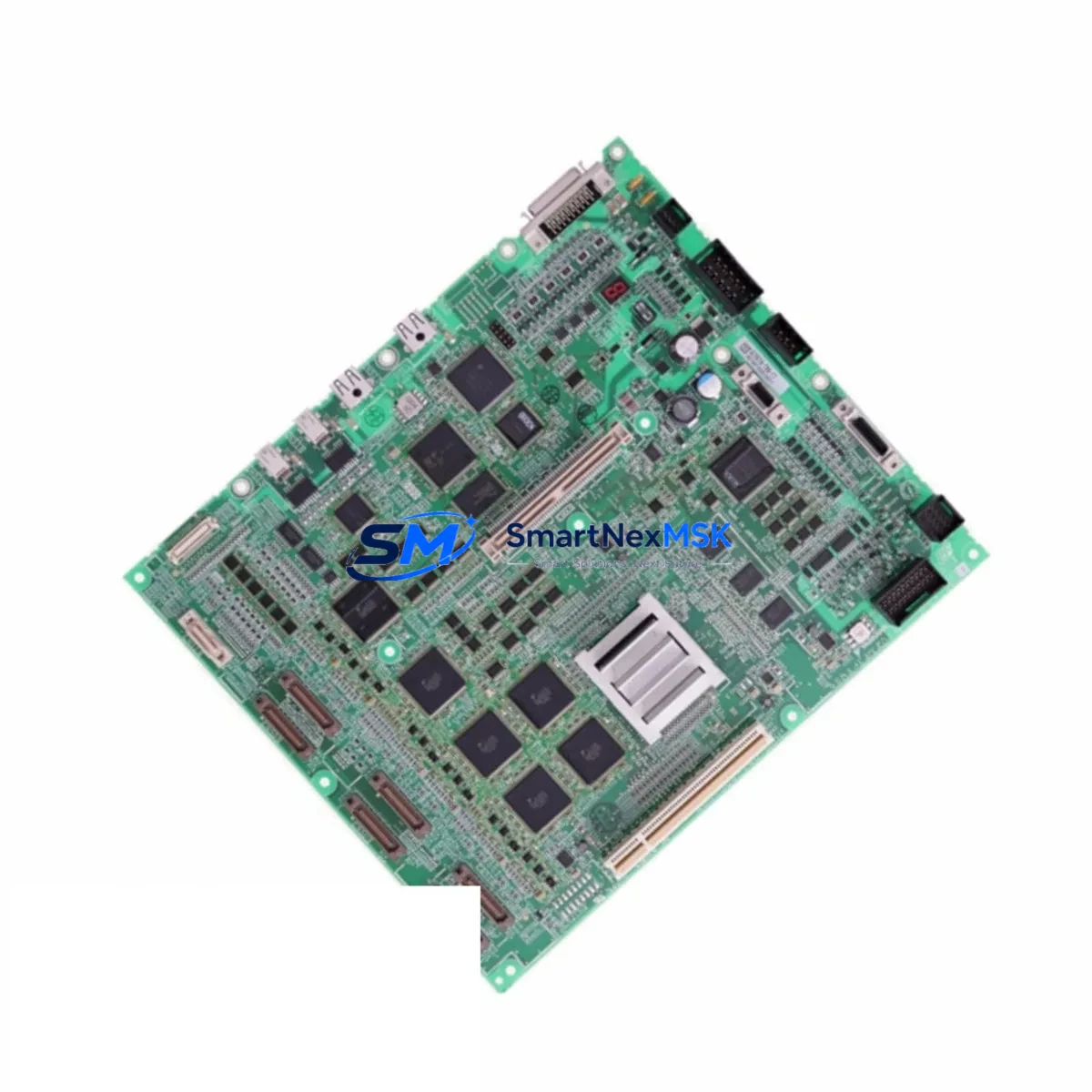

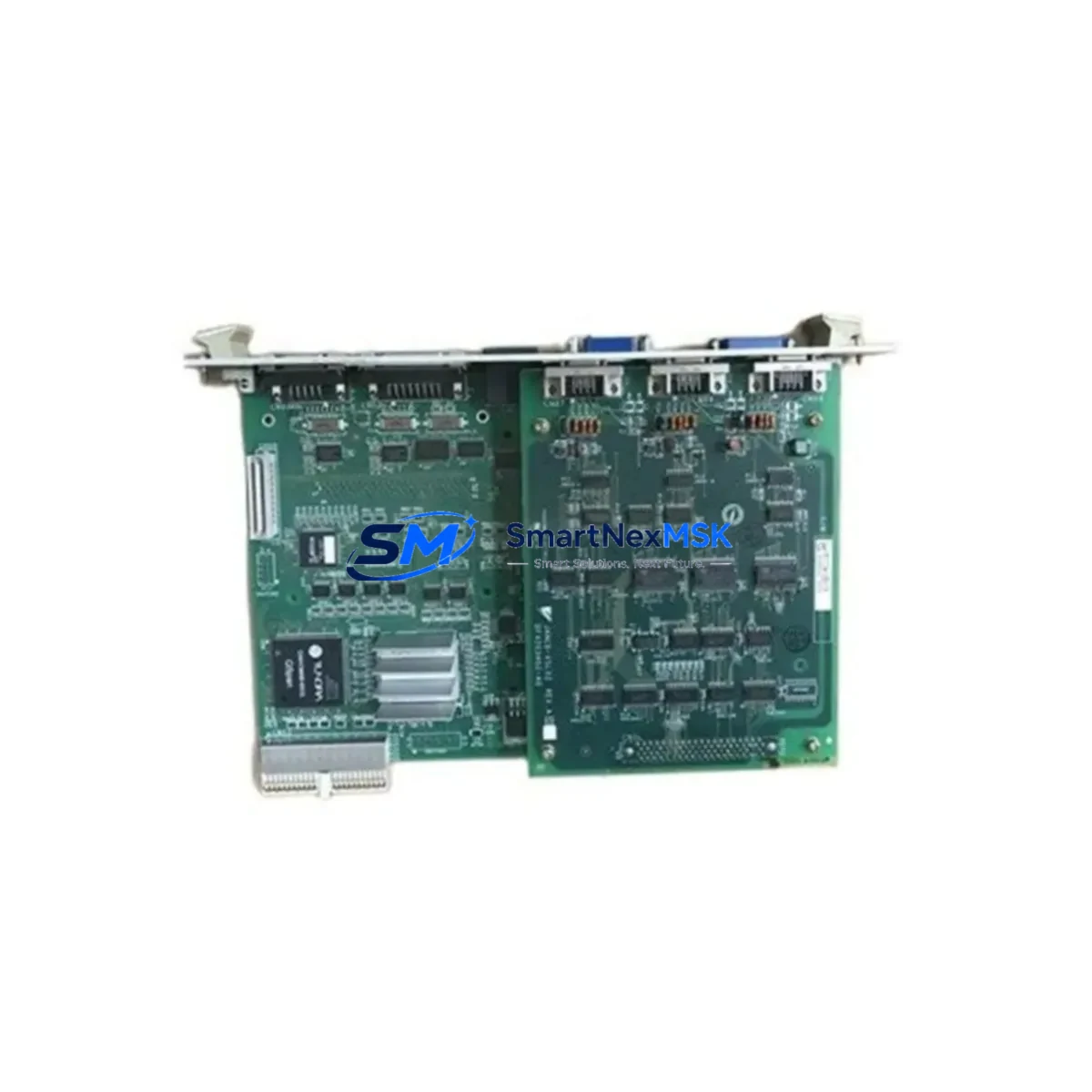

The Yaskawa JANCD-YCP21-E is the central CPU board of the DX200 robot controller — the core processing unit responsible for motion control, I/O coordination, safety logic, and real-time communication across the entire robotic cell. When this board fails, the entire robot system halts. For maintenance engineers managing Yaskawa DX200 installations in automotive, metal fabrication, electronics assembly, or general industrial environments, having a verified original spare on hand is not optional — it is a fundamental requirement of any serious maintenance strategy.

At SMARTNEXMSK, we supply original JANCD-YCP21-E boards sourced from authorized channels, fully tested prior to shipment, and backed by a 12-month warranty. Each unit is inspected for firmware integrity, connector condition, and board-level functionality before dispatch. We maintain stock continuity to support both planned maintenance cycles and emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The JANCD-YCP21-E does not operate in isolation. It is the nerve center of the DX200 controller, and its reliable operation depends on the health of every surrounding subsystem. When a maintenance or procurement engineer schedules a CPU board replacement, the following components should be inspected or replaced concurrently to prevent repeat failures and ensure full system restoration:

The JANCD-YSF21-E safety board works in direct coordination with the CPU board to manage emergency stop circuits, safety zone logic, and dual-channel safety I/O. A degraded safety board can cause intermittent CPU faults that are misdiagnosed as CPU board failures. Similarly, the JANCD-YIF01-E interface board handles external I/O signal routing between the controller and the robot cell — worn connectors or damaged traces on this board can corrupt I/O data and trigger CPU-level alarms.

The JZNC-YPS01-E power supply unit is the primary DC power source for all internal boards. Voltage ripple or output degradation from an aging PSU is a leading cause of CPU board damage; always verify PSU output rails (5V, 12V, 24V) before installing a replacement CPU board. The JANCD-YEW01-E Ethernet communication board and JANCD-YBB01-E backplane board should also be inspected — the backplane in particular is subject to connector wear from repeated board insertions during maintenance cycles.

For systems using fieldbus communication, the JANCD-YCP01-E or JANCD-YCP02-E sub-CPU boards (where fitted) handle axis-specific processing and should be checked for firmware version compatibility when the main CPU board is replaced. In multi-robot cells, the JZNC-YRK01-1E robot cable harness and teach pendant cable (typically JZRCR-YPP21-1) should be inspected for continuity and insulation integrity, as cable faults can generate false CPU alarms.

Maintenance engineers should also verify the JANCD-YFC21-E fan cooling unit condition — thermal stress from inadequate cooling is a primary accelerant of CPU board degradation in high-duty-cycle installations. Finally, confirm that the battery backup module (typically JZRCR-YPU01-1 or equivalent) is within its service life, as a depleted battery causes loss of program memory and parameter data on power cycle, which can be mistaken for CPU board failure.

Stocking these components alongside the JANCD-YCP21-E as a coordinated spare kit significantly reduces mean time to repair (MTTR) and supports a proactive maintenance posture rather than a reactive one.

Site Replacement Workflow

Replacing the JANCD-YCP21-E in a live production environment requires a structured approach to minimize downtime and avoid configuration loss. Before beginning, ensure the DX200 controller is powered down and locked out per site LOTO procedures. Back up all robot programs, system parameters, and I/O assignments using the DX200 teach pendant (JZRCR-YPP21-1) or Yaskawa MotoSim / MotoPlus backup utilities — this step is critical, as the replacement CPU board will not retain the previous system’s job files or calibration data.

Remove the existing JANCD-YCP21-E by releasing the board retention latch and carefully extracting it from the backplane slot. Inspect the backplane connector for bent pins or contamination before inserting the replacement board. After seating the new board, restore the backed-up system data via the teach pendant. Perform a controlled power-on sequence and verify that all axis alarms clear, safety circuits initialize correctly, and I/O mapping is intact before returning the robot to automatic mode.

For legacy DX100 or NX100 installations being upgraded to DX200 architecture, the JANCD-YCP21-E is a key enabler of system modernization — it supports current Yaskawa firmware versions and is compatible with modern fieldbus protocols, extending the operational life of existing robot mechanical units without full controller replacement. This approach delivers significant cost savings compared to new robot procurement while maintaining production continuity.

Spare Parts Support FAQ

Q1: Is the JANCD-YCP21-E compatible with all DX200 controller variants?
The JANCD-YCP21-E is the standard main CPU board for the DX200 platform and is compatible with the majority of DX200 controller configurations supporting Motoman MA, MH, MS, HP, ES, and VA series robots. For multi-robot or specialized safety configurations, please confirm the controller serial number and system software version with our technical team before ordering to ensure full compatibility.

Q2: How is the board tested before shipment?
Every JANCD-YCP21-E unit undergoes board-level functional verification prior to dispatch. This includes power-on testing, communication bus integrity checks, and visual inspection of all connectors and surface-mount components. Units are shipped in anti-static packaging with foam protection to prevent transit damage. A test report is available upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental parameters. Warranty claims are processed with return authorization; replacement or repair is provided at no charge for covered failures.

Q4: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. SMARTNEXMSK supports long-term supply agreements for maintenance departments and MRO procurement teams managing multi-site Yaskawa DX200 installations. We can reserve stock, provide scheduled delivery, and issue certificates of conformance for quality-managed supply chains. Contact our sales team to discuss volume pricing and supply continuity arrangements.
