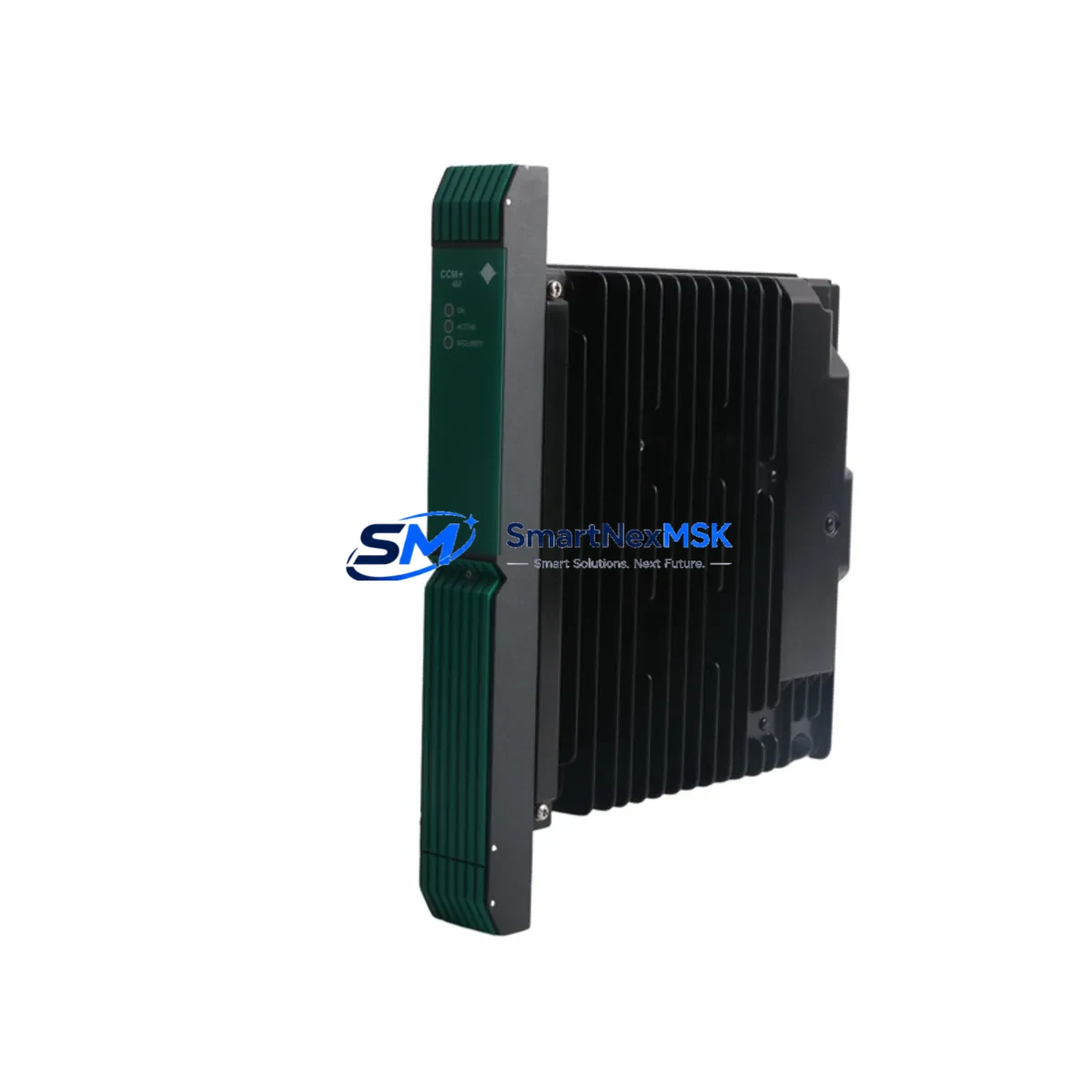

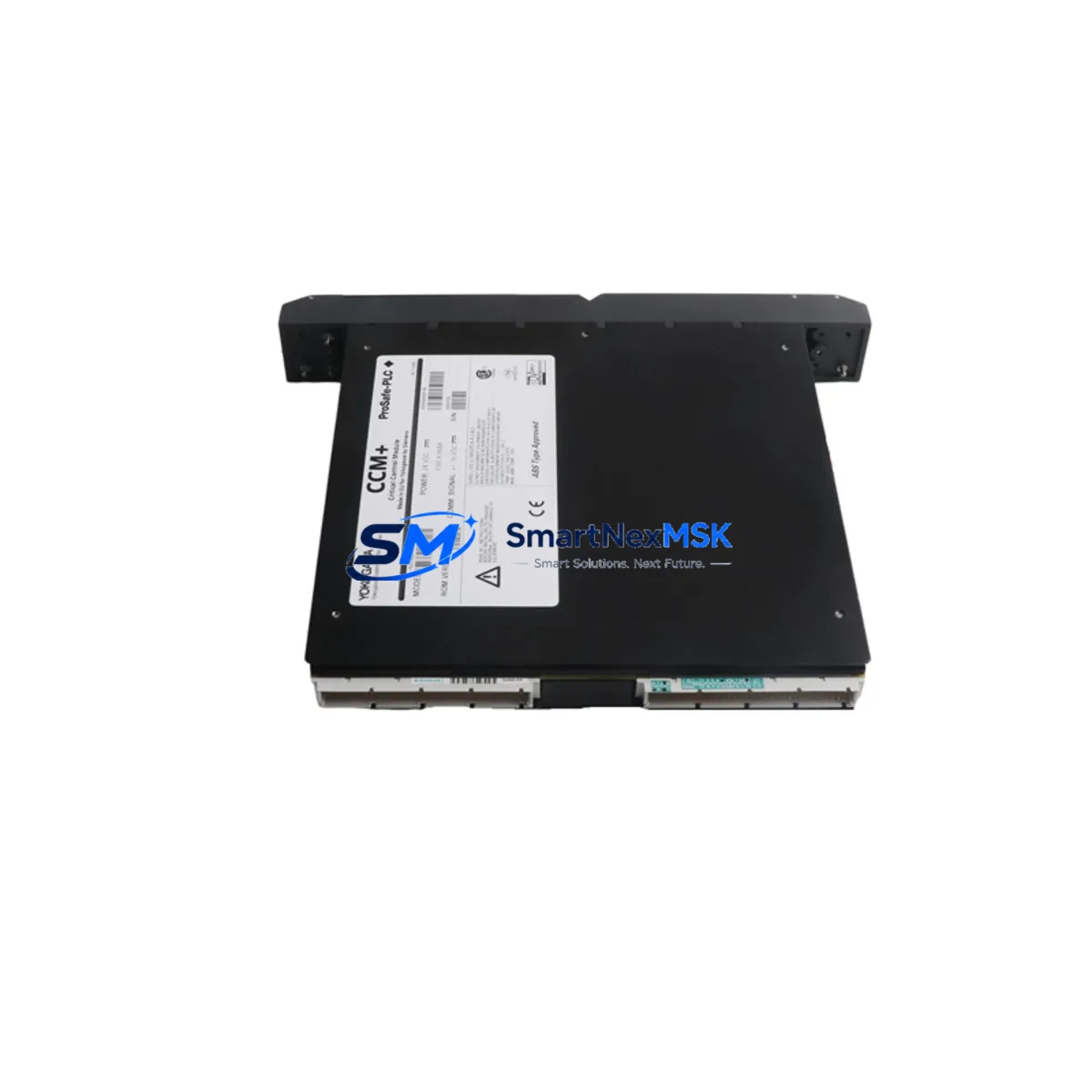

YOKOGAWA 16418-541/1 PSCCM24AAN Safety-Enhanced DCS Power Supply

YOKOGAWA 16418-541/1 PSCCM24AAN: Safety-Enhanced DCS Power Supply for Harsh Industrial Control Sites

The YOKOGAWA 16418-541/1 PSCCM24AAN is a ruggedized DC power supply module engineered for mission-critical distributed control system (DCS) architectures operating in demanding industrial environments. Designed specifically for the YOKOGAWA CENTUM VP and CENTUM CS 3000 platforms, this module delivers stable, conditioned 24 VDC power to field control stations, I/O subsystems, and safety instrumented system (SIS) components where power integrity is non-negotiable.

In high-load continuous production facilities — including petrochemical complexes, thermal power plants, metallurgical smelters, and offshore processing platforms — even a momentary power anomaly can cascade into a full process shutdown or, worse, a safety-critical failure. The PSCCM24AAN addresses this risk through its hardened internal regulation circuitry, which actively suppresses voltage ripple, absorbs transient surges, and maintains output stability across wide input voltage fluctuations. Its EMI-shielded design ensures that high-frequency interference from variable-frequency drives (VFDs), large motor starters, and arc furnace operations does not propagate into the DCS backplane, protecting the integrity of control signals across connected YOKOGAWA ADV151 analog input modules, ADV557 digital output modules, and AAI141 multi-point analog I/O cards.

For control cabinet designers and system integrators, the 16418-541/1 PSCCM24AAN slots directly into the CENTUM VP field control unit (FCU) chassis without modification, maintaining full compatibility with the YOKOGAWA ACF11 communication bus coupler and ESB bus architecture. This plug-and-play replacement capability is critical for brownfield sites where minimizing downtime during scheduled maintenance windows is a primary operational constraint. The module’s compact form factor and standardized connector interface allow hot-swap replacement in under ten minutes by qualified field technicians, reducing mean time to repair (MTTR) and supporting continuous 24/7 production schedules.

In safety instrumented systems and critical interlock loops, power supply reliability is a foundational requirement of IEC 61511 functional safety compliance. The PSCCM24AAN supports redundant power configurations when paired with a secondary YOKOGAWA PSCCM24AAN unit or compatible redundant power supply chassis, ensuring that a single module failure does not compromise the availability of the safety loop. This redundancy architecture is widely deployed in emergency shutdown (ESD) panels, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS) across refinery and LNG terminal applications.

Beyond power delivery, the module contributes to overall control system resilience by isolating downstream DCS components from upstream grid disturbances. In mining and mineral processing environments — where heavy equipment cycling creates repetitive voltage sags — the 16418-541/1 acts as a buffer, preventing these disturbances from reaching sensitive YOKOGAWA FFCS field control stations or Vnet/IP communication nodes. Similarly, in water treatment and wastewater facilities operating with variable pump loads, the module’s regulated output protects YOKOGAWA EJX910A multivariable transmitters and EJA110E differential pressure transmitters connected to the DCS I/O network from signal corruption caused by power line noise.

All units supplied by SMARTNEXMSK undergo pre-shipment functional verification, including output voltage accuracy testing, load regulation testing under rated current, and visual inspection for connector integrity and PCB condition. Each module is shipped with anti-static protective packaging and is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Long-term inventory availability is maintained to support both planned capital replacement programs and emergency spare parts procurement for operational sites.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust DCS control cabinet in a continuous process plant is only as reliable as its weakest power link. The YOKOGAWA 16418-541/1 PSCCM24AAN anchors the power distribution layer of the FCU cabinet, providing clean, regulated 24 VDC to every downstream module in the rack. In a typical CENTUM VP cabinet configuration, this includes YOKOGAWA ADV151-P analog voltage input modules, ADV557-P digital output modules, and AAI141-S00 multi-point analog I/O cards — all of which require stable power to maintain signal accuracy within ±0.1% of span.

When the power supply module is paired with a YOKOGAWA ACF11 ESB bus coupler and CP451-10 controller processor, the entire FCU operates as a self-contained, fault-tolerant control node. Adding a secondary PSCCM24AAN in a redundant slot configuration ensures that a single power module failure triggers automatic switchover without interrupting the control loop — a critical requirement for interlock systems governing high-pressure reactors, fired heaters, and rotating machinery protection circuits.

For sites where the DCS communicates over Vnet/IP or FOUNDATION Fieldbus H1 segments, power quality at the module level directly affects communication stability. Voltage ripple exceeding acceptable thresholds can cause YOKOGAWA EJX110A pressure transmitters or YTA710 temperature transmitters on the fieldbus segment to report erratic process values, triggering nuisance alarms or, in worst cases, spurious safety trips. The 16418-541/1 eliminates this risk by maintaining output ripple within tight tolerances, ensuring that fieldbus segment power conditioners and YOKOGAWA F3SP28-3N safety CPU modules receive clean, stable supply voltage at all times.

In hazardous area installations where the DCS interfaces with YOKOGAWA KFDO-SD2 Zener barriers or galvanic isolators for intrinsically safe field loops, the power supply module’s isolation characteristics prevent ground loop currents from corrupting 4–20 mA signals on critical measurement loops — a common failure mode in older installations with inadequate power supply filtering.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In crude distillation units, catalytic crackers, and hydroprocessing reactors, the YOKOGAWA 16418-541/1 PSCCM24AAN powers the DCS I/O subsystems that monitor and control critical process variables including reactor temperature, column pressure differential, and feed flow rates. Reliable power delivery to these control nodes is a prerequisite for maintaining safe operating envelopes and preventing runaway conditions.

Thermal Power Generation: Boiler management systems and turbine control panels in coal-fired and gas-fired power stations rely on CENTUM VP DCS platforms for coordinated control of combustion air, fuel gas, and steam parameters. The PSCCM24AAN ensures that the FCU powering burner management interlocks remains energized and stable even during grid disturbances caused by large generator synchronization events.

Mining and Mineral Processing: Concentrator plants and smelter control rooms operating in high-dust, high-vibration environments demand power supply modules with robust mechanical construction and wide thermal tolerance. The 16418-541/1 supports continuous operation in these conditions, powering DCS nodes that control ball mill loading, flotation cell chemistry, and smelter off-gas treatment systems.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities using CENTUM CS 3000 or CENTUM VP for SCADA-integrated process control depend on stable DCS power for pump sequencing, chemical dosing control, and effluent quality monitoring. The PSCCM24AAN provides the power foundation for these systems, supporting uninterrupted operation across variable load cycles driven by diurnal flow patterns.

Port and Terminal Automation: Bulk liquid terminal management systems controlling loading arms, tank farm valves, and metering skids require DCS power modules that can withstand the electromagnetic environment created by large crane drives and ship-to-shore power systems. The 16418-541/1 PSCCM24AAN is well-suited to these applications, maintaining control system integrity in the presence of high-energy switching transients.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the YOKOGAWA 16418-541/1 PSCCM24AAN?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes output voltage regulation failures, internal component defects, and connector integrity issues identified during operation. Physical damage caused by incorrect installation, overvoltage events beyond rated input, or unauthorized modification is excluded. Warranty claims are processed with priority to minimize site downtime.

Q2: What pre-shipment testing is performed on each module?
Every 16418-541/1 PSCCM24AAN unit undergoes output voltage accuracy verification at rated load, load regulation testing across the specified current range, visual inspection of PCB condition and connector integrity, and anti-static packaging verification before dispatch. This ensures that each module arrives in fully functional condition and is ready for immediate installation without additional bench testing.

Q3: Is this module compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The YOKOGAWA 16418-541/1 PSCCM24AAN is compatible with both the CENTUM VP and CENTUM CS 3000 FCU chassis platforms. It interfaces with the ESB bus architecture and is compatible with the ACF11 bus coupler. For specific chassis slot assignments and redundancy configurations, refer to the YOKOGAWA CENTUM VP Engineering Guide or contact our technical support team for application-specific confirmation.

Q4: Can long-term supply be guaranteed for MRO and planned replacement programs?
Yes. SMARTNEXMSK maintains dedicated inventory of the 16418-541/1 PSCCM24AAN to support both emergency spare parts procurement and scheduled capital replacement programs. For sites requiring guaranteed annual supply volumes or framework agreements for DCS maintenance contracts, please contact our sales team to discuss stocking arrangements and lead time commitments.
