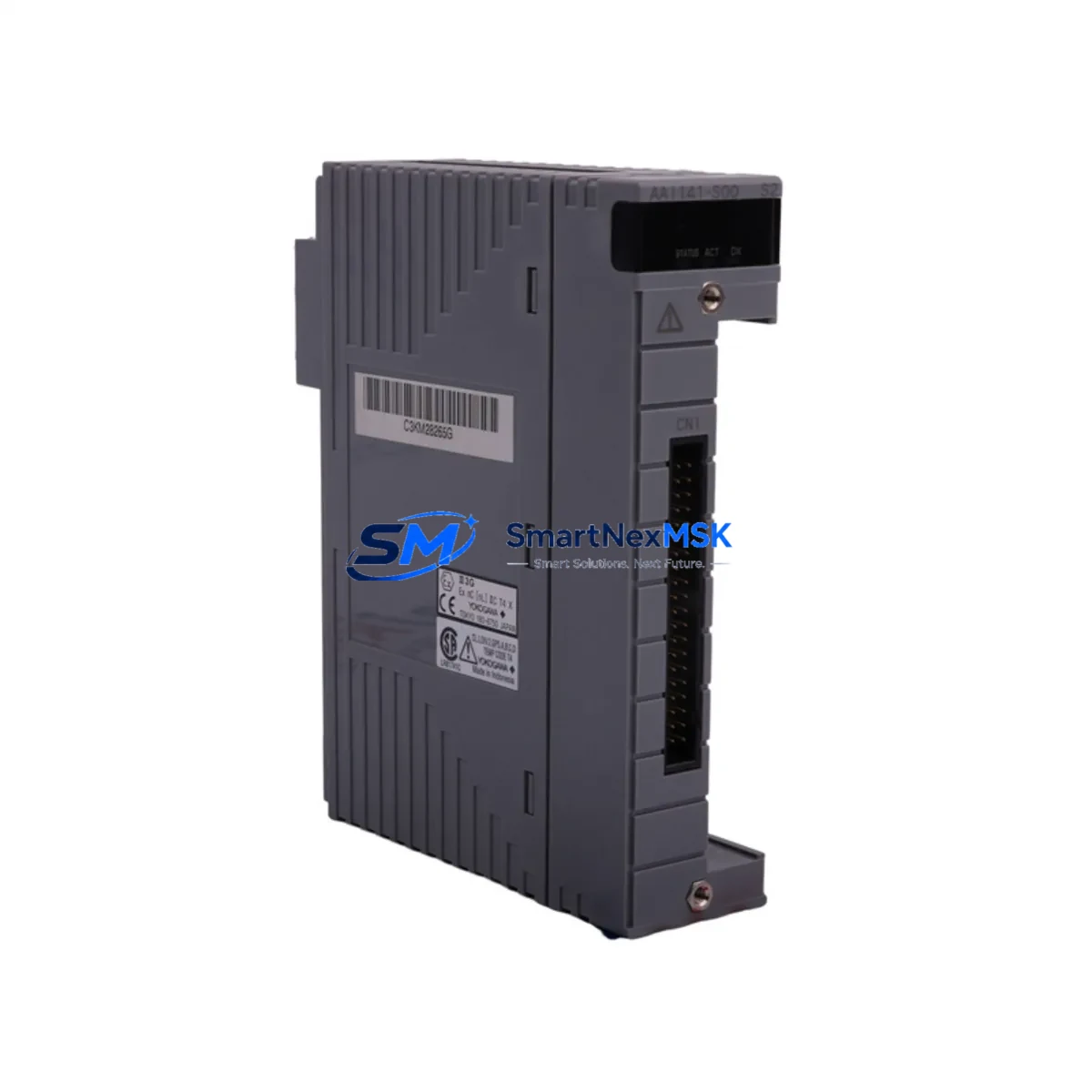

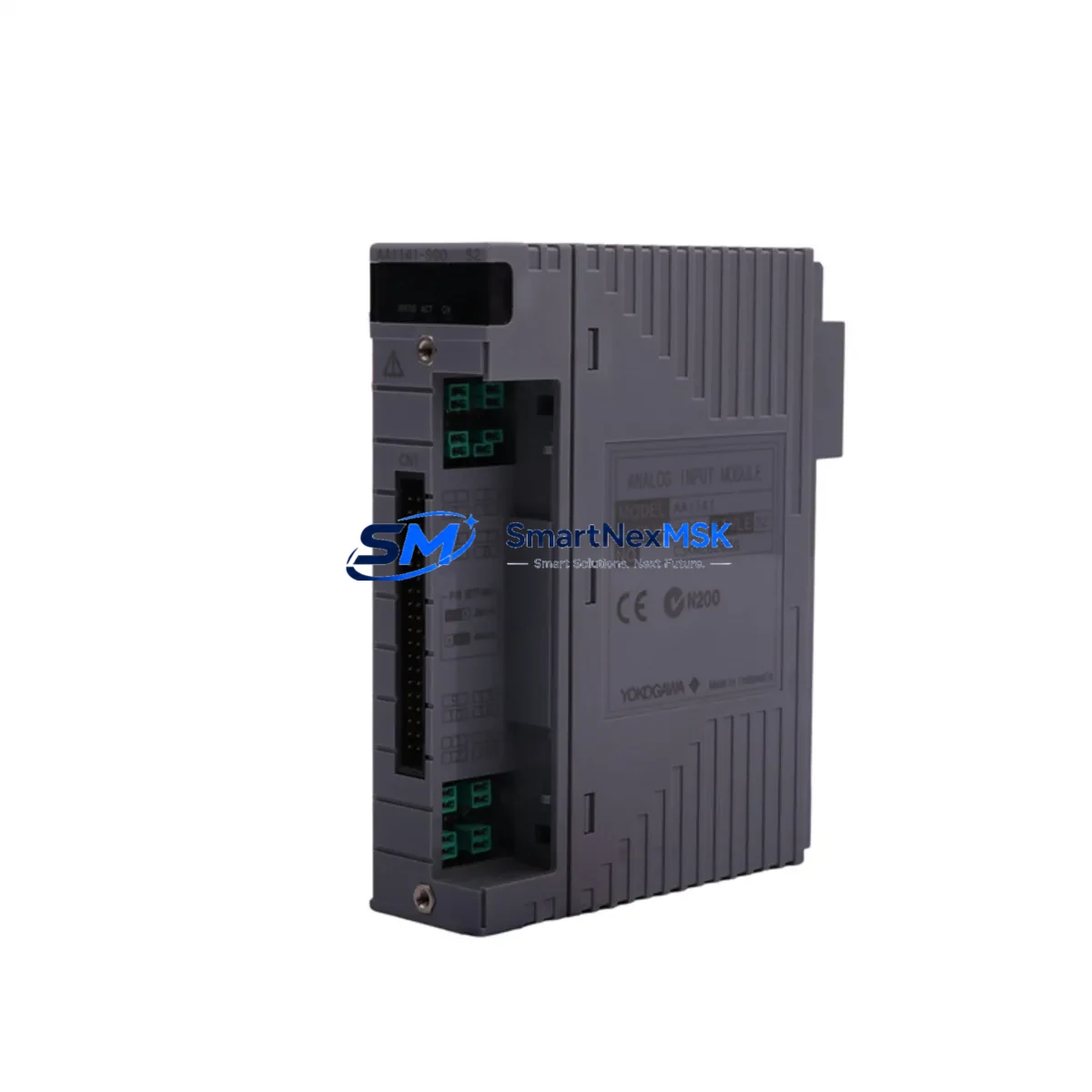

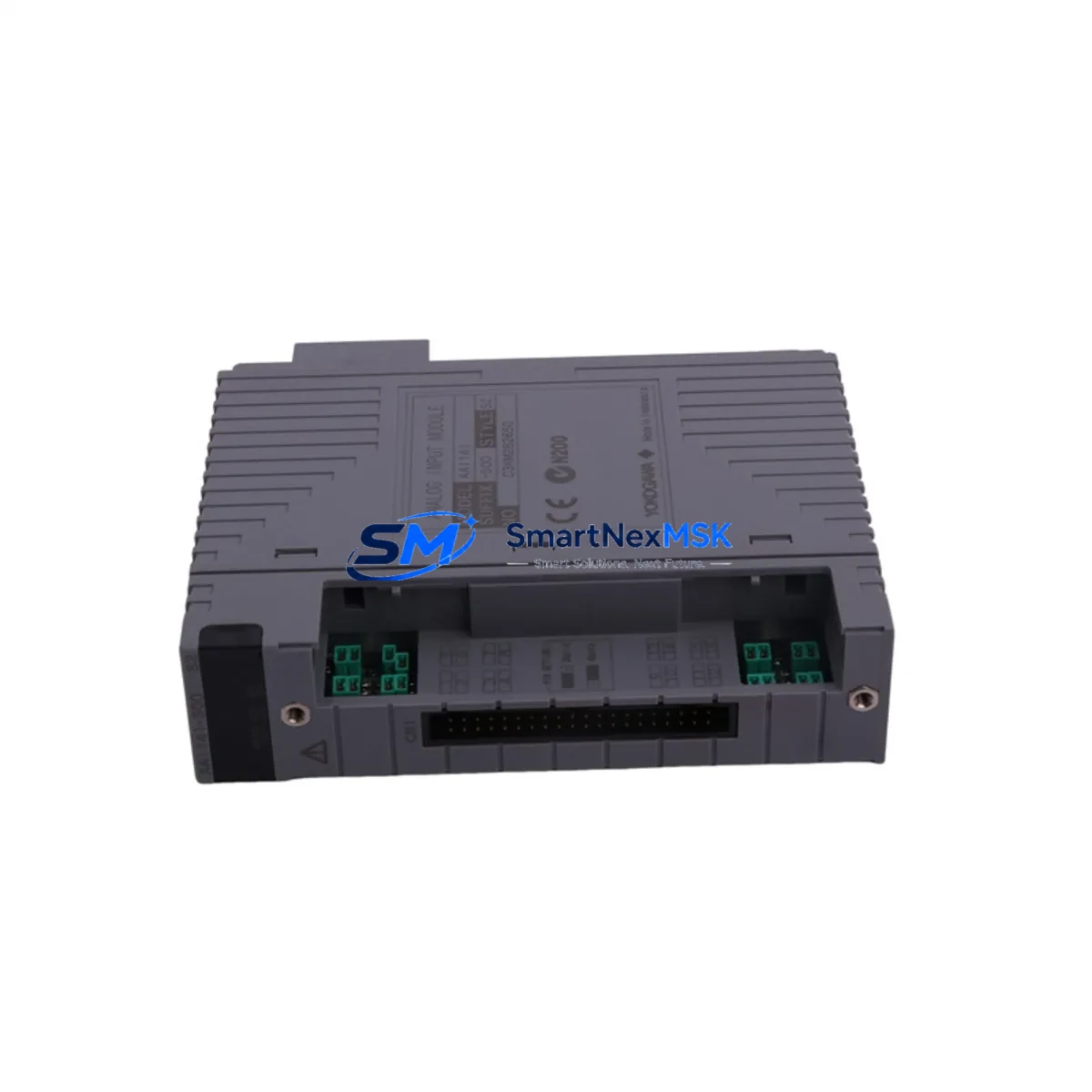

YOKOGAWA AAI141-S00 S2 Retrofit-Ready Analog Input Module

YOKOGAWA AAI141-S00 S2 Retrofit-Ready Analog Input Module for CENTUM VP & CS 3000 Control Systems

The YOKOGAWA AAI141-S00 S2 is a 16-channel analog input module engineered for seamless integration into CENTUM VP and CS 3000 distributed control systems. As legacy DCS installations age and original spare parts become increasingly scarce, the AAI141-S00 S2 stands as the definitive retrofit-ready replacement — purpose-built to restore full system functionality without requiring hardware redesign, backplane modification, or software re-engineering. Whether you are managing a planned upgrade cycle, responding to an unplanned module failure, or executing a phased migration from CS 3000 to CENTUM VP R6, this module delivers the compatibility, signal integrity, and field-proven reliability that industrial automation engineers demand.

Each AAI141-S00 S2 unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification covering channel-by-channel signal accuracy, HART communication handshake, and backplane interface continuity. All units are covered by a 12-month warranty from the date of shipment, with documented test records available upon request.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AAI141-S00 S2 into an operating plant begins well before the module arrives on site. Engineers should start by auditing the target node unit — typically an ANB10D or ANB11D remote node — to confirm available slot positions, current power budget, and the revision level of the installed FCS (Field Control Station). The node’s power supply modules, such as the PW481 or PW482, must have sufficient headroom to support the additional analog input load; a node operating near its power ceiling may require a supplementary power supply before the new module can be safely installed.

Terminal block compatibility is the next critical checkpoint. The AAI141-S00 S2 uses a front-access terminal block — confirm whether the installed TB481 or TB482 terminal block matches the field cable gauge and shielding requirements for your 4–20 mA loops. In many retrofit scenarios, the existing terminal block can be reused, which eliminates the need to re-terminate field wiring and significantly reduces installation time.

On the software side, the module address assigned in CENTUM VP Builder (or CS 3000 System View) must match the physical slot position. For a like-for-like replacement of a failed AAI141-S00 or AAI141-S00 S1, the IOM tag, channel assignments, and scaling parameters already resident in the FCS database remain valid — no FCS download is required, and the HMI graphic displays built in CENTUM VP HIS (Human Interface Station) will continue to reference the correct tag names without modification.

Where the retrofit involves migrating from CS 3000 to CENTUM VP, engineers must account for the differences in the Vnet/IP communication architecture versus the legacy V-net coaxial bus. In this scenario, the AAI141-S00 S2 is installed into a new CENTUM VP node, and the CS 3000 FCS control logic is re-engineered using CENTUM VP Builder. The HART device descriptors for field instruments — pressure transmitters, flow meters, and temperature sensors connected to the analog input channels — should be re-imported into the new FCS to preserve HART variable mapping and device diagnostics. Communication modules such as the ALR111 or ACM12 may be required to bridge legacy serial protocols during the transition period.

For I/O expansion projects, the AAI141-S00 S2 is frequently deployed alongside AAI841-S00 analog output modules, ADV151-P00 digital input modules, and ADV551-P00 digital output modules within the same node, allowing engineers to build a complete mixed I/O node without introducing additional hardware platforms. This approach preserves the existing control cabinet layout, minimizes new cable runs, and keeps the engineering change footprint small — a critical consideration when working under a tight maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any DCS retrofit project. For emergency replacements of a failed AAI141-S00 or AAI141-S00 S2, the physical swap procedure is straightforward: power down the affected node (or use hot-swap procedures if supported by the installed FCS revision), extract the failed module, insert the replacement, and restore power. The FCS will automatically recognize the module at the pre-configured IOM address and resume scanning within seconds — no engineering tool connection is required for a like-for-like replacement.

For planned migrations, the recommended approach is a phased cutover: install the new CENTUM VP node in parallel with the existing CS 3000 node, verify signal integrity on all 16 analog input channels using the CENTUM VP HIS trend displays, and then transfer control authority from the legacy FCS to the new FCS during a scheduled process hold. This parallel-run strategy protects the original program logic — the CS 3000 FCS remains online and in control until the new system is fully validated, eliminating the risk of a failed cutover forcing an unplanned restart.

Field calibration records for all HART instruments connected to the AAI141-S00 S2 channels should be archived before the cutover. After the new module is online, verify each channel’s 4 mA (0%) and 20 mA (100%) readings against the calibration baseline to confirm that signal scaling has been correctly transferred. Any discrepancies in engineering unit conversion or range configuration should be resolved in CENTUM VP Builder before the parallel-run period ends. Keeping the commissioning checklist granular — one line per channel, per instrument — ensures that no signal path is overlooked and that the control room operators can confirm normal operation before the legacy system is decommissioned.

Retrofit Support FAQ

Q1: Is the AAI141-S00 S2 a direct drop-in replacement for the AAI141-S00 and AAI141-S00 S1?
Yes. The S2 revision is functionally identical to the S00 and S1 variants. It occupies the same backplane slot, uses the same terminal block, and requires no changes to the FCS database or HMI configuration. The S2 designation reflects an internal EMC shielding enhancement and does not affect signal processing, HART communication, or channel addressing.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the AAI141-S00 S2?
Every unit undergoes a full functional test prior to shipment: all 16 analog input channels are verified for signal accuracy across the 4–20 mA range, HART communication is confirmed at the module level, and backplane connector integrity is inspected. A test record is available upon request and accompanies units shipped under formal purchase orders. All units are covered by a 12-month warranty from the shipment date.

Q3: Do I need to perform an FCS download after replacing a failed module with the AAI141-S00 S2?
For a like-for-like replacement (same slot, same IOM address), no FCS download is required. The FCS automatically re-establishes communication with the module at the configured address upon power restoration. An FCS download is only necessary if the module address, channel configuration, or I/O tag assignments have changed as part of the retrofit scope.

Q4: Can the AAI141-S00 S2 be used in a CS 3000 to CENTUM VP migration project?
Yes. The AAI141-S00 S2 is fully supported in CENTUM VP R4, R5, and R6 environments. When migrating from CS 3000, the module is installed into a new CENTUM VP node unit, and the control logic is re-engineered in CENTUM VP Builder. SMARTNEXMSK can supply the AAI141-S00 S2 alongside other migration-critical components — including node power supplies, communication modules, and terminal blocks — to support a complete node build-out from a single source.
