YOKOGAWA AAI143-H00 S1 Safety-Enhanced Analog Input Module

YOKOGAWA AAI143-H00 S1: Safety-Enhanced Analog Input Module for Harsh Industrial Control

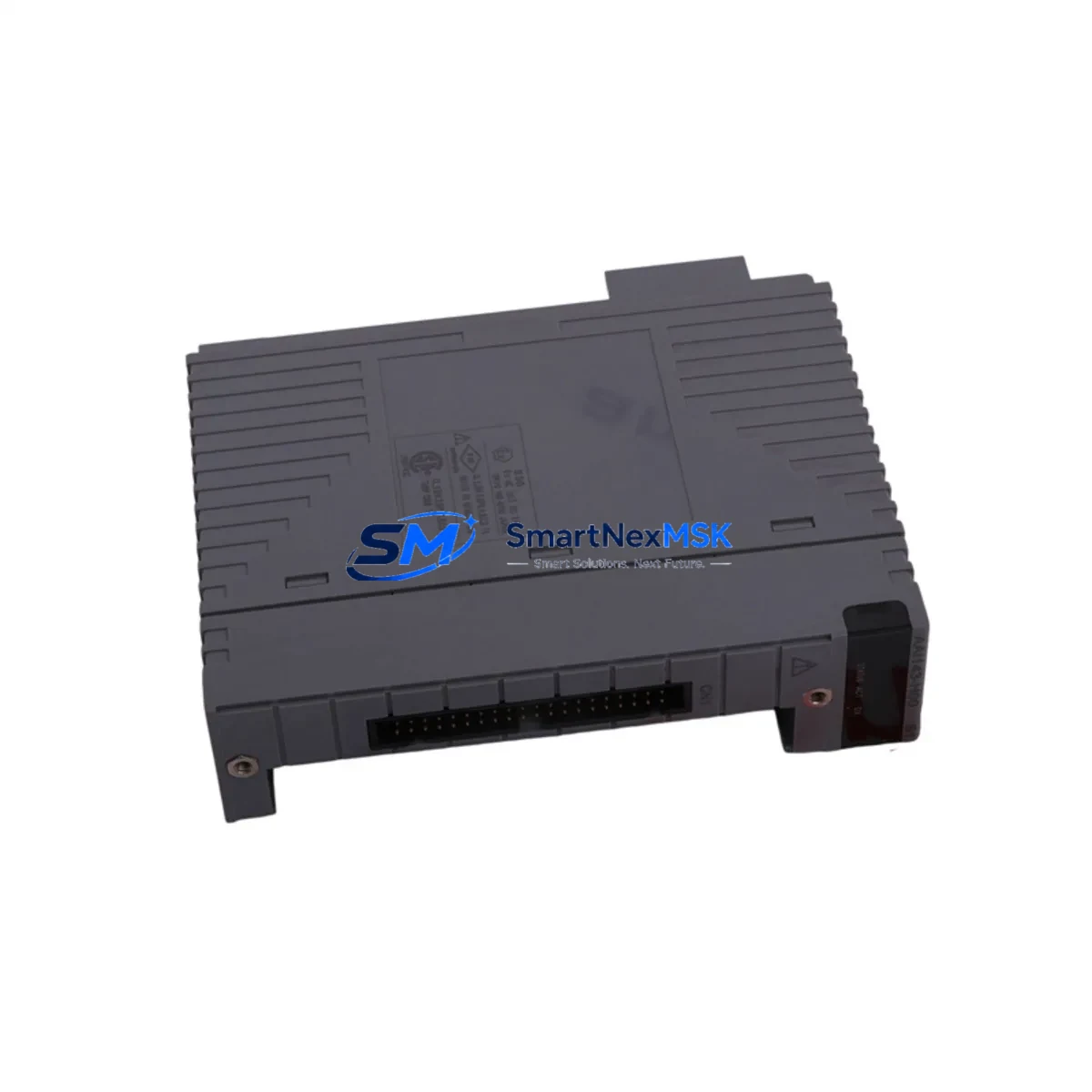

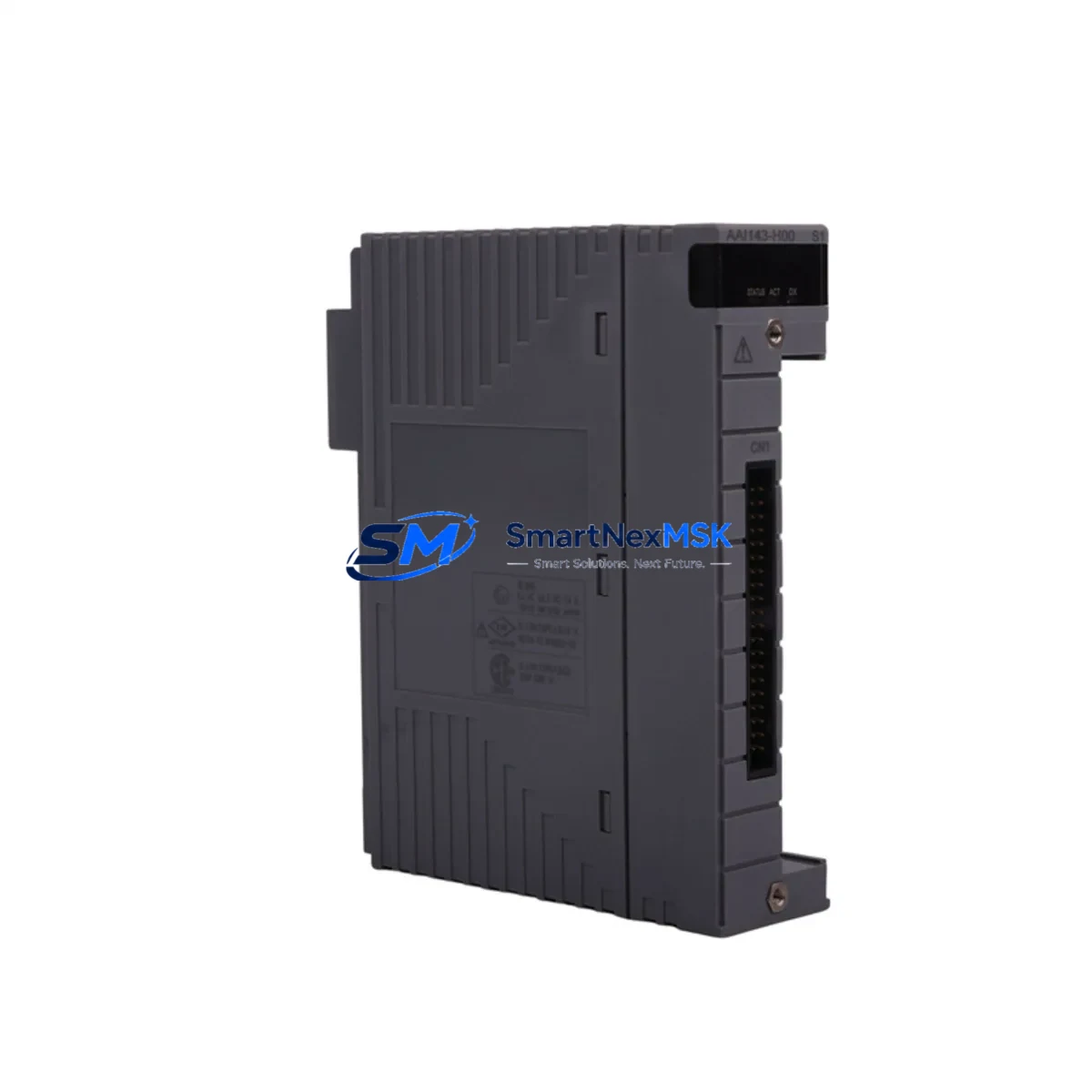

The YOKOGAWA AAI143-H00 S1 is a 16-channel analog input module engineered for mission-critical distributed control system (DCS) environments where signal integrity, control loop continuity, and field safety are non-negotiable. Designed for seamless integration with the YOKOGAWA CENTUM VP and CENTUM CS 3000 DCS platforms, this module delivers exceptional measurement accuracy and fault-tolerant performance across the most demanding industrial sites — including petrochemical complexes, power generation facilities, metallurgical plants, water treatment infrastructure, and continuous process manufacturing lines.

In high-stakes control architectures, a single analog input failure can cascade into process upsets, safety interlock activations, or unplanned shutdowns. The AAI143-H00 S1 is purpose-built to eliminate these risks. Its ruggedized hardware design ensures stable 4–20 mA signal acquisition even under severe electromagnetic interference (EMI), ground loop noise, power supply fluctuations, and wide ambient temperature swings — conditions routinely encountered in heavy industrial control cabinets and hazardous area field junction boxes.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered CENTUM VP control cabinet, the AAI143-H00 S1 operates as the primary field signal acquisition layer, feeding real-time process values into the DCS controller for closed-loop regulation and safety interlock evaluation. Its individual channel isolation architecture prevents a fault on one field instrument from propagating to adjacent measurement channels — a critical protection feature in multi-loop control panels where dozens of transmitters share the same I/O nest.

For complete cabinet-level protection, the AAI143-H00 S1 is typically deployed alongside the YOKOGAWA AAI141-S00 (8-channel analog input module) for redundant measurement coverage on critical process variables. Analog output control is handled by the YOKOGAWA AAO145-S00 analog output module, which drives control valves and positioners based on the controller’s computed output. Digital interlock signals are managed by the YOKOGAWA ADV151-P00 digital input module and the YOKOGAWA ADV551-P00 digital output module, forming a complete I/O complement within the same I/O nest.

Power integrity is maintained by the YOKOGAWA PW481 power supply module, which provides regulated, redundant DC power to the I/O bus — protecting all installed modules, including the AAI143-H00 S1, from upstream power fluctuations and voltage sags. For communication backbone protection, the YOKOGAWA CP451-10 field control station (FCS) processor manages Vnet/IP communication, ensuring that analog input data from the AAI143-H00 S1 reaches the operator station without latency or packet loss even under high network load.

In safety instrumented system (SIS) architectures, the AAI143-H00 S1 is often paired with the YOKOGAWA ProSafe-RS safety controller series for cross-validation of critical analog measurements — such as pressure, temperature, and flow — before safety function activation. Surge and transient protection at the field terminal level is reinforced by DIN-rail mounted surge protection devices (SPDs) installed at the marshalling cabinet, preventing lightning-induced or switching transients from reaching the module’s sensitive input circuitry. The combination of the AAI143-H00 S1 with a YOKOGAWA YFGW410 field wireless management station further extends analog input coverage to remote field instruments without additional cabling infrastructure.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation columns, reactor temperature control loops, and pressure safety systems, the AAI143-H00 S1 provides the high-accuracy analog input backbone that feeds PID controllers and emergency shutdown (ESD) logic. Its surge-protected inputs and wide operating temperature range ensure uninterrupted signal acquisition even in the presence of high-voltage switching equipment and steam-laden environments.

Power Generation Facilities: Turbine control systems, boiler drum level monitoring, and generator excitation control all depend on precise, low-drift analog measurements. The AAI143-H00 S1’s 16-bit resolution and ±0.1% accuracy make it suitable for these high-consequence measurement loops where signal drift could trigger unnecessary turbine trips or mask developing faults.

Mining & Mineral Processing: Crusher load monitoring, flotation cell level control, and conveyor belt tension measurement in underground and open-pit mining environments expose I/O modules to extreme vibration, dust ingress, and wide temperature cycling. The S1 ruggedized variant of the AAI143-H00 is rated for extended temperature operation, making it the preferred choice for these harsh-environment deployments.

Water & Wastewater Treatment: Flow measurement, pH monitoring, dissolved oxygen control, and chemical dosing systems in municipal and industrial water treatment plants require reliable, continuous analog input acquisition. The AAI143-H00 S1 supports long-term, unattended operation with minimal calibration drift — reducing maintenance intervention and ensuring regulatory compliance for effluent quality monitoring.

Metallurgy & Steel Production: In electric arc furnace (EAF) control, rolling mill tension regulation, and continuous casting temperature monitoring, the AAI143-H00 S1 operates reliably in the presence of intense electromagnetic fields generated by high-current bus bars and induction heating equipment. Its EMI-hardened design and channel isolation prevent measurement corruption in these electrically hostile environments.

Port & Bulk Material Handling: Ship loader control systems, stacker-reclaimer automation, and conveyor network management rely on distributed analog input modules to monitor motor currents, belt tensions, and material flow rates across large geographic areas. The AAI143-H00 S1’s compatibility with the CENTUM VP distributed I/O architecture allows it to be deployed in remote I/O panels far from the central control room without signal degradation.

Safety and Quality FAQ

Q1: What warranty coverage does the YOKOGAWA AAI143-H00 S1 carry?
Every AAI143-H00 S1 module supplied by SMARTNEXMSK is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair support, minimizing your plant’s exposure to extended downtime.

Q2: What pre-shipment testing is performed on each module?
All AAI143-H00 S1 units undergo functional verification testing prior to dispatch, including power-on self-test confirmation, channel continuity checks, and visual inspection for physical damage. Modules are shipped in anti-static protective packaging to prevent ESD damage during transit.

Q3: Is the AAI143-H00 S1 compatible with both CENTUM VP and CS 3000 systems?
Yes. The AAI143-H00 S1 is designed for cross-compatibility with YOKOGAWA CENTUM VP and CENTUM CS 3000 DCS platforms, fitting standard I/O nests and communicating over the CENTUM internal bus without requiring hardware modification. Always verify your specific nest and FCS firmware version with your system integrator before installation.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated inventory of YOKOGAWA CENTUM series I/O modules, including the AAI143-H00 S1, to support ongoing spare parts programs, planned maintenance shutdowns, and emergency replacement requirements. We offer stable, long-term supply commitments for industrial customers with multi-year maintenance contracts.
