YOKOGAWA AAI143-S50 S1 Spare for CENTUM VP Automation

YOKOGAWA AAI143-S50 S1 Spare for CENTUM VP Automation: Spare Replacement & Industrial Downtime Risk Control

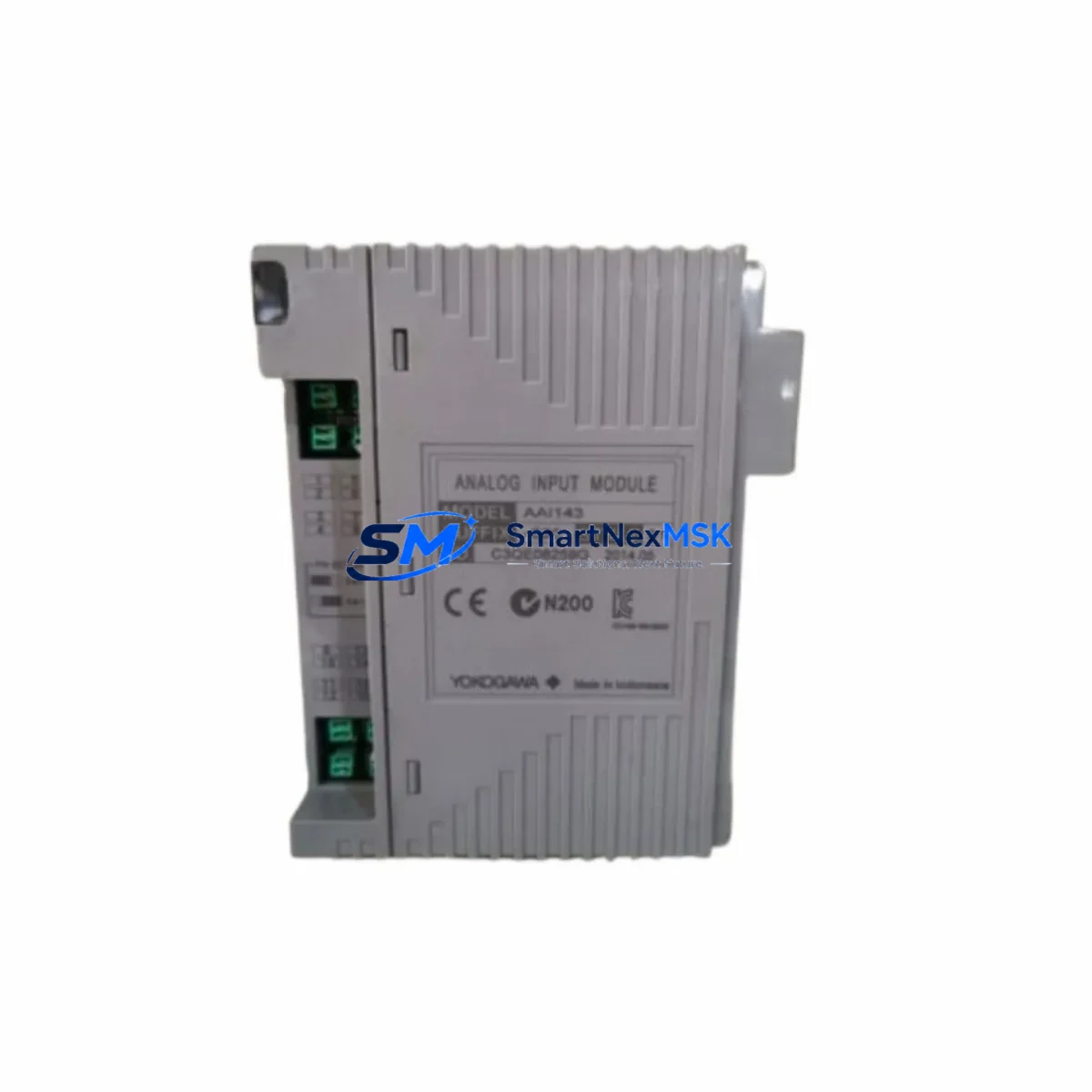

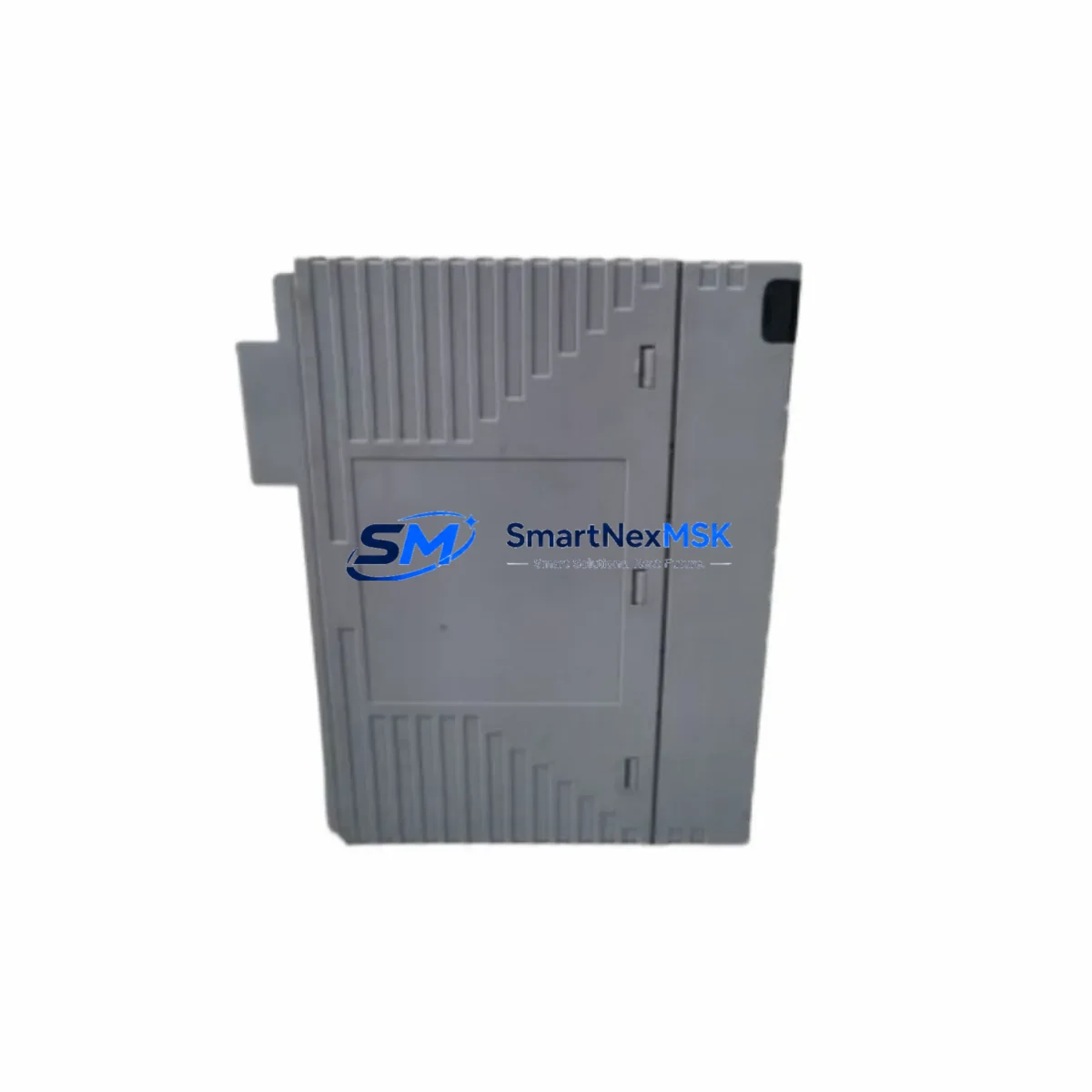

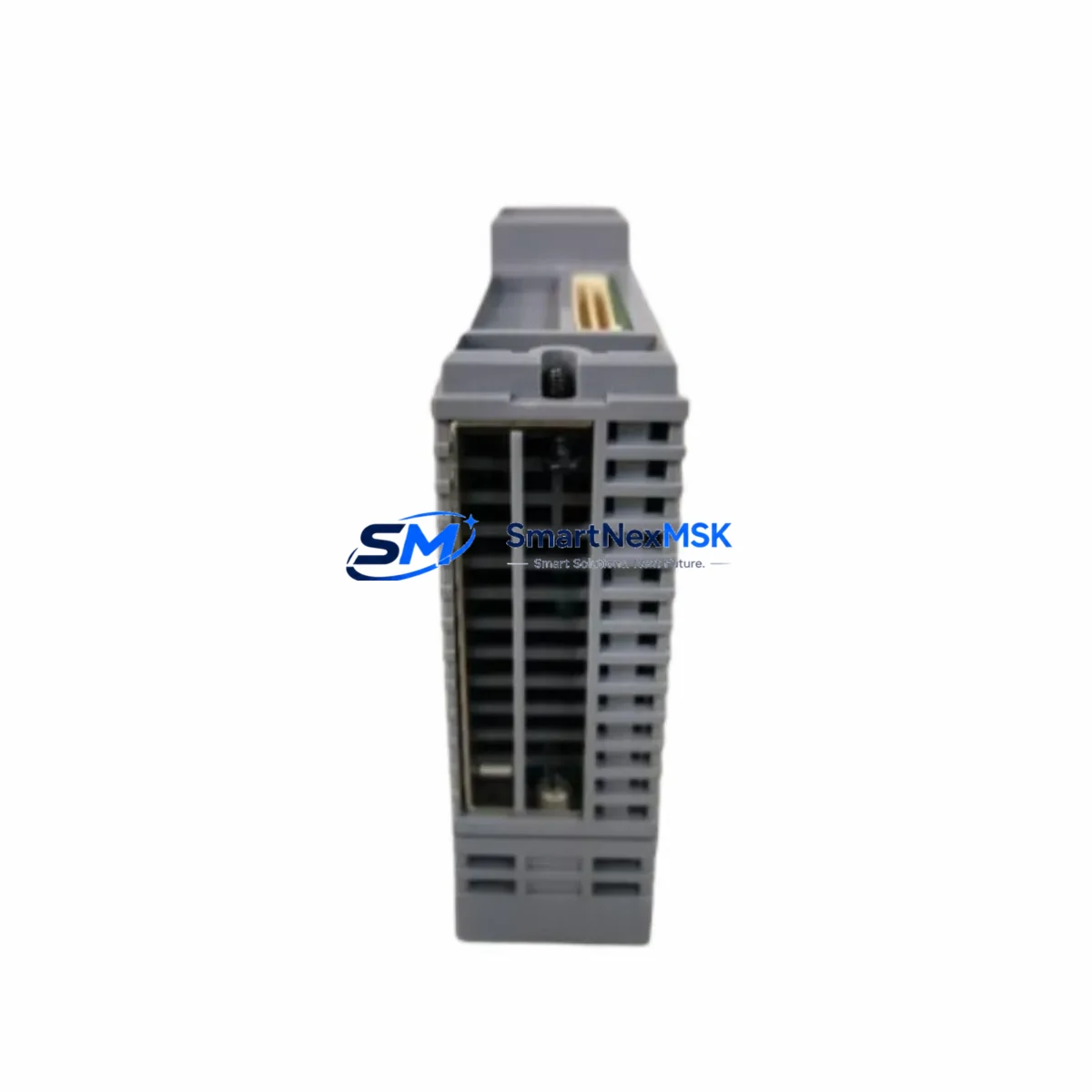

The YOKOGAWA AAI143-S50 S1 is an original analog input module designed for CENTUM VP distributed control systems. As a maintenance-critical spare part, it serves as a direct replacement for aging or failed analog input channels across process industries including oil & gas, petrochemical, power generation, and pulp & paper. Sourced from authorized supply chains and tested prior to shipment, each unit is backed by a 12-month warranty to support your plant’s long-term reliability strategy.

For maintenance engineers managing CENTUM VP control cabinets, the AAI143-S50 S1 handles 4–20 mA analog signal acquisition from field transmitters, feeding real-time process data into the CENTUM VP controller. When this module fails or degrades, the affected I/O channels go offline, triggering process alarms and potentially forcing a controlled shutdown. Having a verified spare on the shelf is the single most effective way to reduce mean time to repair (MTTR) and protect production continuity.

Procurement engineers sourcing long-term spares for CENTUM VP systems will find the AAI143-S50 S1 fully compatible with standard CENTUM VP field control stations (FCS). The module slots into the standard I/O nest without firmware reconfiguration in most revision-matched installations, minimizing commissioning time during emergency replacement. All units are inspected, function-tested, and shipped with documentation to support your incoming inspection process.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AAI143-S50 S1 in a CENTUM VP field control station, a thorough inspection of the surrounding I/O nest and control cabinet is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat this replacement as an opportunity for a broader cabinet health check.

Power supply verification is the first step. The CENTUM VP FCS relies on redundant power supply modules — typically the PW481 or equivalent — to feed the I/O nest backplane. A degraded power supply can cause intermittent analog input errors that mimic module failure. Confirm output voltage stability and ripple before reinstalling any analog input module.

I/O nest and backplane inspection should follow. The AAI143-S50 S1 connects to the field control station via the I/O nest backplane. Inspect the backplane connector pins for oxidation, mechanical damage, or contamination. If the nest has been in service for more than 10 years, consider scheduling a backplane replacement during the next planned outage.

Field wiring and terminal blocks are a common source of analog signal degradation. Inspect the terminal blocks connected to the AAI143-S50 S1 channels for loose screws, corroded contacts, or moisture ingress. In high-vibration environments, terminal block inserts may loosen over time, causing intermittent 4–20 mA signal loss. Replacing worn terminal blocks during this maintenance window prevents future nuisance alarms.

Signal isolators and barriers in the field loop should also be checked. If the plant uses Zener barriers or galvanic isolators between the field transmitters and the AAI143-S50 S1 input channels, verify that these devices are within their rated service life. A failing signal isolator can introduce loop resistance errors that appear as analog input drift.

Communication module health within the FCS should be reviewed. The ESB bus coupler or communication interface modules that link the I/O nest to the FCS processor should be inspected for error counters and communication fault logs. Modules such as the ACM12 or equivalent communication adapters in the CENTUM VP architecture can develop intermittent faults that affect multiple I/O modules simultaneously.

Relay output modules and interlock circuits connected to the analog input channels should be verified for correct operation. In safety-instrumented loops, the analog input from the AAI143-S50 S1 may feed relay output modules or safety logic solvers. Confirm that relay contacts are clean and that interlock setpoints are correctly configured after module replacement.

HMI and historian tag mapping must be validated after replacement. Confirm that all 16 analog input channels are correctly mapped in the CENTUM VP engineering environment and that historian tags are receiving valid process values. A channel offset or tag mapping error after module swap can cause silent data loss in the process historian.

Fuse and surge protection on the field loop circuits should be inspected. Blown fuses or degraded surge protection devices on the analog input field loops are often the root cause of module damage. Replace any suspect fuses and surge arrestors before returning the system to service.

Site Replacement Workflow

The AAI143-S50 S1 is designed as a direct plug-in replacement for the same module type within the CENTUM VP I/O nest. Follow this workflow to minimize downtime and maintain system compatibility:

Step 1 — Pre-replacement preparation: Download the current FCS configuration and create a backup of the engineering database. Confirm the replacement module’s revision suffix (S1) matches the installed base. Verify that the I/O nest slot assignment matches the original module position.

Step 2 — Safe isolation: Place the affected FCS in maintenance mode or transfer control to the redundant FCS if available. Notify the control room of the planned I/O interruption. Isolate field transmitters connected to the affected channels using field isolation valves or loop test switches where available.

Step 3 — Module swap: Remove the faulty AAI143-S50 S1 by releasing the module latch and sliding it out of the I/O nest. Insert the replacement module and confirm the latch engages fully. In hot-swap capable configurations, the FCS will automatically detect the new module and restore channel communication within seconds.

Step 4 — Functional verification: Confirm all 16 analog input channels return to valid process values in the CENTUM VP operator station. Perform a loop check on critical channels by injecting a known 4–20 mA signal and verifying the engineering unit readout. Check the FCS diagnostic display for any residual I/O fault alarms.

Step 5 — Documentation and spare replenishment: Record the replacement in the plant maintenance management system (CMMS). Update the spare parts inventory and initiate a reorder for the consumed AAI143-S50 S1 to maintain minimum stock levels. A recommended minimum stock of two units per FCS is advisable for critical process applications.

Spare Parts Support FAQ

Q1: Is the AAI143-S50 S1 compatible with all CENTUM VP FCS configurations?
The AAI143-S50 S1 is compatible with standard CENTUM VP field control stations that use the standard I/O nest architecture. Compatibility depends on the FCS generation and software revision. We recommend confirming the FCS model and software version before ordering. Our technical team can assist with compatibility verification based on your system configuration details.

Q2: How is the module tested before shipment?
Each AAI143-S50 S1 unit undergoes functional testing prior to shipment, including power-on verification, channel communication check, and analog signal accuracy validation. Units that fail any test criterion are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return merchandise authorization (RMA) and include replacement or repair at no additional cost.

Q4: Can you support long-term spare parts supply for CENTUM VP systems?
Yes. We maintain ongoing inventory of CENTUM VP spare parts including analog input modules, power supply modules, communication modules, and I/O nest components. For plants managing aging CENTUM VP systems beyond the original product lifecycle, we offer long-term supply agreements to ensure continued availability of critical spare parts. Contact our team to discuss your site’s specific requirements.
