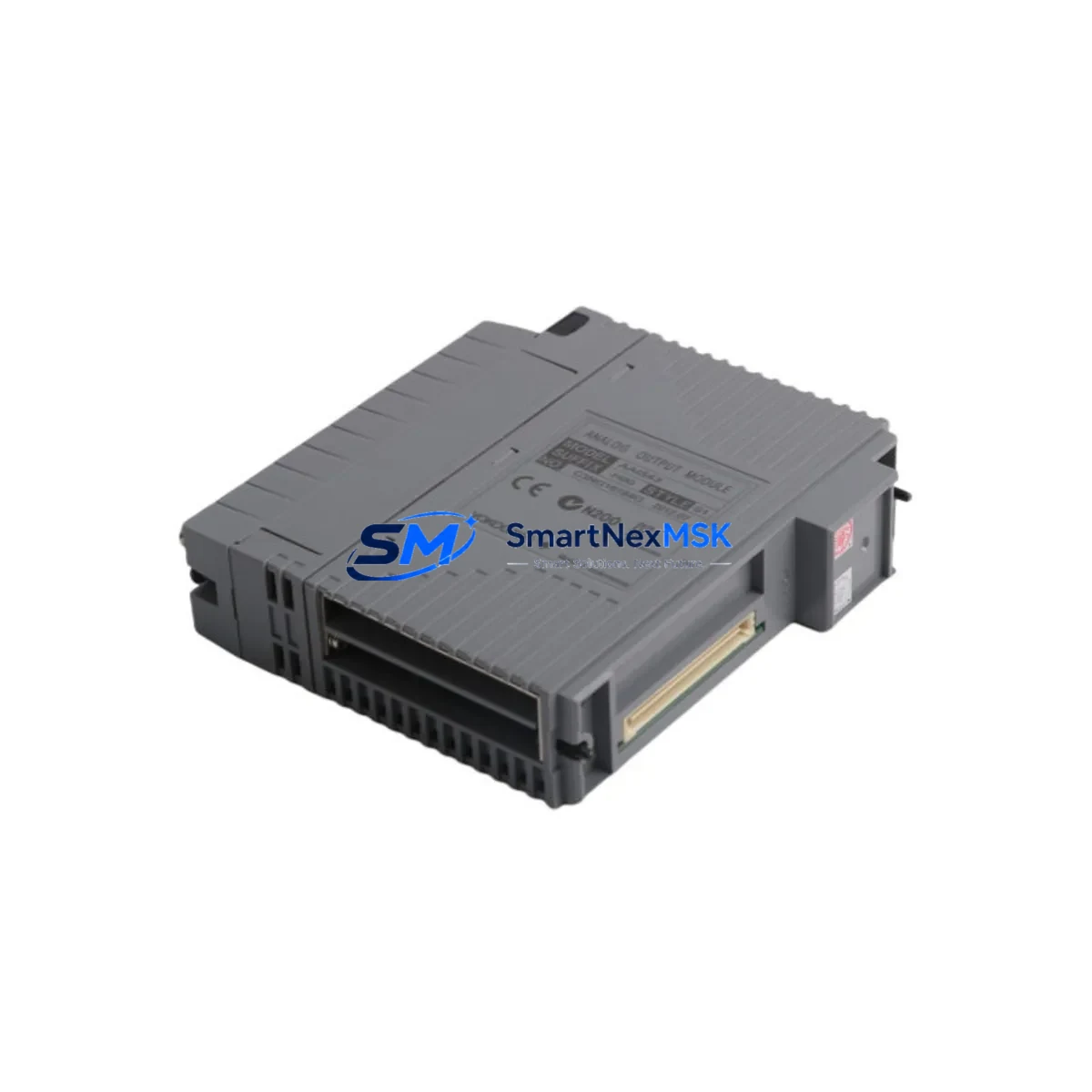

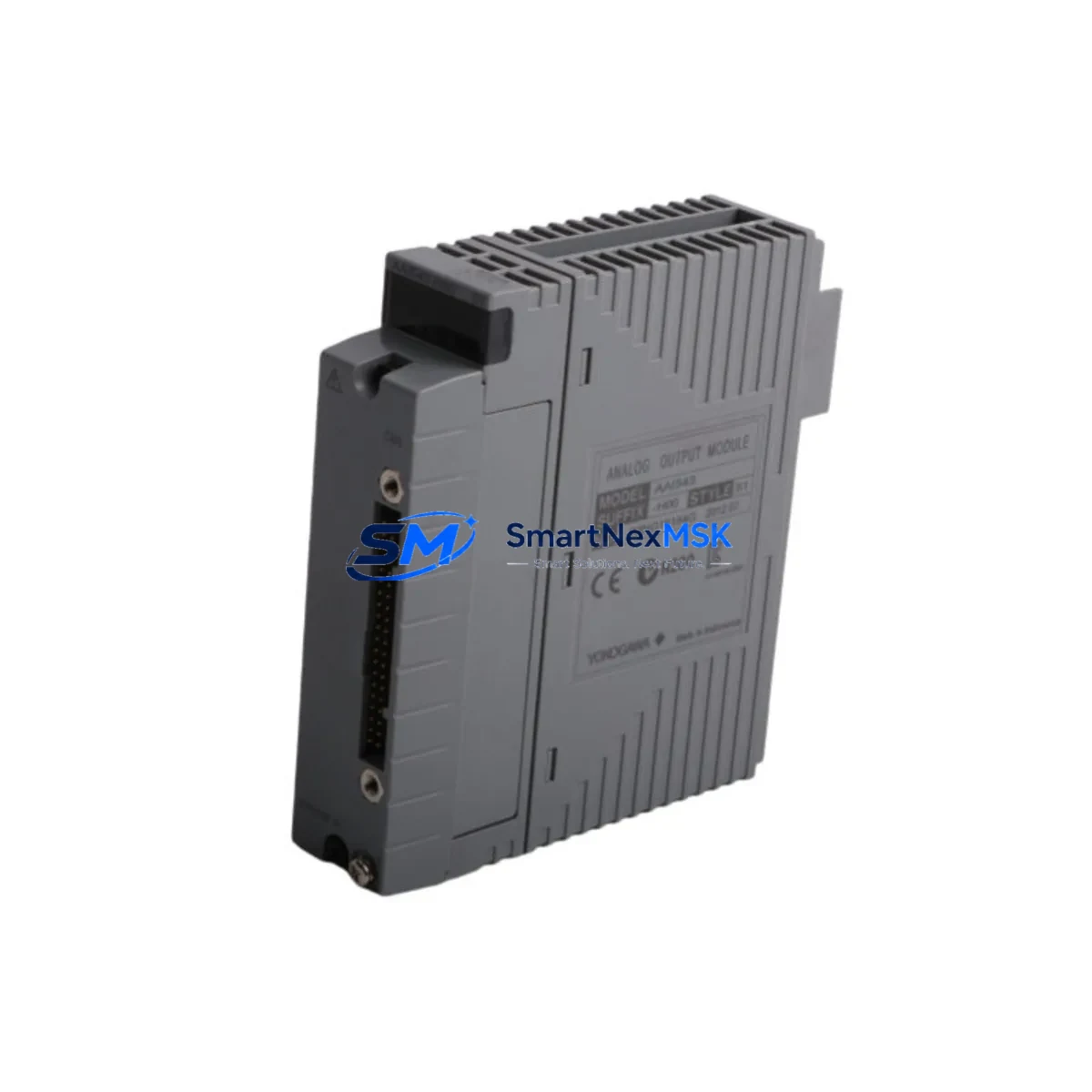

YOKOGAWA AAI543-H00 S1 Safety-Enhanced Analog Output Module

YOKOGAWA AAI543-H00 S1: Safety-Enhanced HART Analog Output Control for Harsh Industrial Sites

The YOKOGAWA AAI543-H00 S1 is a 16-channel HART-compatible analog output module engineered for mission-critical process control within the CENTUM VP Distributed Control System. Designed to operate continuously in high-load, high-interference industrial environments, this module delivers stable 4–20 mA signal output with HART communication overlay, ensuring that field devices receive precise, uninterrupted control commands even under the most demanding plant conditions.

In continuous manufacturing, petrochemical processing, power generation, and metallurgical operations, analog output integrity is non-negotiable. Signal drift, power fluctuations, or module misfires in a control loop can cascade into unplanned shutdowns, safety interlock failures, or costly process upsets. The AAI543-H00 S1 addresses these risks through robust hardware design, tight output accuracy, and full compatibility with YOKOGAWA’s proven CENTUM VP architecture — a platform trusted globally for safety-critical and high-availability control applications.

Whether deployed in a hazardous-area control cabinet, a critical interlock loop, or a high-density I/O marshalling panel, this module provides the signal reliability and diagnostic transparency that industrial safety engineers and DCS integrators demand.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered CENTUM VP control cabinet, the AAI543-H00 S1 does not operate in isolation — it functions as part of a layered protection architecture. Upstream, the YOKOGAWA AFV10D field control station provides the processing backbone, coordinating I/O data across the Vnet/IP network with deterministic scan cycles that prevent control latency from accumulating into safety-critical delays. The module slots into a standard YOKOGAWA ANB10S I/O nest, which provides the mechanical and electrical bus interface, ensuring secure module seating and reliable power distribution even in high-vibration environments.

Power integrity is maintained by a dedicated YOKOGAWA APS10D power supply unit, which delivers regulated 24 V DC to the I/O bus with redundancy options that eliminate single-point power failure risk. For applications where output channel availability is paramount, the YOKOGAWA AAI543-S00 (standard variant) or the AAI543-H00 with HART capability can be deployed in parallel I/O configurations, providing redundant output paths for critical control valves and actuators.

On the communication side, the YOKOGAWA ALR111 Vnet/IP communication module ensures that control commands from the HIS (Human Interface Station) reach the AAI543-H00 S1 with minimal latency and full error detection. In safety interlock architectures, the module is often paired with YOKOGAWA AAI141 analog input modules to form closed-loop control pairs — the input module reads process variables while the AAI543-H00 S1 drives the corrective output to field actuators.

For surge and transient protection at the field terminal level, YOKOGAWA JUXTA signal conditioners and terminal barrier assemblies are commonly installed between the module output and field wiring, providing an additional layer of protection against voltage spikes induced by long cable runs in electrically noisy plant environments. This complete cabinet ecosystem — from power supply through communication backbone to field interface — ensures that the AAI543-H00 S1 operates within its design envelope at all times, minimizing the risk of nuisance trips, output saturation, or communication timeouts that could compromise process safety.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation columns and reactor temperature control loops, the AAI543-H00 S1 drives control valves with the precision and stability required to maintain product quality and prevent runaway reactions. Its HART communication capability allows field device diagnostics to be retrieved without interrupting the 4–20 mA control signal, supporting predictive maintenance programs that reduce unplanned downtime.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the module controls burner management actuators, steam valve positioners, and cooling system regulators. Its high output accuracy and EMC compliance ensure that control commands are not corrupted by the strong electromagnetic fields generated by large generators and switchgear.

Mining & Mineral Processing: Crusher control, flotation cell reagent dosing, and conveyor speed regulation in mining operations demand modules that can withstand high vibration, dust ingress, and wide temperature swings. The AAI543-H00 S1’s robust construction and wide operating temperature range make it a reliable choice for these harsh surface and underground applications.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise chemical dosing and flow control to meet regulatory discharge standards. The module’s 16-channel capacity allows a single unit to manage multiple dosing pumps and valve actuators within a compact control panel footprint, reducing cabinet complexity and wiring costs.

Metallurgy & Steel Production: In electric arc furnaces, rolling mills, and continuous casting lines, the AAI543-H00 S1 provides the stable analog output required for precise temperature and speed control. Its ability to operate reliably in high-temperature, high-vibration environments — common in steel plant control rooms — ensures consistent process performance across extended production campaigns.

Port & Material Handling Automation: Crane drive control, conveyor speed regulation, and automated stacking systems in port terminals require analog output modules that can handle frequent load changes and communication interruptions without losing output integrity. The AAI543-H00 S1’s channel isolation and surge protection capabilities make it well-suited for these electrically demanding applications.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the YOKOGAWA AAI543-H00 S1?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering functional defects under normal operating conditions. Warranty claims are supported by our technical team, with replacement or repair options available to minimize your site downtime.

Q2: How is each module tested before shipment?
Every AAI543-H00 S1 unit undergoes a comprehensive outgoing functional test prior to dispatch. This includes verification of all 16 output channels across the 4–20 mA range, HART communication integrity checks, and visual inspection for physical damage. Test records are available upon request for quality documentation purposes.

Q3: Is the AAI543-H00 S1 compatible with existing CENTUM VP and CENTUM CS 3000 systems?
The AAI543-H00 S1 is designed for the CENTUM VP platform. Compatibility with CENTUM CS 3000 systems depends on the specific I/O nest and field control station configuration. We recommend confirming your system revision and nest type before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q4: Can long-term supply and spare parts support be guaranteed?
SMARTNEXMSK maintains stock of YOKOGAWA CENTUM VP I/O modules including the AAI543-H00 S1 to support both planned maintenance and emergency replacement requirements. We provide ongoing spare parts sourcing for legacy and current-generation YOKOGAWA DCS platforms, ensuring that your plant can maintain operational continuity without dependency on single-source supply chains.
