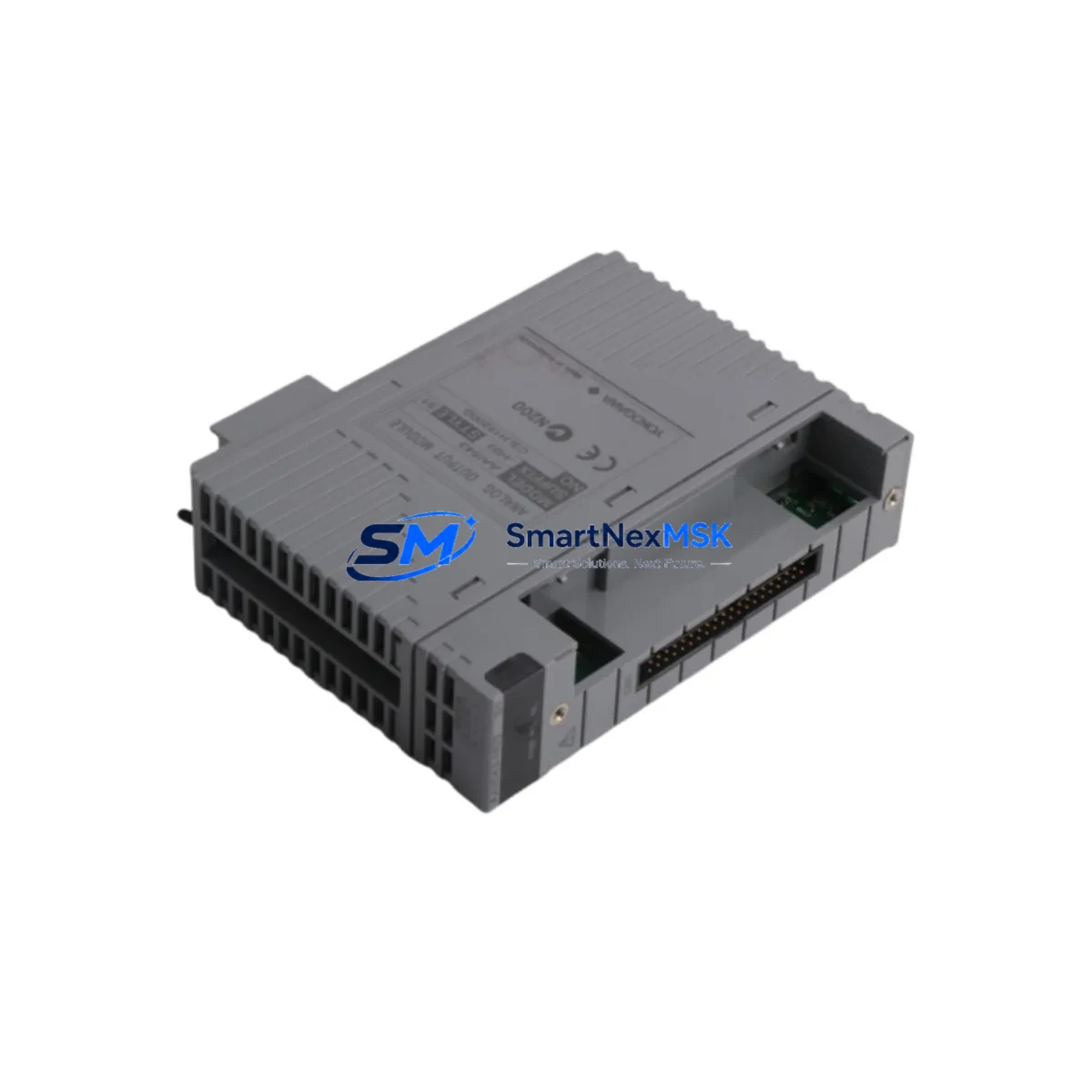

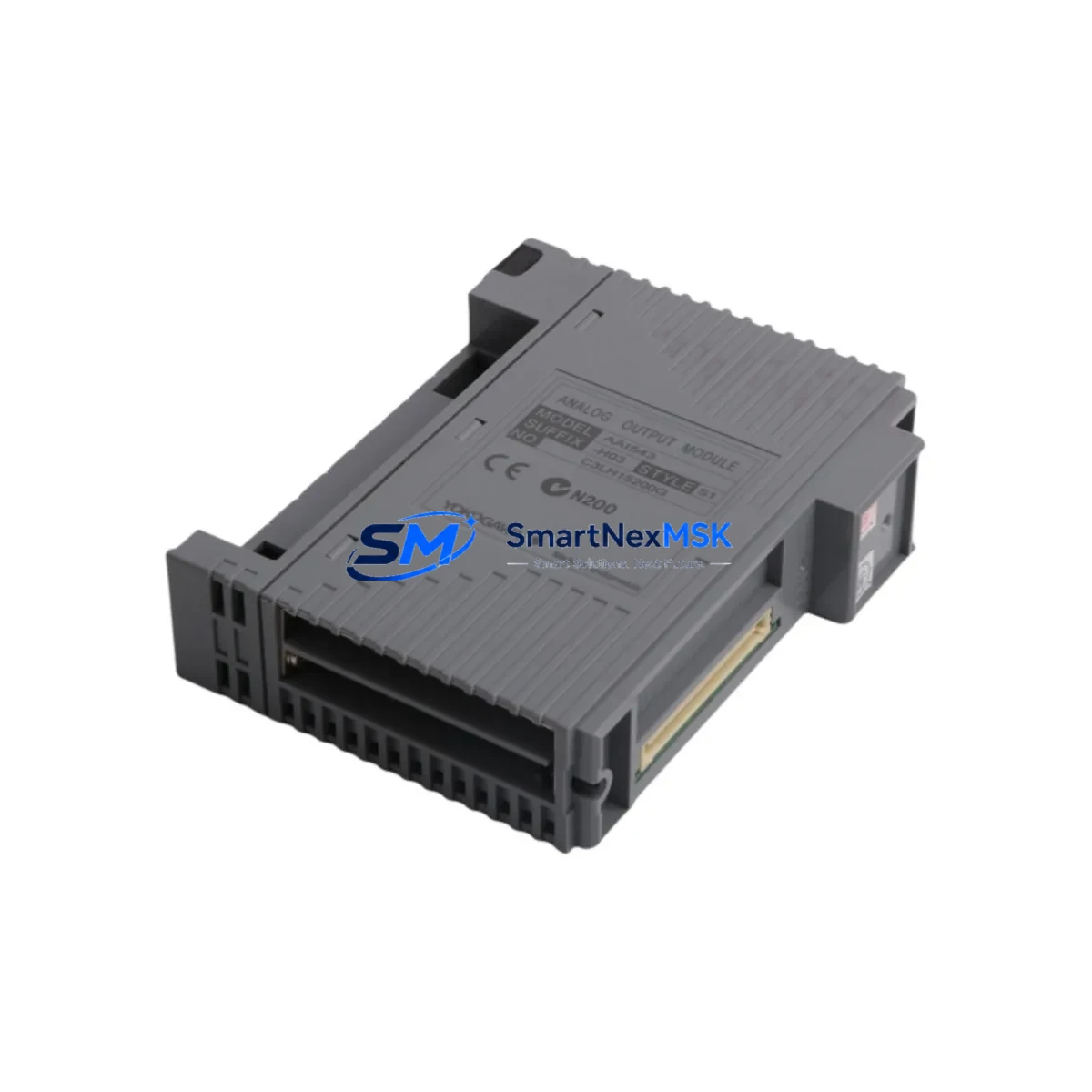

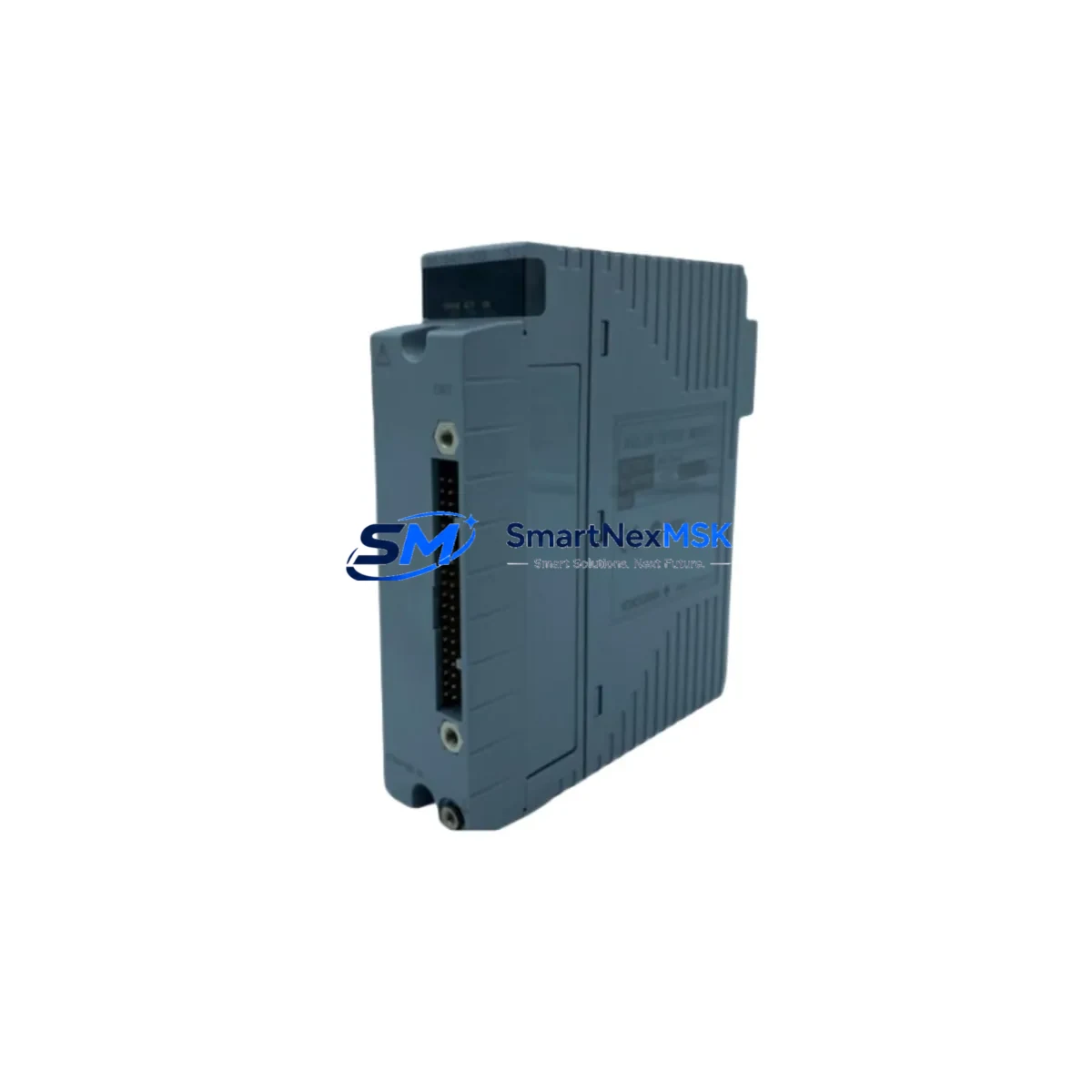

YOKOGAWA AAI543-H03-S1 Safety-Enhanced Analog Output Module

YOKOGAWA AAI543-H03-S1 Safety-Enhanced Analog Output Module: Reliable Control for Harsh Industrial Sites

The YOKOGAWA AAI543-H03-S1 is a 16-channel analog output module engineered for the CENTUM VP Distributed Control System (DCS), purpose-built to deliver uninterrupted, precision signal output in the most demanding industrial environments. Designed to meet the rigorous requirements of continuous process industries, this module provides stable 4–20 mA current loop outputs with high-resolution conversion, ensuring that field actuators, control valves, and variable frequency drives receive accurate, noise-immune command signals at all times.

In high-stakes industrial facilities — including petrochemical complexes, power generation plants, metallurgical smelters, water treatment stations, and offshore platforms — analog output integrity is a non-negotiable safety requirement. Signal drift, ground loop interference, or module malfunction in an output channel can cascade into valve misoperation, process runaway, or unplanned shutdown. The AAI543-H03-S1 addresses these risks through robust hardware isolation between channels, surge-absorbing input protection circuitry, and a thermally stable design that maintains output accuracy across a wide operating temperature range. Its H03 hardware revision incorporates enhanced EMC shielding, making it particularly suited for control cabinets installed near high-power drives, transformers, or bus bars where electromagnetic interference is a persistent threat.

Within a CENTUM VP control cabinet, the AAI543-H03-S1 operates alongside complementary I/O modules to form a complete, safety-conscious control architecture. Analog input modules such as the AAI141-S00 and AAI543-H00-S1 feed process variable data into the controller, while the AAI543-H03-S1 closes the loop by issuing corrective output commands. Digital output modules like the ADO141-P50 handle discrete actuator switching, and digital input modules such as the ADI141-P50 monitor field device status and interlock signals. Together, these modules are coordinated by the ACF11S Field Control Station, which executes the control logic and manages redundancy switching without interrupting process output. For applications requiring functional safety compliance, the AAI543-H03-S1 is deployed within safety instrumented systems alongside the AAI835-S safety-rated analog I/O module, ensuring that both standard control and emergency shutdown layers share a coherent signal architecture.

Power supply stability is equally critical to output module reliability. The AAI543-H03-S1 is powered through the CENTUM VP field control unit’s internal bus, which is typically backed by redundant PW481 or PW482 power supply modules. These units provide regulated, filtered DC power with automatic switchover, eliminating the risk of output freeze or erroneous signal caused by power fluctuation. In facilities where utility power quality is poor — common in mining, port crane operations, and heavy manufacturing — the combination of a robust power supply architecture and the AAI543-H03-S1’s internal voltage regulation ensures that output channels remain stable even during grid disturbances or momentary brownouts.

Communication integrity between the field control station and the operator workstation is maintained through the CENTUM VP Vnet/IP control network, a deterministic Ethernet-based bus that provides real-time data exchange with redundant path protection. Should a primary network path fail, Vnet/IP automatically switches to the secondary path within milliseconds, ensuring that the operator’s view of output module status and the controller’s ability to update setpoints are never interrupted. This architecture is complemented by the BCV0403 bus coupler and ESB bus field I/O network, which connects the AAI543-H03-S1 and its companion modules to the field control station with deterministic scan cycle timing.

For facilities operating under IEC 61511 or IEC 61508 functional safety standards, the AAI543-H03-S1 is validated for use in Safety Integrity Level (SIL) 1 and SIL 2 applications when integrated within a certified CENTUM VP safety configuration. Its channel-to-channel isolation prevents a single-point failure from propagating across multiple output loops, a critical requirement in interlock systems protecting rotating equipment, pressure vessels, and hazardous material handling systems. Maintenance teams benefit from the module’s hot-swap capability, allowing replacement during live plant operation without requiring a full control system shutdown — a feature that dramatically reduces mean time to repair (MTTR) in facilities where production continuity is paramount.

Every AAI543-H03-S1 unit supplied by SMARTNEXMSK undergoes a comprehensive pre-shipment inspection protocol. Each module is powered up and subjected to full-channel output verification across the 4–20 mA range, with output accuracy confirmed against calibrated reference instruments. Isolation resistance between channels and between channels and chassis ground is measured and recorded. Firmware version is verified for compatibility with current CENTUM VP system software releases. Units are then packed in anti-static, shock-absorbing packaging with individual test records included in the shipment documentation. This process ensures that every module arrives ready for immediate installation and commissioning, minimizing the risk of field failures during startup.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust CENTUM VP control cabinet built around the AAI543-H03-S1 relies on a carefully selected ecosystem of protective and communicative components. At the power layer, redundant PW481 Power Supply Modules ensure that no single power failure can interrupt analog output signals to field devices. The ACF11S Field Control Station provides the processing backbone, executing PID and advanced control algorithms while managing automatic failover between redundant I/O paths. On the input side, AAI141-S00 Analog Input Modules collect 4–20 mA process variable signals from transmitters, feeding real-time data to the controller that drives the AAI543-H03-S1 outputs.

For discrete safety interlock functions, ADO141-P50 Digital Output Modules control solenoid valves and motor starters within the same cabinet, while ADI141-P50 Digital Input Modules monitor emergency stop buttons, pressure switches, and position feedback signals. The AAI835-S Safety Analog I/O Module handles SIL-rated measurement and output channels within the safety instrumented system layer, operating in parallel with the standard control layer to provide independent process protection. Communication between the field control station and the engineering workstation is carried over the Vnet/IP redundant control network, with the BCV0403 Bus Coupler bridging the ESB field I/O bus to the control network backbone. Surge protection terminal blocks and shielded cable assemblies complete the cabinet’s defense against transient overvoltage events originating from field wiring exposed to lightning or switching surges.

Critical Industrial Safety Applications

The YOKOGAWA AAI543-H03-S1 is deployed across a broad spectrum of critical process industries where analog output reliability directly impacts operational safety and regulatory compliance.

In petrochemical and refinery facilities, the module drives control valves regulating hydrocarbon flow, pressure, and temperature in distillation columns and reactor systems. Signal integrity is essential to prevent runaway reactions or overpressure events. In power generation plants — both thermal and combined-cycle — the AAI543-H03-S1 controls turbine governor valves, boiler feedwater control valves, and burner management system outputs, where millisecond-level response accuracy is required to maintain grid frequency stability.

In mining and mineral processing operations, the module manages slurry pump speed references via variable frequency drives, flotation cell reagent dosing, and crusher load control — all in environments characterized by heavy vibration, dust ingress, and wide temperature swings. Its enhanced EMC shielding in the H03 revision makes it particularly resilient in these high-interference settings. Water and wastewater treatment plants rely on the AAI543-H03-S1 to control chemical dosing pumps, aeration blower speed, and filter backwash valve positioning, where precise output control directly affects effluent quality and regulatory compliance.

In metallurgical and steel production facilities, the module operates within electric arc furnace control systems, continuous casting machine speed regulation, and rolling mill tension control loops — applications where output signal interruption can result in product defects, equipment damage, or personnel hazards. Port and bulk material handling terminals use the AAI543-H03-S1 within ship loader and stacker-reclaimer control systems, where reliable analog output to hydraulic proportional valves ensures safe, precise positioning of heavy machinery.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the AAI543-H03-S1?
Every AAI543-H03-S1 supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or repair, and our technical team provides remote diagnostic assistance to minimize downtime during the claims process.

Q2: What pre-shipment testing does each module undergo?
Each unit undergoes a comprehensive inspection including full 16-channel output verification across the 4–20 mA range, channel-to-channel and channel-to-chassis isolation resistance measurement, firmware version confirmation, and visual inspection for physical damage. A test record is included with every shipment, providing traceability for quality audits and maintenance records.

Q3: Is the AAI543-H03-S1 compatible with my existing CENTUM VP system version?
The AAI543-H03-S1 is compatible with CENTUM VP R5.04 and later releases, as well as selected CENTUM CS 3000 configurations with appropriate I/O bus adapters. Our technical team can verify compatibility with your specific system version and hardware revision before shipment. Please provide your FCS model number and system software version when inquiring.

Q4: Can you guarantee long-term supply and replacement support for this module?
SMARTNEXMSK maintains dedicated inventory of YOKOGAWA CENTUM VP I/O modules, including the AAI543-H03-S1, to support both planned maintenance programs and emergency replacement requirements. We supply to facilities worldwide with expedited shipping options available for critical plant situations. Our sourcing network ensures continued availability even for modules that have reached end-of-production status with the original manufacturer.
