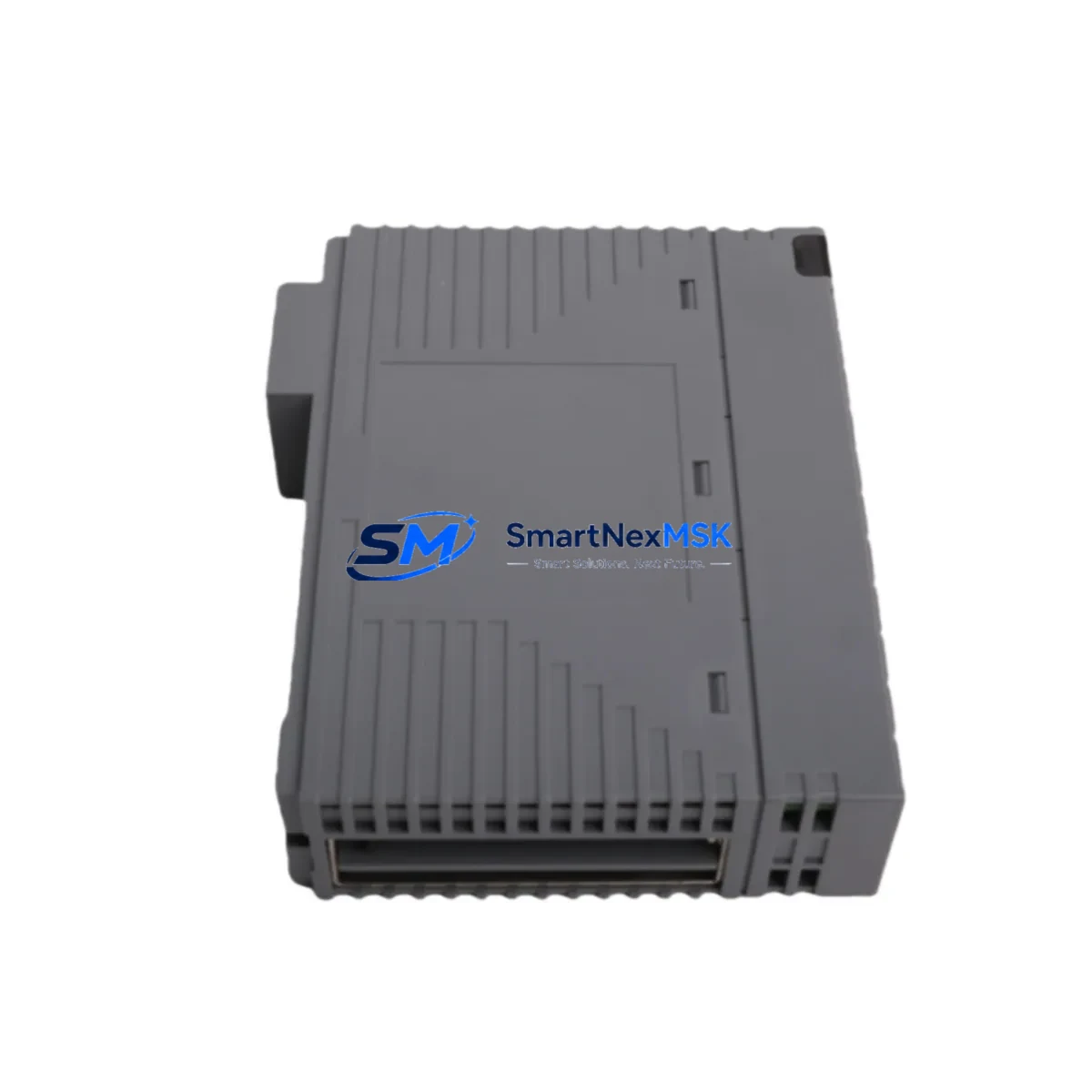

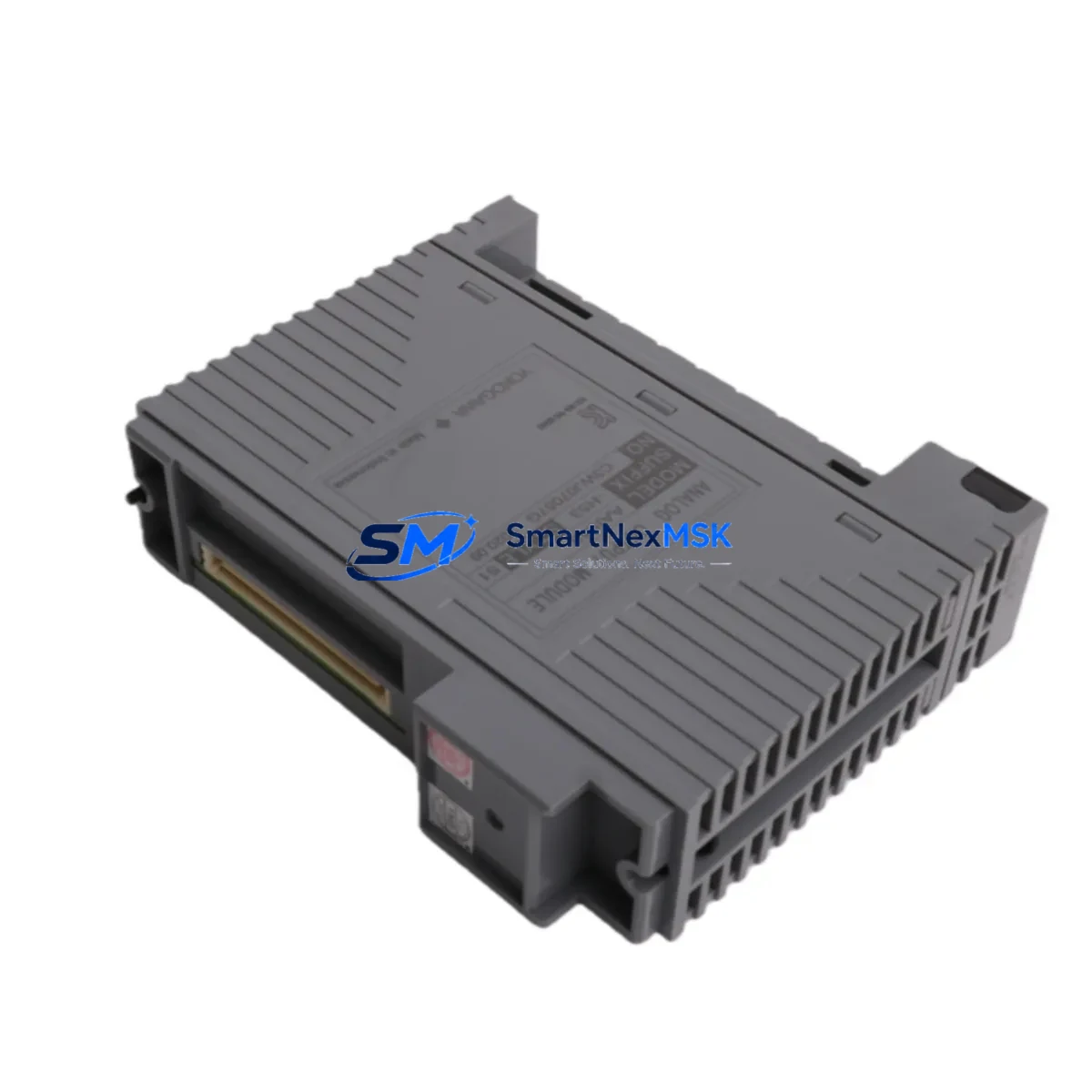

Yokogawa AAI543-H53 Safety-Enhanced Analog Output Module

Yokogawa AAI543-H53 Safety-Enhanced Analog Output Module: Reliable Control for Harsh Industrial Sites

The Yokogawa AAI543-H53 is a 16-channel, 4–20mA analog output module engineered for deployment within the CENTUM VP Distributed Control System (DCS) platform. Designed to meet the demanding requirements of continuous process industries, this module delivers precision signal output with robust protection against the electrical and environmental stresses common in heavy industrial environments. Whether installed in a petrochemical control room, a power generation facility, or a metallurgical plant, the AAI543-H53 provides the signal integrity and operational stability that safety-critical control loops demand.

In high-load, high-interference production environments, analog output accuracy is not merely a performance metric — it is a safety imperative. Signal drift, power fluctuations, and module misbehavior in output channels can cascade into process upsets, emergency shutdowns, or equipment damage. The AAI543-H53 addresses these risks through its hardened signal conditioning circuitry, channel-level isolation architecture, and compatibility with Yokogawa’s proven CENTUM VP I/O bus infrastructure, ensuring that each of its 16 output channels maintains stable 4–20mA transmission even under adverse conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered CENTUM VP control cabinet, the AAI543-H53 analog output module does not operate in isolation — it functions as part of a coordinated protection and control architecture. Upstream, the Yokogawa PW481 or PW482 power supply modules deliver regulated, redundant DC power to the I/O nest, ensuring that voltage sags or transient spikes on the facility power bus do not propagate into the signal conditioning circuitry of the AAI543-H53. This power isolation is fundamental to preventing output channel drift during grid disturbances common in heavy industrial sites.

On the input side of the same control loop, the Yokogawa AAI141-S or AAI841-S analog input modules acquire 4–20mA process feedback signals from field transmitters — flow meters, pressure transducers, and temperature sensors — feeding the CENTUM VP controller with the real-time data needed to compute corrective output commands. The AAI543-H53 then faithfully translates those computed setpoints into precise current signals driving control valves, variable frequency drives, or positioners in the field.

For digital interlock and safety relay functions within the same cabinet, the Yokogawa ADV151-P digital input module and ADV551-P digital output module handle discrete on/off signals from emergency stop circuits, limit switches, and solenoid valve drivers. These modules share the same I/O nest backplane as the AAI543-H53, and their coordinated operation ensures that analog control commands are immediately overridden by safety interlock logic when process exceedances are detected.

Communication integrity between the field control station and the operator workstation is maintained by the Yokogawa ESB Bus interface and, in larger architectures, the Vnet/IP control network. Any communication anomaly — packet loss, bus contention, or network latency — is detected and alarmed before it can cause a control upset. Complementing this, the Yokogawa ACM12 communication module manages redundant bus arbitration, ensuring that a single communication path failure does not interrupt the AAI543-H53’s output refresh cycle.

For installations in zones with elevated surge risk — such as those adjacent to large motor drives, arc furnaces, or outdoor field junction boxes — supplementary Phoenix Contact TRABTECH or equivalent DIN-rail surge protection devices are recommended on the field wiring terminals feeding the AAI543-H53 output channels. This external surge barrier layer, combined with the module’s internal transient suppression, provides defense-in-depth against impulse voltages that could otherwise damage output DAC circuitry or cause spurious valve movements.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In crude distillation units, catalytic crackers, and hydrocracker control systems, the AAI543-H53 drives control valve positioners regulating feed flow, reflux ratios, and reactor pressure. Its channel isolation prevents a fault in one output loop from affecting adjacent critical loops — a key requirement in SIL-assessed process safety architectures where a single point of failure must not compromise multiple safety functions simultaneously.

Power Generation Facilities: In coal-fired, gas turbine, and combined-cycle power plants, the module controls boiler feedwater control valves, turbine bypass valves, and combustion air dampers. The ability to maintain ±0.1% output accuracy under the high-EMI conditions generated by large generators and switchgear is essential for stable load following and grid synchronization control.

Mining and Mineral Processing: Flotation cell reagent dosing, thickener underflow control, and conveyor speed regulation in mining operations demand continuous, uninterrupted analog output. The AAI543-H53’s robust construction and hot-swap capability within the CENTUM VP nest allow maintenance teams to replace modules during scheduled shutdowns without requiring a full system restart, minimizing production downtime.

Water and Wastewater Treatment: Municipal and industrial water treatment plants rely on precise chemical dosing — chlorine, coagulant, and pH correction agents — controlled via 4–20mA signals from analog output modules. The AAI543-H53’s stable output under varying load conditions ensures dosing accuracy that directly impacts effluent quality compliance and public safety.

Metallurgy and Steel Production: In electric arc furnace control, rolling mill automation, and continuous casting lines, the module provides the analog setpoints for hydraulic servo systems, cooling water flow control, and electrode positioning. The harsh electromagnetic environment of steelmaking — characterized by high-current switching transients and ground potential differences — makes the AAI543-H53’s isolation and surge immunity particularly valuable.

Port and Terminal Automation: Bulk material handling systems, ship-to-shore crane drives, and pipeline terminal metering stations use CENTUM VP-based control systems where the AAI543-H53 manages speed references for variable frequency drives and flow setpoints for custody transfer metering. Reliable, drift-free analog output is critical for accurate cargo measurement and safe crane load management.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Yokogawa AAI543-H53?
All AAI543-H53 modules supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement dispatch to minimize your site downtime.

Q2: What pre-shipment testing is performed on each module?
Every AAI543-H53 unit undergoes a comprehensive functional test prior to dispatch, including verification of all 16 output channels across the full 4–20mA range, channel isolation integrity checks, and bus communication handshake validation. Test records are available upon request for quality documentation purposes.

Q3: Is the AAI543-H53 compatible with existing CENTUM VP and CENTUM CS 3000 systems?
The AAI543-H53 is designed for the CENTUM VP platform. Compatibility with CENTUM CS 3000 I/O nests depends on the specific nest generation and firmware revision. Our technical team can verify compatibility based on your existing system configuration details — please provide your FCS model and I/O nest part number when enquiring.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated inventory of Yokogawa CENTUM VP I/O modules, including the AAI543-H53, to support long-term spare parts programs for operating plants. We work with customers on scheduled procurement plans to ensure critical spare holdings are maintained, reducing the risk of extended outages caused by module unavailability during unplanned failures.
