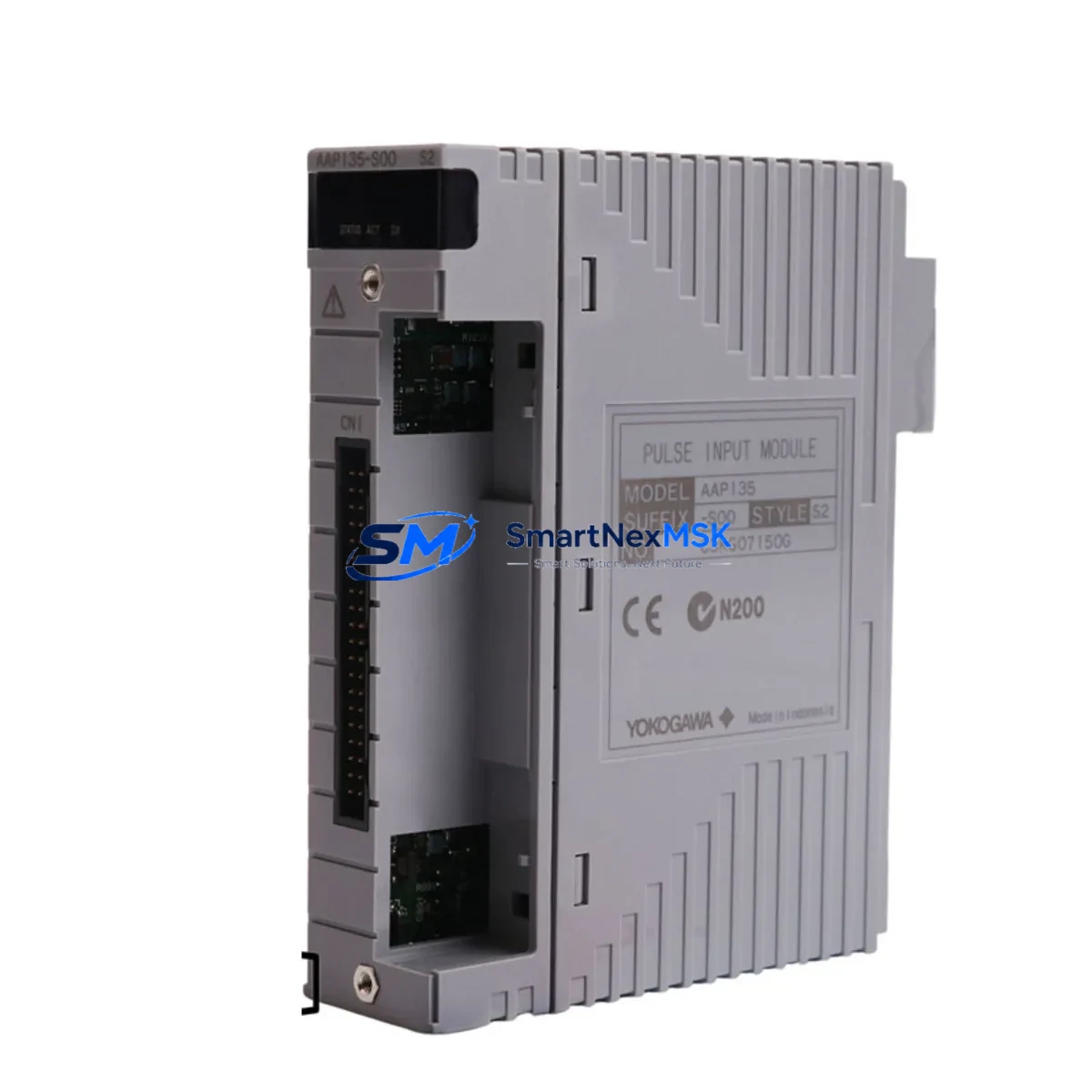

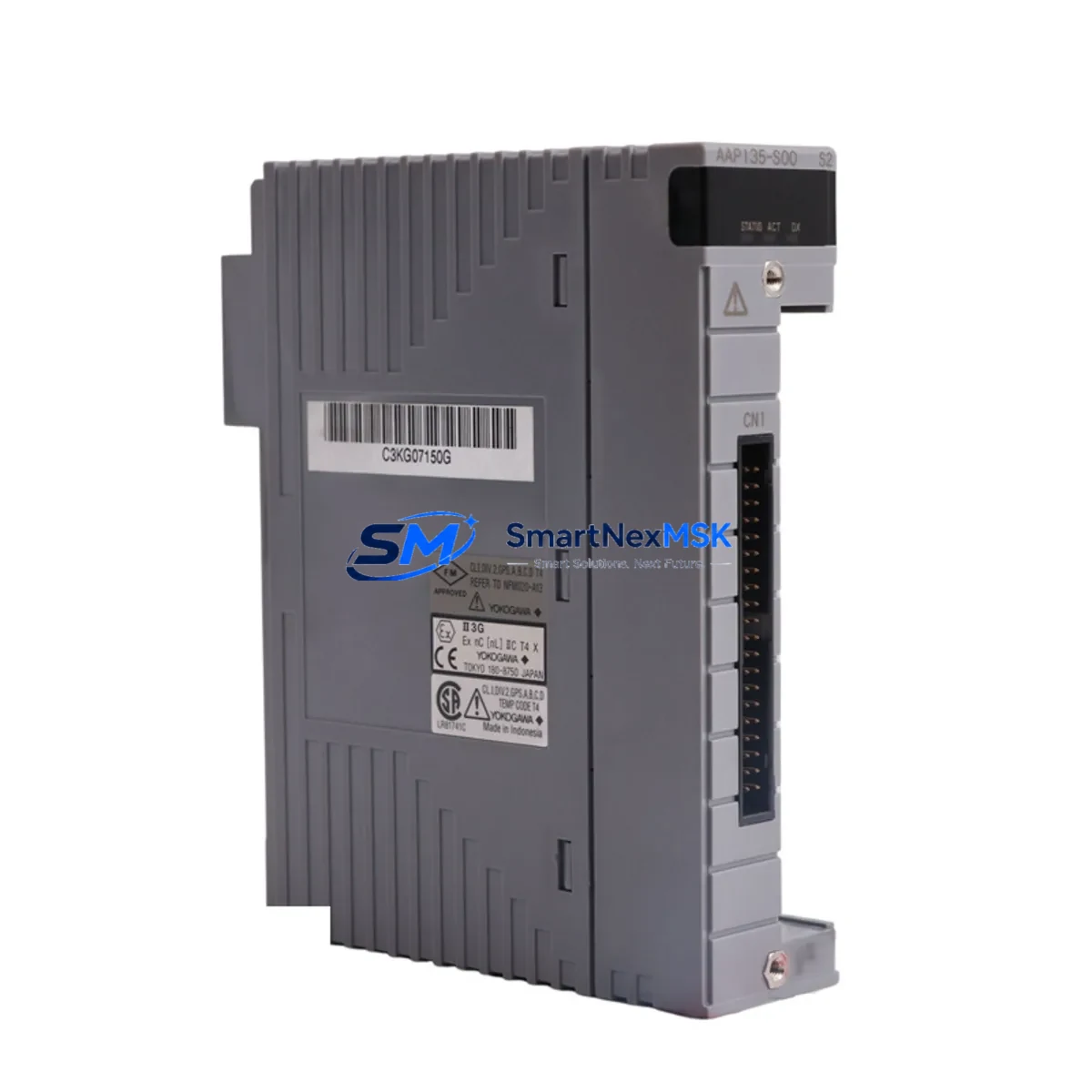

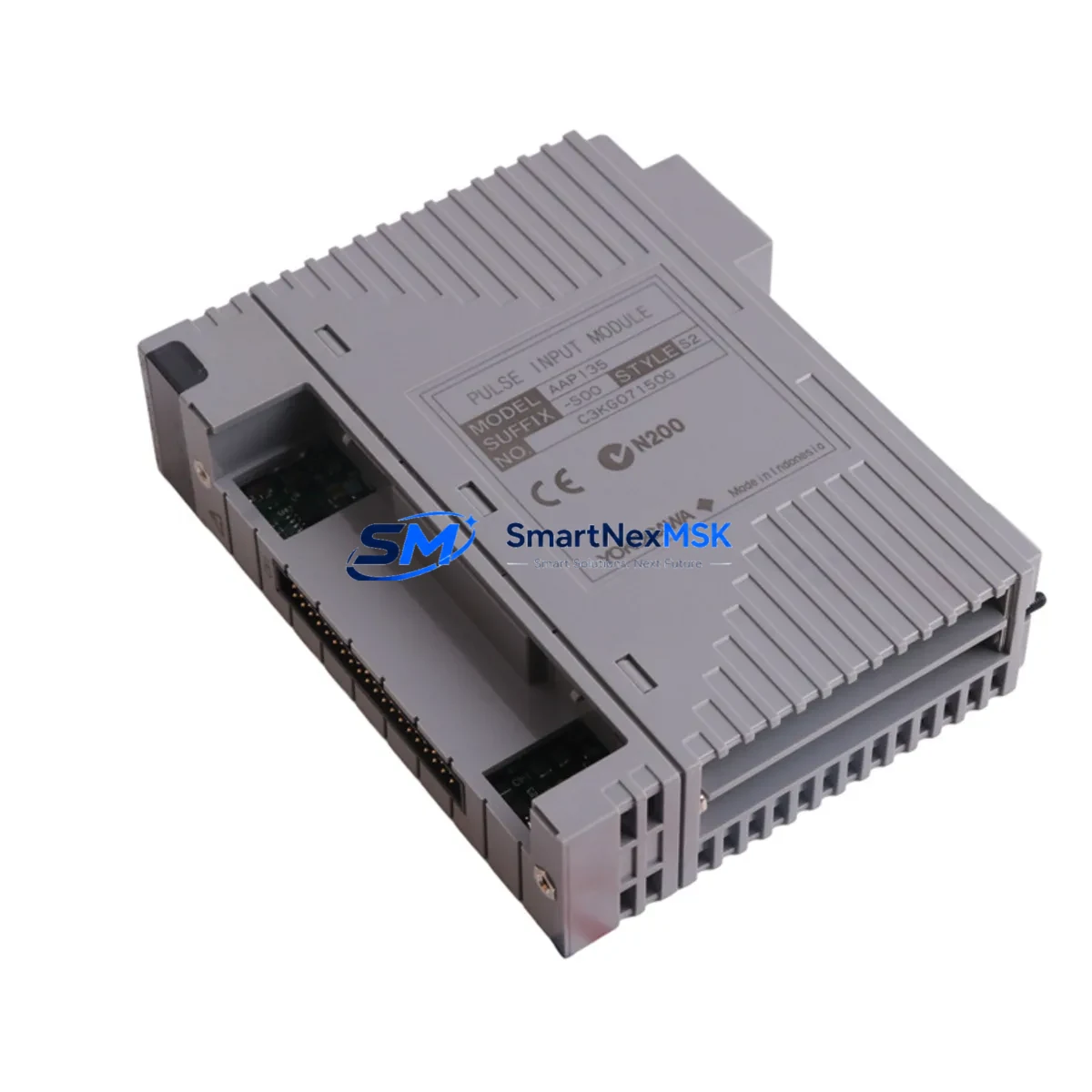

The Yokogawa AAP135-S00 S2 is an original pulse input module designed for the CENTUM VP Distributed Control System (DCS). In process industries where continuous operation is non-negotiable, this module plays a critical role in acquiring high-accuracy pulse signals from flow meters, turbine meters, and rotary encoders — feeding real-time data into the control loop. When this module fails or degrades, the consequences extend beyond a single I/O channel: entire process trains can be forced offline, triggering costly unplanned shutdowns.

Sourced directly from verified supply channels, each AAP135-S00 S2 unit is inspected, function-tested, and shipped with a 12-month warranty. Whether you are executing a planned turnaround, responding to an emergency fault, or building a strategic spare parts inventory for your CENTUM VP control cabinets, this module is ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault on the AAP135-S00 S2 pulse input module, the replacement procedure should be treated as part of a broader I/O cabinet health check — not an isolated swap. Experience in CENTUM VP environments shows that pulse input faults are frequently accompanied by related issues in adjacent components.

Before or during replacement of the AAP135-S00 S2, engineers should inspect and verify the following associated components:

• FCS Power Supply Module (e.g., APM11x series) — Confirm stable DC bus voltage to the I/O nest. A degraded power module can cause intermittent pulse count errors that mimic module failure.
• I/O Nest Backplane / Node Unit — Check for corrosion, loose connectors, or backplane communication faults that may affect multiple I/O slots simultaneously.
• Signal Cable and Terminal Block Assembly — Inspect field wiring from the pulse-generating device (flow meter, turbine) to the module terminal. Loose terminations or shielding failures are a common root cause of pulse input noise.
• AAI141 / AAI143 Analog Input Modules — Often installed in the same FCS nest alongside pulse input modules; verify channel integrity during the same maintenance window to avoid repeat call-outs.
• AOM12x Analog Output Modules — If the pulse input feeds a flow control loop, confirm the corresponding output module is functioning correctly before returning the loop to automatic mode.
• Communication Module (e.g., ACM12x or ESB Bus Coupler) — A degraded communication module can cause the FCS to misreport I/O status, making a healthy AAP135-S00 S2 appear faulty in the engineering workstation.
• Relay Output Module (e.g., ADM12x) — If the pulse input is interlocked with a relay-driven shutdown or alarm circuit, verify relay contact integrity and coil voltage during the same inspection.
• Signal Isolator / Pulse Conditioner — For field devices with long cable runs or high electrical noise environments, a signal isolator between the field device and the AAP135-S00 S2 is recommended. Inspect or replace if pulse signal quality is degraded.
• Fuse and Circuit Protection — Check field loop fuses and MCBs in the marshalling cabinet. A blown fuse on the pulse input loop will produce the same symptom as a failed module.
• HMI / Engineering Workstation Alarm Log — Review the CENTUM VP alarm history for recurring pulse input alarms prior to the current fault. Patterns of intermittent faults often indicate wiring or power issues rather than module failure.

Maintaining a minimum of one AAP135-S00 S2 unit as a dedicated cold spare in your control room spare parts cabinet is strongly recommended for any facility running CENTUM VP with pulse-based flow measurement. For critical process units, a two-unit buffer is advisable to cover both emergency replacement and bench testing needs.

Site Replacement Workflow

The AAP135-S00 S2 is designed for straightforward field replacement within the CENTUM VP FCS architecture. The following workflow minimizes downtime and ensures system compatibility is maintained throughout the swap:

1. Fault Confirmation: Use the CENTUM VP Engineering Workstation (EWS) to confirm the channel fault is isolated to the AAP135-S00 S2 slot. Check the FCS diagnostic screen for I/O module status codes before pulling the module.
2. Process Isolation: Place the affected control loop(s) in manual mode at the HMI. Notify the control room operator and obtain a permit-to-work if required by site safety procedures.
3. Module Removal: The AAP135-S00 S2 supports hot-swap in most CENTUM VP configurations. Confirm with your FCS documentation whether online replacement is enabled for your specific node configuration before proceeding without a process shutdown.
4. Spare Installation: Insert the replacement AAP135-S00 S2 into the correct I/O slot. The CENTUM VP FCS will automatically download the channel configuration from the control database — no manual re-parameterization is required in standard configurations.
5. Verification: Confirm pulse count readings at the EWS match the field device output. Check for channel fault alarms. Return the control loop to automatic mode only after stable readings are confirmed.
6. Documentation: Record the replacement in the plant maintenance management system (CMMS). Retain the removed module for failure analysis or return-to-vendor evaluation.

This replacement workflow is applicable to facilities migrating from legacy CENTUM CS 3000 I/O modules to CENTUM VP equivalents as part of a system life extension program. Compatibility verification with the specific FCS firmware version is recommended prior to installation in mixed-generation systems.

Spare Parts Support FAQ

Q1: Is the AAP135-S00 S2 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AAP135-S00 S2 is a CENTUM VP series module. Compatibility with CENTUM CS 3000 nodes depends on the specific FCS hardware revision and firmware version. We recommend confirming the target FCS model and software version before ordering for a CS 3000 application. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every AAP135-S00 S2 unit undergoes functional testing prior to dispatch, including power-on verification, channel communication check, and visual inspection for physical damage or component degradation. Units that do not pass testing are not shipped. A 12-month warranty covers defects in materials and workmanship from the date of delivery.

Q3: How should I manage AAP135-S00 S2 spare inventory for a multi-unit CENTUM VP plant?
For plants with 5 or more CENTUM VP FCS nodes utilizing pulse input modules, a minimum spare holding of 2 units is recommended. For critical continuous process facilities (refinery, petrochemical, power generation), a 3-unit buffer provides coverage for simultaneous faults and bench testing. Spare modules should be stored in anti-static packaging in a climate-controlled environment and rotated into service on a planned basis to prevent shelf degradation.

Q4: What is the lead time and can urgent orders be expedited?
In-stock units are typically dispatched within 1-2 business days. For urgent plant shutdown recovery situations, please contact our sales team directly to confirm real-time stock availability and arrange priority shipment. We support air freight and express courier options for time-critical maintenance scenarios.
