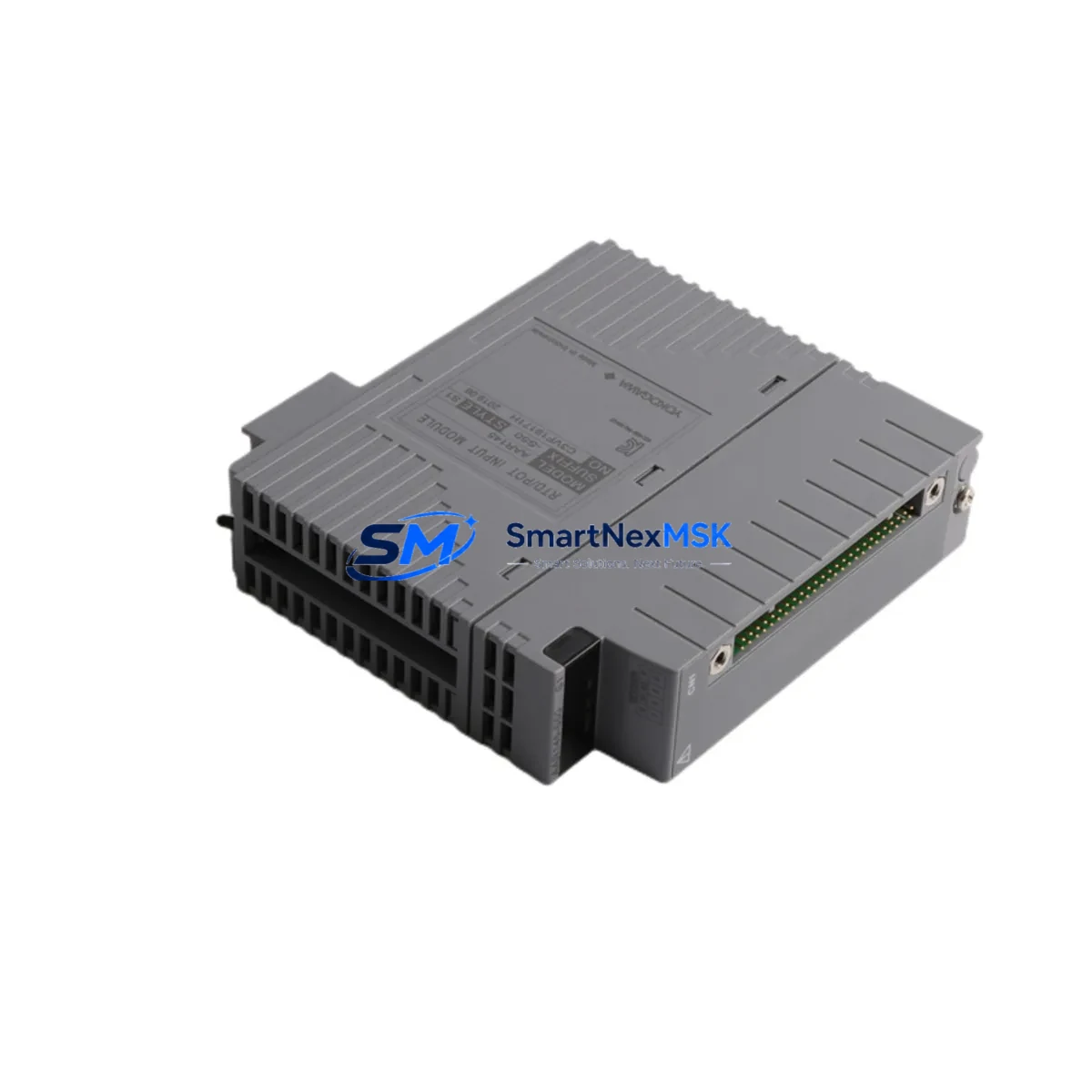

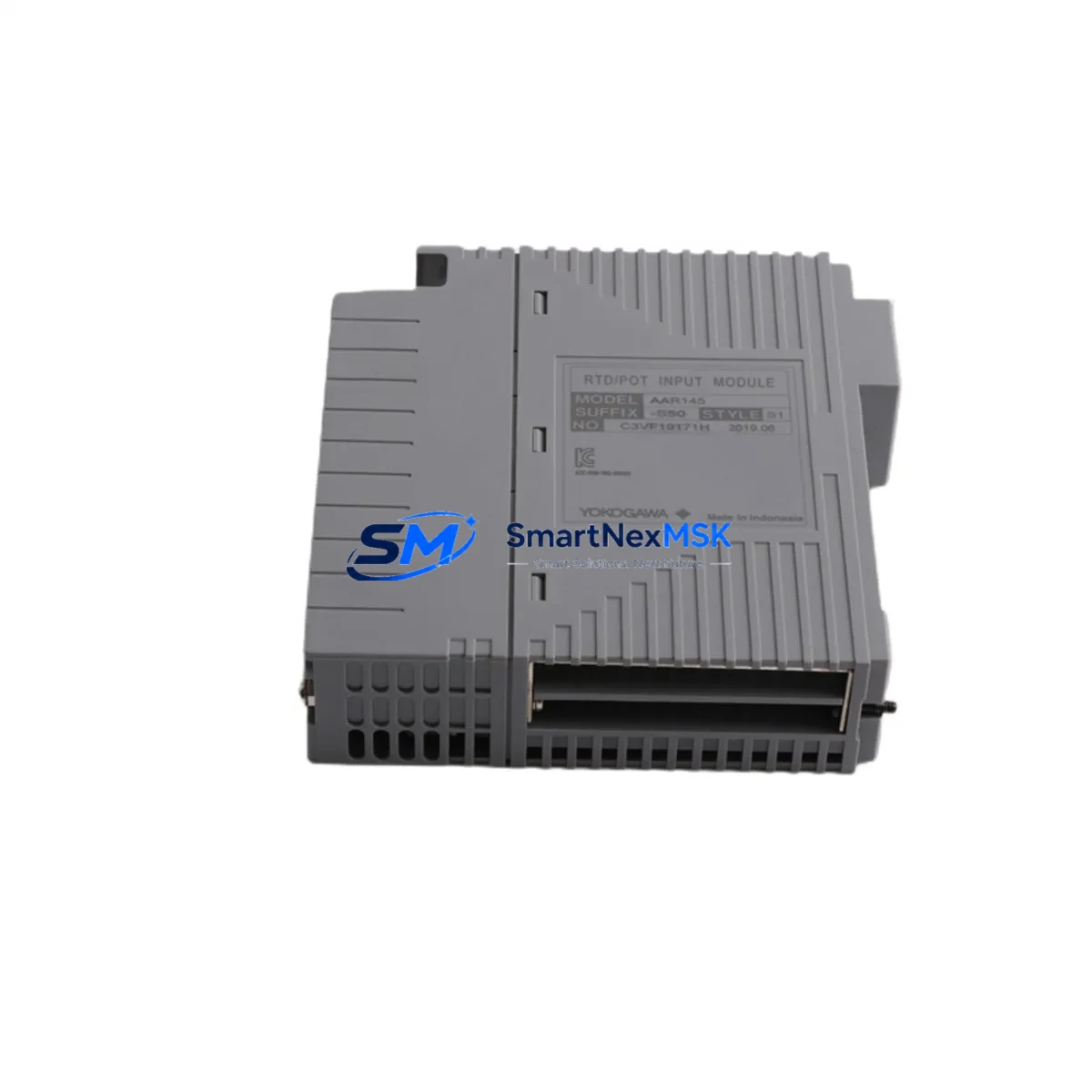

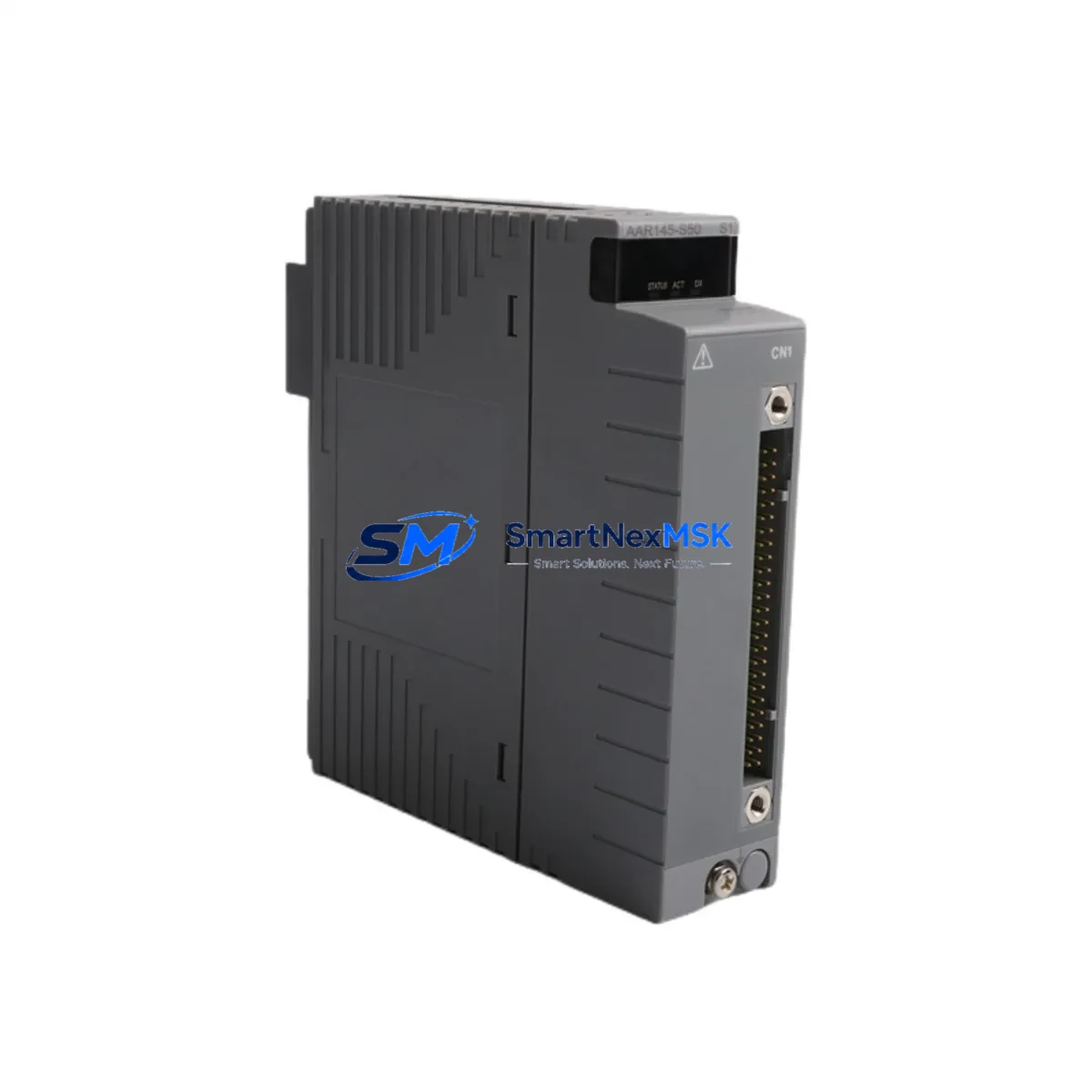

YOKOGAWA AAR145-S50 S1 Safety-Enhanced RTD Input Module

YOKOGAWA AAR145-S50 S1 Safety-Enhanced RTD Input Module for Harsh Industrial Sites

The YOKOGAWA AAR145-S50 S1 is a ruggedized RTD/potentiometer input module engineered for the CENTUM VP Distributed Control System (DCS) platform. Designed to operate reliably in high-interference, high-load, and continuous-production industrial environments, this module delivers precise temperature signal acquisition with built-in protection against the electrical and environmental hazards common to heavy industry. Whether deployed in petrochemical processing, power generation, metallurgical smelting, or water treatment facilities, the AAR145-S50 S1 provides the signal integrity and operational stability that safety-critical control loops demand.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered CENTUM VP control cabinet, the AAR145-S50 S1 RTD input module does not operate in isolation — it functions as part of a layered protection architecture designed to eliminate single points of failure. The module slots into the I/O nest alongside companion analog output modules such as the AAV542 and AAV141, which handle 4–20 mA control signals to final control elements. Signal conditioning integrity is maintained upstream by field terminal assemblies and marshalling panels that route RTD wiring through shielded, twisted-pair cables, minimizing the common-mode noise that can cause temperature reading drift in high-EMI environments like variable-frequency drive (VFD) rooms or arc furnace bays.

Power stability for the I/O nest is provided by the PW481 or PW482 power supply modules, which deliver regulated 24 VDC with redundancy support. Voltage fluctuations and micro-interruptions — frequent in facilities with large motor starts or welding operations — are absorbed before they can propagate to the signal acquisition layer. The ACM12 communication module manages data transfer between the I/O nest and the field control station over the V-net bus, ensuring that RTD readings from the AAR145-S50 S1 reach the controller without latency or packet loss even under high bus-load conditions.

For safety interlock applications, the AAR145-S50 S1 is often paired with the AAI141 analog input module for 4–20 mA process variables and the ADV151 digital input module for discrete safety signals, forming a complete process variable acquisition layer within the same I/O nest. In SIL-rated loops, the temperature data from this module feeds into the SSC60S safety controller or is cross-validated against redundant sensor inputs to prevent spurious trips or missed shutdowns. The AIP588 intrinsic safety barrier or equivalent Zener barrier assemblies are recommended when the RTD sensors are located in Zone 1 or Zone 2 hazardous areas, ensuring that the energy entering the field remains below ignition thresholds at all times.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units, catalytic crackers, and hydrocracker reactors, precise temperature monitoring is a primary safety function. The AAR145-S50 S1 provides the measurement accuracy and channel isolation needed to detect runaway exotherms before they escalate to pressure relief or emergency shutdown events. Its surge protection prevents damage from the frequent static discharge events common in hydrocarbon processing areas.

Power Generation: Boiler drum temperature, turbine bearing temperature, and generator winding temperature are all safety-critical measurements in thermal power plants. The module’s wide operating temperature range and vibration resistance make it suitable for installation in control rooms adjacent to turbine halls, where mechanical vibration and thermal cycling are constant stressors on electronic components.

Mining & Mineral Processing: Conveyor drive motor temperature monitoring, crusher bearing temperature, and flotation cell process temperature are typical applications in mining operations. The AAR145-S50 S1’s EMI immunity is particularly valuable in these environments, where large DC drives and high-power switchgear generate significant electromagnetic interference that can corrupt temperature readings from lesser-protected modules.

Water & Wastewater Treatment: In municipal and industrial water treatment facilities, temperature monitoring of biological reactors, heat exchangers, and chemical dosing systems requires long-term stability and low drift. The module’s galvanic isolation prevents ground loop currents — a persistent problem in large water treatment plants with distributed grounding systems — from introducing measurement errors into the control loop.

Metallurgy & Steel Production: Continuous casting, rolling mill, and electric arc furnace operations subject control systems to extreme thermal gradients, heavy vibration, and intense electromagnetic fields. The ruggedized design of the AAR145-S50 S1, combined with its compliance with IEC 60068-2-6 vibration standards, ensures reliable operation in these demanding environments where module failure can result in costly production interruptions or safety incidents.

Port & Terminal Automation: Tank farm temperature monitoring for LNG, LPG, and petroleum product storage requires intrinsically safe measurement solutions. The AAR145-S50 S1, when used with appropriate IS barriers, provides the measurement integrity required for custody transfer and overfill prevention systems in terminal automation applications.

Safety and Quality FAQ

Q1: What warranty does the AAR145-S50 S1 carry, and what does it cover?
All YOKOGAWA AAR145-S50 S1 modules supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects, functional failures, and premature component degradation under normal operating conditions. Warranty claims are processed with priority to minimize control system downtime. Replacement units are dispatched from stock upon confirmation of the defect.

Q2: What pre-shipment testing is performed on each module?
Every AAR145-S50 S1 unit undergoes a multi-point functional verification before dispatch, including channel-by-channel RTD input accuracy checks, isolation resistance testing, bus communication handshake verification, and visual inspection for connector integrity and component condition. Test records are available upon request for quality-critical procurement processes.

Q3: Is the AAR145-S50 S1 compatible with all CENTUM VP field control station variants?
The AAR145-S50 S1 is designed for use with CENTUM VP I/O nests and is compatible with AFV10S and AFV20S field control stations. It is also backward-compatible with CENTUM CS 3000 I/O nests in many configurations. Customers integrating this module into existing systems are encouraged to confirm the I/O nest revision and firmware version with our technical team prior to ordering to ensure seamless compatibility.

Q4: Can long-term supply continuity be guaranteed for this module?
SMARTNEXMSK maintains dedicated inventory of YOKOGAWA CENTUM VP I/O modules, including the AAR145-S50 S1, to support both planned maintenance schedules and emergency replacement requirements. Our sourcing network covers authorized distribution channels and certified refurbishment programs, ensuring that customers operating aging CENTUM VP systems can obtain genuine replacement modules without being forced into premature system upgrades.
