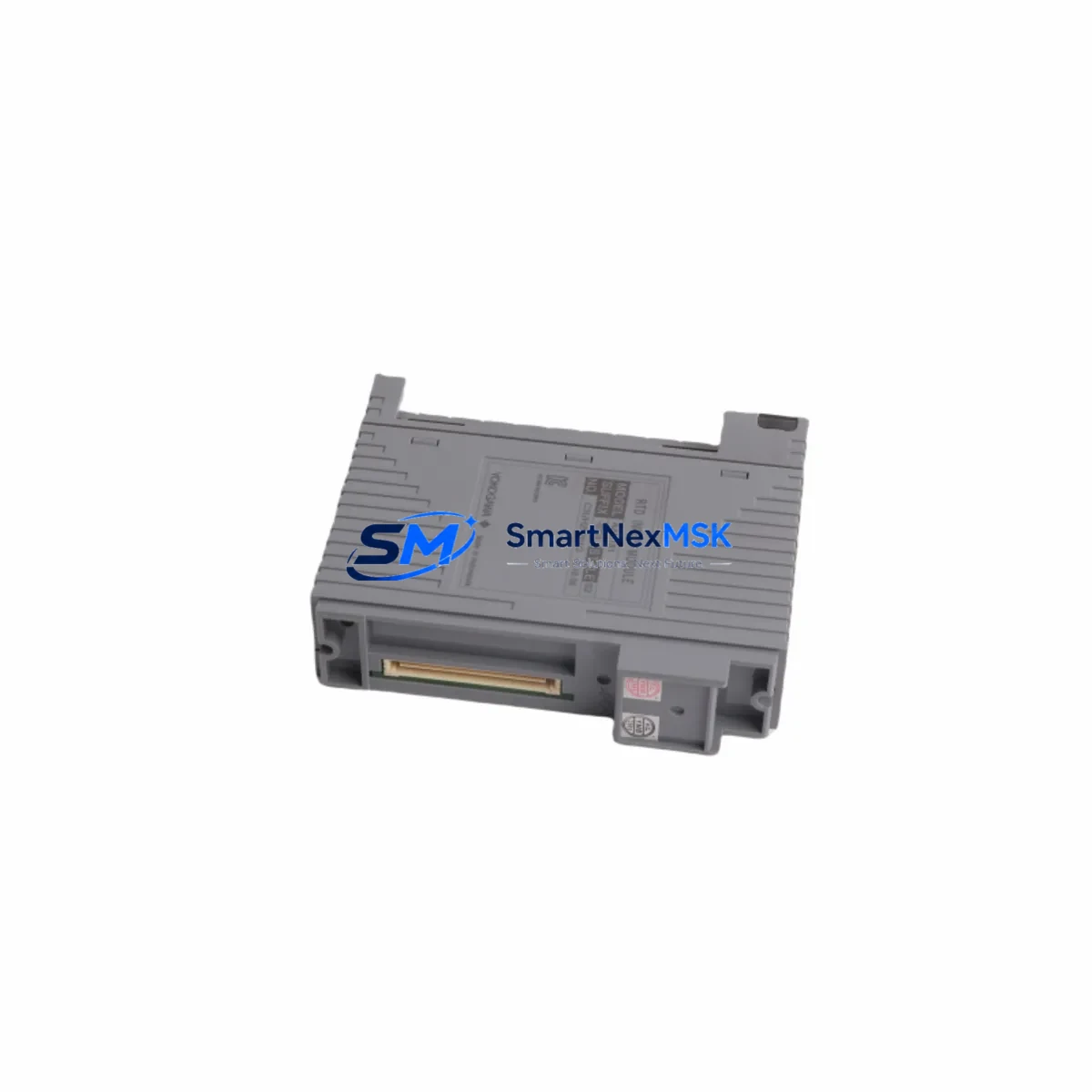

YOKOGAWA AAR181-S53 S2 Maintenance-Ready Spare CENTUM VP
Unplanned downtime in a DCS-controlled process plant is one of the most costly events a maintenance team can face. The YOKOGAWA AAR181-S53 S2 is a field-proven analog input module designed for the CENTUM VP and CS 3000 distributed control systems — two of the most widely deployed DCS platforms in refining, petrochemical, power generation, and pharmaceutical manufacturing. Holding a verified original spare of the AAR181-S53 S2 in your maintenance inventory is a direct investment in operational continuity and rapid fault recovery.
This module handles multi-channel analog signal acquisition from field transmitters, converting 4–20 mA or thermocouple/RTD inputs into digital process values for the CENTUM VP controller. When a channel drifts, an input card fails, or a module is flagged during a scheduled calibration audit, the ability to swap in a tested, pre-verified replacement within the same maintenance window — rather than waiting days for emergency procurement — is the difference between a controlled shutdown and a production loss event.
Every AAR181-S53 S2 unit shipped by SMARTNEXMSK undergoes functional verification prior to dispatch, including signal path continuity checks and power-on self-test confirmation. Units are packaged in anti-static enclosures with full traceability documentation, and are backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | AAR181-S53 S2 |
| Brand | YOKOGAWA |
| Module Type | Analog Input Module (DCS) |
| Compatible Systems | CENTUM VP, CENTUM CS 3000 |
| Signal Type | 4–20 mA, Thermocouple, RTD (series-dependent) |
| Mounting | Node Unit / Field Control Station backplane |
| Origin | Japan (Original YOKOGAWA) |
| Condition | Original, tested before shipment |
| Application Environment | Process automation, refining, power, pharma, chemical |
| Maintenance Scenario | Planned replacement, emergency swap, calibration failure, channel fault |
| Installation | Hot-swap capable per CENTUM VP maintenance procedures |
| Warranty | 12 Months — functional defect coverage |
| Dispatch | Tested & verified prior to shipment |
| Long-Term Supply | Available for ongoing procurement and blanket orders |
Maintenance Planning for Continuous Operation
Replacing the AAR181-S53 S2 in a live CENTUM VP system is rarely an isolated task. A disciplined maintenance engineer will treat the module swap as an opportunity to inspect the surrounding electrical environment and confirm that adjacent components are not contributing to the original fault or at risk of imminent failure.
Begin with the field terminal assembly (FTA) associated with the affected node — corrosion, loose screw terminals, or moisture ingress at the FTA are common root causes of analog input degradation that will persist even after a module replacement. Inspect the power supply module feeding the Field Control Station; YOKOGAWA’s PW481 and PW482 power supply units are frequently found in the same cabinet and should be checked for output voltage stability and fan operation. A marginal power supply can cause intermittent analog errors that mimic module failure.
Check the communication bus coupler and ESB bus module connecting the node to the controller — a degraded bus connection can cause the AAR181-S53 S2 to report communication errors rather than true hardware failure. If the system uses Vnet/IP or ESB redundant communication, verify that both paths are active and that the ACM12 or equivalent communication module shows no fault LEDs.
For plants running older CS 3000 infrastructure alongside CENTUM VP, it is advisable to maintain spares of the AAI141 and AAI143 analog input modules as cross-reference candidates, since field wiring and FTA configurations are often shared across generations. Similarly, the AAO145 analog output module and ADV151 digital input module are common co-residents in the same I/O nest and should be included in your periodic inspection checklist.
Signal isolators installed between field transmitters and the DCS input card — particularly in high-noise environments or where intrinsic safety barriers are required — should be tested for output accuracy. A failing Zener barrier or galvanic isolator upstream of the AAR181-S53 S2 can introduce offset errors that appear as module faults. Finally, confirm that the node unit chassis and backplane connectors are free of oxidation and that the module seating is firm before closing the cabinet.
Site Replacement Workflow
The AAR181-S53 S2 is designed for in-service replacement within the CENTUM VP maintenance framework. Before initiating a swap, confirm the module address and slot assignment in the CENTUM VP Engineering Environment (ENG) and place the affected channels in manual mode at the operator station to prevent process upsets during the changeover.
Power down the specific node unit slot if hot-swap is not confirmed for your revision level, extract the faulty module, and insert the replacement AAR181-S53 S2. After re-seating, allow the module to complete its self-diagnostic cycle — typically 30–60 seconds — before returning channels to automatic control. Verify all channel readings against field reference instruments before releasing the loop to process control.
For sites migrating from legacy CENTUM CS 3000 to CENTUM VP, the AAR181-S53 S2 supports backward-compatible configurations that reduce re-engineering effort and allow phased hardware upgrades without full system cutover. This makes it a strategic spare for plants extending the operational life of aging DCS infrastructure while planning a longer-term migration roadmap.
Document the replacement in your CMMS with the module serial number, slot address, and post-installation verification readings. This record supports warranty claims, audit compliance, and future predictive maintenance scheduling.
Spare Parts Support FAQ
Q1: Is the AAR181-S53 S2 compatible with both CENTUM VP and CS 3000 systems?
Yes. The AAR181-S53 S2 is designed for YOKOGAWA’s CENTUM platform and is compatible with CENTUM VP and CS 3000 Field Control Stations. Always verify the node unit revision and FCS configuration in your engineering documentation before installation to confirm slot and FTA compatibility.
Q2: What testing is performed before shipment?
Each unit undergoes power-on self-test verification and signal path continuity checks prior to dispatch. Units are shipped in anti-static packaging with traceability documentation. The 12-month warranty covers functional defects identified under normal operating conditions.
Q3: How should I manage AAR181-S53 S2 inventory for a multi-unit plant?
For plants with 10 or more CENTUM VP nodes, we recommend maintaining a minimum of 2 spare AAR181-S53 S2 modules per site. For critical process units with no redundant measurement paths, consider a 1:4 or 1:6 spare ratio. SMARTNEXMSK supports blanket purchase orders and scheduled replenishment programs for long-term supply continuity.
Q4: What is the lead time and can I source this module long-term?
Stock availability is maintained for prompt dispatch. For legacy and discontinued YOKOGAWA modules, SMARTNEXMSK provides long-term sourcing support to help plants sustain aging DCS systems beyond the original manufacturer’s active production period. Contact our team for volume pricing and scheduled delivery arrangements.
