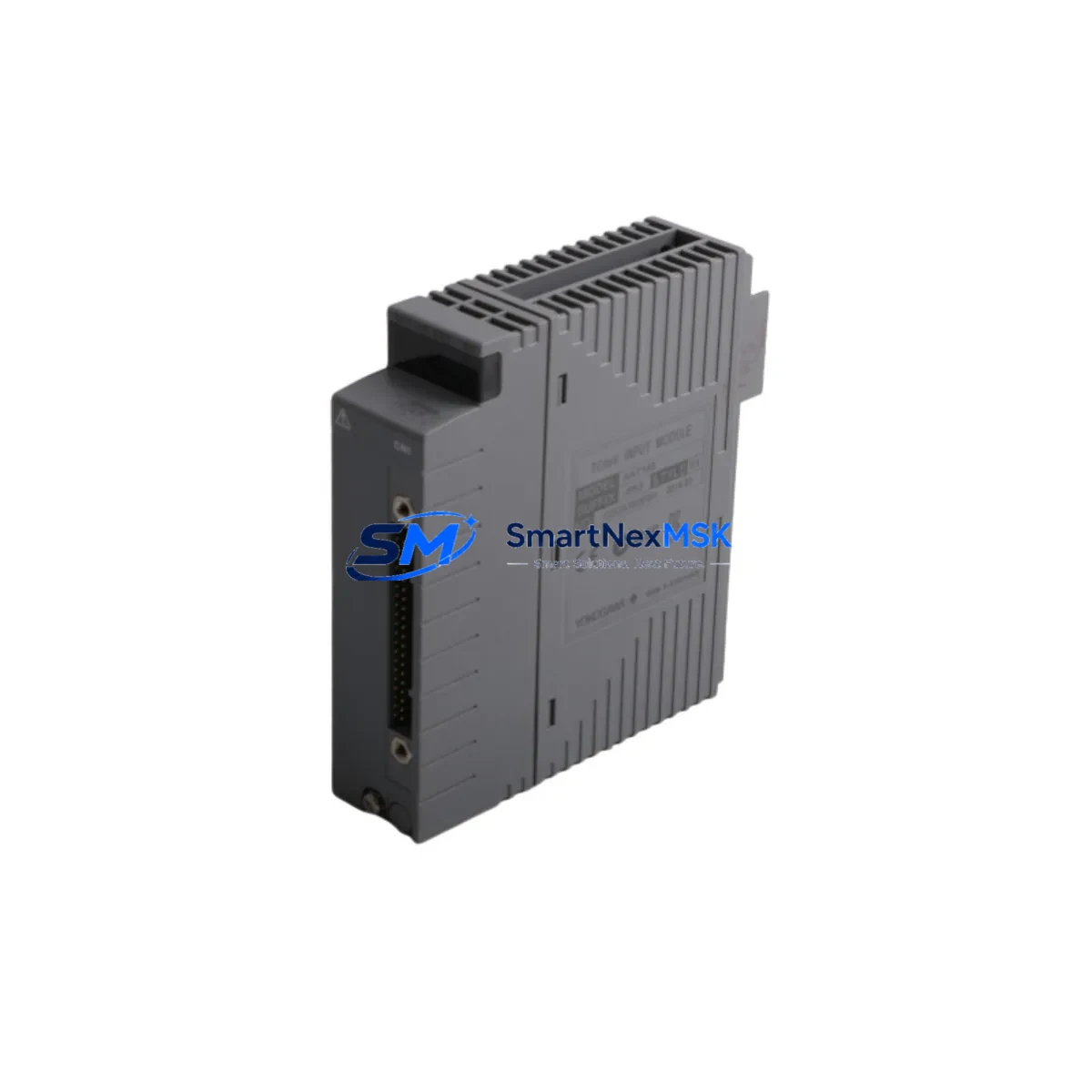

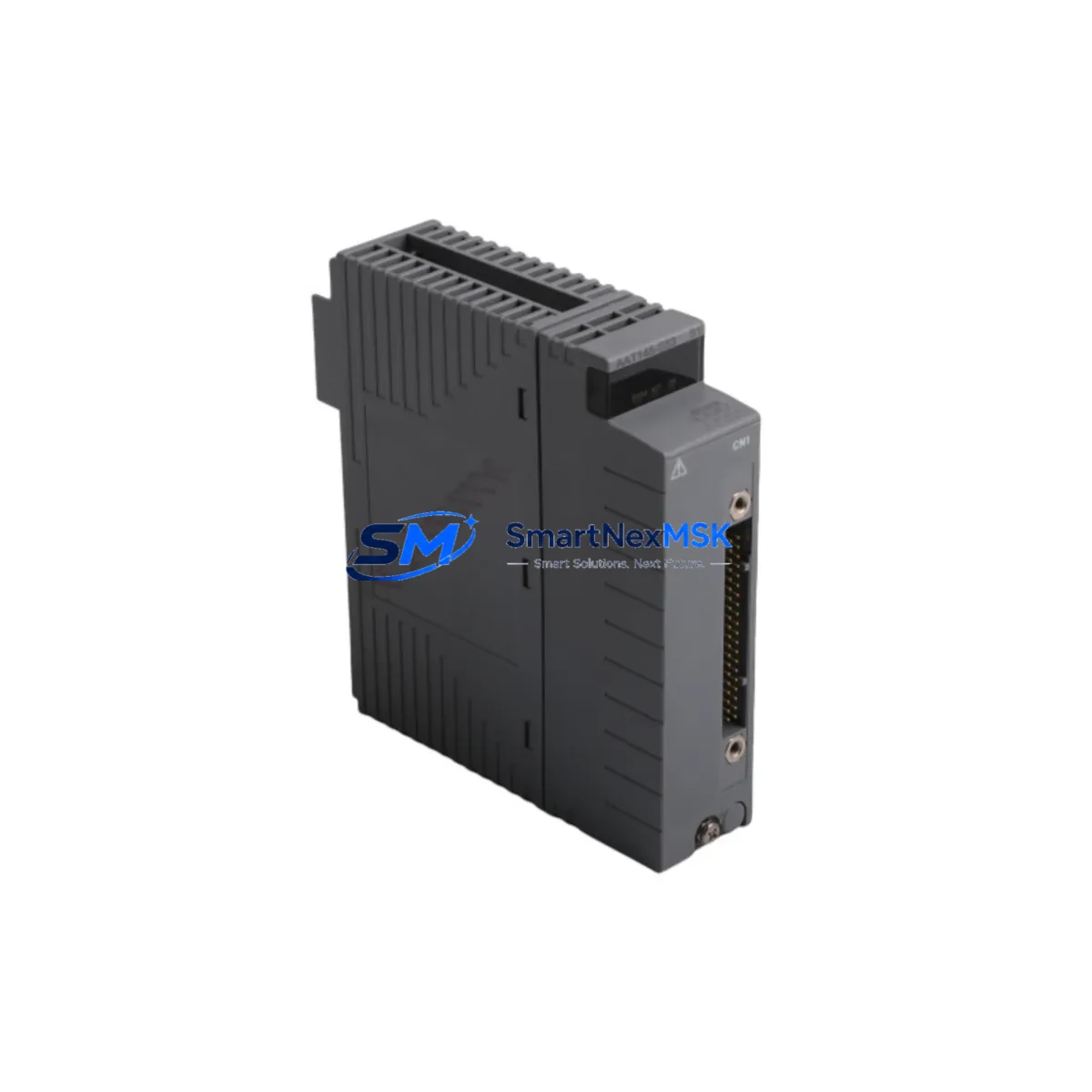

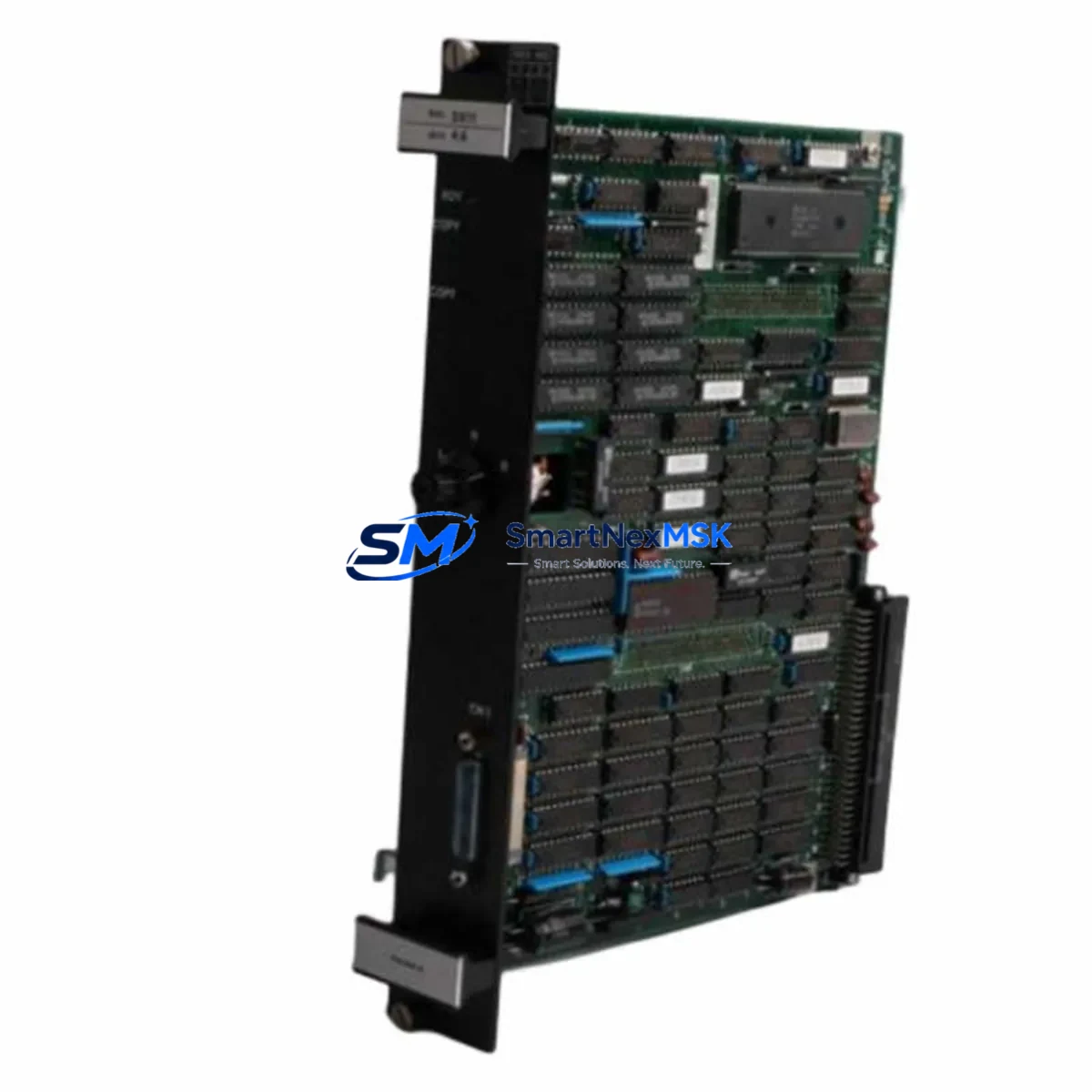

YOKOGAWA AAT145-S53 S1 Maintenance-Ready Spare for CENTUM Automation
The YOKOGAWA AAT145-S53 S1 is an original analog input module engineered for CENTUM VP and CENTUM CS 3000 distributed control systems. Designed for continuous process industries including petrochemical, power generation, pulp & paper, and pharmaceutical plants, this module delivers reliable 4–20 mA signal acquisition with high-resolution conversion and galvanic isolation. Holding a verified stock of this spare part is a proven strategy for reducing unplanned downtime and protecting critical production loops.
For maintenance engineers managing aging CENTUM installations, the AAT145-S53 S1 represents a direct, plug-compatible replacement that requires no firmware reconfiguration when swapped within the same field control station (FCS) chassis. Procurement engineers sourcing this module can rely on our pre-shipment functional testing, original manufacturer packaging, and 12-month warranty coverage to meet site quality requirements and audit documentation standards.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | AAT145-S53 S1 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Analog Input Module |
| Compatible Systems | CENTUM VP, CENTUM CS 3000 |
| Signal Type | 4–20 mA DC (current input) |
| Number of Channels | 16 channels (per series standard) |
| Isolation | Galvanic channel-to-channel isolation |
| Resolution | 16-bit A/D conversion |
| Operating Temperature | 0°C to 55°C |
| Mounting | FCS node unit / I/O nest (CENTUM standard backplane) |
| Origin | Japan |
| Condition | Original, new or tested-good surplus |
| Pre-Shipment Testing | Functional verification performed before dispatch |
| Warranty | 12 months from date of shipment |
| Lead Time | In-stock: ships within 2–5 business days |
| Maintenance Recommendation | Inspect every 24 months; replace on signal drift >0.5% FS |
Maintenance Planning for Continuous Operation
When a CENTUM VP or CS 3000 field control station raises an analog input fault alarm, the root cause is rarely isolated to a single component. A disciplined maintenance engineer will treat the AAT145-S53 S1 replacement as the starting point of a broader inspection cycle across the affected I/O node and its associated field wiring loop.
Begin by verifying the ALR111 or ALR121 power supply module feeding the I/O nest — a marginal DC bus voltage is a common upstream cause of intermittent analog input errors that are misdiagnosed as module failure. Next, inspect the terminal board (e.g., TB805 or equivalent CENTUM terminal assembly) for corrosion, loose screw terminals, and moisture ingress, particularly in humid or coastal plant environments.
For field loop integrity, check the 4–20 mA transmitter wiring and confirm loop resistance is within the module’s specified burden range. If the plant uses HART-capable transmitters, verify that the HART communication filter or signal isolator (e.g., AAI141 or AAI143 series) in the loop is functioning correctly, as a failed isolator can mask or simulate an input module fault.
Within the same FCS node, it is good practice to inspect adjacent analog output modules (e.g., AAT145 companion AO variants or AAV141 series) and any digital I/O modules (ADV151, ADV161) sharing the same backplane, since backplane connector wear affects all seated modules equally. If the plant runs FOUNDATION Fieldbus or PROFIBUS segments, also check the communication interface module (e.g., ALF111) for link health, as a degraded fieldbus segment can generate spurious analog input alarms at the FCS level.
For control cabinet inspections, verify the ESB bus coupler and node interconnect cables for physical damage. Dust accumulation on module ventilation slots should be cleared during any planned maintenance window. Keeping one spare AAT145-S53 S1 module on the shelf — alongside a spare power supply module and a terminal board — is the minimum recommended buffer for a CENTUM installation with more than 200 analog input points.
Site Replacement Workflow
Step 1 — Preparation: Download the current FCS configuration from CENTUM VP Engineering Environment (ENG) and confirm the I/O address assignment for the target slot. Print the loop diagram for the affected channels.
Step 2 — Safe Isolation: Place the affected control loops in manual mode at the HIS (Human Interface Station) or DCS operator console. Notify the process operator and obtain a permit-to-work if required by site safety procedures.
Step 3 — Module Removal: Power down the I/O nest if hot-swap is not supported for this node type. Disconnect the terminal board connector. Remove the AAT145-S53 S1 module by releasing the front locking lever and sliding it out of the nest slot.
Step 4 — Installation: Insert the replacement AAT145-S53 S1 module into the same slot. Reconnect the terminal board. Power up the nest and confirm the module status LED indicates normal operation (green).
Step 5 — Verification: From the HIS, confirm all 16 channels return valid engineering-unit readings. Compare live values against field transmitter local indicators. Return control loops to automatic mode only after all channels are verified stable.
Step 6 — Documentation: Record the replacement in the plant CMMS (Computerized Maintenance Management System), including the old module serial number, replacement date, and post-installation test results. Retain the 12-month warranty certificate from SMARTNEXMSK for audit purposes.
Spare Parts Support FAQ
Q1: Is the AAT145-S53 S1 compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The AAT145-S53 S1 is designed for the CENTUM platform I/O architecture and is compatible with both CENTUM VP and CENTUM CS 3000 field control stations. Always confirm the FCS node type and I/O nest generation with your YOKOGAWA system documentation before installation to ensure backplane connector compatibility.
Q2: What pre-shipment testing is performed on this module?
Every AAT145-S53 S1 unit dispatched by SMARTNEXMSK undergoes functional verification prior to shipment, including power-on self-test confirmation and channel signal integrity checks where test equipment permits. A test report is available upon request for quality-critical procurement processes.
Q3: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified by YOKOGAWA. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference, module serial number, and a description of the fault. Replacement or repair will be arranged within the warranty period at no additional cost.
Q4: Can you support long-term or blanket orders for CENTUM spare parts?
Yes. SMARTNEXMSK supports scheduled delivery agreements and blanket purchase orders for CENTUM VP and CS 3000 spare parts, including the AAT145-S53 S1 and related I/O modules. Long-term supply arrangements help plants maintain minimum stock levels without capital-intensive bulk purchases. Contact our team to discuss lead times, pricing tiers, and consignment options.
