YOKOGAWA ADM51-2 S4 Safety-Enhanced Analog Output for Harsh Industrial Sites

YOKOGAWA ADM51-2 S4: Safety-Enhanced Analog Output Control for Harsh Industrial Sites

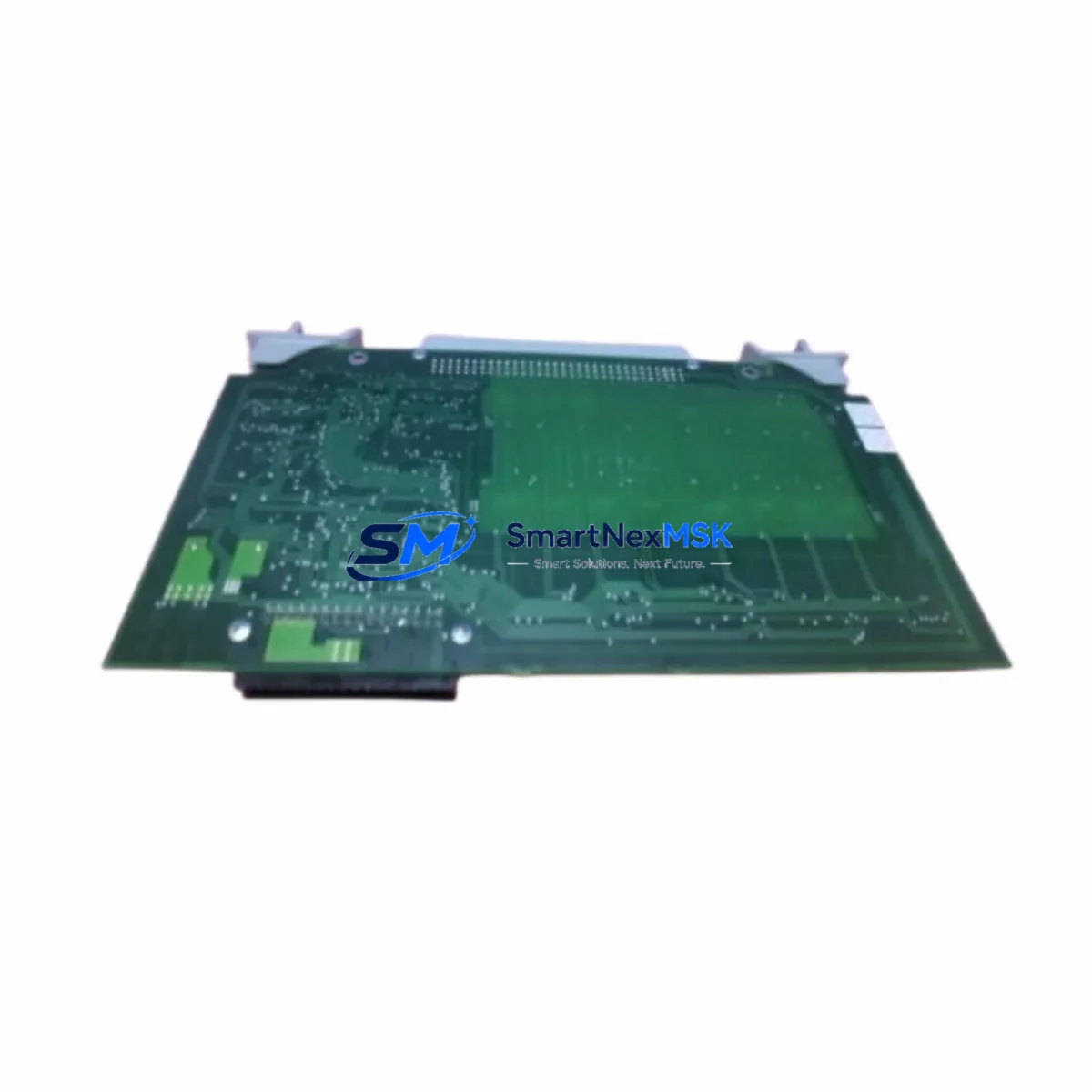

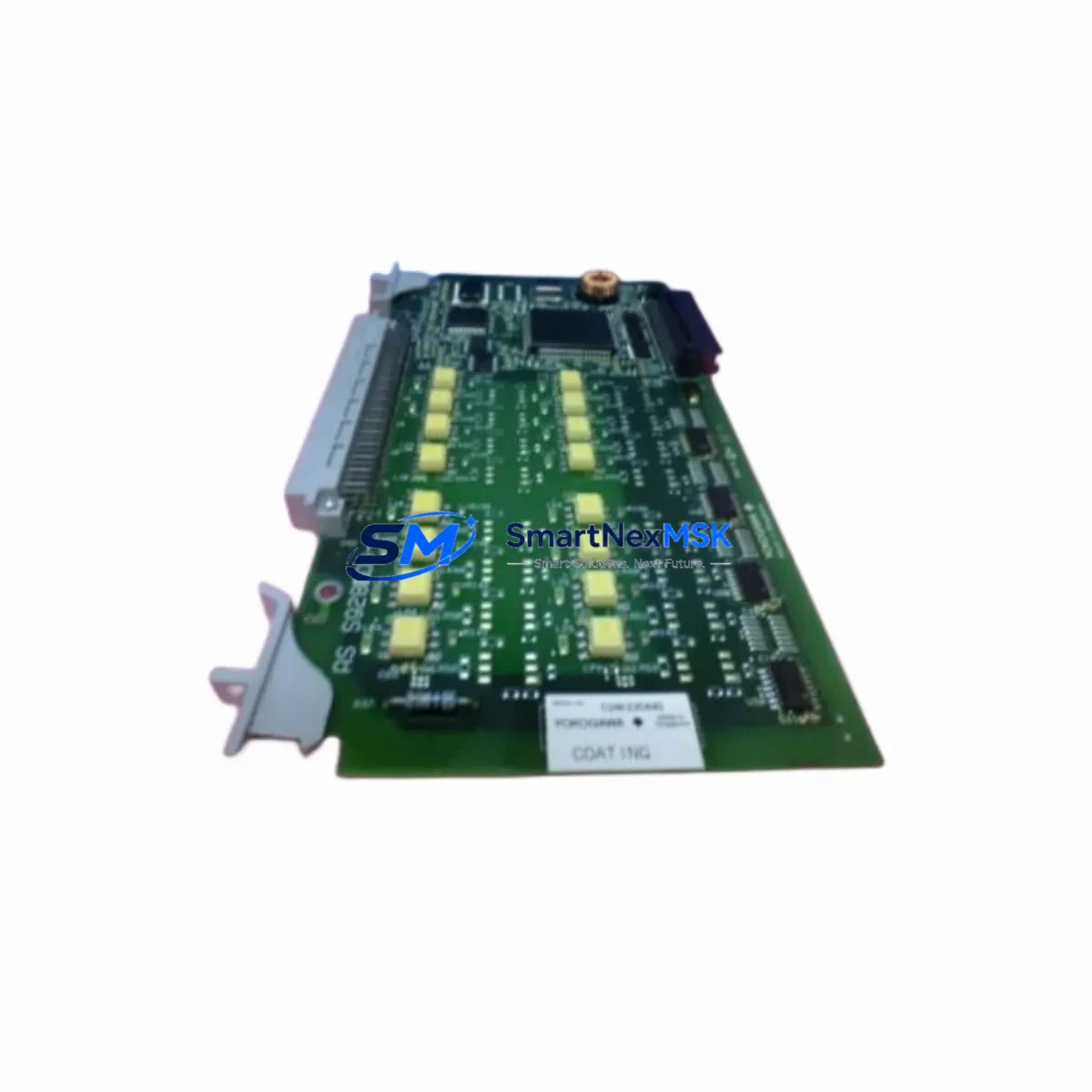

The YOKOGAWA ADM51-2 S4 is an 8-channel analog output module engineered for mission-critical process control within the CENTUM CS and CENTUM CS3000 Distributed Control System (DCS) architecture. Designed to operate reliably in high-load, high-interference industrial environments — including petrochemical plants, power generation facilities, metallurgical operations, and continuous manufacturing lines — the ADM51-2 S4 delivers stable 4–20 mA output signals with exceptional immunity to electrical noise, ground loops, and power supply fluctuations. Where control loop integrity is non-negotiable, this module provides the signal fidelity and fault tolerance that safety-critical applications demand.

Built to YOKOGAWA’s stringent quality standards, the ADM51-2 S4 undergoes full functional testing prior to shipment, ensuring every unit performs to specification from the moment it is installed. With a 12-month warranty and guaranteed in-stock availability, it is a dependable choice for both planned maintenance cycles and emergency spare-part replacement in operating facilities.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered CENTUM CS3000 control cabinet, the ADM51-2 S4 analog output module operates as part of a tightly integrated protection architecture. It works in conjunction with the YOKOGAWA ACM71 communication module to maintain real-time data exchange between the field instruments and the DCS controller, ensuring that any signal anomaly is detected and reported without delay. The module is typically paired with the YOKOGAWA ADM12 or ADM51 analog input modules to form a complete closed-loop control strategy, where both process feedback and control output share the same high-isolation, noise-immune I/O infrastructure.

Power integrity within the cabinet is maintained by the YOKOGAWA PW481 or PW482 power supply modules, which provide regulated, redundant DC bus voltage to the I/O nest. This eliminates the risk of output signal drift caused by power supply ripple — a common failure mode in high-load industrial environments. For applications requiring redundant control paths, the ADM51-2 S4 can be deployed alongside a YOKOGAWA RIO (Remote I/O) node connected via the ESB bus or V-net/IP communication backbone, extending reliable analog output capability to remote field junction boxes without compromising signal integrity.

In safety interlock circuits, the ADM51-2 S4 is often installed in the same I/O nest as YOKOGAWA SDV541 or SDV144 digital output modules, which handle discrete valve and actuator commands. Together, these modules form a coordinated output layer that responds to safety logic executed by the YOKOGAWA PFCS (Process Field Control Station) or LFCS (Large-scale Field Control Station). Upstream signal conditioning is handled by YOKOGAWA DX series signal isolators and barriers, which protect the module’s input side from field-side ground faults and voltage spikes originating in hazardous area wiring. This layered cabinet architecture ensures that a single-point failure in the field does not propagate into the control system and cause unplanned process shutdown.

Critical Industrial Safety Applications

The YOKOGAWA ADM51-2 S4 is deployed across the most demanding sectors of heavy industry, where control loop failure carries significant safety and financial consequences.

In petrochemical and refinery operations, the module drives control valve positioners and variable-speed drive references in distillation columns, reactor temperature loops, and pressure control circuits. Its high channel isolation prevents cross-talk between adjacent control loops — a critical requirement when multiple hazardous process streams share the same control cabinet.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the ADM51-2 S4 provides stable analog setpoint signals to turbine governor systems and boiler combustion controllers. The module’s tolerance for electrical noise generated by large rotating machinery and high-voltage switching equipment makes it particularly well-suited to these environments.

In metallurgical and steel production facilities, where furnace control and rolling mill automation demand continuous, uninterrupted output, the ADM51-2 S4’s robust construction and online diagnostics allow maintenance teams to monitor module health without taking the control loop offline. This supports the zero-unplanned-downtime objectives that are standard in continuous casting and hot-rolling operations.

In water and wastewater treatment plants, the module controls dosing pump speeds, aeration blower outputs, and filter backwash valve positions. Its wide operating temperature range and humidity tolerance make it reliable in the wet, chemically aggressive environments typical of treatment facilities.

In mining and mineral processing operations, including flotation circuits and conveyor drive control, the ADM51-2 S4 maintains precise analog output under conditions of heavy vibration, dust ingress, and fluctuating power quality — conditions that would cause lesser modules to produce erratic output or fail prematurely.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the YOKOGAWA ADM51-2 S4?
Every ADM51-2 S4 unit supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation to assist with site maintenance records.

Q2: How is each unit tested before shipment?
All ADM51-2 S4 modules undergo a full pre-shipment functional test, including signal accuracy verification across all 8 output channels, isolation resistance checks, and communication interface validation. Units that do not meet YOKOGAWA’s original performance specifications are not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the ADM51-2 S4 compatible with both CENTUM CS and CENTUM CS3000 systems?
Yes. The ADM51-2 S4 is designed for use in YOKOGAWA CENTUM CS and CENTUM CS3000 DCS platforms. It is compatible with standard I/O nests and backplanes used in both generations of the CENTUM architecture. For integration into CENTUM VP systems, please contact our technical team to confirm compatibility with your specific system revision and I/O nest configuration.

Q4: Can long-term supply be guaranteed for ongoing maintenance and spare-part programs?
SMARTNEXMSK maintains dedicated inventory of the ADM51-2 S4 to support both emergency replacement and planned spare-part programs. We work with industrial facilities that require multi-year supply agreements and can provide lead-time commitments aligned with your plant maintenance schedule. Contact our sales team to discuss volume pricing and reserved stock arrangements.
