YOKOGAWA ADV159-P00 Retrofit-Ready DI Module for CENTUM VP

YOKOGAWA ADV159-P00 Retrofit-Ready DI Module for CENTUM VP/CS3000 Control Systems

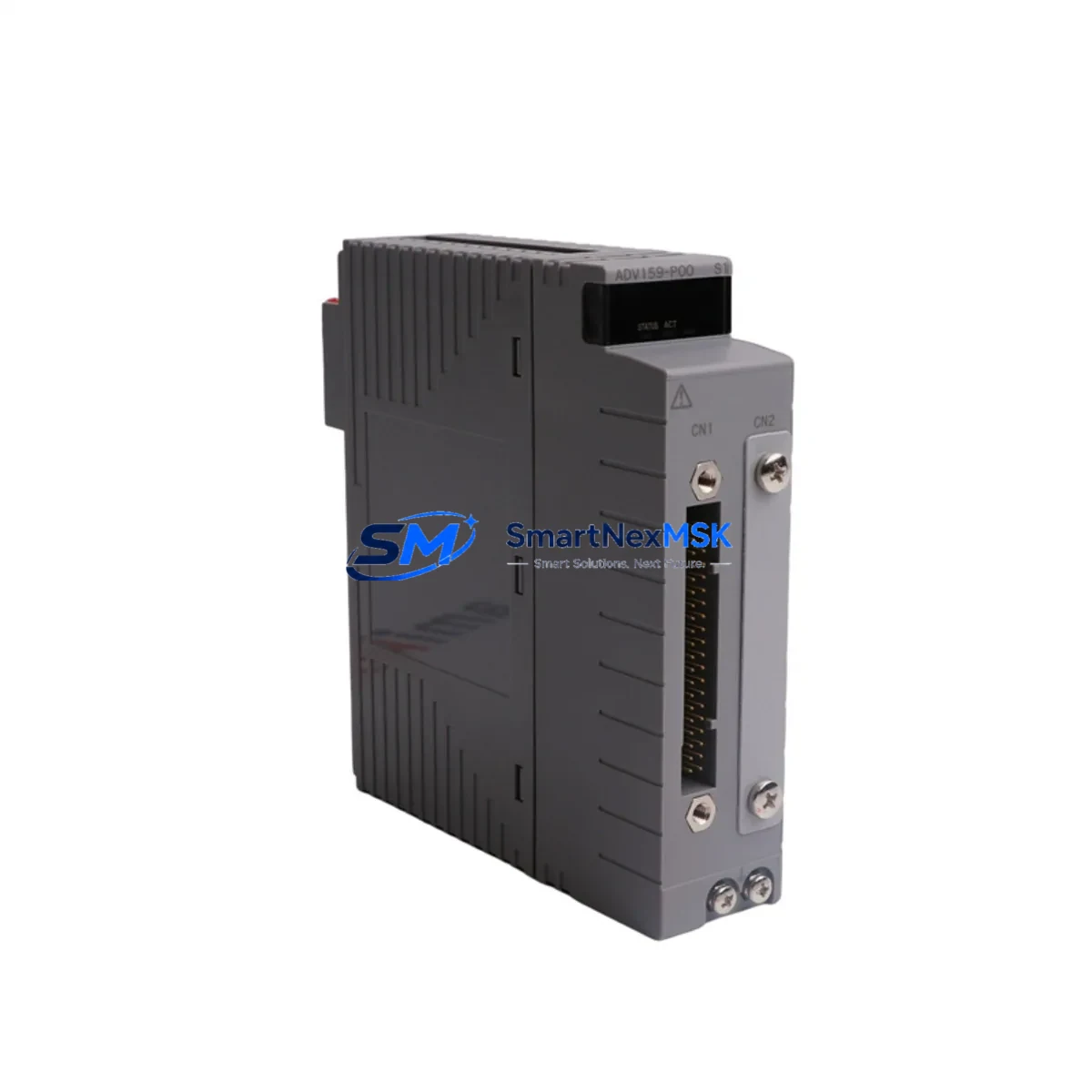

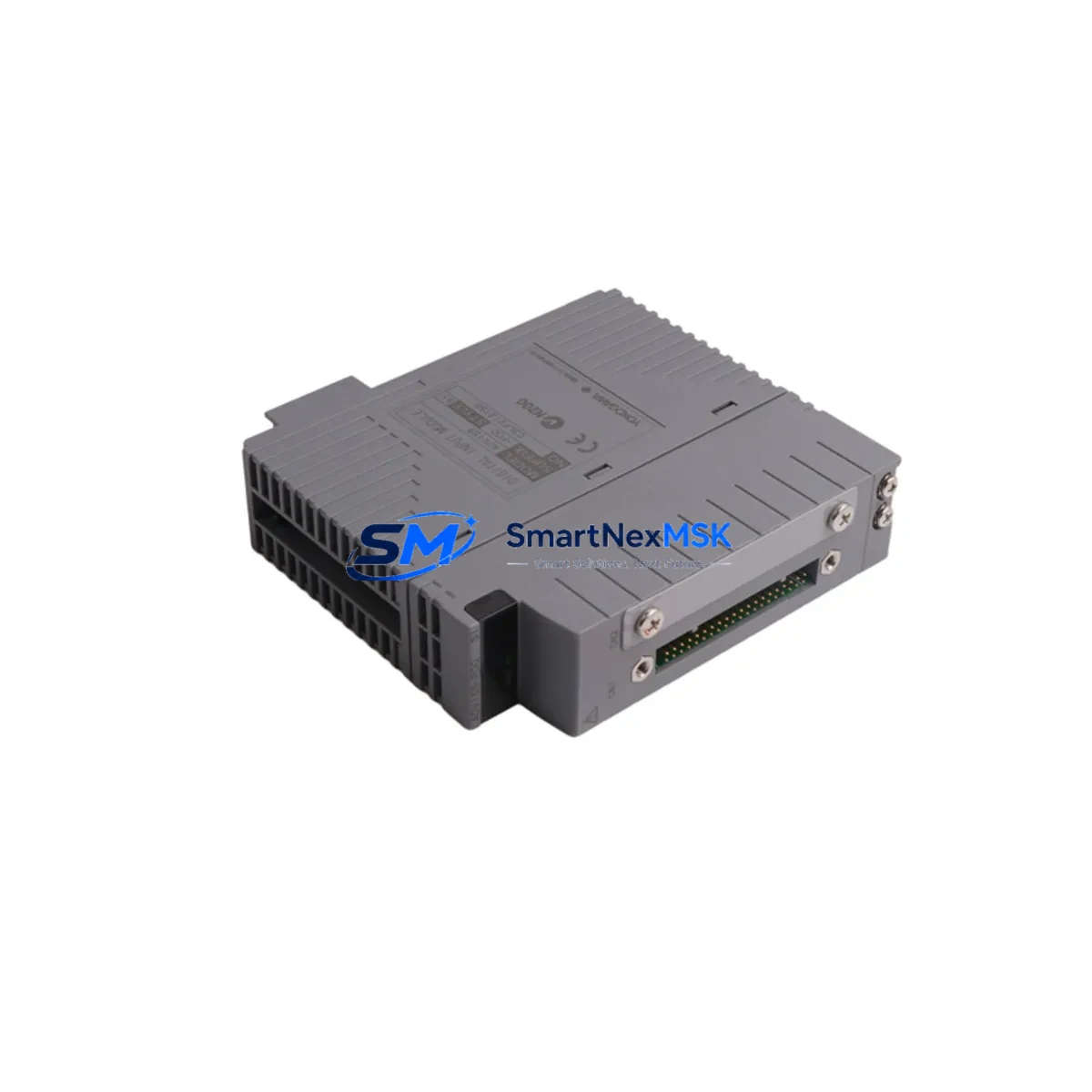

The YOKOGAWA ADV159-P00 is a 32-channel digital input (DI) module engineered for seamless integration into CENTUM VP and CS3000 distributed control system (DCS) architectures. As legacy automation infrastructure ages and OEM support windows close, the ADV159-P00 has become one of the most sought-after retrofit components for process plants, chemical facilities, power generation sites, and refinery control rooms seeking to extend operational life without a full platform migration.

Whether you are replacing a failed module on an active production line, sourcing discontinued spare parts for a scheduled turnaround, or executing a phased upgrade from CS3000 to CENTUM VP, the ADV159-P00 delivers the electrical compatibility, backplane interface integrity, and I/O addressing consistency that retrofit engineers depend on. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing and is backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ADV159-P00 retrofit begins well before the module arrives on site. Engineers must audit the existing I/O nest configuration, confirm available slots in the ANB10D or ANB10S node bus unit, and verify that the ESB-series power supply module (such as the ESB401 or ESB501) can support the additional load introduced by the replacement DI module. In many aging CS3000 installations, the power supply has been running at or near capacity for years — a pre-retrofit power audit prevents unexpected trips during commissioning.

Terminal block wiring is typically the most time-consuming element of a DI module swap. The ADV159-P00 uses a standard YOKOGAWA screw-terminal field wiring block, and in most cases the existing field cables can be transferred directly from the failed module. However, engineers should photograph and document all terminal assignments before disconnection, particularly in installations where as-built drawings have not been maintained. Signal polarity, cable shielding continuity, and ground loop isolation should all be verified before powering the replacement module.

For sites migrating from CS3000 to CENTUM VP, the ADV159-P00 is frequently deployed alongside the ACF11 field control station and AFV10S Vnet/IP interface module to bridge legacy I/O nests into the new control network. The ADV151-P00 (16-ch DI) and ADV161-P00 (32-ch DO) are commonly replaced in the same maintenance window to consolidate the upgrade scope. Where analog signals are involved, the AAI141-S00 (16-ch AI) and AAI543-H00 (8-ch AO) modules are typical companions in the same I/O nest.

HMI screen updates are often overlooked during DI module replacements. If the CS3000 or CENTUM VP HMI graphic displays tag-level status from the replaced module, engineers should verify that the CENTUM VP HIS (Human Interface Station) correctly reflects the new module’s I/O status after online replacement. In redundant FCS configurations, a bumpless switchover test should be performed after the new ADV159-P00 is confirmed online.

For sites using FOUNDATION Fieldbus or HART multiplexers alongside conventional DI modules, confirm that the replacement does not affect the fieldbus segment topology. The ALF111 FOUNDATION Fieldbus interface module and associated field devices should remain unaffected by a conventional DI swap, but segment health should be verified post-commissioning. Programming cable KS1-USB or equivalent is required for any offline configuration changes in CS3000 environments.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer executing a DI module replacement on a live control system. The ADV159-P00 supports online replacement in CENTUM VP installations where the field control station (FCS) is configured in a redundant pair. In this configuration, the primary FCS continues executing control logic while the module is swapped in the secondary nest, eliminating the need for a process shutdown.

For non-redundant CS3000 installations, the recommended approach is to pre-stage the replacement ADV159-P00 with the correct module address and I/O configuration loaded offline using CS3000 System Builder. This reduces the live commissioning window to the minimum time required for physical swap, wiring verification, and online download — typically achievable within a planned maintenance window of two to four hours.

Original control logic, function block diagrams (FBDs), and sequence table programs stored in the FCS are not affected by a DI module replacement. The program resides in the FCS processor — not in the I/O module — so there is no risk of program loss during the swap. Engineers should, however, confirm that all DI channel assignments in the FCS builder match the physical wiring of the new module before bringing the system back online. A channel-by-channel force test using the CENTUM VP diagnostic tool or CS3000 test function is recommended before returning the loop to automatic control.

SMARTNEXMSK maintains ready stock of the ADV159-P00 to support emergency breakdown scenarios. Express shipment from our Xiamen warehouse is available for urgent requirements, with same-day dispatch for orders confirmed before 14:00 CST.

Retrofit Support FAQ

Q1: Is the ADV159-P00 a direct drop-in replacement for a failed ADV159 module in my CS3000 system?
Yes. The ADV159-P00 is wiring-compatible and backplane-compatible with the CS3000 I/O nest. The module address is retained from the original configuration in CS3000 System Builder, so no re-engineering of the control database is required. Confirm the hardware revision of your existing nest before installation if your CS3000 system is running an early firmware baseline.

Q2: Can I install the ADV159-P00 in a CENTUM VP system that previously used CS3000 I/O nests?
Yes, provided the I/O nest has been migrated to CENTUM VP node bus compatibility. In mixed-generation installations, verify that the ANB node bus unit and ESB power supply are rated for CENTUM VP operation. The CENTUM VP Engineering Environment will recognize the ADV159-P00 automatically once the module is seated and powered.

Q3: What pre-shipment testing does SMARTNEXMSK perform on the ADV159-P00?
Each ADV159-P00 unit undergoes functional power-on testing and channel-level DI signal verification before shipment. A test report is available on request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What information do I need to provide when ordering to ensure compatibility?
Please provide your CENTUM VP or CS3000 system generation, the FCS model (e.g., PFCS, SFCS, or ACF11), the I/O nest type (ANB10D or ANB10S), and the existing module part number if available. Our technical team will confirm compatibility and advise on any wiring adapter or firmware considerations before shipment.
