YOKOGAWA ADV551-P00 S2 Retrofit-Ready DO Module for CENTUM VP

YOKOGAWA ADV551-P00 S2 Retrofit-Ready DO Module for CENTUM VP: Compatible Upgrade for Legacy DCS Control Systems

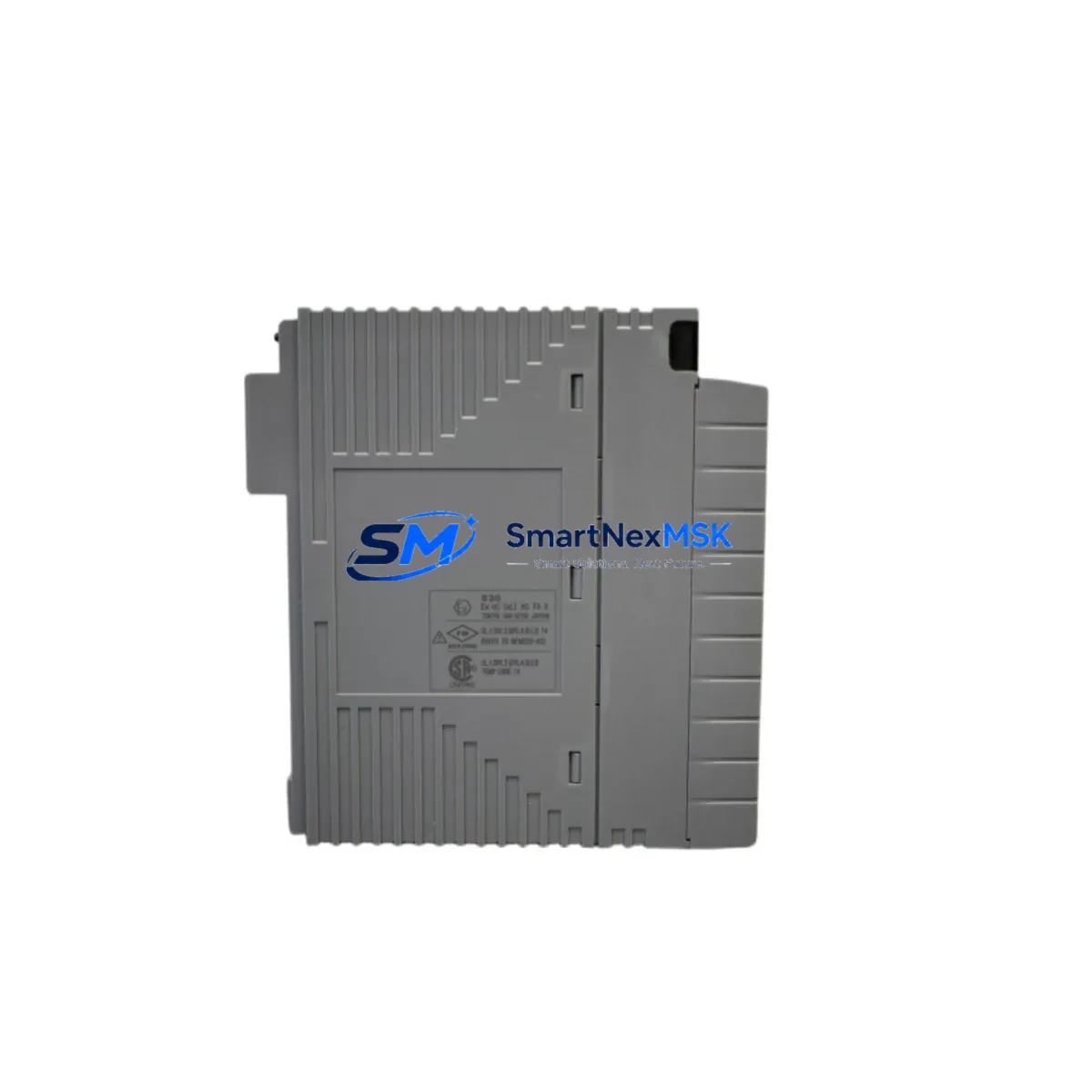

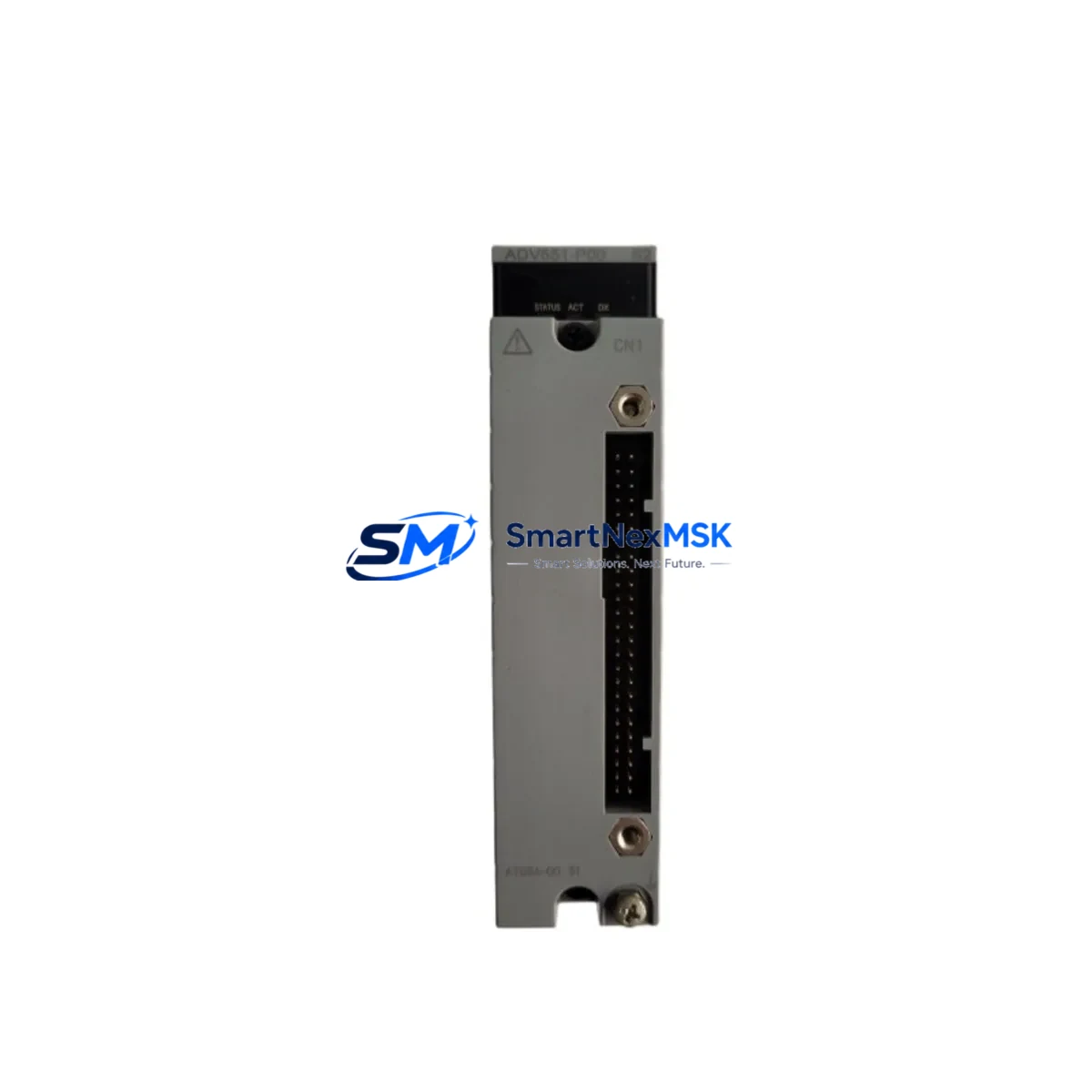

The YOKOGAWA ADV551-P00 S2 is a 16-channel digital output module engineered for seamless retrofit integration into YOKOGAWA CENTUM VP and CS 3000 distributed control systems. As aging automation infrastructure reaches end-of-life, plant engineers and system integrators face mounting pressure to replace discontinued I/O modules without triggering full-scale control system overhauls. The ADV551-P00 S2 addresses this challenge directly — offering a verified drop-in replacement path that preserves existing wiring, backplane addressing, and program logic while restoring full output channel functionality.

Whether you are managing a phased modernization of a refinery control room, upgrading a power plant’s DCS cabinet, or restoring a discontinued module in a continuous chemical process, the ADV551-P00 S2 delivers the compatibility and reliability that retrofit projects demand. Each unit is pre-tested prior to shipment, backed by a 12-month warranty, and available from in-stock inventory for rapid deployment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the module arrives on site. When replacing the ADV551-P00 S2 in an existing CENTUM VP or CS 3000 cabinet, engineers should first audit the I/O nest power budget — confirming that the nest power supply, such as the YOKOGAWA PW481 or PW482 power module, can sustain the full channel load after replacement. Undersized power capacity is a common cause of intermittent output faults following module swaps.

Next, verify the ESB bus termination and nest configuration. The ADV551-P00 S2 installs into standard CENTUM VP I/O nests, including the ANB10D and ANB10S node units, without mechanical modification. Confirm that the nest firmware version is compatible with the S2 suffix revision — in most CENTUM VP R5 and later environments, no firmware update is required.

Terminal wiring should be documented before removal of the legacy module. The ADV551-P00 S2 uses the same terminal block pinout as its predecessor, so field cables can be reconnected directly. If the existing terminal block assembly, such as the TB481 or equivalent marshalling terminal, shows signs of corrosion or mechanical wear, this is an appropriate time to replace it as part of the retrofit scope.

For sites running CS 3000 with ACF11 or ACF12 field control stations, the ADV551-P00 S2 integrates without changes to the FCS builder configuration. Engineers should export and archive the current FCS project before any hardware swap, using YOKOGAWA’s Engineering Environment (CENTUM VP ENG) to create a restore point. This protects against accidental logic loss during the physical replacement procedure.

Communication continuity is maintained through the Vnet/IP or legacy V net backbone. No changes to the EC401 or EC401-11 Vnet/IP communication modules are required when replacing a DO module at the I/O nest level. The FCS will automatically re-recognize the ADV551-P00 S2 upon power-up, and output channel status will be restored within the normal scan cycle.

HMI operators using YOKOGAWA FAST/TOOLS or the standard CENTUM VP HIS (Human Interface Station) will observe no change in graphic display behavior. Tag assignments, alarm limits, and output command paths remain intact. This zero-HMI-impact characteristic significantly reduces retrofit validation time and supports faster return to normal operations.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary constraint in any live DCS retrofit. The ADV551-P00 S2 supports a hot-swap procedure in CENTUM VP systems equipped with redundant I/O configurations — allowing module replacement without shutting down the associated field control station. In non-redundant configurations, a controlled output inhibit sequence should be executed through the FCS before physical removal, ensuring that connected field devices — valves, motor starters, solenoids — are placed in a safe state prior to the swap.

Recommended downtime control steps:

• Place all DO channels in manual/inhibit mode via the FCS or HIS before removal.
• Document terminal wiring with photographs and a wiring schedule.
• Remove the legacy module and insert the ADV551-P00 S2 into the same nest slot.
• Power-cycle the nest or perform an FCS online download to re-initialize the module.
• Verify channel-by-channel output continuity using the FCS diagnostic display.
• Return channels to automatic control in sequence, confirming field device response.

The entire swap procedure, when pre-planned, typically completes within 30–60 minutes per module. For multi-module retrofits across several I/O nests, a phased replacement schedule — one nest per maintenance window — keeps the process plant in continuous operation throughout the modernization program.

Retrofit Support FAQ

Q1: Is the ADV551-P00 S2 a direct replacement for the original ADV551-P00?
Yes. The S2 suffix denotes a hardware revision that maintains full backward compatibility with the original ADV551-P00. Terminal pinout, ESB bus interface, module addressing, and FCS function block assignments are identical. No configuration changes are required in the CENTUM VP or CS 3000 engineering environment.

Q2: What pre-shipment testing is performed on each unit?
Every ADV551-P00 S2 unit undergoes a full functional test prior to shipment, including channel-by-channel output verification, bus communication check, and power consumption measurement. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be used in a CS 3000 system as well as CENTUM VP?
Yes. The ADV551-P00 S2 is compatible with both CENTUM VP and CS 3000 field control stations that use the ESB I/O bus architecture. Confirm the nest type and FCS model with your site documentation before ordering to ensure slot and power compatibility.

Q4: What is the long-term supply availability for this module?
SMARTNEXMSK maintains in-stock inventory of the ADV551-P00 S2 to support ongoing retrofit and emergency replacement requirements. We specialize in sourcing discontinued and hard-to-find YOKOGAWA DCS components, providing a reliable supply channel for plants operating legacy CENTUM VP and CS 3000 systems beyond the OEM support lifecycle.
