In continuous process industries — from oil and gas separation trains and LNG terminals to pulp and paper mills and pharmaceutical batch reactors — an unplanned DCS digital output module failure can cascade into a full unit shutdown within minutes. The YOKOGAWA ADV551-P10 S2 is a 32-channel, 24 VDC digital output module designed for the CENTUM VP distributed control system, one of the most widely deployed DCS platforms in heavy process industries worldwide. Holding a verified spare of the ADV551-P10 S2 in your maintenance inventory is not merely a best practice — it is a direct risk-mitigation measure against the multi-hour or multi-day downtime that an unplanned DO module failure can cause in a critical control loop.

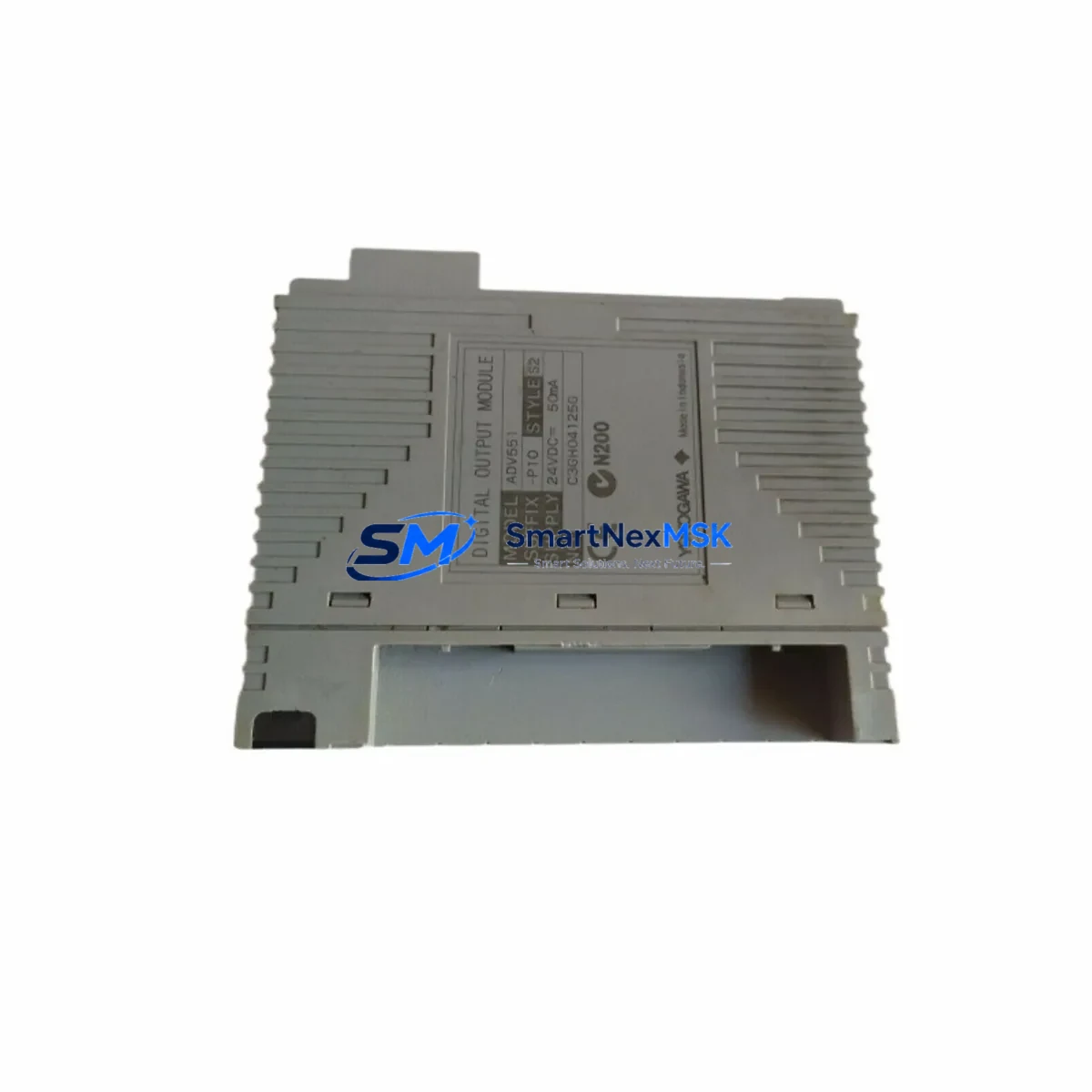

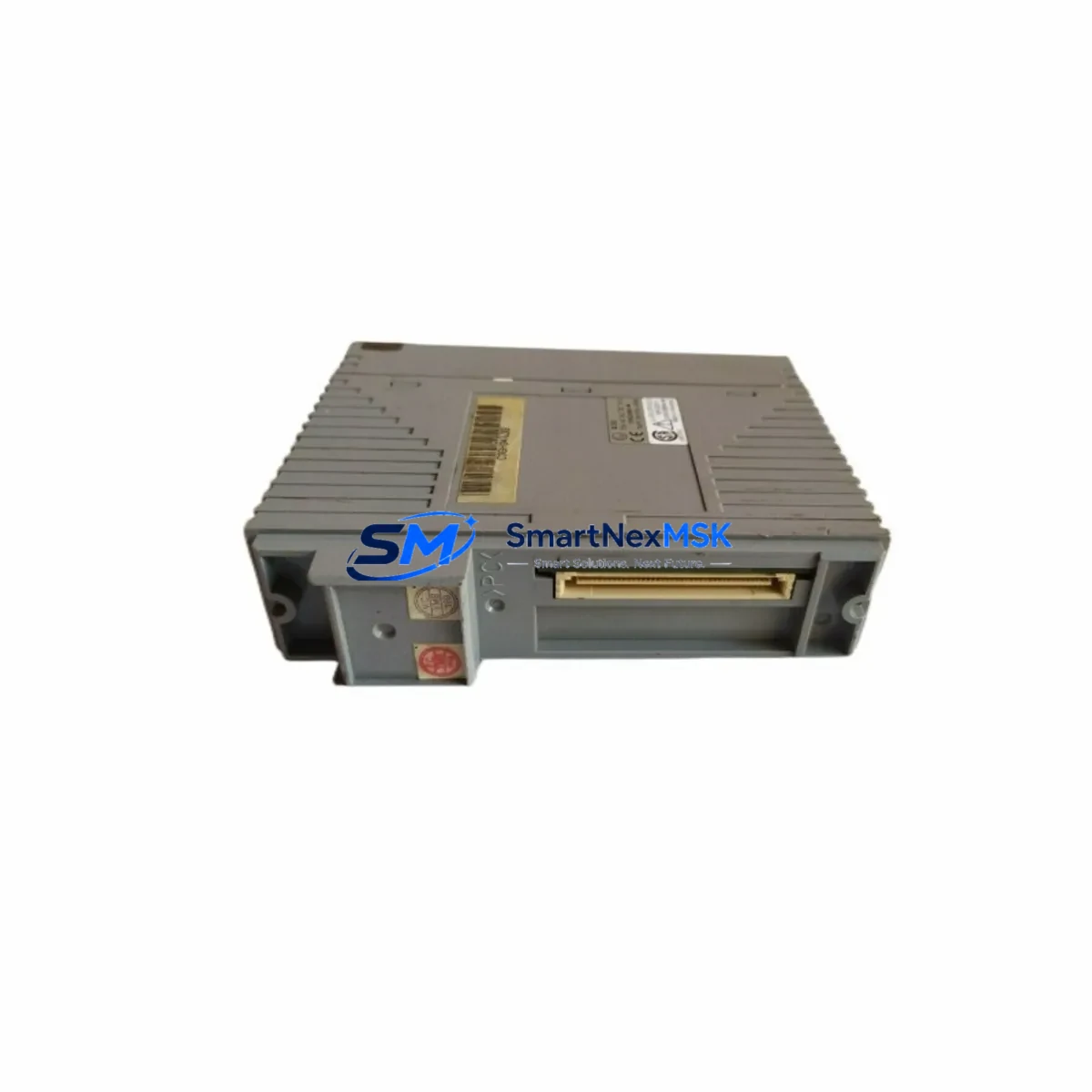

The ADV551-P10 S2 provides 32 individually addressable 24 VDC digital output channels, each capable of driving solenoid valves, motor starter relays, indicator lamps, and on/off control actuators directly from the CENTUM VP field control station (FCS). Its plug-and-play compatibility with the CENTUM VP node unit architecture means that a trained maintenance engineer can execute a hot-swap replacement — removing the failed module and inserting the spare — without requiring a full FCS restart in most configurations, dramatically reducing mean time to repair (MTTR) on the affected control loop.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a CENTUM VP system goes well beyond stocking the ADV551-P10 S2 in isolation. During a scheduled cabinet inspection or corrective maintenance event triggered by a DO channel fault alarm in the CENTUM VP HIS (Human Interface Station), the maintenance engineer should systematically evaluate the surrounding components that share the same node unit and field power circuit.

The node unit backplane — typically an AFV10D or AFV30D node unit chassis — should be inspected for backplane connector wear, corrosion on the module guide rails, and secure seating of all installed I/O modules. A loose backplane connection can cause intermittent DO channel faults that mimic a failed ADV551-P10 S2, leading to unnecessary module replacement. Alongside the digital output module, the corresponding digital input module — such as the ADV151-P10 or ADV161-P10 — should be checked for input channel integrity, as interlock feedback loops depend on both DO command and DI confirmation signals operating correctly within the same scan cycle.

The field control station power supply unit, commonly an APM11 or APM21 power module, must be verified for output voltage stability. A sagging 24 VDC bus — caused by a degraded power supply capacitor bank or an overloaded field power rail — will cause the ADV551-P10 S2’s output transistors to operate outside their rated voltage window, accelerating wear and increasing the probability of channel failure. If the FCS includes a redundant power supply configuration, both the primary and secondary APM modules should be tested during the same maintenance window.

Field terminal assemblies connected to the ADV551-P10 S2 — including the dedicated YOKOGAWA terminal board (such as the ATD5D or equivalent marshalling terminal) and the inter-unit cables (IUC) linking the node unit to the field junction box — should be inspected for terminal screw torque, insulation condition, and shield grounding continuity. Loose field terminals are a leading cause of intermittent DO output faults in humid or vibration-prone environments such as offshore platforms or coastal chemical plants.

For systems where the ADV551-P10 S2 drives solenoid valves in a safety instrumented function (SIF), the associated safety relay module or solenoid driver barrier — often a Pepperl+Fuchs or MTL zener barrier or galvanic isolator — should be tested for output current capacity and response time. Signal isolators in the field loop can degrade over time, causing the solenoid to receive insufficient drive current even when the DO channel output is healthy. Replacing the ADV551-P10 S2 without checking the downstream isolator will not resolve the root cause of the fault.

Communication health between the node unit and the FCS should also be verified via the CENTUM VP engineering workstation (EWS). The Vnet/IP communication module — such as the ACM11 or ACM12 — should show no packet loss or CRC errors on the node unit communication bus. A degraded Vnet/IP link can cause the FCS to fail to write DO commands to the ADV551-P10 S2 even when the module itself is fully functional, a fault mode that is frequently misdiagnosed as a module hardware failure.

Site Replacement Workflow

When an ADV551-P10 S2 failure is confirmed — either through CENTUM VP self-diagnostic alarms, channel-level fault LEDs on the module faceplate, or field device non-response — the following replacement workflow minimizes downtime and ensures system integrity is maintained throughout the swap procedure.

Step 1 — Fault Isolation: Acknowledge the DO module fault alarm on the CENTUM VP HIS and place the affected control loops in manual mode or safe-state output via the FCS function block configuration. This prevents uncontrolled actuator movement during the module swap.

Step 2 — Field Power Isolation: De-energize the 24 VDC field power supply feeding the ADV551-P10 S2’s output channels at the field power distribution terminal. Do not de-energize the node unit backplane power, as this will interrupt all other I/O modules in the same node unit.

Step 3 — Module Extraction: Release the module locking lever, disconnect the field terminal connector, and slide the ADV551-P10 S2 out of the node unit slot. Record the slot address and module tag for documentation.

Step 4 — Spare Insertion: Insert the replacement ADV551-P10 S2 spare into the same slot. The CENTUM VP FCS will automatically recognize the module via its slot address and download the I/O configuration from the FCS database — no manual re-parameterization is required in standard configurations.

Step 5 — Verification: Re-energize the field power supply, confirm all 32 DO channel LEDs reflect the correct output states as commanded by the FCS, and verify field device response (valve position feedback, motor run status) via the CENTUM VP HIS faceplate display. Return affected loops to automatic mode only after full channel verification is complete.

This workflow is applicable to both planned preventive replacement — where the ADV551-P10 S2 is swapped proactively based on operating hours or age — and emergency corrective replacement following an unplanned failure. SMARTNEXMSK maintains ready stock of the ADV551-P10 S2 to support both scenarios, with pre-shipment functional testing and a 12-month warranty on every unit dispatched.

Spare Parts Support FAQ

Q1: What warranty is provided with the ADV551-P10 S2 spare?
Every ADV551-P10 S2 supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including output channel activation verification, optical isolation check, and backplane communication simulation — before dispatch. Warranty support is prioritized to minimize site downtime.

Q2: How is compatibility with my existing CENTUM VP node unit confirmed?
The ADV551-P10 S2 is compatible with CENTUM VP AFV10D and AFV30D node unit chassis across CENTUM VP R4, R5, and R6 software revisions. Our technical team can verify hardware revision compatibility against your existing node unit configuration upon request. Please provide your FCS model number and CENTUM VP software version for pre-order compatibility confirmation.

Q3: Can the ADV551-P10 S2 be replaced without a full FCS shutdown?
In standard CENTUM VP configurations with online I/O replacement enabled, the ADV551-P10 S2 supports hot-swap replacement without requiring a full FCS restart. The FCS automatically re-downloads the I/O configuration to the replacement module upon insertion. However, the affected DO channels must be placed in manual or safe-state mode prior to the swap to prevent uncontrolled actuator movement. Always consult your site safety procedures before performing any live cabinet maintenance.

Q4: What is the long-term supply availability for the ADV551-P10 S2?
SMARTNEXMSK maintains dedicated inventory of the ADV551-P10 S2 to support both scheduled maintenance programs and emergency replacement requirements. We source modules from verified supply channels and perform incoming inspection on all stock. For customers operating large CENTUM VP installed bases, we offer supply agreements to guarantee multi-year availability, supporting system life extension programs for plants that have chosen to maintain CENTUM VP infrastructure beyond the standard product lifecycle.
