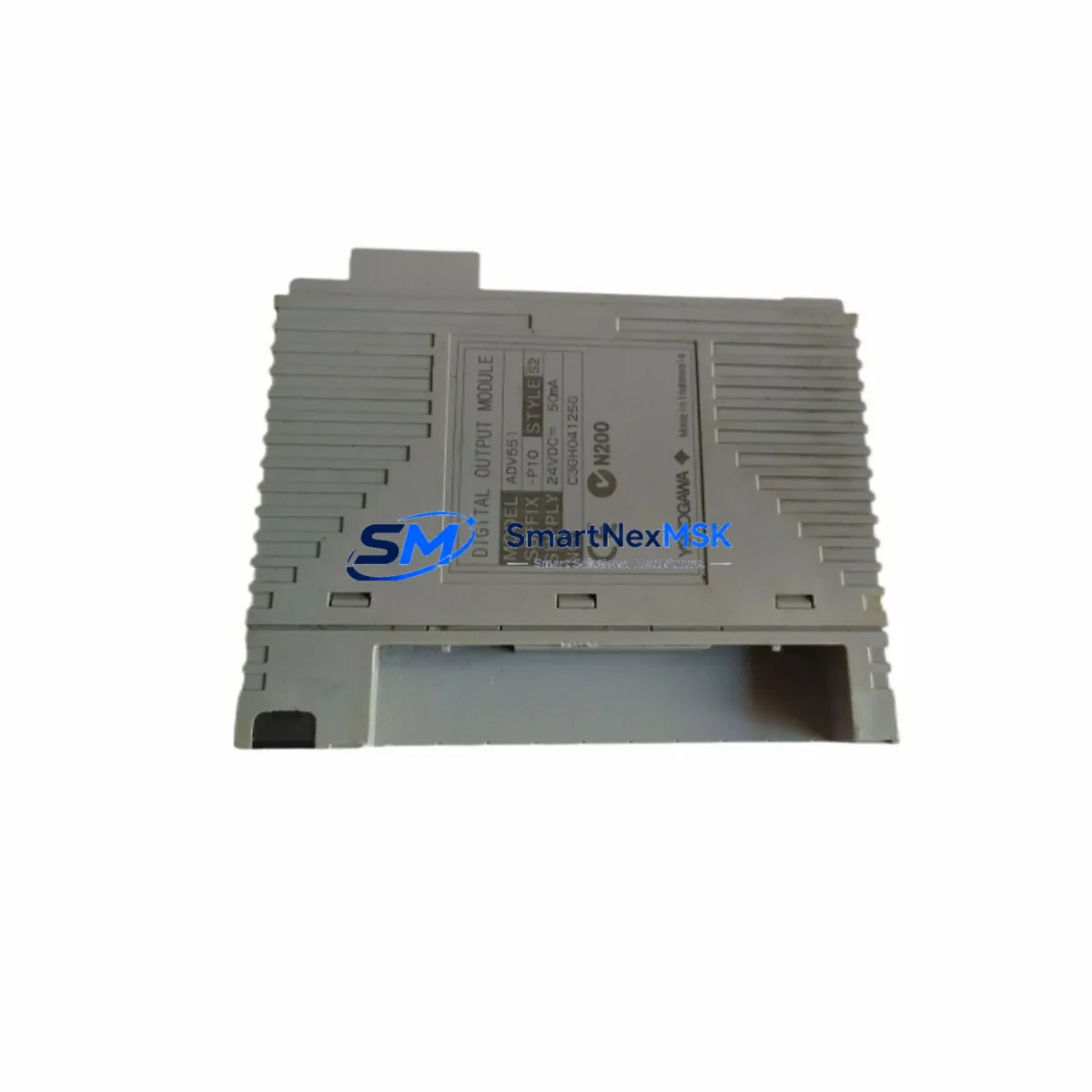

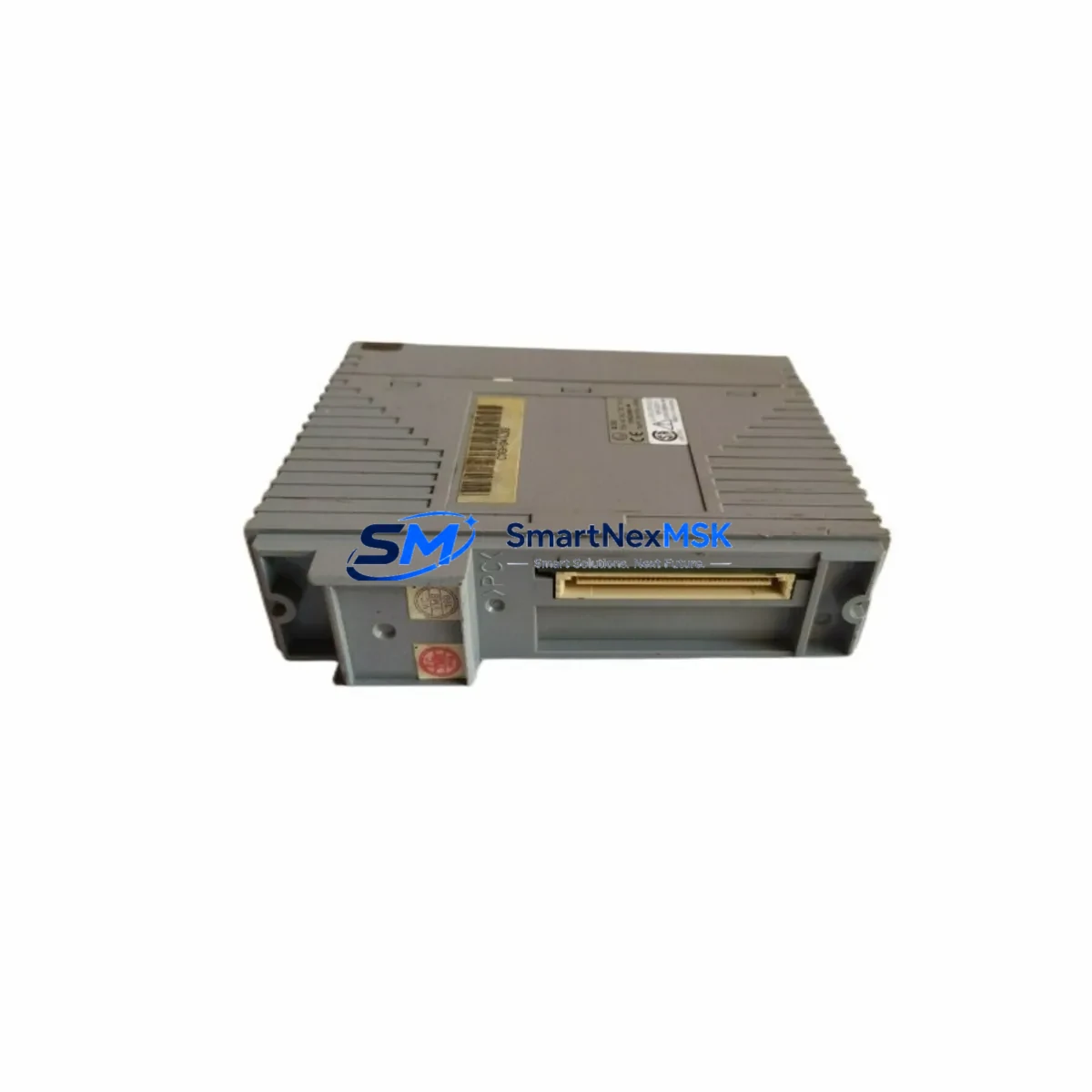

YOKOGAWA ADV551-P10 Safety-Enhanced Digital Output Module

YOKOGAWA ADV551-P10 Safety-Enhanced Digital Output Module: Reliable Control for Harsh Industrial Sites

The YOKOGAWA ADV551-P10 is a 16-channel digital output (DO) module engineered for mission-critical deployment within the YOKOGAWA CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). Designed to operate continuously in high-load, high-interference industrial environments, the ADV551-P10 delivers deterministic output switching with robust protection against signal drift, power fluctuation, and electromagnetic interference — making it a cornerstone component in safety-sensitive control cabinets across petrochemical, power generation, metallurgical, and continuous manufacturing facilities.

In demanding field installations where control interruption is not an option, the ADV551-P10 provides the output integrity required to maintain interlock circuits, actuator command loops, and emergency shutdown (ESD) sequences. Its hardened design ensures that each of the 16 discrete output channels maintains stable switching states even under sustained vibration, thermal cycling, and high-density cabinet environments where heat dissipation and cross-channel interference are persistent concerns.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered CENTUM VP control cabinet, the ADV551-P10 digital output module operates as part of a tightly integrated I/O architecture. Its output channels are typically wired to field devices such as solenoid valves, motor contactors, and alarm annunciators — all of which demand consistent, noise-immune switching commands. To ensure the integrity of these output signals, the ADV551-P10 is commonly paired with the YOKOGAWA ADV151-P10 digital input module, which closes the feedback loop by confirming actuator state changes and detecting field-side faults before they escalate into process upsets.

Power supply stability is equally critical. The ADV551-P10 relies on a clean, regulated 24 V DC bus, typically sourced through a YOKOGAWA PW481 or equivalent DCS power supply module. In high-availability installations, redundant power supply configurations using dual PW482 units with automatic switchover protect against single-point power failures that could otherwise cause simultaneous loss of all 16 output channels. Surge protection devices installed upstream of the I/O nest — such as DIN-rail mounted transient voltage suppressors — further shield the ADV551-P10 from grid-borne surges common in heavy industrial substations.

Communication integrity between the ADV551-P10 and the CENTUM VP field control station (FCS) is maintained through the YOKOGAWA ESB bus (Enhanced Signal Bus) backplane architecture. In installations where communication anomalies or bus errors have been observed, the ESB10D bus coupler and associated bus termination components are essential companions to the DO module. For larger distributed I/O configurations, the YOKOGAWA ADM51B node interface module manages multi-node I/O expansion while preserving deterministic scan cycle performance critical to safety interlock response times.

In safety instrumented system (SIS) adjacent applications, the ADV551-P10 is often deployed alongside YOKOGAWA AAI141-S00 analog input modules and AAI543-H00 analog output modules, forming a complete I/O layer that handles both continuous process variable monitoring and discrete safety command execution within the same control cabinet. The combination of these modules, governed by the CENTUM VP FCS processor, enables a unified safety and process control architecture that reduces cabinet footprint, simplifies maintenance, and eliminates the latency risks associated with separate safety and process control networks.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous hydrocarbon processing, the ADV551-P10 drives emergency isolation valve (EIV) solenoids and pump trip relays within ESD loops. Its deterministic output response ensures that shutdown commands reach field actuators within the required safety response time, preventing hazardous material releases during process upsets or equipment failures.

Power Generation Facilities: Thermal and combined-cycle power plants deploy the ADV551-P10 to control turbine auxiliary systems, boiler burner management sequences, and generator protection relay outputs. The module’s resistance to high-frequency electrical noise — prevalent near large transformers and switchgear — ensures that spurious output trips do not cause unplanned generation outages.

Mining and Mineral Processing: In underground and surface mining operations, the ADV551-P10 controls conveyor interlocks, ventilation fan starters, and dewatering pump commands. Its wide operating temperature range and vibration tolerance make it suitable for installation in remote field junction boxes and mobile crushing plant control panels where environmental conditions are severe.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the ADV551-P10 to sequence dosing pump commands, valve actuations, and UV disinfection system controls. Reliable output switching prevents chemical overdosing events and ensures continuous compliance with environmental discharge standards.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the ADV551-P10 manages electrode positioning commands, cooling water valve controls, and mold oscillation interlocks. The module’s surge immunity is particularly valuable in these environments, where high-current switching operations generate intense electromagnetic transients.

Port and Terminal Automation: Container terminal crane control systems and ship-to-shore loader PLCs use digital output modules like the ADV551-P10 to command hoist brake releases, trolley drive enables, and anti-collision interlock outputs — applications where output reliability directly impacts both operational throughput and personnel safety.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ADV551-P10?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified digital output functions within this period due to component or workmanship defects, we will provide a replacement or repair at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each ADV551-P10 unit?
Every ADV551-P10 unit undergoes full functional verification before dispatch. This includes channel-by-channel output switching tests, power consumption verification, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained and can be provided upon request for quality audit purposes.

Q3: Is the ADV551-P10 compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The ADV551-P10 is designed for use in both YOKOGAWA CENTUM VP and CENTUM CS 3000 DCS platforms, which share a common I/O module form factor and ESB bus interface. It installs directly into standard I/O nests without hardware modification. For specific firmware revision compatibility with your FCS version, we recommend confirming the CENTUM system software release against YOKOGAWA’s compatibility matrix prior to installation.

Q4: Can you guarantee long-term supply and replacement support for the ADV551-P10?
We maintain dedicated stock of the ADV551-P10 and related CENTUM VP I/O modules to support both planned maintenance programs and emergency replacement requirements. For facilities operating aging CENTUM CS 3000 or early CENTUM VP installations where OEM supply has become constrained, we provide a reliable alternative sourcing channel with consistent availability, competitive lead times, and full pre-shipment testing — ensuring your control system can be restored to full operation without extended downtime.
