YOKOGAWA ADV551-P50 S2 Maintenance-Ready Spare CENTUM VP

YOKOGAWA ADV551-P50 S2 Maintenance-Ready Spare for CENTUM VP Automation

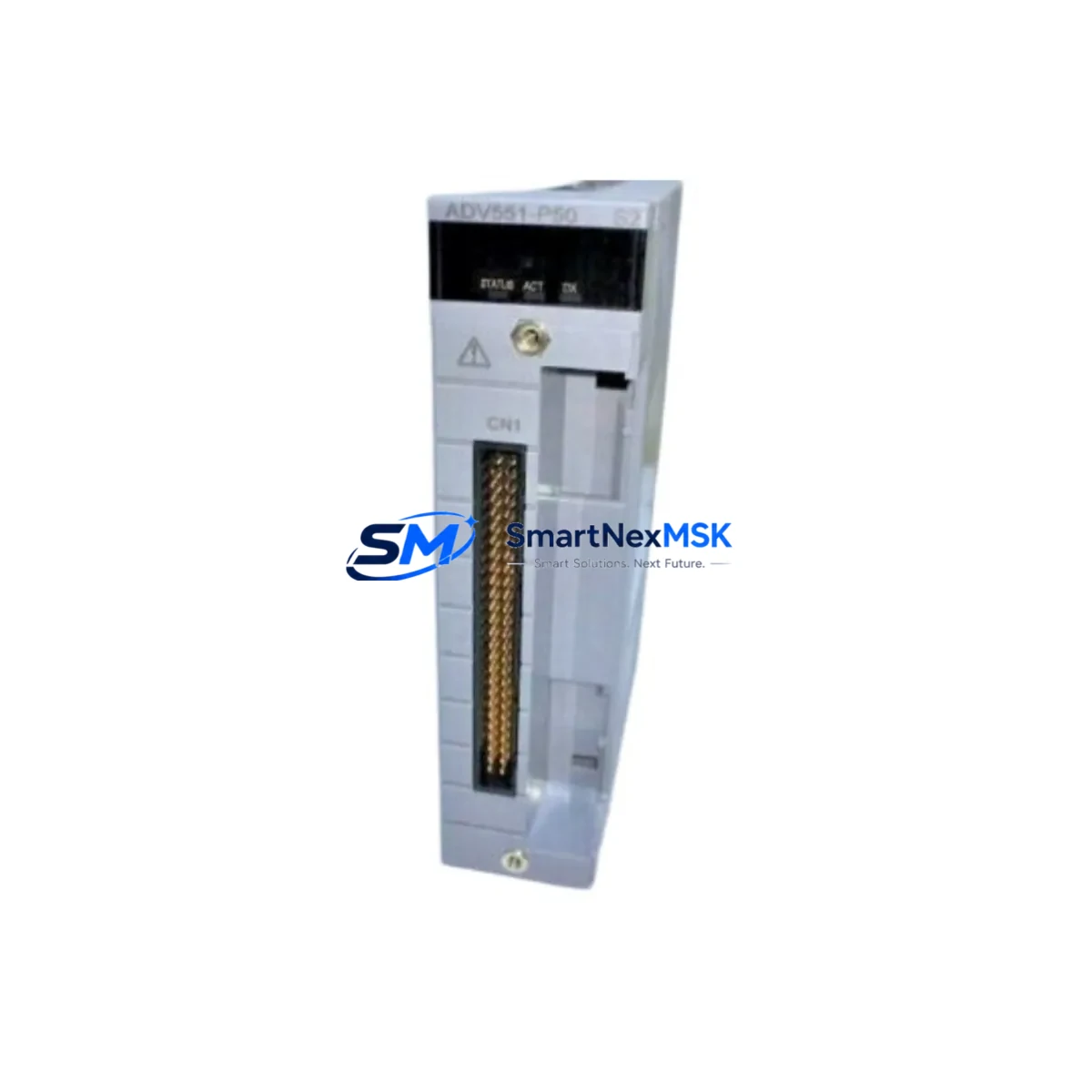

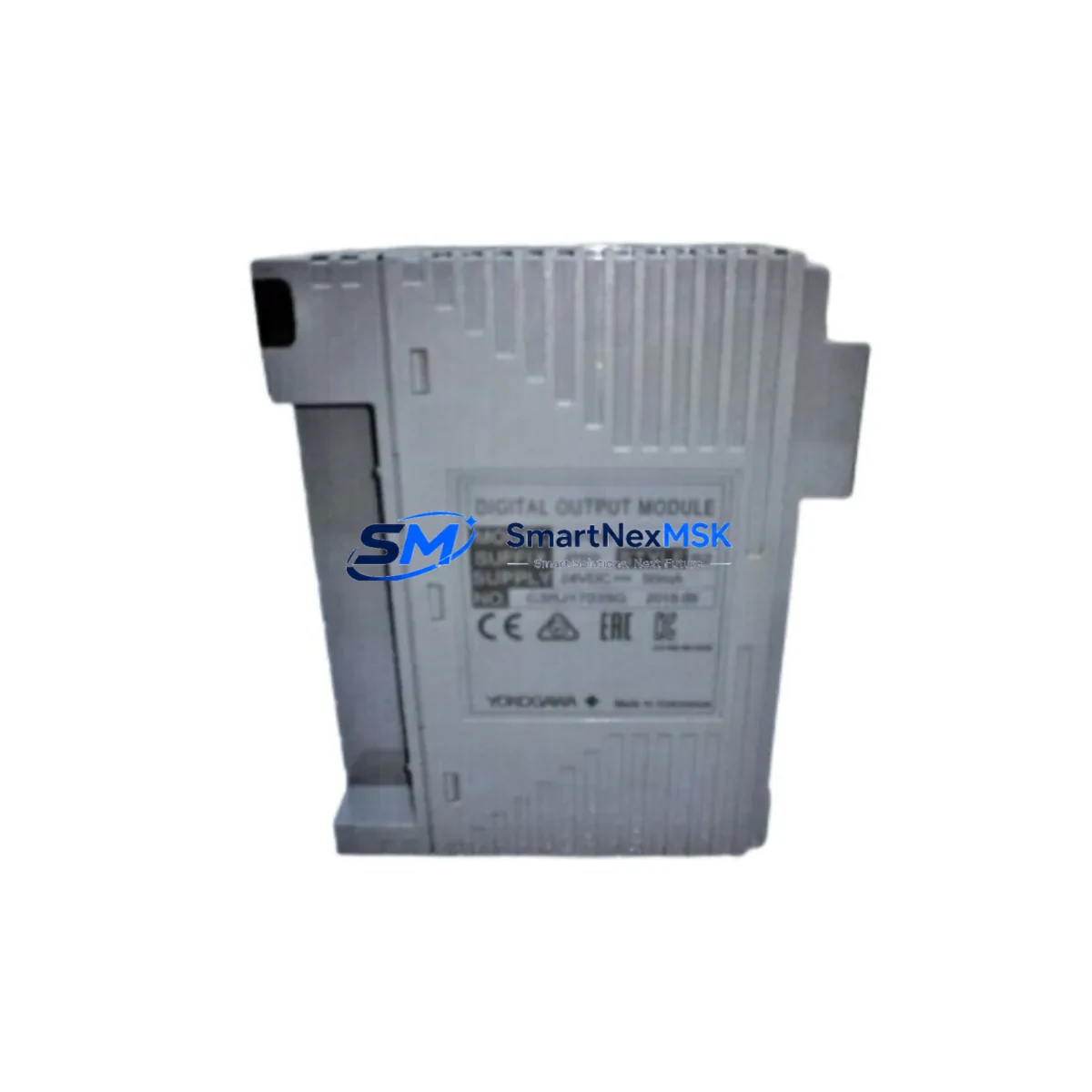

The YOKOGAWA ADV551-P50 S2 is an original digital output module designed for CENTUM VP distributed control systems. For maintenance engineers managing continuous-process facilities — refineries, chemical plants, power generation, and pulp & paper operations — this module represents a critical spare that directly governs field device actuation and process output integrity. Sourced as an original YOKOGAWA component, each unit is tested prior to shipment and backed by a 12-month warranty, ensuring that your replacement program meets both quality and uptime requirements.

When a digital output module fails in a CENTUM VP cabinet, the consequences extend well beyond a single I/O channel. Output signals to solenoid valves, motor starters, and relay-driven actuators are interrupted, triggering process shutdowns or unsafe states. Maintenance teams that carry the ADV551-P50 S2 as a stocked spare can restore normal operation within a single maintenance window, avoiding extended downtime and the cost of emergency procurement. Our supply chain supports long-term availability for legacy CENTUM VP installations, including systems that have been in service for over a decade.

From a procurement engineering perspective, the ADV551-P50 S2 fits directly into existing CENTUM VP field control station (FCS) chassis without firmware reconfiguration in most standard deployments. Compatibility verification against your FCS hardware revision and I/O builder configuration is recommended before installation, particularly in systems running mixed module generations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ADV551-P50 S2 in a live CENTUM VP system is rarely an isolated task. A disciplined maintenance engineer will treat this module swap as an opportunity to inspect the entire I/O nest and associated field wiring. During the same maintenance window, the following components and assemblies should be checked or staged as companion spares:

The ADV151 or ADV161 analog input modules sharing the same FCS nest should be inspected for drift or channel faults, as degraded analog inputs often accompany digital output failures in aging cabinets. The ACM11 or ACM12 communication modules that handle V-net or Vnet/IP backbone connectivity should be verified for link stability — a failing communication module can mask or misattribute DO module faults during diagnostics.

Power supply modules such as the PW481 or PW482 redundant power units feeding the FCS nest must be load-tested; an under-voltage condition is a common root cause of intermittent DO channel failures. Terminal blocks and field wiring connected to the ADV551-P50 S2 output channels — particularly TB series terminal assemblies — should be inspected for corrosion, loose terminations, and insulation breakdown, especially in humid or chemically aggressive environments.

If the CENTUM VP system includes signal isolators or relay output cards between the DO module and field devices, these should be tested for contact wear and isolation resistance. In older installations, fuse holders and miniature circuit breakers on the output loop circuits are frequently overlooked during module replacement but are a leading cause of repeat failures after a new module is installed.

For systems with HIS (Human Interface Station) or EWS (Engineering Workstation) connectivity, confirm that the I/O builder tag assignments for the replaced module are correctly mapped and that no alarm suppression was left active from the fault period. Finally, if the plant uses FOUNDATION Fieldbus or HART multiplexers alongside the CENTUM VP I/O, verify that the fieldbus segment powering devices on the affected output loop is operating within specification.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the affected output channels per your site LOTO procedure. Confirm that all field devices driven by the ADV551-P50 S2 are in a safe state before proceeding.

Step 2 — Module Identification: Verify the slot address in the CENTUM VP I/O builder and record the module’s hardware revision and firmware version. Cross-reference with the replacement ADV551-P50 S2 to confirm hardware compatibility. This step is critical when replacing modules in mixed-revision FCS nests.

Step 3 — Hot-Swap or Cold-Swap: CENTUM VP supports online module replacement (hot-swap) for most DO modules when the FCS is in redundant configuration. For simplex FCS installations, a controlled process hold is required. Follow YOKOGAWA’s module replacement procedure from the applicable FCS engineering manual.

Step 4 — Post-Installation Verification: After seating the replacement module, confirm channel-by-channel output status from the HIS operator console. Verify that all 32 output channels respond correctly to manual force commands before releasing the process to automatic control.

Step 5 — Documentation: Update the maintenance management system (CMMS) with the replacement date, module serial number, and any observations from the failed unit. Retain the failed module for root-cause analysis if required by your reliability program.

This workflow minimizes mean time to repair (MTTR) and ensures that the replacement does not introduce new faults. Stocking the ADV551-P50 S2 locally — rather than relying on spot procurement — is the single most effective measure for reducing digital output-related downtime in CENTUM VP installations.

Spare Parts Support FAQ

Q1: Is the ADV551-P50 S2 compatible with all CENTUM VP FCS hardware revisions?
The ADV551-P50 S2 is designed for CENTUM VP field control stations. Compatibility depends on the FCS hardware generation and I/O builder software version. We recommend providing your FCS model number and software revision when ordering so our technical team can confirm direct interchangeability before shipment.

Q2: What pre-shipment testing is performed on each unit?
Each ADV551-P50 S2 is functionally tested for output channel integrity, isolation resistance, and backplane communication prior to dispatch. Units are shipped with a test record and are covered by a 12-month warranty from the date of shipment. Any unit that fails to perform to specification within the warranty period will be replaced or refunded.

Q3: Can this module replace older CENTUM CS 3000 DO modules?
The ADV551-P50 S2 is a CENTUM VP series module and is not a direct drop-in replacement for CENTUM CS 3000 I/O modules, which use a different backplane and I/O builder architecture. If you are migrating from CS 3000 to CENTUM VP, or need CS 3000 compatible DO modules, please contact our team with your existing module part number for cross-reference support.

Q4: What is your lead time and long-term supply commitment for this part?
Standard lead time is 3–7 business days for in-stock units. For critical plant shutdowns or emergency replacements, expedited dispatch is available. We maintain a dedicated inventory of CENTUM VP spare modules to support long-term plant maintenance programs, including facilities operating legacy systems beyond YOKOGAWA’s standard product lifecycle.
