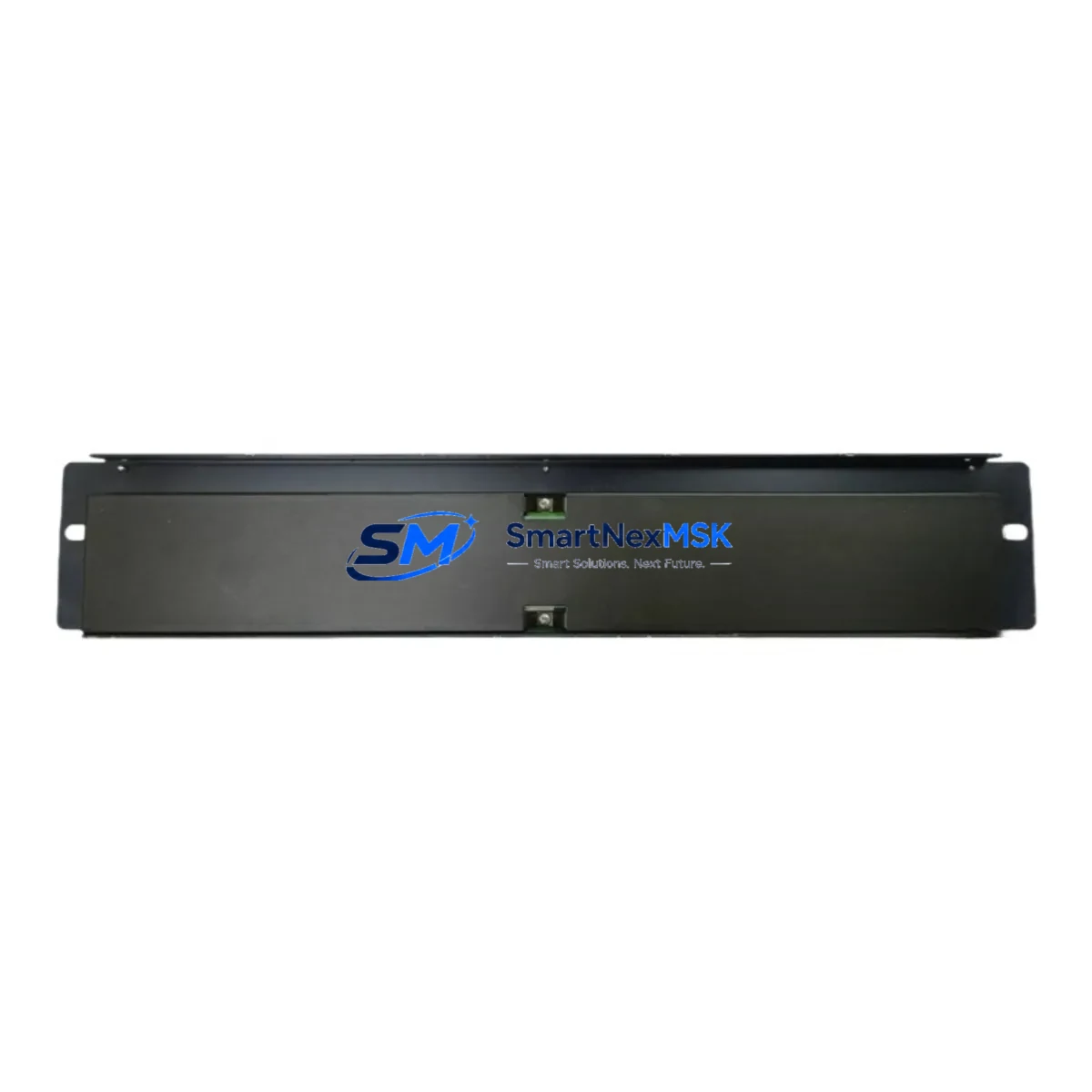

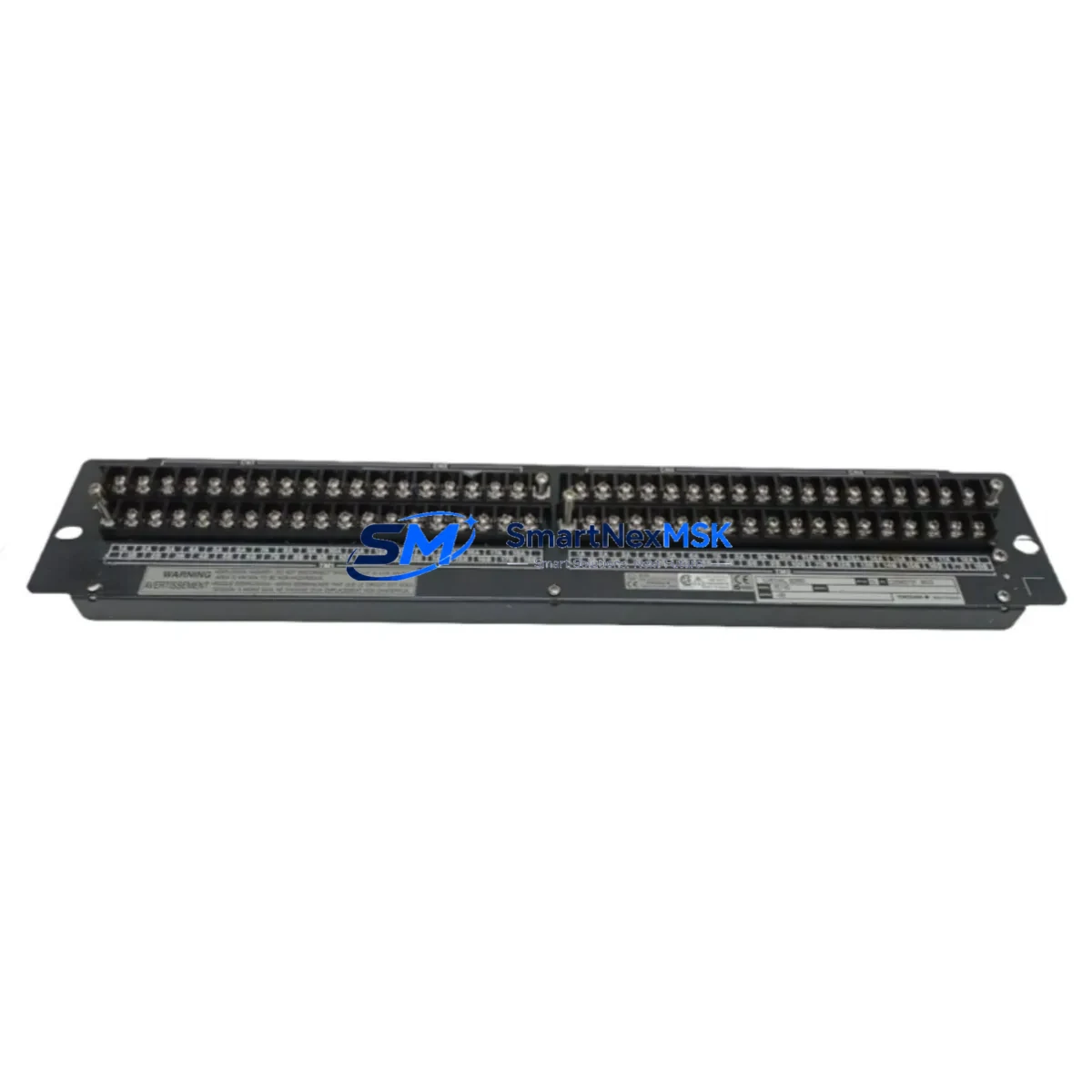

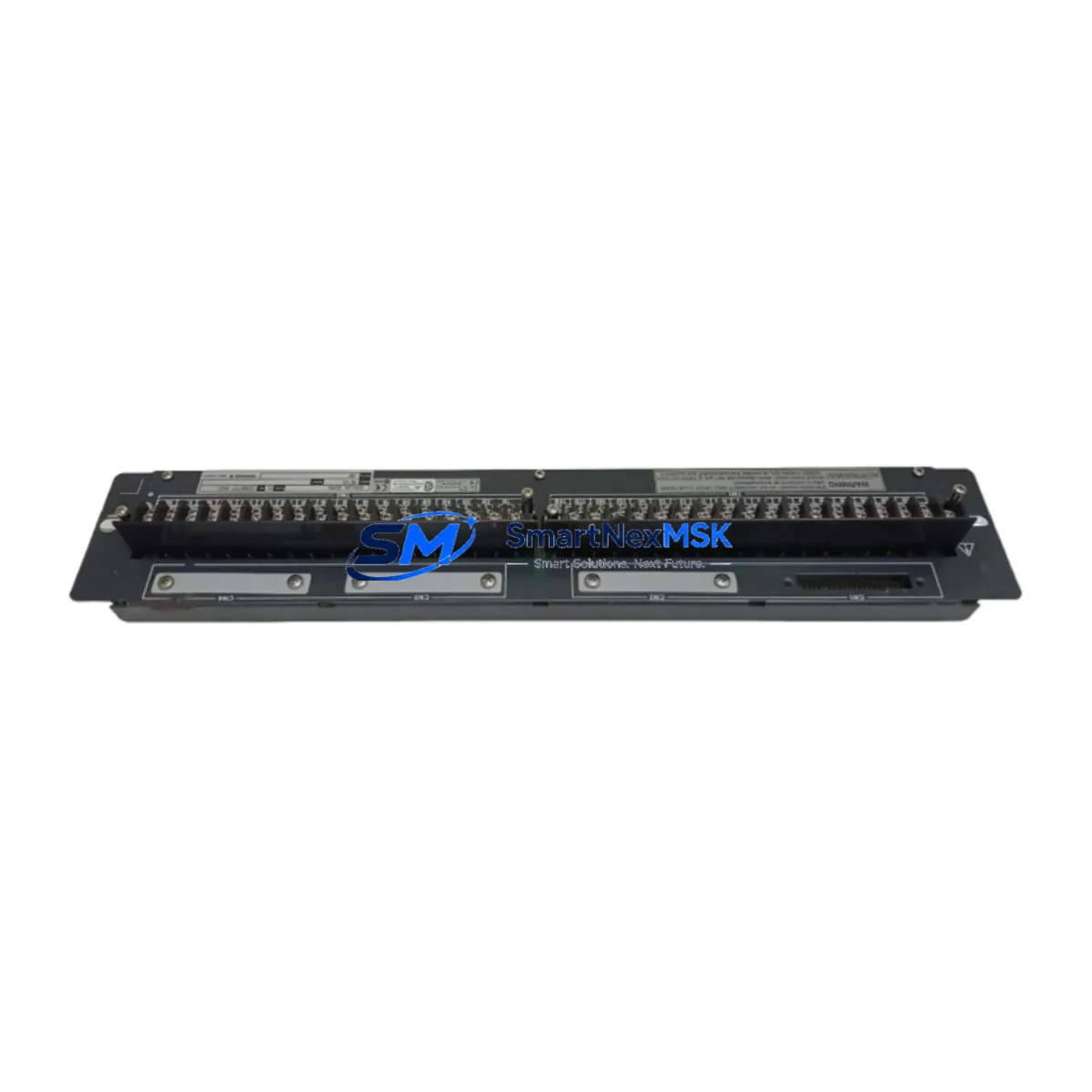

YOKOGAWA AET4D Safety-Enhanced Relay Terminal for Harsh Industrial Sites

YOKOGAWA AET4D Safety-Enhanced Relay Terminal Board: Reliable Control in Harsh Industrial Environments

The YOKOGAWA AET4D is a ruggedized Relay Terminal Board engineered for mission-critical DCS applications within the CENTUM VP and CS 3000 distributed control system platforms. Designed to operate reliably under high electrical load, strong electromagnetic interference, and continuous 24/7 production cycles, the AET4D serves as a vital interface between field instruments and the DCS I/O subsystem — protecting control loop integrity where failure is not an option.

In heavy industrial environments such as petrochemical plants, power generation facilities, metallurgical operations, and continuous process manufacturing, relay terminal boards are exposed to persistent risks: signal drift caused by ground loops, contact degradation from vibration and humidity, surge impulses from motor starts and switching transients, and communication anomalies triggered by high-frequency noise. The AET4D addresses each of these failure modes through its robust relay contact design, reinforced terminal block construction, and full compatibility with YOKOGAWA’s proven DCS architecture.

When integrated into a properly configured control cabinet alongside components such as the YOKOGAWA AAI141 analog input module, AAI841 analog output module, and ADV151 digital input module, the AET4D contributes to a layered protection strategy that minimizes the risk of spurious trips, unplanned shutdowns, and process deviations. Its relay contacts provide galvanic isolation between field-side signals and the DCS backplane, preventing destructive voltage transients from propagating into sensitive I/O cards such as the ADV551 digital output module or the AAT141 analog terminal board.

For installations where power supply stability is critical, the AET4D is typically deployed in conjunction with regulated 24 VDC distribution modules and surge protection devices on the field wiring side. This configuration is especially important in mining, port crane control, and water treatment SCADA systems, where cable runs are long and exposure to induced voltages is high. Pairing the AET4D with YOKOGAWA’s AMM12 or AMM22 multiplexer modules in multi-loop configurations further enhances signal integrity across the entire I/O tier.

The AET4D’s terminal board design supports straightforward field wiring, reducing installation errors that are a common source of early-life failures in relay-based interlock circuits. In safety instrumented systems and critical interlock loops — such as emergency shutdown (ESD) circuits in refinery units or turbine protection systems in power plants — reliable relay contact performance is non-negotiable. The AET4D’s contact ratings and isolation characteristics make it a dependable choice for these demanding applications, complementing safety logic solvers and field devices within the same protection architecture.

All AET4D units in our inventory have undergone pre-shipment functional testing, verifying relay coil actuation, contact continuity, and terminal integrity before dispatch. Each unit is covered by a 12-month warranty, and our stock is maintained to support both planned maintenance schedules and urgent unplanned replacement scenarios. Fast dispatch capability ensures minimal downtime when a relay terminal board failure occurs mid-production.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust YOKOGAWA DCS control cabinet relies on the coordinated performance of multiple I/O and interface modules. The AET4D Relay Terminal Board functions as the field-side relay interface, and its effectiveness is amplified when the cabinet is also equipped with properly specified analog and digital I/O modules. In a typical CENTUM VP cabinet, the AET4D works in tandem with AAI141 4–20 mA analog input cards and AAI841 analog output cards to maintain accurate process variable transmission even under fluctuating field conditions.

Digital interlock signals routed through the AET4D are typically sourced from ADV151 digital input modules and actuate outputs via ADV551 digital output modules. This relay-isolated architecture prevents high-energy field events — such as motor contactor switching or solenoid valve actuation — from inducing voltage spikes that could corrupt I/O card logic or trigger nuisance alarms. For communication-intensive cabinets, the ACM12 communication module and associated fieldbus interface cards benefit from the clean signal environment that proper relay isolation provides.

Power supply modules within the same cabinet, including redundant 24 VDC power units, should be selected and maintained to complement the AET4D’s operating requirements. Surge arrestors on incoming field cables, combined with the AET4D’s galvanic isolation, form a two-layer defense against transient overvoltages — a configuration strongly recommended for cabinets installed near large rotating machinery, high-voltage switchgear, or outdoor field junction boxes exposed to lightning risk.

Critical Industrial Safety Applications

Petrochemical & Refinery: The AET4D is widely used in refinery DCS panels controlling reactor feed, distillation column level, and emergency depressurization interlock circuits. Its relay isolation prevents ground faults in field wiring from propagating into the DCS, protecting the integrity of safety shutdown sequences.

Power Generation: In coal-fired and gas turbine power plants, relay terminal boards like the AET4D interface turbine protection relays and generator excitation control signals with the plant DCS. Reliable contact performance under thermal cycling and vibration is essential for maintaining generator trip circuit integrity.

Mining & Mineral Processing: Conveyor interlock systems, crusher protection circuits, and ventilation control panels in underground and surface mining operations demand relay terminal boards that withstand dust, vibration, and wide temperature swings. The AET4D’s robust construction supports continuous operation in these demanding conditions.

Water & Wastewater Treatment: SCADA-integrated DCS systems controlling pump stations, dosing systems, and filtration processes rely on relay terminal boards to interface field sensors and actuators. The AET4D supports reliable signal isolation in environments where moisture and chemical vapors are persistent concerns.

Metallurgy & Steel: In electric arc furnace control and rolling mill automation, high electromagnetic interference from large power electronics makes galvanic isolation at the relay terminal board level critical. The AET4D provides this isolation, protecting CENTUM VP I/O cards from interference-induced faults.

Port & Material Handling: Crane control systems and automated conveyor networks in port terminals require relay interfaces that maintain contact reliability through thousands of daily switching cycles. The AET4D’s relay contact design supports high-cycle interlock applications without degradation in contact resistance.

Safety and Quality FAQ

Q1: What warranty does the YOKOGAWA AET4D carry?
All AET4D units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing — including relay coil actuation verification, contact continuity checks, and terminal block inspection — before dispatch. Documentation of test results is available upon request.

Q2: Is the AET4D compatible with both CENTUM VP and CS 3000 systems?
Yes. The AET4D is designed for use within YOKOGAWA’s CENTUM VP and CENTUM CS 3000 DCS platforms. It interfaces with the standard I/O bus architecture of both systems. For specific cabinet configurations or mixed-generation installations, our technical team can advise on compatibility and mounting requirements.

Q3: How does the AET4D contribute to field safety and control loop protection?
The AET4D provides galvanic isolation between field-side relay contacts and the DCS I/O backplane. This isolation prevents destructive voltage transients, ground loop currents, and surge impulses from reaching sensitive DCS electronics. In safety interlock and ESD circuit applications, this isolation is a key element of the overall protection strategy, reducing the risk of spurious trips and control system damage.

Q4: Can you support urgent replacement orders and long-term spare parts supply?
Yes. We maintain stock of the AET4D to support both planned maintenance programs and emergency replacement scenarios. Fast dispatch is available for urgent orders. For customers managing multi-year maintenance contracts or large installed bases of YOKOGAWA CENTUM systems, we can discuss scheduled supply agreements to ensure continuous spare parts availability.
