Yokogawa AFV10D-S41101 Spare for CENTUM VP Automation: Minimizing Downtime in Critical DCS Environments

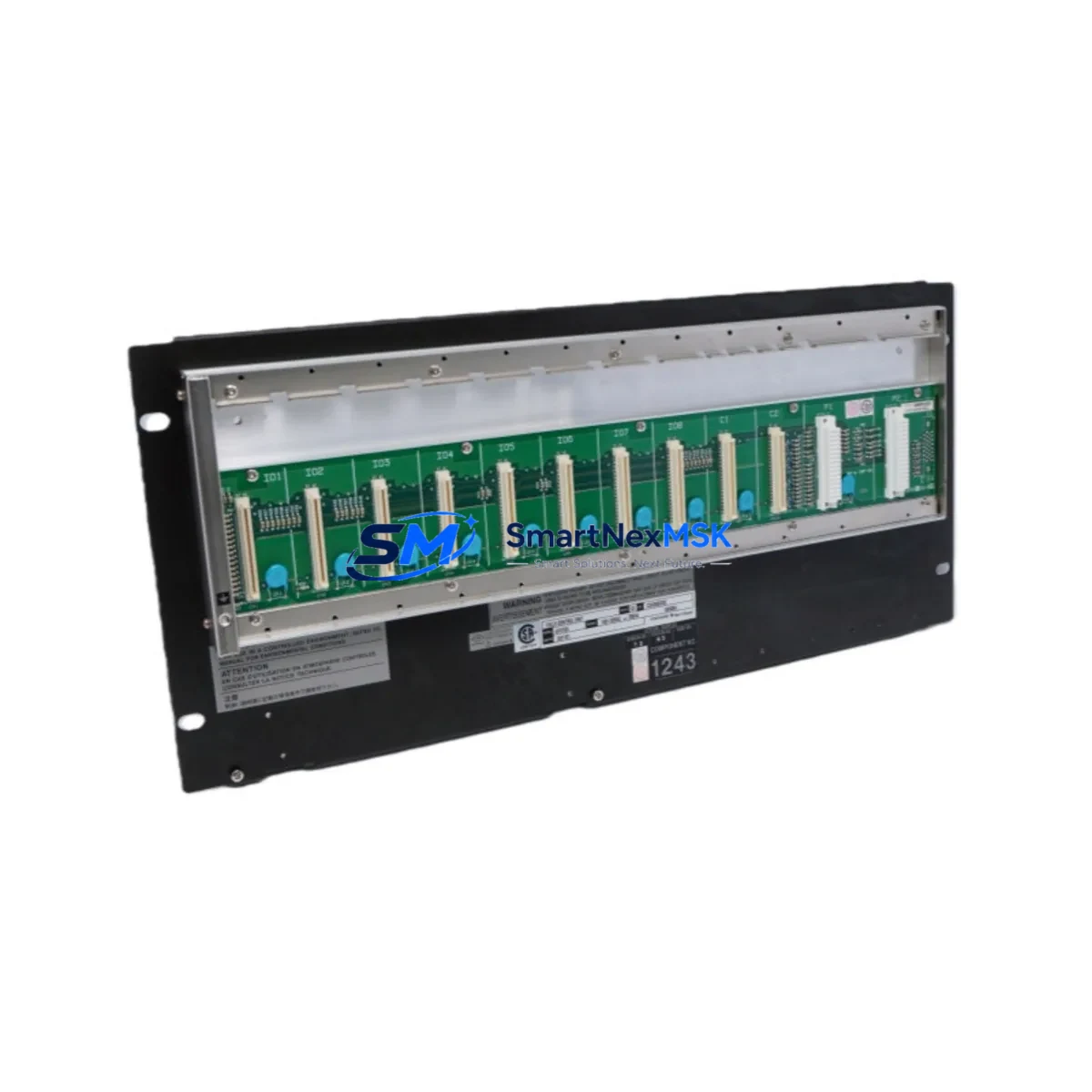

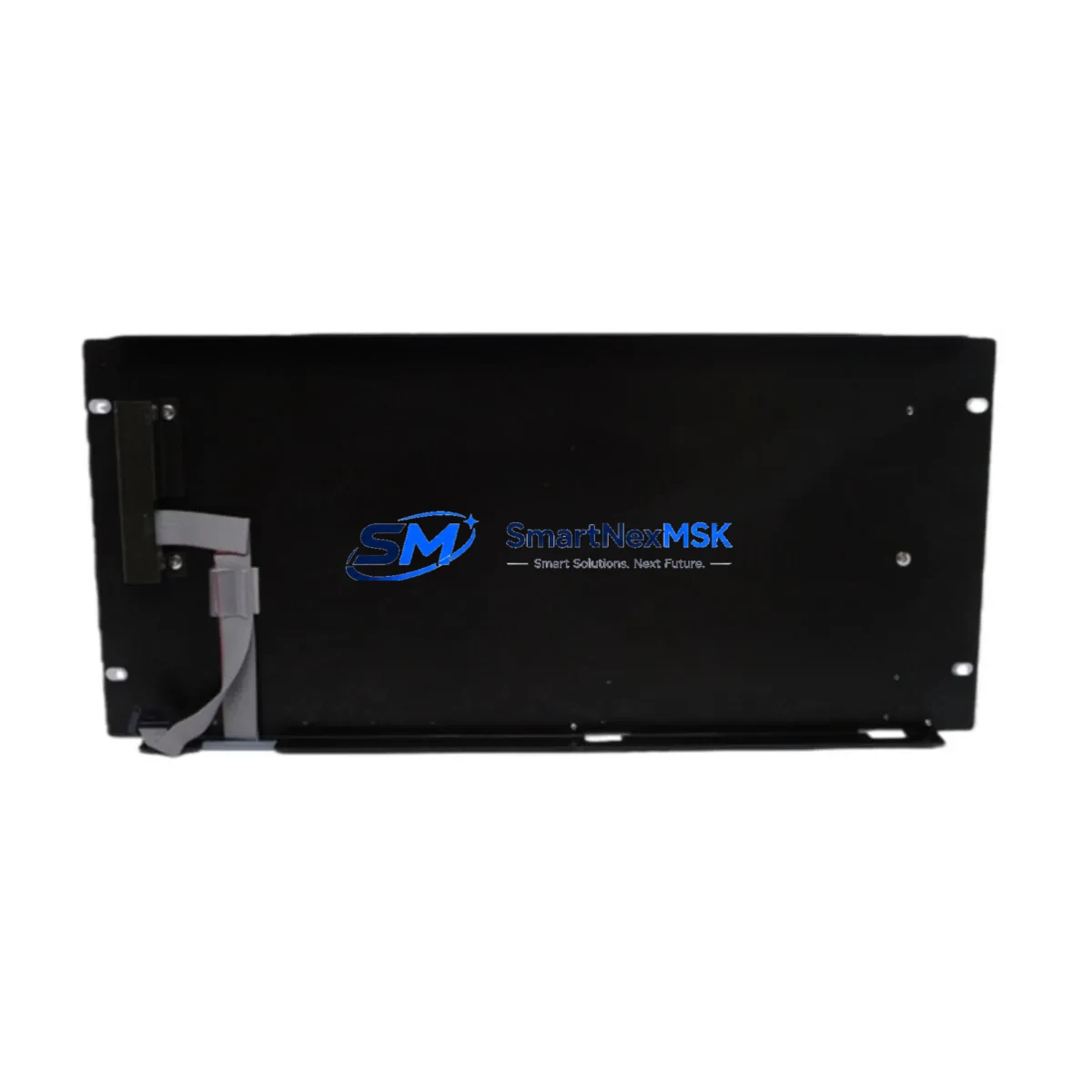

The Yokogawa AFV10D-S41101 is an original field control unit (FCU) designed for use within the CENTUM VP distributed control system platform — one of the most widely deployed DCS architectures in refining, petrochemical, power generation, and continuous process industries. As a maintenance-ready spare, the AFV10D-S41101 plays a central role in redundancy strategies, emergency replacement protocols, and long-term system lifecycle management for aging CENTUM VP installations.
For maintenance engineers and spare parts procurement teams, having a verified, tested AFV10D-S41101 unit on the shelf is not optional — it is a fundamental requirement of any serious plant reliability program. Unplanned FCU failures in a CENTUM VP system can cascade into full loop shutdowns, process upsets, and costly production losses. A pre-qualified spare eliminates the lead time risk and allows technicians to execute a controlled swap within a planned maintenance window or respond immediately to an unplanned fault.
This unit ships fully tested, with 12-month warranty coverage, and is sourced as an original Yokogawa component — not a remanufactured substitute. Each unit undergoes functional verification prior to dispatch to confirm communication integrity, I/O response, and power rail stability.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| SKU / Part Number | AFV10D-S41101 |
| Brand | Yokogawa Electric Corporation |
| Series / Platform | CENTUM VP (also compatible with CENTUM CS 3000 migration paths) |
| Module Type | Field Control Unit (FCU) — Redundant Configuration |
| Product Type | DCS Field Control Unit |
| Origin | Japan |
| Power Supply Compatibility | Yokogawa PW481 / PW482 series power supply modules |
| Communication Interface | Vnet/IP (Ethernet-based control bus) |
| I/O Compatibility | Compatible with CENTUM VP I/O modules (AAI, AAO, ADV, ADI series) |
| Installation Environment | Industrial control cabinet, DIN rail or backplane mount |
| Operating Temperature | 0°C to 55°C (standard industrial range) |
| Redundancy Support | Yes — dual FCU redundant pair configuration supported |
| Maintenance Recommendation | Replace as matched pair in redundant systems; verify firmware revision before swap |
| Pre-Shipment Testing | Functional test performed on every unit |
| Warranty | 12 Months from date of shipment |
| Lead Time | In-stock units ship within 3–5 business days |
Maintenance Planning for Continuous Operation
When scheduling a replacement or inspection involving the AFV10D-S41101, experienced maintenance engineers treat the FCU swap as a trigger for a broader control cabinet audit. The FCU sits at the heart of the field control loop, and its replacement creates a natural opportunity to inspect and verify the condition of surrounding components that share the same power rail, backplane, or communication segment.
Start with the power supply modules — the Yokogawa PW481 and PW482 are the standard power sources for CENTUM VP field control stations. Capacitor aging and output voltage drift are common failure modes in units that have been in service for more than five years. Replacing the FCU without verifying power supply health is a missed opportunity. Similarly, the Yokogawa EB401 or EB501 node interface units that connect the FCU to the Vnet/IP control bus should be inspected for connector oxidation and firmware currency.
On the I/O side, the AAI143-S analog input modules and AAO145-S analog output modules that feed process signals into the AFV10D-S41101 should be checked for channel drift and terminal block integrity. Loose field wiring at the TB series terminal boards is a frequent source of intermittent faults that are misdiagnosed as FCU failures. Inspect and re-torque all field terminations during the maintenance window.
For systems using ADV151-P or ADV161-P digital I/O modules, verify that the module firmware is compatible with the replacement FCU revision. Firmware mismatches between the FCU and I/O modules can cause initialization errors after restart. The Yokogawa CP461-50 or CP451-10 communication processors, if present in the same cabinet, should also be checked for Vnet/IP link status and error counters.
In plants running hybrid architectures, the ALR111 alarm management module and any installed SI series signal isolators between field instruments and the I/O cards deserve attention — particularly in high-vibration or high-humidity environments where connector fatigue accelerates. Rounding out the cabinet inspection, verify that the Yokogawa HIS (Human Interface Station) or connected CENTUM VP engineering workstation can communicate cleanly with the replacement FCU before returning the loop to automatic control.
Site Replacement Workflow
Step 1 — Pre-Replacement Verification: Confirm the AFV10D-S41101 replacement unit firmware revision matches or is compatible with the existing system configuration. Download the current FCU configuration from the engineering workstation before any hardware change.
Step 2 — Controlled Switchover (Redundant Systems): In a redundant FCU pair, initiate a manual switchover to the standby unit via the CENTUM VP system console. Confirm the standby unit assumes control cleanly before removing the faulty primary. This eliminates process interruption entirely in a healthy redundant configuration.
Step 3 — Physical Swap: Power down only the affected FCU slot if the system architecture permits hot-swap. Remove the faulty AFV10D-S41101, inspect the backplane connector for damage or contamination, and seat the replacement unit firmly. Verify all status LEDs indicate normal initialization.
Step 4 — Configuration Restore and Loop Check: Download the saved FCU configuration to the replacement unit. Perform a loop check on all associated I/O channels before returning to automatic. Confirm Vnet/IP communication status is green on both the FCU and the system-level network diagnostics screen.
Step 5 — Documentation: Record the replacement in the plant maintenance management system (CMMS), including the serial number of the removed unit, the replacement unit, firmware versions, and the date. Update the spare parts inventory to trigger reorder of a replacement AFV10D-S41101 for the shelf stock.
Spare Parts Support FAQ
Q1: Is the AFV10D-S41101 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AFV10D-S41101 is a CENTUM VP series component. Compatibility with CENTUM CS 3000 depends on the specific migration or upgrade path implemented at your site. We recommend confirming the system generation and FCU slot specification with your Yokogawa system documentation before ordering. Our technical team can assist with compatibility verification prior to shipment.
Q2: What testing is performed before shipment?
Every AFV10D-S41101 unit undergoes a functional test covering power-on initialization, communication interface response, and basic I/O verification before dispatch. Units that do not pass testing are not shipped. A test report is available upon request for critical applications.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return authorization; replacement units are dispatched promptly to minimize downtime.
Q4: Can you supply multiple AFV10D-S41101 units for a plant-wide spare parts program?
Yes. We support bulk spare parts procurement for plant turnarounds, long-term service agreements, and multi-site inventory programs. Volume pricing and reserved stock arrangements are available. Contact our team to discuss your annual consumption requirements and lead time expectations.
