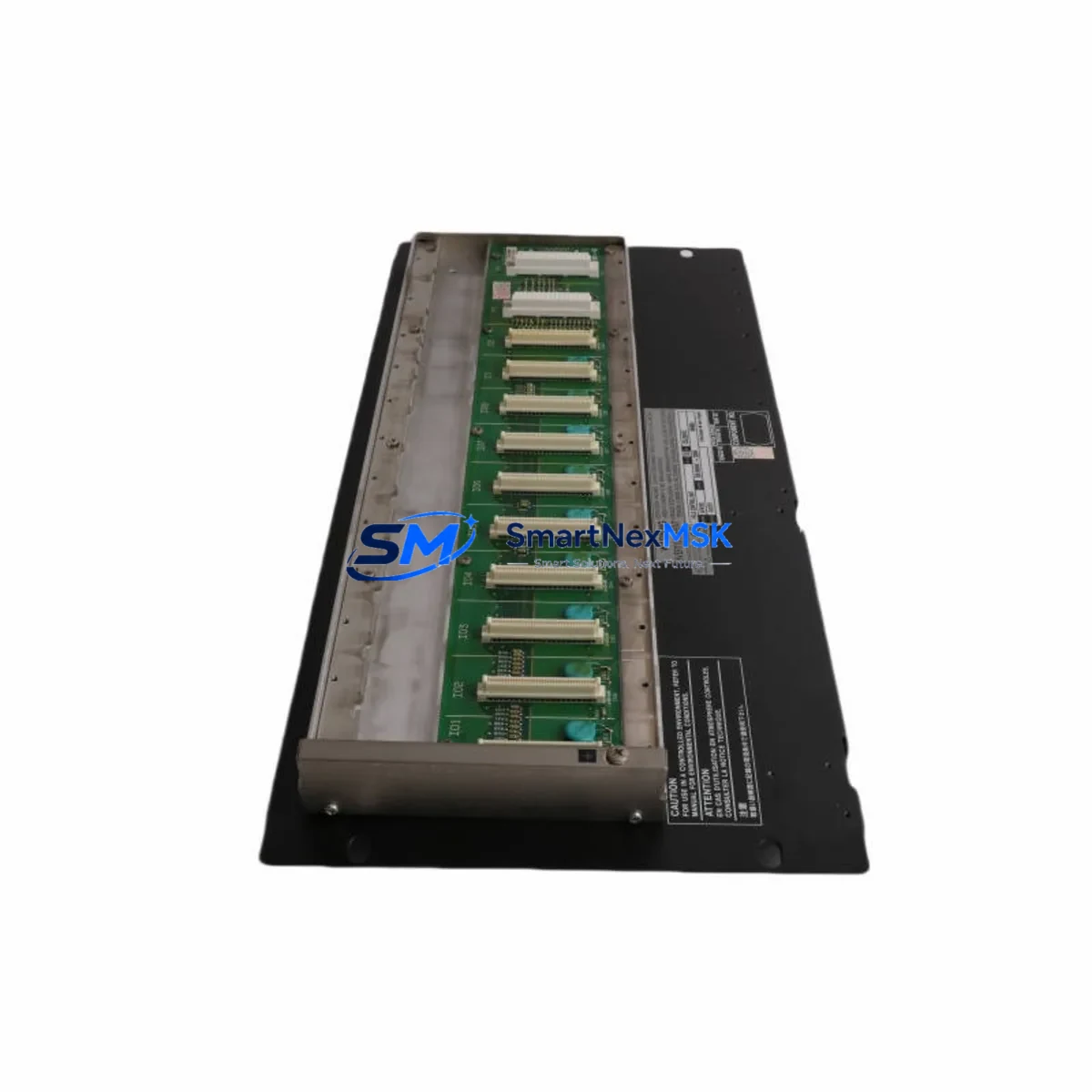

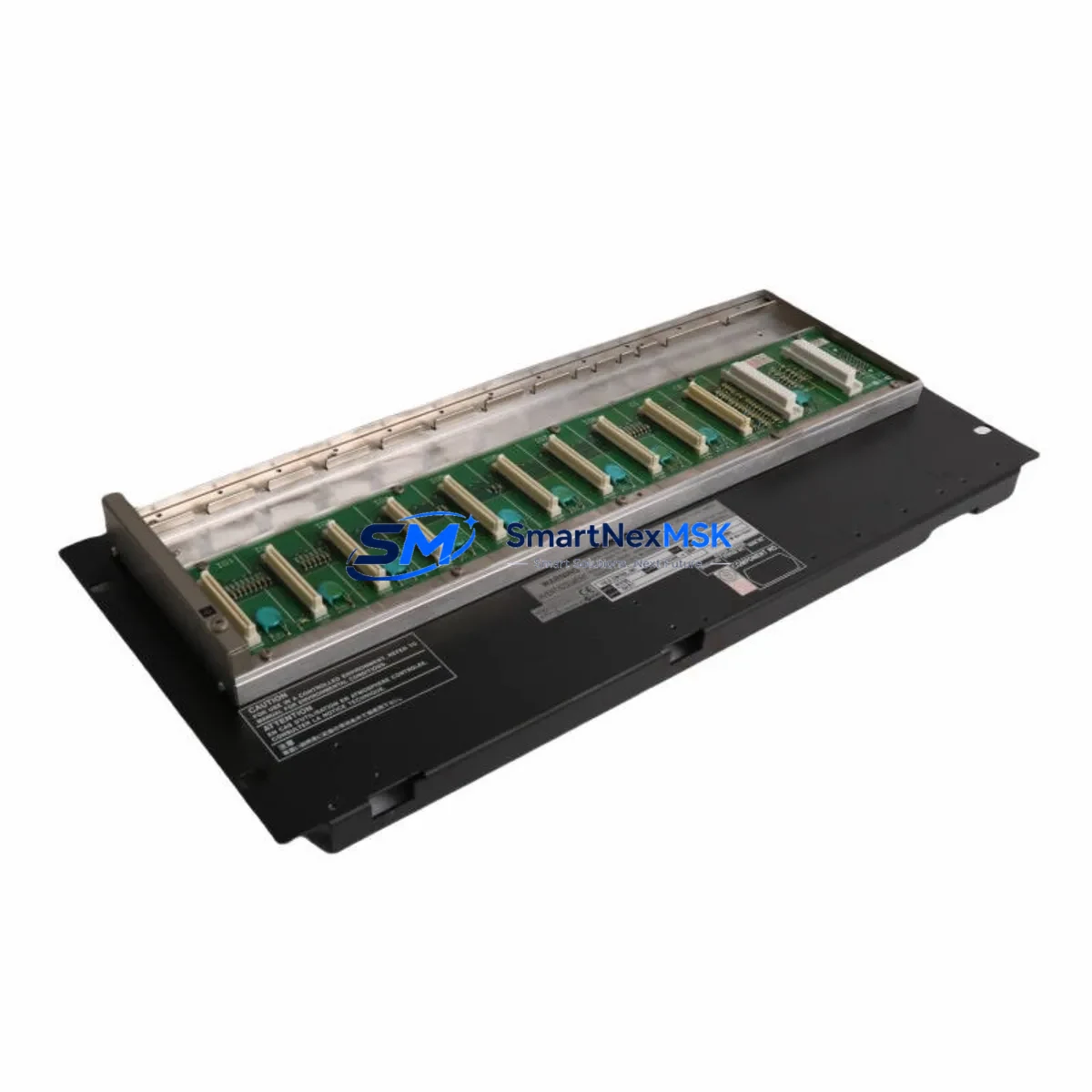

Yokogawa AFV10D-S41211 S2 Spare for CENTUM VP Automation
The Yokogawa AFV10D-S41211 S2 is a field control unit module designed for deployment within CENTUM VP distributed control system architectures. In industrial maintenance environments — from petrochemical plants and power generation facilities to pharmaceutical manufacturing lines — this module serves as a critical node in the field control station (FCS) network. When this unit fails or degrades, the consequences extend beyond a single I/O channel: the entire field control loop dependent on it is at risk of unplanned shutdown. Sourcing a verified, original-specification replacement is the fastest path to restoring normal operations and protecting process continuity.
This listing provides a maintenance-ready, original-specification AFV10D-S41211 S2 unit, fully tested prior to shipment and backed by a 12-month warranty. It is intended for maintenance engineers managing CENTUM VP systems who require a reliable, drop-in replacement that eliminates compatibility guesswork and reduces mean time to repair (MTTR).
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | AFV10D-S41211 S2 |
| Brand | Yokogawa Electric Corporation |
| Series | CENTUM VP (CS 3000 compatible) |
| Module Type | Field Control Unit (FCU) / Processor Module |
| Product Type | DCS Field Control Unit |
| Origin | Japan |
| Compatibility | CENTUM VP FCS cabinets; backward-compatible with CS 3000 field control station configurations |
| Installation | Direct module replacement; observe ESD precautions; power-down FCS before swap |
| Application Environment | Process industries: oil & gas, petrochemical, power, pharmaceutical, pulp & paper |
| Maintenance Recommendation | Inspect every 12–24 months; replace on first sign of communication fault or watchdog alarm |
| Pre-Shipment Testing | Functional test performed; power-on verification completed |
| Warranty | 12 months from date of shipment |
| Lead Time | In stock — ships within 1–3 business days |
Maintenance Planning for Continuous Operation
Replacing the AFV10D-S41211 S2 in a live CENTUM VP system is rarely an isolated task. Experienced maintenance engineers know that a field control unit fault often signals stress across adjacent components in the same control cabinet or electrical loop. Before returning the system to service, a thorough inspection of the surrounding hardware is strongly recommended.
Start with the power supply modules feeding the FCS cabinet — units such as the Yokogawa PW481 or PW482 series should be checked for output voltage stability and ripple, as an aging or undersized power supply is a common root cause of processor module faults. Next, inspect the I/O module rack: analog input modules (e.g., AAI141, AAI143) and digital output modules (e.g., ADO141) seated in the same FCS should be verified for correct termination and signal integrity, particularly if the AFV10D fault was accompanied by I/O communication errors.
The ESB bus coupler and V net communication modules (such as the ACM12 or ACM22) connecting the FCS to the engineering workstation and operator stations deserve close attention. A degraded bus coupler can cause intermittent processor faults that are misdiagnosed as module failures. Similarly, RIO (Remote I/O) interface modules and their associated optical fiber cables or coaxial bus cables should be inspected for physical damage, connector corrosion, or excessive signal attenuation.
For cabinets operating in high-humidity or high-vibration environments, check the condition of terminal blocks and field wiring connectors on the I/O marshalling panels. Loose or corroded terminals are a frequent source of spurious alarms that can trigger protective shutdowns of the FCU. If the system includes signal isolators or signal conditioners between field instruments and the I/O modules, these should be tested for drift, particularly in older installations where the isolators may be approaching end-of-life.
Finally, if the plant runs a redundant FCS configuration, verify that the standby FCU module (the paired AFV10D unit in the redundant slot) is also in good health. A redundant pair where one module has already failed silently provides no protection. Proactively stocking a second AFV10D-S41211 S2 as a cold spare — alongside spare ESB bus terminators and FCS battery backup units — is a best practice for any facility running CENTUM VP as its primary DCS platform.
Site Replacement Workflow
Replacing the AFV10D-S41211 S2 on-site follows a structured sequence designed to minimize downtime and avoid configuration loss. Before beginning, confirm that the replacement unit’s suffix code (S2) matches the installed module exactly — suffix variants indicate hardware revision levels that affect firmware compatibility within the CENTUM VP FCS.
Step 1 — Pre-replacement verification: Download and archive the current FCS configuration from the CENTUM VP engineering workstation (EWS) using the System View tool. Confirm the FCS is in a safe state and, where process conditions allow, transfer control to the redundant FCS or place affected loops in manual mode at the operator station (HIS).
Step 2 — Module extraction: Power down the FCS cabinet following Yokogawa’s lockout/tagout procedure. Wearing appropriate ESD protection, extract the faulty AFV10D-S41211 S2 from its slot. Note the slot address for re-installation reference.
Step 3 — Replacement installation: Insert the new AFV10D-S41211 S2 into the same slot. Secure the module latch. Reconnect any associated cables or bus connectors. Restore cabinet power.
Step 4 — System restoration: From the EWS, perform an FCS download to load the archived configuration onto the new module. Monitor the System Alarm window for any initialization faults. Once the FCS reports normal status, return affected loops to automatic control from the HIS operator station.
Step 5 — Post-replacement validation: Verify all I/O channels are reading correctly. Confirm V net communication status is healthy. Log the replacement in the plant maintenance management system (CMMS) with the new module’s serial number and installation date to support future warranty claims and lifecycle tracking.
Spare Parts Support FAQ
Q1: Is this AFV10D-S41211 S2 an original Yokogawa module or a third-party replacement?
This is an original Yokogawa AFV10D-S41211 S2 module sourced through authorized industrial supply channels. It is not a clone, counterfeit, or third-party substitute. Each unit is inspected and functionally tested before shipment to confirm it meets original factory specifications.
Q2: How do I verify compatibility with my existing CENTUM VP FCS cabinet before ordering?
Compatibility is determined by the FCS cabinet model, the installed CENTUM VP software version, and the suffix code of the existing module. The S2 suffix denotes a specific hardware revision. If you are unsure, provide your FCS cabinet model number and current module suffix to our technical team at sales@smartnexmsk.com and we will confirm compatibility before shipment.
Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, installation date, and a description of the fault. We will arrange return shipping and provide a replacement or repair within an agreed timeframe.
Q4: Can you supply multiple AFV10D-S41211 S2 units for a planned shutdown or spare parts inventory program?
Yes. We support bulk orders for planned maintenance shutdowns, annual spare parts replenishment programs, and strategic inventory builds. Volume pricing is available. Contact us with your required quantity and delivery schedule and we will provide a formal quotation with lead time confirmation.
