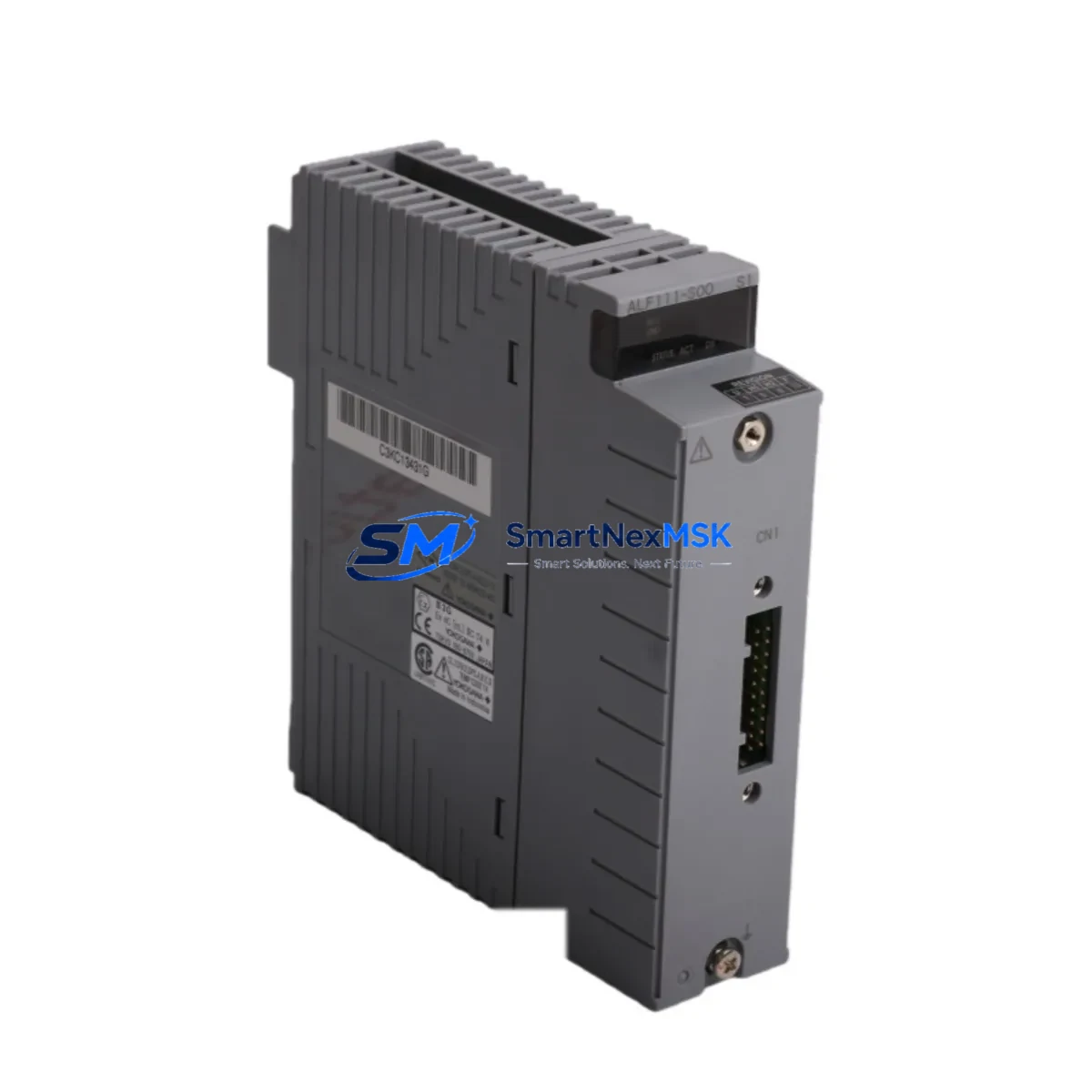

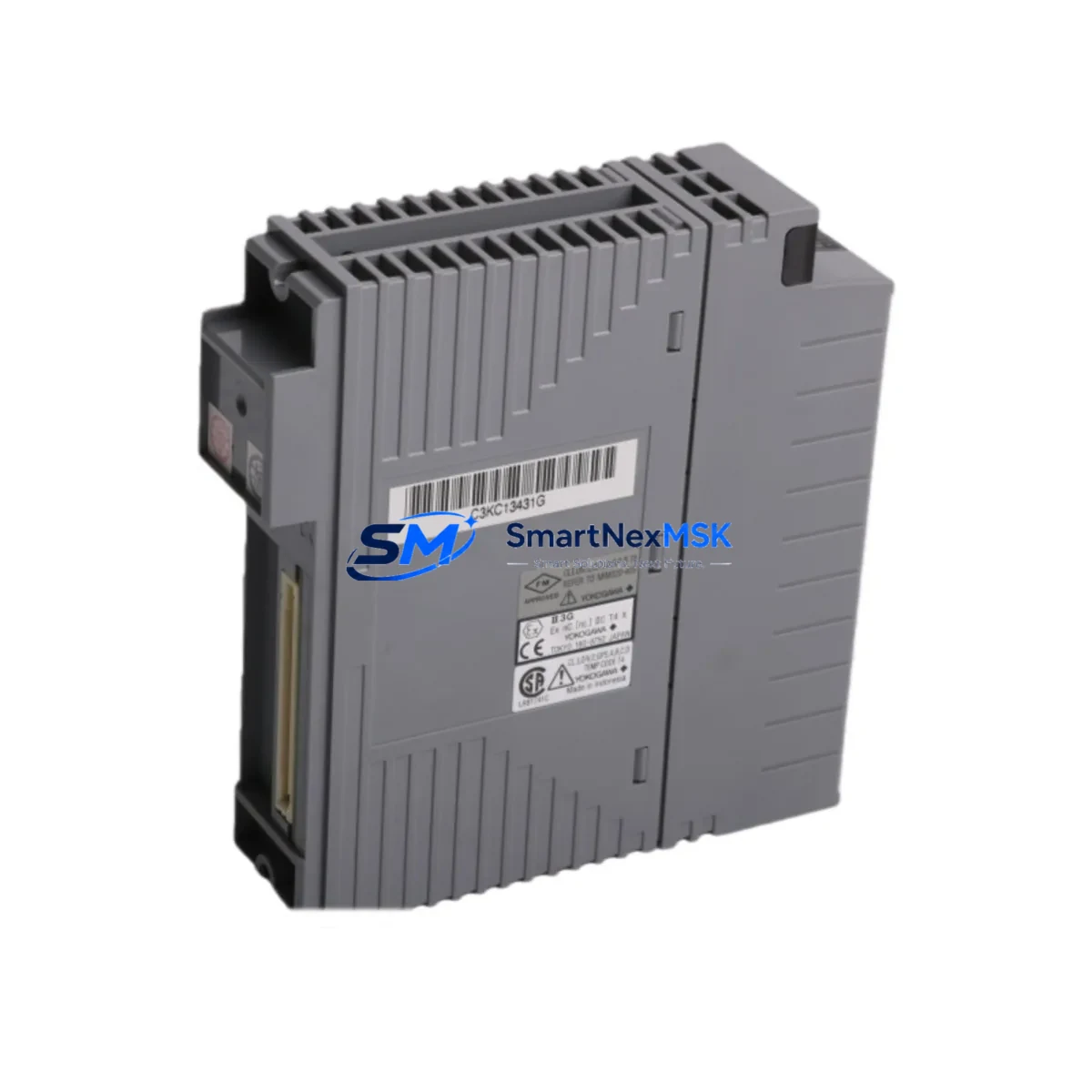

Yokogawa ALF111-S50 Safety-Enhanced FF-H1 Fieldbus Module

Yokogawa ALF111-S50 Safety-Enhanced FF-H1 Fieldbus Module: Reliable Control in Harsh Industrial Sites

The Yokogawa ALF111-S50 is a ruggedized FOUNDATION Fieldbus H1 (FF-H1) communication module engineered for deployment within the Yokogawa CENTUM VP and CENTUM CS 3000 distributed control systems. Designed to operate continuously in high-load, high-interference industrial environments, the ALF111-S50 delivers deterministic fieldbus communication that is critical to maintaining safe, uninterrupted process control across petrochemical plants, power generation facilities, metallurgical operations, and water treatment infrastructure.

In demanding industrial control cabinets where signal integrity is non-negotiable, the ALF111-S50 provides stable FF-H1 segment management with built-in protection against signal drift, power fluctuation, and communication anomalies. Its ruggedized design ensures that even under continuous production cycles — where downtime carries severe safety and financial consequences — the module maintains reliable fieldbus segment operation without requiring manual intervention or emergency replacement.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered CENTUM VP control cabinet, the ALF111-S50 operates as the fieldbus communication backbone, bridging the controller domain and the field instrument layer. Its role in the overall protection strategy becomes clear when viewed alongside the complementary modules and components that share the same control architecture.

The Yokogawa AFV10D field control unit provides the processing backbone that hosts the ALF111-S50, ensuring that fieldbus segment data is processed with deterministic cycle times even under high I/O load. Paired with the Yokogawa ACM11 communication module, the system maintains redundant controller-to-fieldbus communication paths, eliminating single points of failure in critical interlock loops. For power integrity, the Yokogawa PW481 power supply module delivers regulated, noise-filtered DC power to the I/O nest, protecting the ALF111-S50 and adjacent modules from voltage sags and transient surges that are common in heavy industrial environments near large motor drives or arc furnaces.

In safety instrumented systems, the ALF111-S50 is frequently deployed alongside the Yokogawa ProSafe-RS SIL2/SIL3 safety controller, where it provides the fieldbus interface to SIL-rated field devices such as smart pressure transmitters and emergency shutdown valves. The Yokogawa YTA710 temperature transmitter and EJA110E differential pressure transmitter are typical FF-H1 field devices that communicate through the ALF111-S50 segment, delivering process variable data to the DCS with high accuracy and low latency. Fieldbus segment conditioners such as the Pepperl+Fuchs KFD2-BR-1.PA or equivalent FF-H1 segment couplers are used in conjunction with the ALF111-S50 to provide galvanic isolation and intrinsic safety barriers for hazardous area installations, further reducing the risk of signal contamination or ground loop interference propagating into the control system.

For communication network integrity at the supervisory level, the Yokogawa CENTUM VP Vnet/IP network switch ensures that the control domain remains isolated from plant IT networks, preventing cybersecurity-related communication anomalies from affecting fieldbus segment stability. This layered protection architecture — from field device to controller to supervisory network — positions the ALF111-S50 as a critical node in a comprehensive industrial safety and reliability strategy.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous refinery operations, the ALF111-S50 manages FF-H1 segments connecting flow transmitters, control valves, and safety shutdown devices across distillation columns and reactor units. Its ability to maintain deterministic communication under high electromagnetic interference from variable frequency drives and high-voltage switchgear makes it indispensable in environments where a communication failure could trigger an unplanned shutdown or, worse, a safety interlock bypass.

Power Generation Facilities: Thermal and combined-cycle power plants rely on CENTUM VP systems with ALF111-S50 modules to monitor and control boiler feedwater systems, turbine control loops, and flue gas desulfurization units. The module’s surge protection and EMC resilience ensure stable operation in proximity to high-voltage generators and transformer bays.

Mining and Mineral Processing: In ore processing and mineral extraction facilities, the ALF111-S50 supports fieldbus communication for slurry pump control, crusher monitoring, and conveyor safety interlock systems. Its wide operating temperature range and robust construction allow reliable performance in dusty, vibration-intensive environments.

Water and Wastewater Treatment: Municipal and industrial water treatment plants use the ALF111-S50 to integrate FF-H1 field instruments across filtration, dosing, and pumping stations. The module’s stable communication performance ensures that critical process parameters — pH, flow, turbidity — are continuously monitored without data loss or segment dropout.

Metallurgy and Steel Production: In electric arc furnace and continuous casting operations, the ALF111-S50 withstands extreme electromagnetic environments while maintaining reliable fieldbus communication for temperature control, cooling water management, and safety interlock circuits that protect both equipment and personnel.

Safety and Quality FAQ

Q1: What warranty coverage does the ALF111-S50 carry?
Every ALF111-S50 unit supplied by SMARTNEXMSK is covered by a 12-month full functional warranty. If the module fails under normal operating conditions within the warranty period, we provide a replacement or full refund. Our warranty reflects our confidence in the pre-shipment testing process applied to every unit.

Q2: How is each unit tested before shipment?
All ALF111-S50 modules undergo a comprehensive pre-shipment inspection that includes power-on functional testing, FF-H1 communication verification, visual inspection for physical damage, and firmware version confirmation. Units that do not pass all test criteria are quarantined and not dispatched. A test report is available upon request.

Q3: Is the ALF111-S50 compatible with both CENTUM VP and CS 3000 systems?
Yes. The ALF111-S50 is designed for use in both the Yokogawa CENTUM VP and CENTUM CS 3000 field control station I/O nests. It is a direct replacement module for existing installations and supports hot-swap replacement in systems configured for redundant fieldbus operation, minimizing maintenance downtime.

Q4: Can long-term supply and spare parts support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of the ALF111-S50 and related CENTUM VP/CS 3000 spare modules to support long-term maintenance contracts and emergency replacement requirements. We serve clients across petrochemical, power, and process industries who require reliable spare parts availability beyond the original manufacturer’s active production lifecycle. Contact our technical sales team to discuss scheduled supply agreements.
