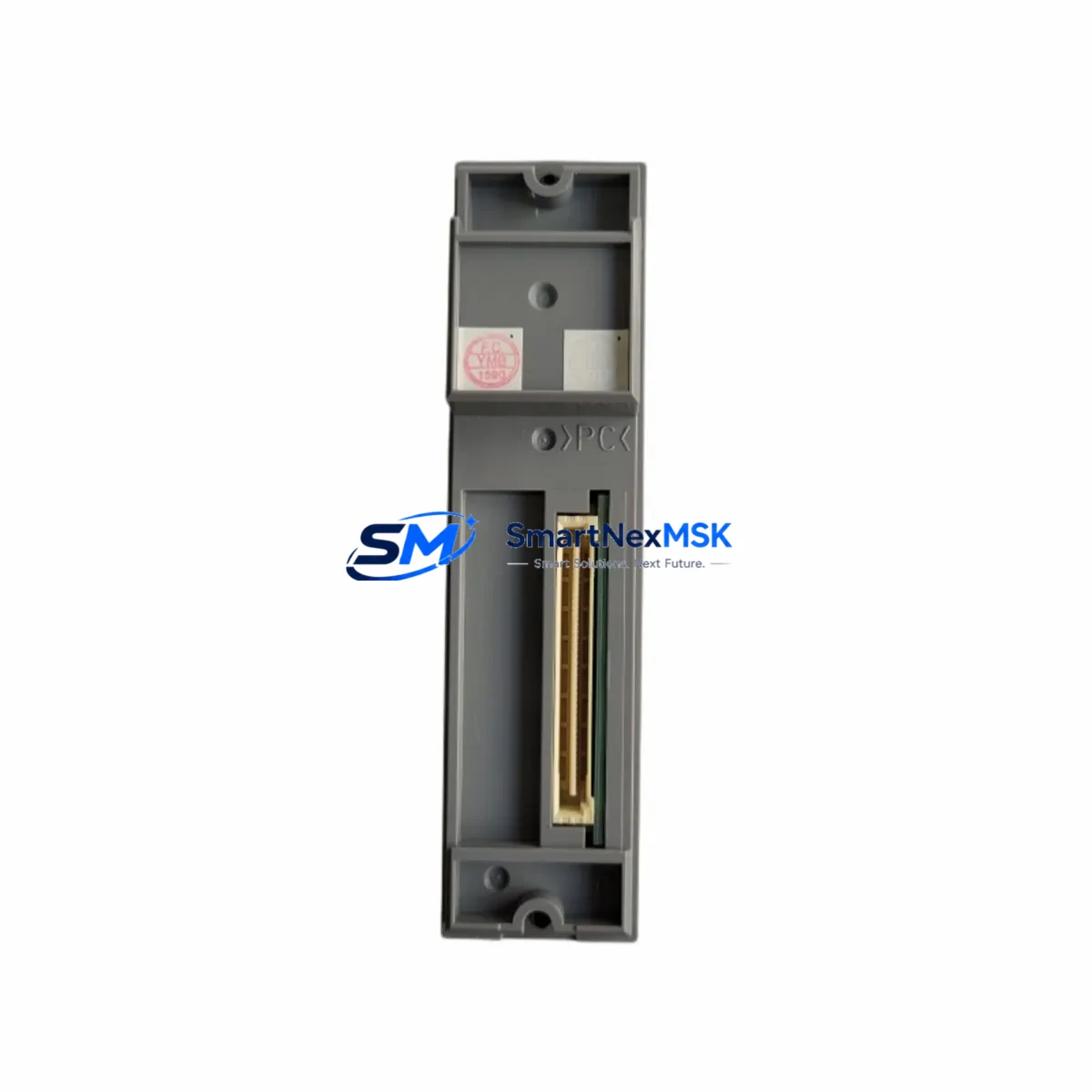

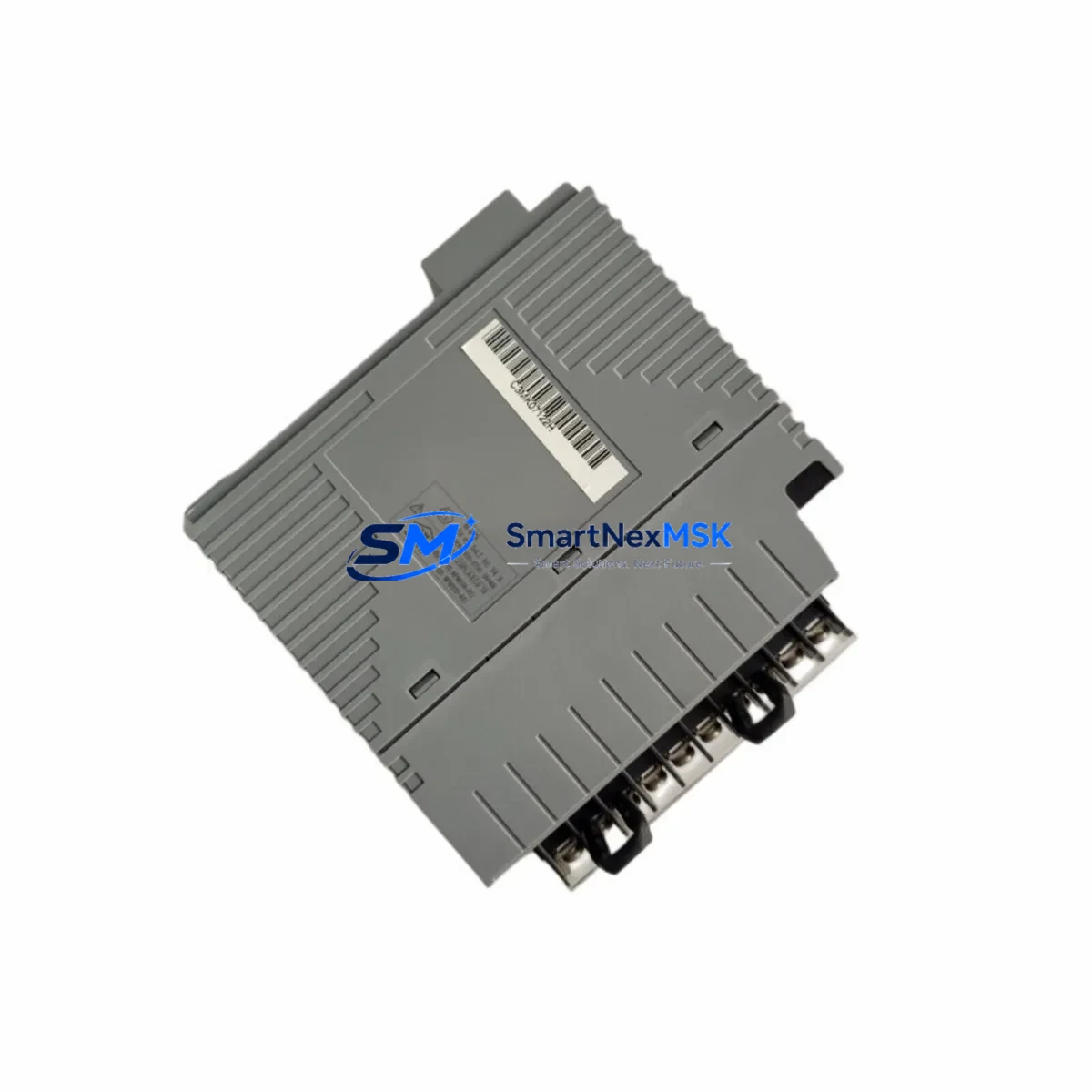

YOKOGAWA ALR121-S00 Safety-Enhanced DCS Communication Module

YOKOGAWA ALR121-S00 Safety-Enhanced DCS Communication Module: Reliable Control in Harsh Industrial Sites

The YOKOGAWA ALR121-S00 is a ruggedized DCS communication module engineered for mission-critical process control environments where signal integrity, system uptime, and personnel safety are non-negotiable. Designed for seamless integration within the YOKOGAWA CENTUM VP and CENTUM CS 3000 distributed control systems, the ALR121-S00 delivers deterministic, low-latency communication between field devices and the central control infrastructure — even under the most demanding electrical and environmental conditions found in petrochemical plants, power generation facilities, metallurgical operations, and continuous manufacturing lines.

In high-stakes industrial environments, a single communication failure can cascade into process upsets, emergency shutdowns, or — in worst-case scenarios — safety incidents. The ALR121-S00 is purpose-built to eliminate these risks. Its hardened communication architecture actively suppresses electromagnetic interference (EMI), radio-frequency interference (RFI), and conducted noise from variable-frequency drives, large motor starters, and high-current switching equipment commonly co-located in industrial control cabinets. This makes it an ideal backbone component for control loops where signal drift or data corruption is simply not acceptable.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the YOKOGAWA ALR121-S00 as the communication backbone of a CENTUM VP control station requires a holistic approach to cabinet-level protection. In practice, the module operates alongside a range of complementary components that together form a resilient, fault-tolerant control architecture.

Power quality is the first line of defense. The ALR121-S00 relies on stable 24 VDC backplane power, which is typically supplied through a YOKOGAWA PW481 or PW482 power supply module. These redundant power units provide regulated, noise-filtered DC power to the entire field control station (FCS), ensuring that voltage sags, micro-interruptions, or upstream AC fluctuations do not propagate into the communication bus. In installations where grid quality is poor — such as remote mining sites or heavy industrial zones — pairing the power supply with an external UPS (uninterruptible power supply) and a surge protection device (SPD) on the AC input rail is strongly recommended.

On the I/O side, the ALR121-S00 communicates with process field signals through dedicated I/O modules such as the YOKOGAWA AAI141 (analog input, 4–20 mA) and AAI543 (analog output) modules, as well as digital I/O modules like the ADV151 for discrete field device status. Any signal anomaly — whether caused by a broken field cable, a failing transmitter, or a ground loop — is detected and flagged at the I/O layer before it can corrupt the communication bus, protecting the integrity of the ALR121-S00’s data stream.

For safety-instrumented systems (SIS) operating in parallel with the basic process control system (BPCS), the ALR121-S00 may interface with or operate adjacent to YOKOGAWA ProSafe-RS safety controller modules. In these architectures, the communication module plays a critical role in ensuring that process data from the BPCS is accurately and reliably transmitted to the operator station, while the SIS independently monitors critical process variables and executes safety functions. Maintaining strict electrical isolation between the BPCS communication bus and the SIS logic is essential, and the ALR121-S00’s shielded bus interface supports this separation.

Communication redundancy is another key protection strategy. In high-availability CENTUM VP configurations, dual ALR121-S00 modules are deployed in a primary/standby arrangement, with automatic bumpless switchover in the event of a module fault. This eliminates the communication module as a single point of failure in the control loop. The YOKOGAWA ACM12 communication module and ESB bus coupler components further extend the communication network across multiple field control stations, maintaining system-wide data integrity even during partial cabinet maintenance.

Thermal management within the control cabinet is equally important. Excessive heat accelerates component aging and increases the risk of communication errors. Proper cabinet ventilation, combined with temperature monitoring via YOKOGAWA EJA series transmitters or dedicated cabinet thermal sensors, ensures the ALR121-S00 operates within its rated temperature envelope throughout its service life.

Critical Industrial Safety Applications

The YOKOGAWA ALR121-S00 has proven its reliability across a wide spectrum of heavy industrial and process-critical applications:

Petrochemical and Refinery Operations: In crude distillation units, catalytic crackers, and hydroprocessing plants, the ALR121-S00 maintains continuous, error-free communication between field transmitters, control valves, and the central DCS operator station. Any communication interruption in these environments can lead to uncontrolled process deviations, pressure buildup, or emergency flaring events. The module’s EMI hardening ensures stable operation even in the presence of high-voltage switchgear and large rotating machinery.

Power Generation and Grid Substations: Thermal power plants, combined-cycle gas turbines, and hydroelectric facilities rely on CENTUM VP systems for turbine control, boiler management, and grid synchronization. The ALR121-S00 provides the communication reliability needed to support fast-response control loops where millisecond-level latency variations can affect grid stability and equipment protection relay coordination.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The ALR121-S00’s ruggedized construction and IEC 60068-2-6 vibration compliance make it suitable for crusher control, conveyor management, and ventilation safety systems in these harsh environments.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use CENTUM VP systems to manage dosing, filtration, and effluent monitoring. The ALR121-S00 ensures that critical process data — including chlorine dosing rates, pH levels, and flow measurements — is communicated without interruption, supporting both regulatory compliance and public safety.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills generate intense electromagnetic fields that challenge conventional communication hardware. The ALR121-S00’s shielded bus interface and transient suppression capabilities allow it to maintain reliable DCS communication in these electrically hostile environments, supporting precise temperature control and product quality consistency.

Port and Terminal Automation: Bulk liquid terminals, LNG loading facilities, and container port automation systems require continuous, reliable communication between field instruments and the central control room. The ALR121-S00 supports these applications by providing a stable, low-error-rate communication link that underpins safe loading, unloading, and inventory management operations.

Safety and Quality FAQ

Q1: What warranty coverage does the YOKOGAWA ALR121-S00 carry?
The ALR121-S00 is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement or repair, and our technical team provides remote diagnostic assistance to minimize downtime during any warranty event.

Q2: What pre-shipment testing is performed on each ALR121-S00 unit?
Every ALR121-S00 unit undergoes a comprehensive functional test prior to dispatch. This includes communication bus integrity verification, power consumption measurement, and visual inspection for physical damage. Units that do not meet YOKOGAWA’s original performance specifications are quarantined and not shipped. A test report is available upon request.

Q3: Is the ALR121-S00 compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The ALR121-S00 is designed for use within the YOKOGAWA CENTUM VP and CENTUM CS 3000 DCS platforms. It is slot-compatible with the standard field control station (FCS) chassis used in both systems. For specific firmware version compatibility or hardware revision matching, please contact our technical sales team with your existing system configuration details before ordering.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated inventory of the ALR121-S00 and related CENTUM VP / CS 3000 spare modules to support long-term maintenance contracts and emergency replacement requirements. Our procurement network sources directly from authorized channels, and we can provide lead-time commitments for scheduled maintenance shutdowns. For critical infrastructure operators requiring guaranteed spare availability, we recommend discussing a consignment or reserved-stock arrangement with our sales team.
