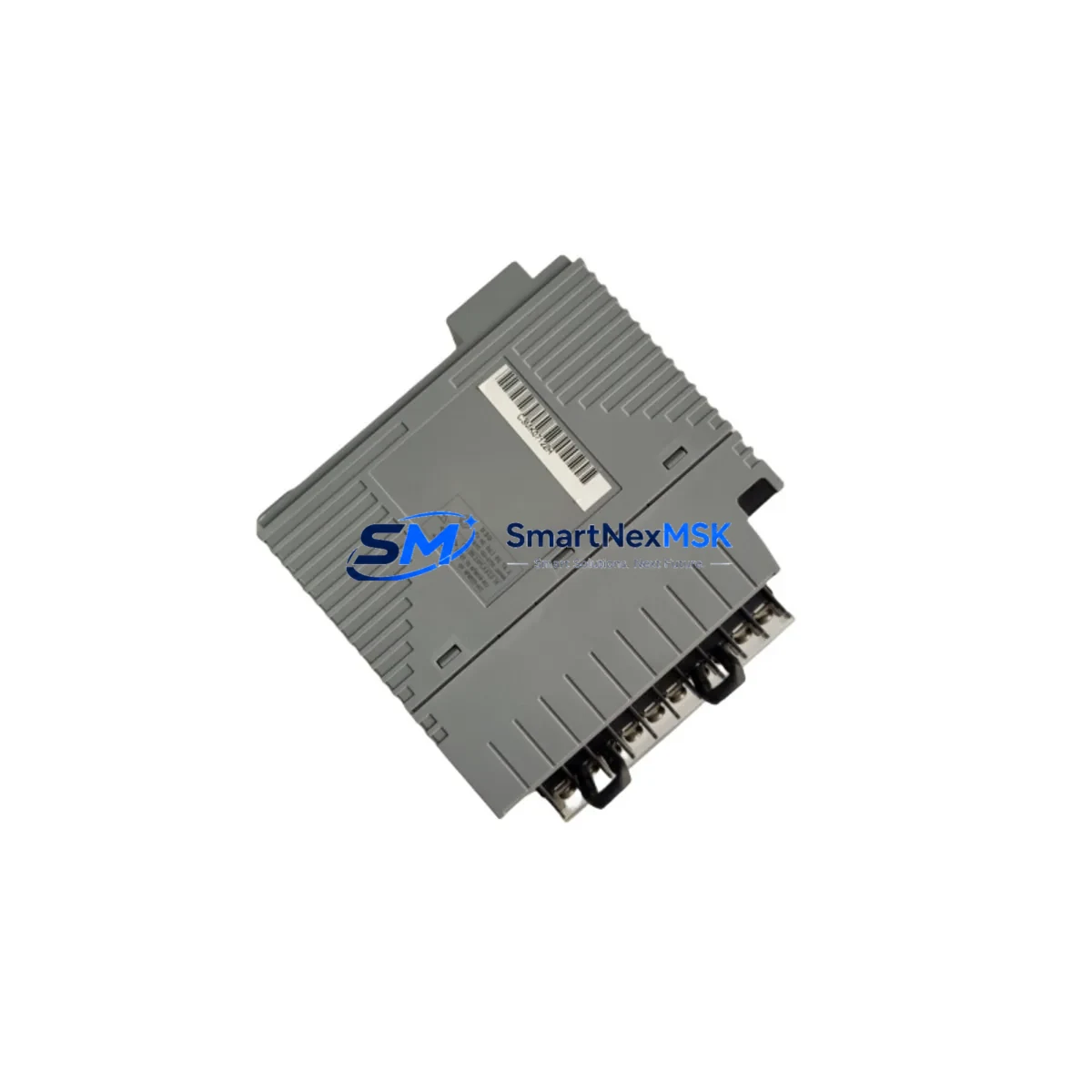

Yokogawa ALR121-S00 Safety-Enhanced Serial Communication Module

Yokogawa ALR121-S00 Safety-Enhanced Serial Communication Module for Harsh Industrial Sites

The Yokogawa ALR121-S00 is a ruggedized serial communication module engineered for mission-critical control loops within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. Designed to sustain continuous, interference-free data exchange between field instruments and the process control network, the ALR121-S00 is a cornerstone component in high-reliability automation architectures found across petrochemical complexes, power generation facilities, metallurgical plants, and continuous manufacturing environments where unplanned downtime carries severe safety and financial consequences.

In harsh industrial sites characterized by high electromagnetic interference (EMI), ground potential fluctuations, and aggressive thermal cycling, serial communication integrity is frequently the first point of failure in a control loop. The ALR121-S00 addresses this vulnerability through its hardened signal isolation circuitry, which suppresses common-mode noise and surge transients that would otherwise corrupt RS-232C or RS-422/485 data frames. When paired with the Yokogawa ACM12 communication bus coupler and ESB10 enhanced signal bus modules, the ALR121-S00 forms a fully redundant communication backbone capable of sustaining loop integrity even under single-point hardware faults — a critical requirement for SIL-rated safety instrumented systems (SIS).

Safety Reliability Table

Control Cabinet Protection Strategy

A robust DCS control cabinet is never built around a single module — it is an ecosystem of interdependent components, each contributing to overall system safety and uptime. The ALR121-S00 operates most effectively when the surrounding cabinet architecture is equally hardened. In typical CENTUM VP installations, the module is housed alongside the Yokogawa CP451 or CP461 field control station processors, which handle real-time process logic and interlock execution. Communication between the ALR121-S00 and these processors traverses the ESB10 enhanced signal bus, a high-speed backplane that maintains data coherence even during partial power interruptions.

Power stability is a non-negotiable prerequisite for serial communication reliability. Installations that incorporate the Yokogawa PW481 or PW482 redundant power supply modules ensure that voltage sags, brownouts, or single-supply failures do not propagate into communication errors or module resets. For applications where the ALR121-S00 interfaces with third-party instruments via RS-485 multidrop networks — common in flow computers, gas analyzers, and smart transmitters — the addition of Yokogawa PFCS field communication servers and dedicated surge protection terminal blocks at the cabinet entry point significantly reduces the risk of transient-induced data corruption.

In safety instrumented system (SIS) architectures, the ALR121-S00 frequently operates in parallel with Yokogawa ProSafe-RS safety controller I/O modules, exchanging diagnostic and status data over supervised serial links. This integration enables the DCS to monitor SIS health in real time, triggering operator alerts before a latent fault can escalate into a process safety event. Complementary components such as the Yokogawa ALF111 fieldbus communication module and AAI141 analog input modules round out the I/O layer, ensuring that every signal path — from field sensor to control room display — is protected against interruption.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking units and distillation columns, the ALR121-S00 maintains serial communication between the CENTUM VP DCS and third-party analyzers, flow computers, and emergency shutdown (ESD) panels. Communication loss in these environments can delay operator response to abnormal process conditions, making the module’s surge-protected, optically isolated interface a critical safety feature.

Power Generation Facilities: Thermal and combined-cycle power plants rely on the ALR121-S00 to sustain data exchange between turbine control systems and the plant-wide DCS. The module’s ability to operate reliably in high-EMI environments — generated by large rotating machinery and high-voltage switchgear — ensures that governor control signals and protection relay status data are transmitted without corruption.

Mining and Mineral Processing: In underground and surface mining operations, control cabinets are exposed to vibration, dust ingress, and wide temperature swings. The ALR121-S00’s industrial-grade construction and self-diagnostic capability allow maintenance teams to identify communication degradation before it causes conveyor stoppages or crusher control failures.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the ALR121-S00 to integrate chemical dosing systems, pump controllers, and SCADA interfaces into the CENTUM VP platform. Reliable serial communication is essential for maintaining disinfection control loops and regulatory compliance reporting.

Metallurgical and Steel Plants: In electric arc furnace (EAF) and continuous casting environments, the ALR121-S00 withstands the extreme EMI generated by high-current furnace operations, ensuring that temperature control and cooling water interlock signals are transmitted accurately and without delay.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ALR121-S00?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified serial communication functions within the warranty period, SMARTNEXMSK will provide a replacement or repair at no additional cost. Warranty claims are processed promptly to minimize control system downtime.

Q2: What pre-shipment testing is performed on the ALR121-S00?
Every ALR121-S00 unit undergoes a full functional test prior to dispatch, including communication interface verification across RS-232C and RS-422/485 modes, power-up self-diagnostic confirmation, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the ALR121-S00 compatible with both CENTUM VP and CS 3000 systems?
Yes. The ALR121-S00 is designed for use within Yokogawa’s CENTUM VP and CS 3000 DCS platforms. It is slot-compatible with standard Yokogawa field control station (FCS) cabinets and operates within the system’s native communication architecture without requiring additional adapters or configuration tools beyond standard Yokogawa engineering software.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for the ALR121-S00?
Yes. SMARTNEXMSK maintains dedicated inventory of Yokogawa CENTUM VP and CS 3000 spare parts, including the ALR121-S00, to support long-term plant maintenance programs. For facilities operating aging DCS platforms where OEM supply has been discontinued or lead times are extended, SMARTNEXMSK provides a reliable alternative sourcing channel with consistent stock availability and rapid dispatch capability.
