Yokogawa ASS9981DE-01 Maintenance-Ready Spare CENTUM VP

Yokogawa ASS9981DE-01 Maintenance-Ready Spare CENTUM VP

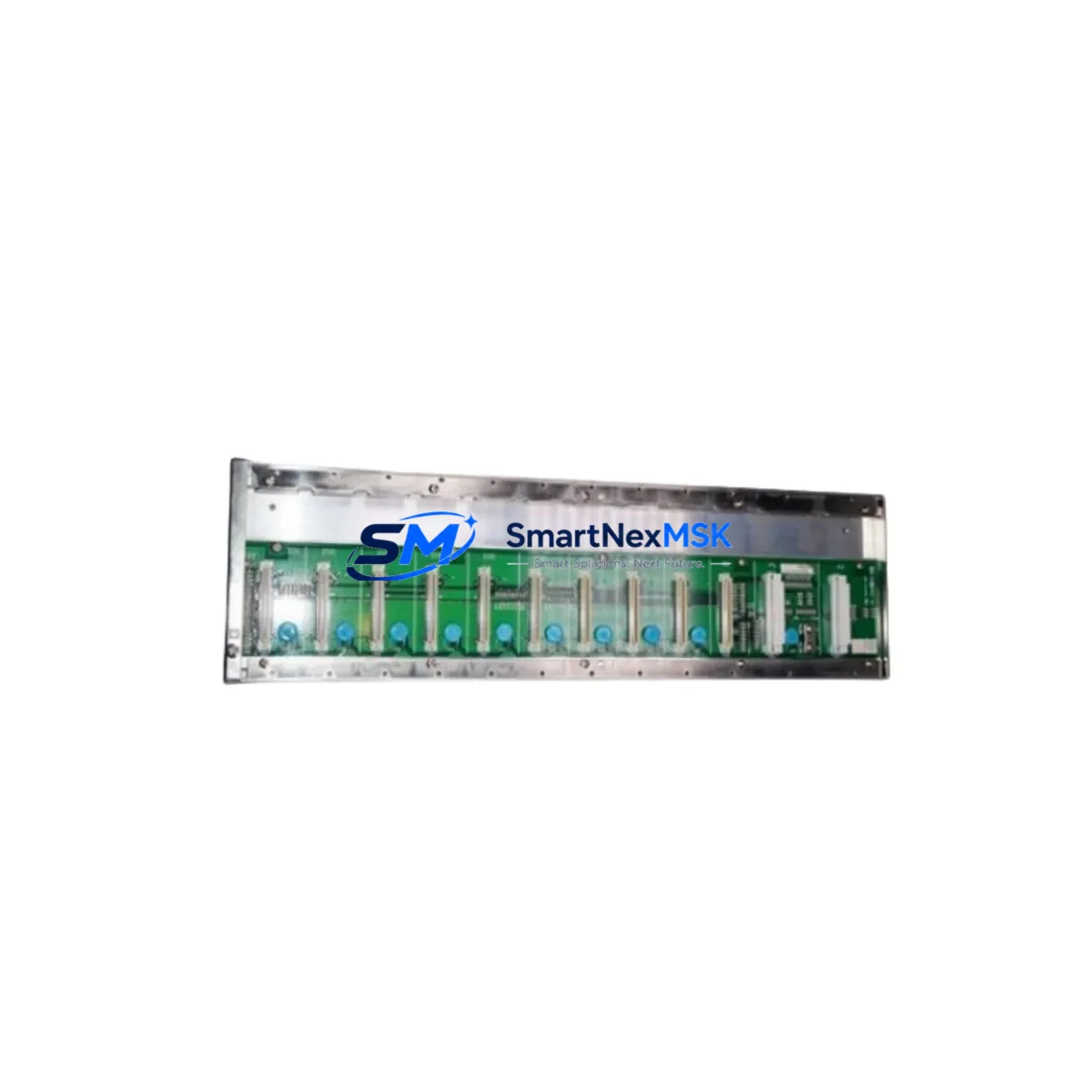

Unplanned downtime in a DCS-controlled process plant can cost thousands of dollars per hour. The Yokogawa ASS9981DE-01 is a critical backplane module within the CENTUM VP distributed control system architecture, providing the structural and electrical backbone that connects I/O modules, communication cards, and power supply units into a unified control node. Holding a verified original ASS9981DE-01 in your spare parts inventory is one of the most effective strategies for reducing mean time to repair (MTTR) when a backplane fault is diagnosed during a scheduled inspection or an emergency shutdown event.

This listing supplies the ASS9981DE-01 as a maintenance-ready original spare — inspected, function-tested, and shipped with a 12-month warranty. Each unit is sourced from authorized channels and verified against Yokogawa CENTUM VP hardware specifications before dispatch. Whether you are supporting a greenfield installation, extending the life of a legacy CENTUM VP system, or building a strategic spare parts buffer for a multi-train process facility, this module delivers the compatibility and reliability your maintenance team requires.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A backplane replacement on a CENTUM VP node is rarely an isolated event. Experienced maintenance engineers know that when a backplane shows signs of failure — intermittent I/O faults, bus communication errors, or physical damage from heat cycling — the surrounding components in the same control cabinet deserve equal scrutiny. Before or during an ASS9981DE-01 replacement, a thorough site inspection should include the following associated components:

Start with the power supply modules feeding the node. Yokogawa PWR48S or equivalent redundant power units should be load-tested; a degraded power supply is a common root cause of backplane stress and premature failure. Next, inspect the I/O modules seated in the backplane slots — AAI141 analog input modules, AAI841 analog output modules, ADV151 digital input modules, and ADV551 digital output modules should all be checked for secure seating, connector pin condition, and error LED status.

The Vnet/IP communication module (such as the ACG10S or ACG30S) connecting the node to the plant control network should be verified for link integrity and firmware version compatibility after a backplane swap. Similarly, ESB bus cables and connectors between nodes should be inspected for insulation damage or loose terminations that could cause intermittent faults post-replacement.

Do not overlook the terminal blocks and field wiring connectors on the I/O modules. Vibration and thermal cycling can loosen screw terminals over time; re-torquing to specification during a planned backplane replacement is a low-cost, high-value maintenance step. If the cabinet houses signal isolators or signal conditioners between field instruments and I/O cards, verify their output ranges and power supply rails as part of the same work order.

For cabinets with integrated HMI interface panels or operator stations connected to the CENTUM VP node, confirm that the HMI communication link is restored and alarm lists are clear after the backplane is reinstalled and the node is brought back online. Finally, check any fuse holders and circuit protection devices on the 24 VDC field power distribution rail — a blown fuse in the field power circuit can mimic a backplane fault and should be ruled out before committing to a full backplane replacement.

Site Replacement Workflow

Replacing the ASS9981DE-01 in a live CENTUM VP system requires careful sequencing to minimize process impact and ensure a clean restart. The recommended workflow is as follows:

1. Pre-replacement preparation: Download and archive the current node configuration from Yokogawa’s CENTUM VP engineering environment (System View). Confirm the replacement ASS9981DE-01 part number and hardware revision match the installed unit. Notify the control room operator and obtain a permit-to-work if required by site safety procedures.

2. Controlled node shutdown: Place the affected field control station in manual mode from the HMI. Use the CENTUM VP engineering station to gracefully take the node offline. Power down the node using the cabinet isolator — do not hot-swap the backplane without confirming the node supports hot-standby redundancy for this hardware revision.

3. Module removal and inspection: Remove all I/O modules and communication cards from the backplane slots in sequence, labeling each slot position. Inspect the backplane connector pins and bus contacts for oxidation or mechanical damage. Photograph the wiring and module layout before disconnection.

4. Backplane installation: Mount the replacement ASS9981DE-01 onto the cabinet rail. Reconnect the power bus connectors and ESB/Vnet cables. Reinstall I/O modules in their original slot positions. Verify all modules are fully seated and locking tabs are engaged.

5. Node restart and verification: Power up the node and observe the status LEDs on the backplane and I/O modules. From the CENTUM VP engineering station, confirm the node comes online without hardware fault alarms. Verify all I/O channels are reading correctly against field instrument values. Return the field control station to automatic mode and confirm process control is restored.

This structured approach reduces the risk of secondary faults, shortens total downtime, and provides a documented maintenance record for compliance and future reference.

Spare Parts Support FAQ

Q1: How do I confirm the ASS9981DE-01 is compatible with my specific CENTUM VP system revision?
The ASS9981DE-01 is designed for the CENTUM VP platform and is compatible with R4.x through R6.x revisions in standard node configurations. For legacy CENTUM CS 3000 systems, hardware revision compatibility should be verified against your system’s engineering documentation or by contacting our technical support team with your system serial number and software version. We recommend confirming the hardware revision suffix on the installed unit before ordering.

Q2: What pre-shipment testing is performed on each ASS9981DE-01 unit?
Every ASS9981DE-01 unit undergoes a visual inspection for physical damage, connector pin integrity check, and functional continuity test on the backplane bus contacts before shipment. Units that do not pass inspection are not dispatched. A test report is available upon request for critical infrastructure procurement.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in Yokogawa’s CENTUM VP hardware documentation. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions outside the rated operating range. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and photographic evidence. Replacement or repair will be arranged within 5 business days of claim approval.

Q4: What is the recommended spare parts stocking strategy for CENTUM VP backplane modules?
For process plants with multiple CENTUM VP nodes, industry best practice recommends holding at least one ASS9981DE-01 spare per 8–10 installed nodes, or one per critical process unit (e.g., reactor, compressor train, or distillation column). Given that Yokogawa CENTUM VP systems often remain in service for 15–20 years, proactive spare parts procurement is strongly advised as original modules become harder to source in later lifecycle stages. Combining backplane spares with a buffer stock of key I/O modules and power supply units provides the most robust protection against extended unplanned downtime.
