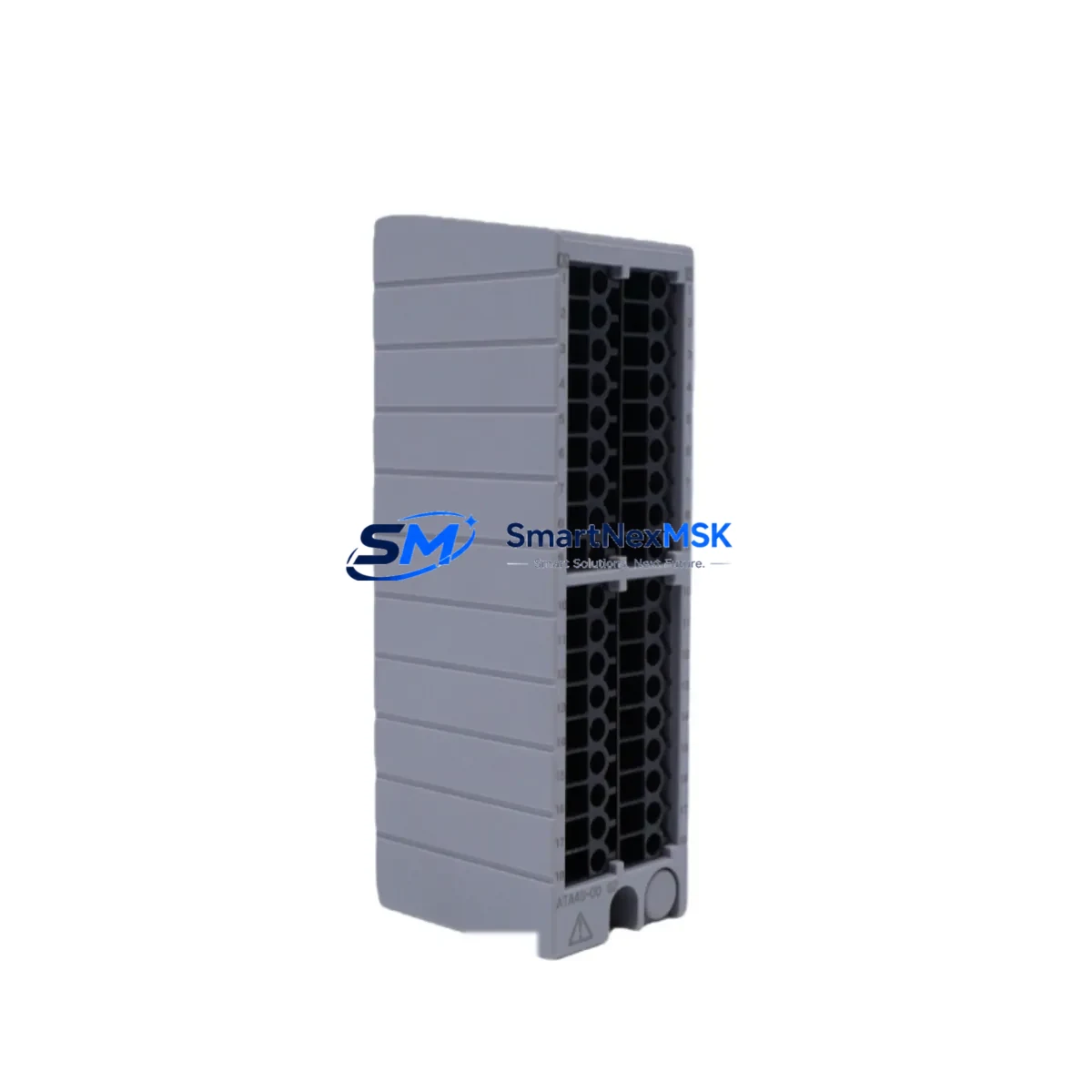

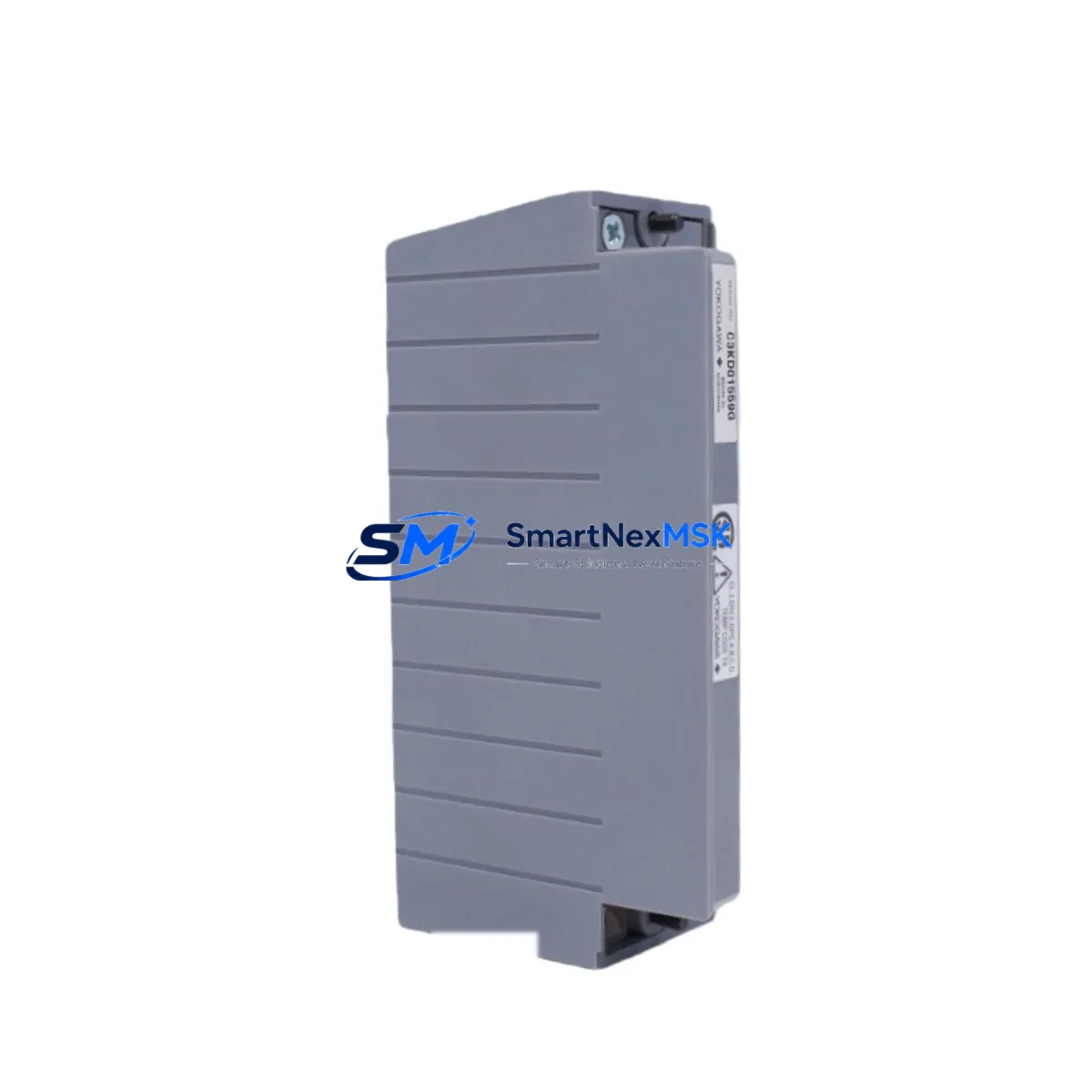

Yokogawa ATA4S-10S2 Retrofit-Ready Analog Input Module for CENTUM VP Control Systems
The Yokogawa ATA4S-10S2 is a high-precision analog input module engineered for the CENTUM VP Distributed Control System platform. As legacy CENTUM CS 3000 and earlier CENTUM VP field stations reach end-of-life, the ATA4S-10S2 has become a critical retrofit component for facilities undertaking control system modernization, panel upgrades, and I/O expansion projects. With 10 analog input channels supporting 4–20 mA and 1–5 V DC signals, this module delivers the measurement accuracy and signal integrity required in refinery, chemical, power generation, and pharmaceutical process environments.
For engineers managing aging DCS infrastructure, sourcing a verified ATA4S-10S2 from stock eliminates the lead-time risk associated with discontinued Yokogawa spare parts. SMARTNEXMSK maintains ready inventory of this module, fully tested and shipped with a 12-month warranty covering hardware defects under normal operating conditions.
Upgrade Compatibility Table
| Parameter | ATA4S-10S2 Specification | Retrofit Notes |
|---|---|---|
| Platform Compatibility | CENTUM VP, CENTUM CS 3000 | Verify FCU firmware version before installation |
| Channel Count | 10 Analog Input Channels | Map to existing I/O assignment in Engineering Builder |
| Signal Type | 4–20 mA / 1–5 V DC | Confirm field wiring polarity and terminal block type |
| Backplane Interface | CENTUM VP I/O nest connector | Compatible with ANB10D, ANB10S nest units |
| Module Address | Set via hardware slot position | Confirm slot address matches original module mapping |
| Communication | Internal V-net / Vnet/IP backbone | No additional protocol configuration required |
| Power Consumption | Supplied via I/O nest backplane | Verify nest power budget before adding modules |
| Installation | Hot-swap capable (with FCU support) | Confirm FCU model supports online module replacement |
| Commissioning | Engineering Builder tag re-assignment | Back up project database before any tag changes |
| Warranty | 12 Months | Covers hardware defects under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful ATA4S-10S2 retrofit begins well before the module arrives on site. The first step is a thorough audit of the existing I/O nest configuration. In most CENTUM VP field control stations, the ATA4S-10S2 is installed alongside complementary modules such as the AAI141-S analog input module, the AAT141-S thermocouple input module, and the ADV151-P digital output module. Where the control station also handles valve positioner feedback, the AAI543-H HART-enabled analog input module may occupy adjacent slots — its address mapping must be preserved during any partial retrofit.
Terminal block compatibility is a common field issue. The ATA4S-10S2 uses the TB820V terminal board for field wiring termination. Before removal of the legacy module, photograph and document all field wiring connections. If the existing terminal board shows corrosion or mechanical wear, replacement with a new TB820V is recommended as part of the retrofit scope. Wiring polarity for 4–20 mA transmitters must be verified against the loop drawing, particularly where intrinsic safety barriers or isolators are installed in the signal path.
Power budget verification is essential when adding or replacing modules in an existing I/O nest. The ANB10D nest unit has a defined maximum current draw; adding a replacement ATA4S-10S2 alongside existing modules such as the AIP588 power supply module requires confirming that total consumption remains within specification. Where the nest is already near capacity, a supplementary AIP588 or nest expansion may be required before the retrofit can proceed safely.
For facilities migrating from CENTUM CS 3000 to CENTUM VP, the ATA4S-10S2 supports the I/O migration path without requiring full rewiring of field instruments. The module’s signal compatibility with legacy 4–20 mA transmitters means that existing field devices — pressure transmitters, flow meters, and level sensors — can remain in service while the control layer is upgraded. This significantly reduces the scope of field work and limits process downtime to the control station cutover window.
Where the retrofit also involves HMI modernization, engineers should verify that all ATA4S-10S2 tag names and engineering unit assignments are correctly reflected in the CENTUM VP HMI Builder project. Discrepancies between the field station database and the HMI faceplate configuration are a common source of commissioning delays. A pre-cutover simulation using the CENTUM VP Test Function is strongly recommended to validate all analog input displays before live process connection.
Downtime Control During System Migration
Minimizing process downtime during a DCS module replacement requires a structured cutover plan. For the ATA4S-10S2, the recommended approach is to prepare the replacement module offline — confirming firmware compatibility, verifying the slot address, and pre-loading the Engineering Builder configuration — before any live system work begins. Where the FCU supports online module replacement, the ATA4S-10S2 can be swapped without a full field control station shutdown, provided the I/O nest remains powered and the FCU continues executing the control strategy.
Prior to cutover, the existing control logic should be exported and archived. All PID loop parameters, analog input scaling factors, and alarm setpoints associated with the ATA4S-10S2 channels must be documented. If the replacement is part of a broader migration involving the AFS10D field control station or a transition to a newer FCU generation, a parallel run period — where both the legacy and replacement modules are monitored simultaneously — provides an additional layer of verification before full cutover.
Post-installation, each analog input channel should be loop-tested using a calibrated 4–20 mA signal source. Confirm that the CENTUM VP trend display reflects the correct engineering unit values across the full input range. Any deviation from expected values should be investigated at the field terminal board level before the process is returned to automatic control. All commissioning results should be recorded in the site maintenance management system to support future audit and warranty claims.
Retrofit Support FAQ
Q: Is the ATA4S-10S2 a direct drop-in replacement for older CENTUM CS 3000 analog input modules?
A: The ATA4S-10S2 is designed for the CENTUM VP platform. Compatibility with CS 3000 I/O nests depends on the specific nest model and FCU firmware version. We recommend confirming the target nest model (ANB10D or ANB10S) and FCU generation before ordering. Our technical team can assist with compatibility verification based on your system configuration.
Q: What commissioning steps are required after installing the ATA4S-10S2?
A: After physical installation, the module slot address must be confirmed in Engineering Builder, all field wiring connections verified against loop drawings, and each channel loop-tested with a calibrated signal source. HMI tag assignments should be validated in HMI Builder before returning loops to automatic control. A full backup of the Engineering Builder project should be taken both before and after commissioning.
Q: Can the ATA4S-10S2 be installed while the field control station is running?
A: Hot-swap capability depends on the FCU model and firmware version. Some CENTUM VP FCU generations support online I/O module replacement; others require a controlled shutdown of the field control station. Confirm your FCU model’s hot-swap support in the Yokogawa hardware manual before attempting live replacement.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers hardware defects in the ATA4S-10S2 module under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification. All units are functionally tested prior to shipment. Warranty claims are supported by our technical team with replacement or repair at no additional cost within the warranty period.
