Yokogawa CP401-10 S1 Spare for CENTUM CS 1000 Automation: Minimizing Downtime with Verified Replacement Parts

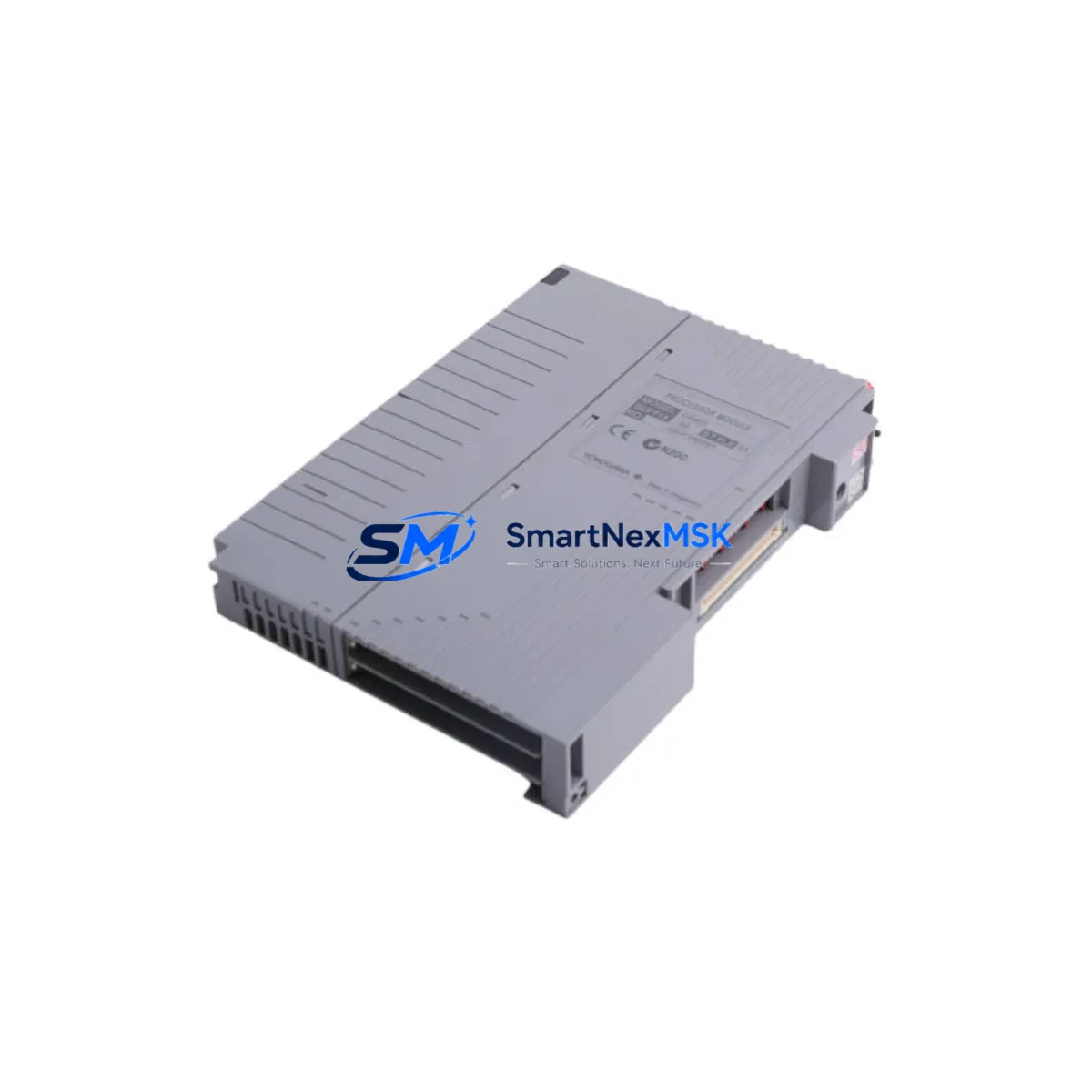

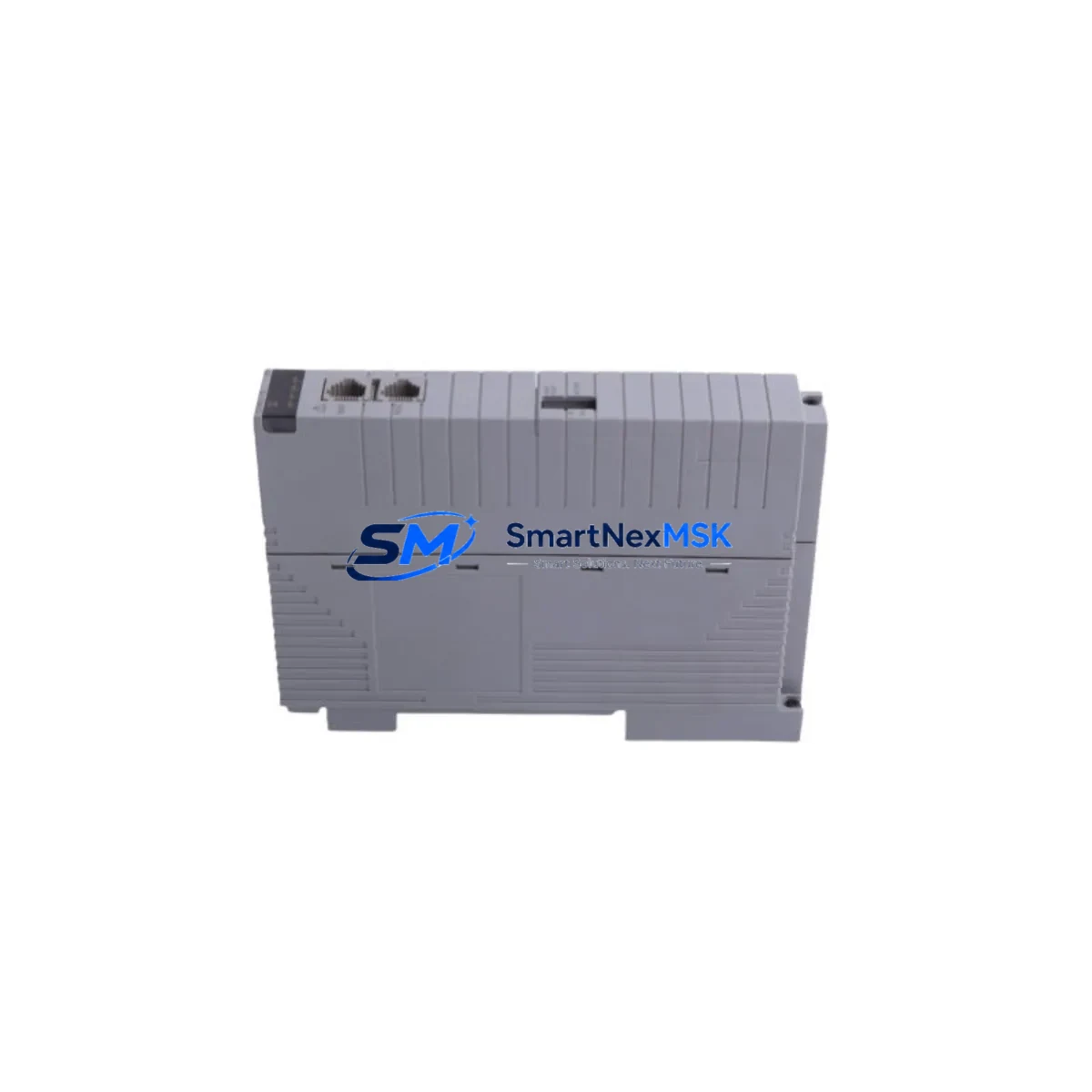

The Yokogawa CP401-10 S1 is the central processor module of the CENTUM CS 1000 Field Control Station (FCS), responsible for executing control logic, managing I/O communication, and maintaining real-time process data across the distributed control system. In continuous-process industries — including petrochemical, power generation, pulp and paper, and pharmaceutical manufacturing — an unplanned failure of this module can halt production within minutes. Sourcing a verified, original spare is not optional; it is a core element of any responsible maintenance strategy.

This listing provides an original Yokogawa CP401-10 S1 processor module, sourced from authorized supply channels, individually inspected, and tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance. Whether you are building a critical-spare inventory, executing a planned turnaround, or responding to an emergency shutdown, this module is ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CP401-10 S1 processor fault is detected — whether through a CENTUM CS 1000 system alarm, a watchdog timeout, or a complete FCS node failure — the replacement procedure should be treated as a system-level event, not an isolated module swap. Experienced maintenance engineers know that a processor failure rarely occurs in isolation; associated components in the same FCS node unit and control cabinet deserve simultaneous inspection.

Begin with the power supply modules feeding the FCS node. The PW401 and PW481 power supply units are the most common power sources for CS 1000 FCS nodes; verify output voltage stability and check for capacitor aging, particularly in systems that have been in service for more than eight years. A marginal power supply is one of the leading causes of intermittent processor resets and should be treated as a co-suspect whenever a CP401-10 S1 fault is logged.

Next, inspect the I/O modules installed in the same node. The AAI141 analog input module, AAI841 analog output module, and ADV151 digital input module are typical companions in CS 1000 process control nodes. Check for loose field wiring on terminal blocks, verify that signal ranges are within calibrated limits, and confirm that no I/O channel alarms were present prior to the processor fault — these can indicate field-side issues that stressed the processor’s scan cycle.

The ESB401 node unit bus coupler and the FCS backplane itself should be visually inspected for corrosion, connector wear, and mechanical damage. A degraded backplane connection can cause intermittent communication errors that are misdiagnosed as processor failures. If the system includes a CP401-50 dual-redundant processor pair, confirm that the redundancy synchronization link is intact and that the standby processor is healthy before bringing the replacement unit online.

For sites running CENTUM CS 1000 alongside legacy Yokogawa CENTUM-XL or CENTUM CS 3000 systems, the BCV021 V-net bus converter and associated communication cables should be checked for signal integrity. Communication module faults in a mixed-generation DCS environment can cascade into processor load issues. Additionally, review the status of any ALR111 alarm annunciator modules or RIO remote I/O units connected to the affected FCS node.

Finally, confirm that the HMI engineering station — typically running CENTUM CS 1000 Builder or Operator Station software — can communicate with the replacement processor after installation. A firmware version mismatch between the CP401-10 S1 and the FCS node unit can prevent successful initialization; always verify the system software revision before finalizing the replacement.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the exact FCS node unit model and slot assignment for the CP401-10 S1. Download the current control logic database from the engineering station and back up all FCS configuration files. Verify that the replacement CP401-10 S1 carries the same hardware revision as the failed unit, or confirm backward compatibility with your Yokogawa system integrator.

Step 2 — Safe Isolation: If the FCS node is configured in dual-redundant mode, initiate a controlled switchover to the standby processor before removing the faulty unit. For simplex configurations, coordinate with the process control team to place affected control loops in manual mode and notify operators of the planned interruption window.

Step 3 — Module Replacement: Power down the FCS node unit following Yokogawa’s documented lockout/tagout procedure. Remove the CP401-10 S1 by releasing the front-panel ejector levers and sliding the module from the backplane slot. Insert the replacement unit, ensuring full backplane connector engagement. Restore power and observe the module’s LED status indicators during initialization.

Step 4 — System Restoration: Reload the FCS configuration database from the engineering station. Confirm that all I/O channels are scanning correctly, that process values are within expected ranges, and that no new system alarms are present. Return control loops to automatic mode in a staged sequence, starting with the least critical loops.

Step 5 — Documentation: Record the replacement in the site maintenance log, including the failed module’s serial number, fault symptoms, replacement date, and post-installation test results. Update the spare parts inventory to trigger reorder of a replacement CP401-10 S1 for the critical-spare shelf.

Spare Parts Support FAQ

Q1: Is this CP401-10 S1 an original Yokogawa module or a third-party replacement?
This is an original Yokogawa CP401-10 S1 processor module sourced from authorized supply channels. It is not a clone, refurbished third-party unit, or functional equivalent. Each unit is individually inspected and tested for electrical performance before shipment to ensure it meets Yokogawa’s original manufacturing specifications.

Q2: How do I verify compatibility with my specific CENTUM CS 1000 FCS node before ordering?
Compatibility depends on the FCS node unit model (e.g., AFV10D, AFV10S), the hardware revision of the existing CP401-10 S1, and the CENTUM CS 1000 system software version installed on your engineering station. We recommend providing your FCS node model number and current processor hardware revision when placing your order so our technical team can confirm compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our technical support team with the module serial number, a description of the fault symptoms, and your original order reference. Replacement or repair will be arranged within the warranty period.

Q4: Can you support long-term supply for sites that need multiple CP401-10 S1 units over several years?
Yes. We maintain ongoing sourcing relationships for legacy Yokogawa CENTUM CS 1000 components and can support scheduled procurement programs for sites managing aging DCS infrastructure. For sites planning a multi-year system life extension, we recommend establishing a blanket order or preferred supplier agreement to ensure consistent access to verified original spares as the CS 1000 platform approaches end-of-life support from Yokogawa.
