Yokogawa DTSBM10-N0N S1 Spare for DTS Automation

Yokogawa DTSBM10-N0N S1 Spare for DTS Automation: Downtime Recovery & Spare Parts Replacement

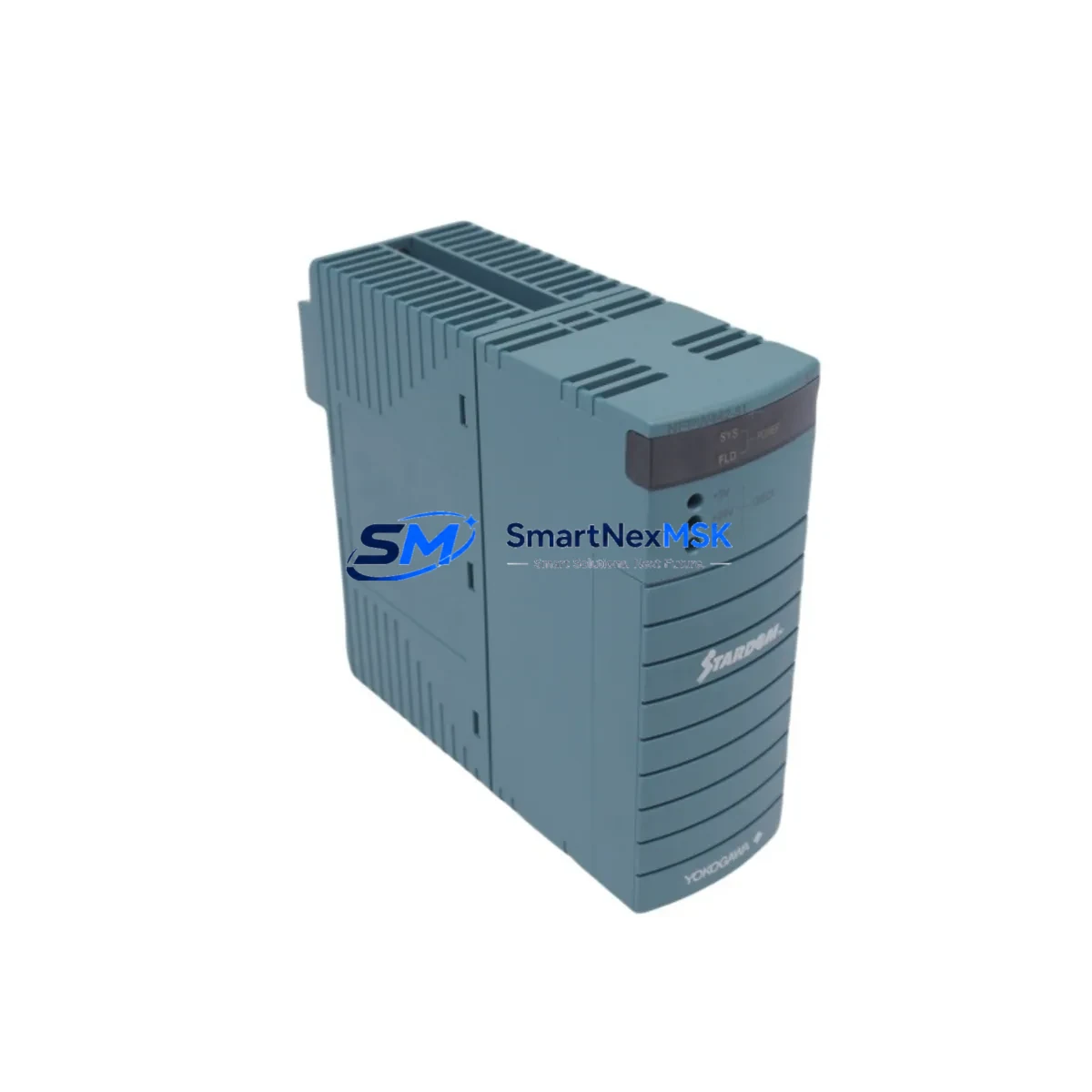

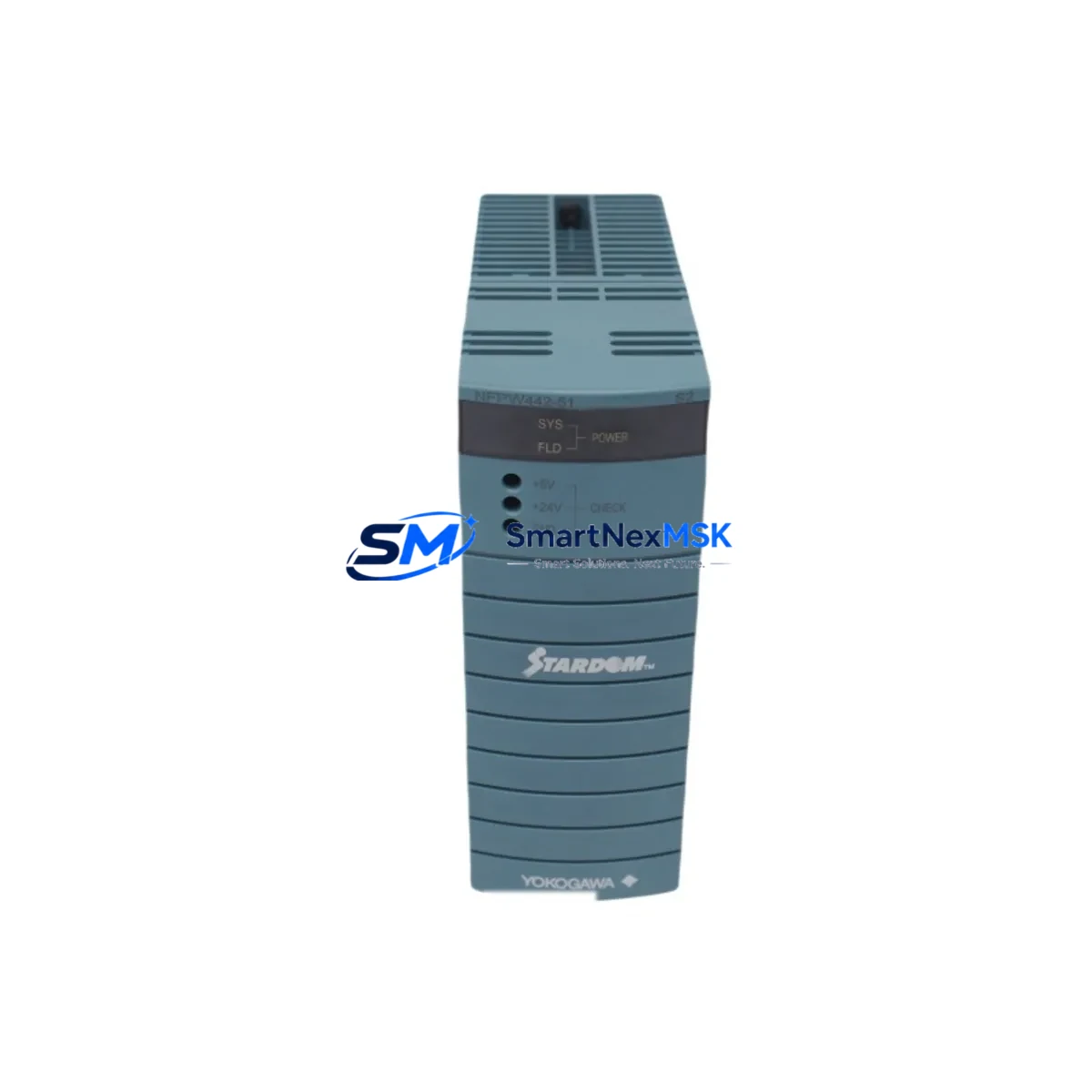

The Yokogawa DTSBM10-N0N S1 is a main system bus module within the DTS Series Distributed Control System (DCS) architecture. Designed for continuous process industries including oil & gas, petrochemical, power generation, and advanced manufacturing, this module serves as a critical backbone component for inter-unit communication and system coordination. When this module fails or degrades, the entire DCS node it supports may become inoperable — making rapid spare parts availability a non-negotiable element of any maintenance strategy.

At SMARTNEXMSK, every DTSBM10-N0N S1 unit is sourced as an original Yokogawa component, individually tested prior to shipment, and backed by a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, planned overhaul, and long-term lifecycle extension of legacy DTS installations worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DTSBM10-N0N S1 in a live DTS DCS environment is rarely an isolated task. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the surrounding system architecture and pre-position additional spares to prevent cascading failures.

Before or during replacement of the DTSBM10-N0N S1, the following components in the same control cabinet or electrical loop should be inspected and, where applicable, stocked as spares:

• DTS Series Power Supply Module (e.g., DTSPW10 or equivalent) — Confirm backplane voltage stability. A degraded power supply is a common root cause of bus module faults. Inspect output ripple and replace if outside tolerance.
• DTS I/O Module (DTSIO series) — I/O modules sharing the same backplane may have been exposed to the same fault condition. Verify channel integrity and signal accuracy post-replacement.
• DTS Communication Module (DTSCM series) — System bus faults can corrupt communication buffers. Inspect the communication module for error logs and confirm clean handshake after DTSBM10-N0N S1 swap.
• Yokogawa CENTUM VP / CS 3000 Controller Module — If the DTS system interfaces with a CENTUM VP or CS 3000 platform, verify controller-to-DTS link integrity and re-establish any lost configuration after module replacement.
• DTS Backplane / Rack Assembly — Inspect backplane connector pins for oxidation, mechanical damage, or thermal stress marks. A faulty backplane can cause repeated module failures.
• Signal Isolator / Barrier (e.g., Yokogawa MTL or equivalent) — For field signal loops connected through the DTS I/O, inspect signal isolators and Zener barriers for drift or degradation, particularly in hazardous area installations.
• Terminal Block Assembly (e.g., Yokogawa TB series) — Loose or corroded terminal connections are a frequent source of intermittent faults. Re-torque and inspect all field wiring terminations during the maintenance window.
• Relay Output Module (Yokogawa RO series or equivalent) — If the DTS system drives relay outputs for interlock or alarm functions, verify relay coil resistance and contact integrity.
• HMI / Engineering Workstation Connection — After module replacement, confirm that the HMI (e.g., Yokogawa FAST/TOOLS or equivalent SCADA) correctly reflects the restored node status and that no ghost alarms persist.
• Fuse and Circuit Protection (DIN rail fuse holders, 24VDC loop fuses) — Check all fuses in the 24VDC control power distribution feeding the DTS rack. A blown fuse is sometimes misdiagnosed as a module failure.

Stocking these components alongside the DTSBM10-N0N S1 in your spare parts inventory significantly reduces mean time to repair (MTTR) and supports a proactive maintenance posture rather than a reactive one.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the DTSBM10-N0N S1 part number and hardware revision (S1 suffix) against your installed unit. Mismatched revisions can cause compatibility issues. Download and retain the current DCS configuration backup before any hardware change.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. For hot-swap capable DTS configurations, verify whether the module supports online replacement; if not, plan a controlled shutdown window to minimize process impact.

Step 3 — Physical Replacement: Remove the faulty DTSBM10-N0N S1 by releasing the module locking mechanism. Seat the replacement unit firmly into the backplane connector. Verify LED status indicators upon power-up — a solid green status LED confirms successful initialization.

Step 4 — Configuration Restore: Using the Yokogawa engineering tool (e.g., CENTUM VP Builder or DTS configuration utility), restore or re-download the node configuration. Verify all I/O tags, alarm setpoints, and communication parameters are correctly loaded.

Step 5 — Functional Test: Perform a loop check on critical I/O channels. Confirm communication with upstream controllers and HMI. Document the replacement in your maintenance management system (CMMS) with the new module serial number and installation date.

This workflow is applicable whether replacing an end-of-life unit as part of a planned lifecycle refresh or responding to an unplanned fault. The DTSBM10-N0N S1 supplied by SMARTNEXMSK is pre-tested to reduce the risk of DOA (dead-on-arrival) scenarios and to accelerate your return to normal operation.

Spare Parts Support FAQ

Q1: Is the DTSBM10-N0N S1 still available as a new original spare, or only as refurbished stock?
A: SMARTNEXMSK supplies the DTSBM10-N0N S1 as an original spare component. Each unit undergoes pre-shipment functional testing. Where new old stock (NOS) is available, it is clearly identified. All units are covered by our 12-month warranty regardless of stock classification.

Q2: How do I verify compatibility between the DTSBM10-N0N S1 and my existing DTS DCS installation?
A: Compatibility depends on the DTS system version, backplane type, and firmware revision of your existing controller. We recommend providing your system’s nameplate data and current firmware version when placing an inquiry. Our technical team will cross-reference against known compatibility matrices before confirming the order.

Q3: What does the 12-month warranty cover, and what is the replacement process if a fault is found after installation?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a fault is identified post-installation, contact sales@smartnexmsk.com with your order reference and a description of the fault symptom. We will arrange priority replacement or credit, subject to inspection of the returned unit.

Q4: Can SMARTNEXMSK support long-term supply agreements for the DTSBM10-N0N S1 and related DTS Series components?
A: Yes. For customers managing aging DTS DCS installations, we offer long-term supply agreements that include reserved inventory allocation, priority lead times, and consolidated spare parts kitting. Contact our sales team to discuss your site’s lifecycle requirements and annual consumption forecast.
