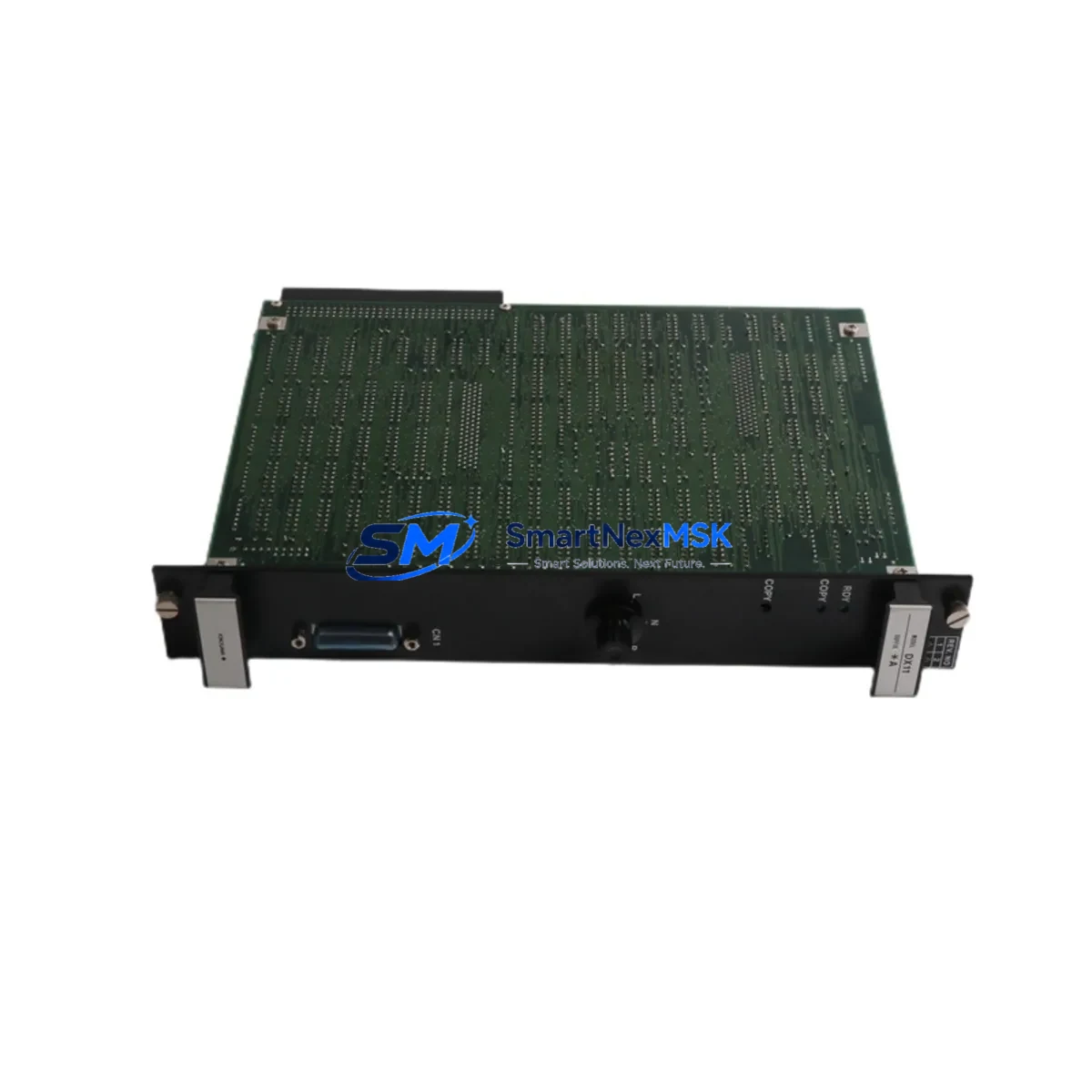

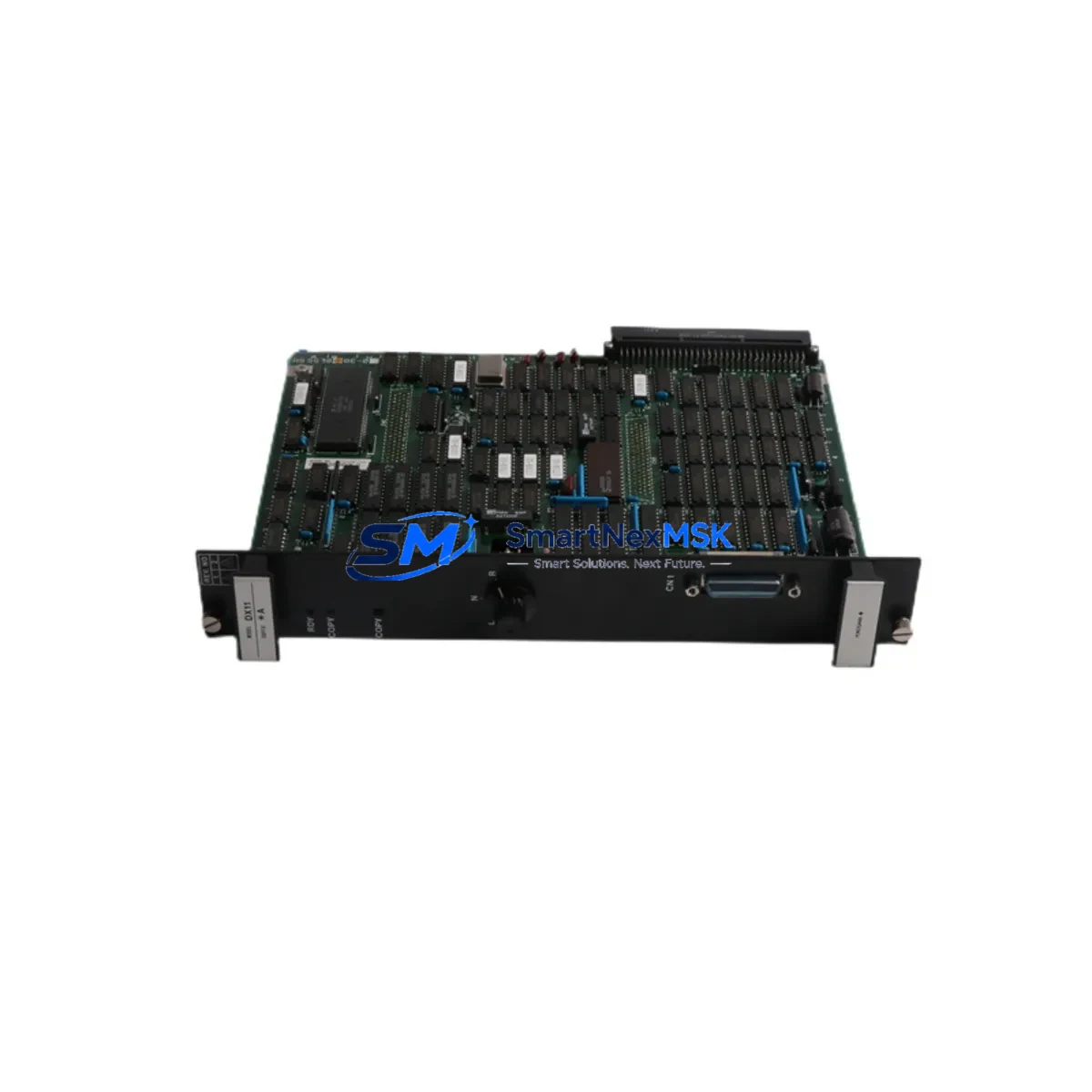

Yokogawa DX11*A S9081BE-0 Retrofit-Ready Duplex Control Card for CENTUM Control Systems
The Yokogawa DX11*A S9081BE-0 is a Duplex Control Card engineered for high-availability process automation within the CENTUM VP and CENTUM CS 3000 distributed control system platforms. As legacy CENTUM CS 3000 installations approach end-of-support milestones and spare parts become increasingly scarce, the DX11*A S9081BE-0 has become a critical retrofit component for facilities seeking to extend operational life, reduce unplanned downtime, and bridge the gap toward a full CENTUM VP migration.
SMARTNEXMSK maintains verified stock of the DX11*A S9081BE-0, with each unit subject to functional power-on testing and communication link verification prior to shipment. All units are covered by a 12-month warranty and dispatched from our Xiamen facility with full traceability documentation.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Part Number | DX11*A S9081BE-0 |
| Manufacturer | Yokogawa Electric Corporation |
| Compatible Platforms | CENTUM VP, CENTUM CS 3000 |
| Card Type | Duplex Control Card (DX) |
| Backplane Interface | CENTUM V-net / Vnet/IP compatible node bus |
| Installation | Hot-swap capable in redundant FCS (Field Control Station) chassis |
| Communication Compatibility | Vnet/IP, RS-485 serial bus, FOUNDATION Fieldbus H1 (via paired I/O modules) |
| Replacement Candidates | DX11*A (earlier firmware revisions), CS 3000 DX-series control cards |
| Retrofit Recommendation | Direct slot replacement; firmware version alignment required before commissioning |
| Commissioning Focus | Node address assignment, FCS redundancy switchover test, I/O module re-scan |
| Warranty | 12 Months — covers functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Replacing a control card in a live CENTUM CS 3000 or CENTUM VP system demands careful pre-engineering. Before removing the existing card, engineers must document the current FCS node address, confirm the V-net station number, and export the full domain database from CENTUM Engineering Environment (ENG). This backup is essential — it preserves all function block definitions, loop tuning parameters, and alarm setpoints that would otherwise require manual re-entry.
The DX11*A S9081BE-0 installs into the same card slot as its predecessor within the FCS chassis (typically an AFV10D or AFV30D field control unit enclosure). Engineers should verify that the ESB bus (Extended Serial Backplane) connectors are clean and undamaged, as corrosion on the backplane contacts is a common cause of intermittent communication faults in aging installations. Pairing the DX11*A S9081BE-0 with current-generation AAI141-S00 analog input modules or ADV151-P00 digital output modules requires no hardware modification — the I/O bus protocol remains backward compatible across the CENTUM VP generation.
For sites running FOUNDATION Fieldbus H1 segments, the control card interfaces with ALF111 FOUNDATION Fieldbus communication modules mounted in the same FCS chassis. Confirm that the H1 segment macrocycle timing is re-validated after card replacement, as a new card may reset the default macrocycle to factory values. Similarly, sites using HART pass-through via AAI543-H analog I/O modules should verify that HART polling addresses are preserved in the restored domain database.
Power supply capacity is a frequently overlooked constraint during retrofit planning. The FCS chassis draws power from redundant PW481 or PW482 power supply modules. Before installing the DX11*A S9081BE-0, confirm that the total chassis load — including all installed I/O modules, communication cards, and the new control card — remains within the rated output of the installed power supply pair. Overloading a power supply in a redundant configuration can cause nuisance switchovers that mimic control card faults.
For facilities also planning to upgrade their operator interface, the DX11*A S9081BE-0 is fully compatible with CENTUM VP HIS (Human Interface Station) running on Windows-based workstations. HMI graphic screens built in CENTUM CS 3000 HIS can be migrated to CENTUM VP HIS with the Yokogawa migration toolkit, preserving existing faceplate layouts and trend displays. This allows the control card upgrade to proceed independently of the HMI migration, reducing the scope of any single maintenance window.
Downtime Control During System Migration
Minimizing process interruption during a CENTUM control card replacement requires a structured switchover sequence. In a duplex FCS configuration, the DX11*A S9081BE-0 supports bumpless switchover — the standby card assumes control without interrupting output signals, provided both cards are running identical firmware and the domain database is synchronized. This makes it possible to replace the primary control card during normal production, with the standby card holding process control throughout the swap.
The recommended sequence is: (1) confirm standby card is in STANDBY-READY state via the CENTUM VP System View diagnostic screen; (2) initiate a manual switchover to promote the standby card to PRIMARY; (3) remove the faulted or end-of-life primary card; (4) install the DX11*A S9081BE-0 in the vacated slot; (5) allow the new card to complete its self-diagnostic boot cycle and synchronize with the active primary; (6) verify STANDBY-READY status before returning to normal duplex operation.
Throughout this process, all function block execution, PID loop outputs, and interlock logic continue to run on the active primary card without interruption. Field instruments, including transmitters wired to AAI141 analog input modules and final control elements connected to ADV151 digital output modules, remain in service. No process shutdown is required for a properly executed duplex card replacement.
For simplex FCS installations where no standby card is available, a planned maintenance window is required. In this scenario, SMARTNEXMSK recommends pre-staging the DX11*A S9081BE-0 with the correct firmware version and a pre-loaded domain database image, reducing the card-out to card-in interval to under 30 minutes for experienced engineers.
Retrofit Support FAQ
Q1: Is the DX11*A S9081BE-0 a direct replacement for earlier DX11*A revisions used in CENTUM CS 3000?
Yes. The DX11*A S9081BE-0 is backward compatible with earlier DX11*A hardware revisions installed in CENTUM CS 3000 FCS chassis. The card slot form factor, backplane connector pinout, and V-net communication protocol are unchanged. A firmware update may be required to match the revision level of the paired standby card in a duplex configuration. SMARTNEXMSK can advise on firmware compatibility based on your existing system version.
Q2: What pre-shipment testing does SMARTNEXMSK perform on the DX11*A S9081BE-0?
Each unit undergoes power-on self-test verification, communication port continuity check, and visual inspection for component damage or corrosion. Units that pass all checks are sealed and shipped with a test report. The 12-month warranty covers functional failure under normal operating conditions and begins from the date of shipment.
Q3: Do I need to reconfigure wiring or terminal blocks when installing this card?
No field wiring changes are required. The DX11*A S9081BE-0 connects to the FCS backplane via the card edge connector — field wiring terminates at the I/O module terminal blocks (such as those on AAI141 or ADV151 modules) and is not disturbed during control card replacement. Only the card slot itself is affected.
Q4: Can this card be used in a CENTUM VP R6 system?
The DX11*A S9081BE-0 is designed for CENTUM VP and CENTUM CS 3000 platforms. Compatibility with specific CENTUM VP release versions (R5, R6) depends on the FCS firmware and domain database version in use at your site. Please provide your system version details when placing an inquiry so our technical team can confirm compatibility before shipment.
