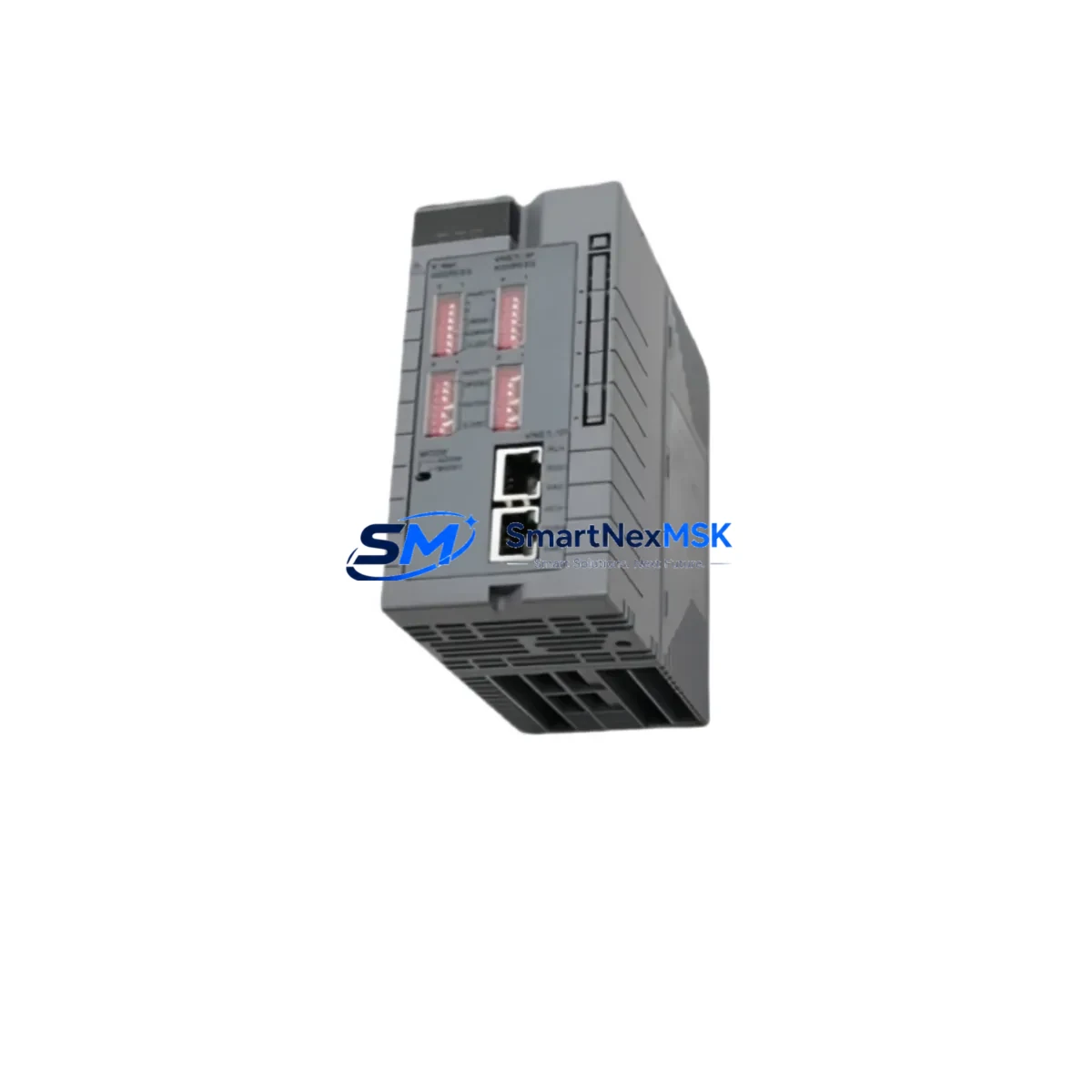

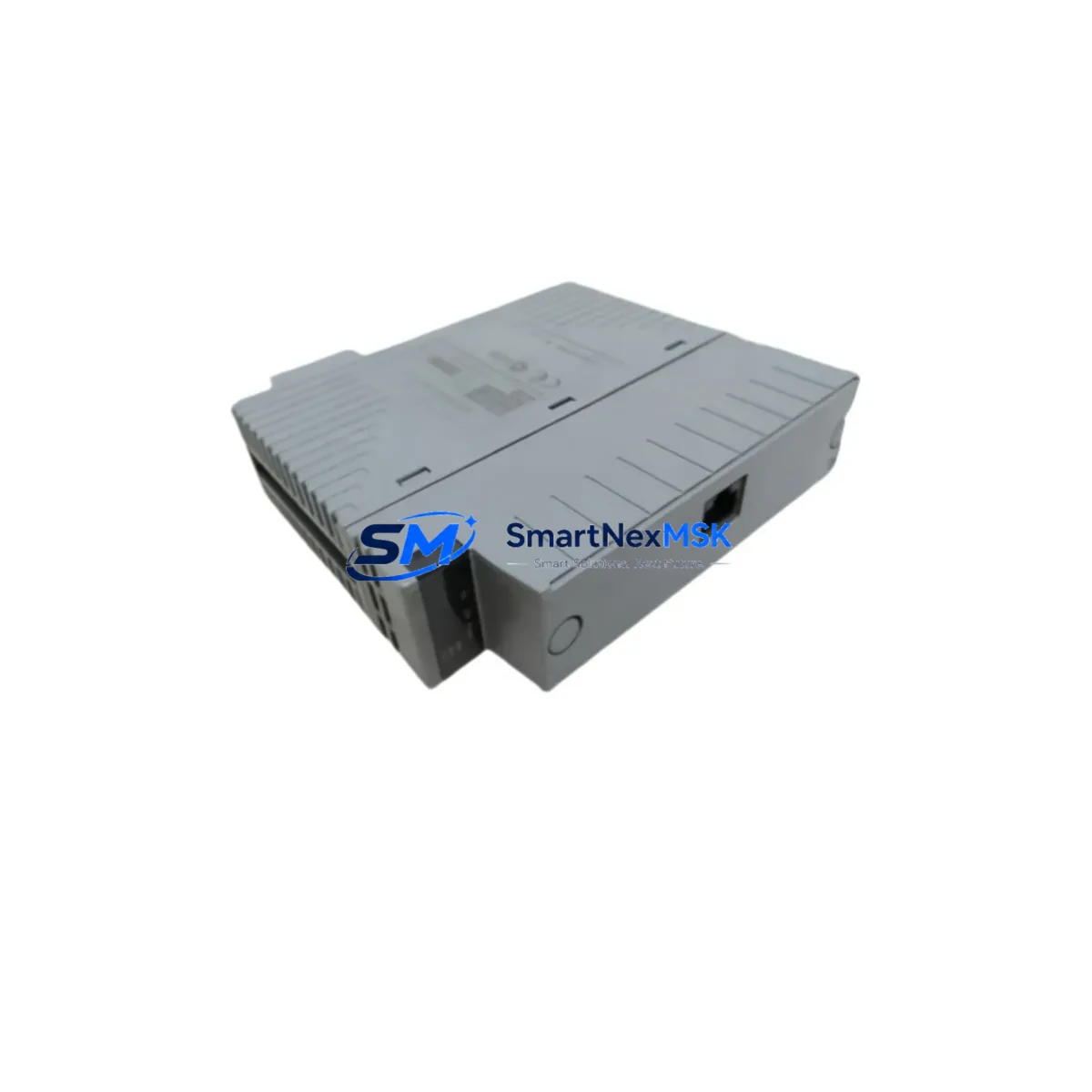

The Yokogawa EC402-50 ESB Bus Coupler Module is a critical communication backbone component within the CENTUM VP and CS3000 Distributed Control System (DCS) architecture. In industrial facilities where continuous process control is non-negotiable — refineries, chemical plants, power generation stations, and pharmaceutical manufacturing lines — the EC402-50 serves as the physical and logical bridge between the Enhanced Serial Backboard (ESB) bus and field control stations. A failure or degradation of this module can cascade into partial or total loss of I/O communication, triggering unplanned shutdowns and costly production interruptions.

Sourced as an original Yokogawa spare, every EC402-50 unit we supply undergoes pre-shipment functional verification to confirm bus arbitration integrity, signal continuity, and backplane connector condition. Maintenance engineers and procurement teams can rely on this stock to support both emergency replacement and planned preventive maintenance cycles. We maintain long-term supply capability for this model, including for sites still operating legacy CS3000 systems that have passed Yokogawa’s standard product lifecycle.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the EC402-50, the scope of inspection should extend well beyond the coupler module itself. The ESB bus architecture in a CENTUM VP or CS3000 cabinet is an integrated ecosystem, and a degraded bus coupler is frequently a symptom of broader electrical stress or aging across the control node.

Begin with the ESB Bus Master Module (BM401/BM402) — the bus coupler works in tandem with the bus master, and any intermittent communication fault should prompt simultaneous health checks on both. Next, inspect the Field Control Station power supply units (PS401, PS451): voltage ripple or under-voltage conditions accelerate bus coupler degradation and should be measured before the new EC402-50 is commissioned. The I/O module racks connected downstream — including analog input modules such as the AAI141 and digital output modules such as the ADO141 — should be seated firmly and their status LEDs verified after bus restoration.

For sites running redundant FCS configurations, the ESB Coupler Redundancy Module (EC401) should be inspected alongside the EC402-50 to confirm failover switching remains functional. Communication integrity between the FCS and the CENTUM VP Engineering Workstation (EWS) or HIS (Human Interface Station) should be re-validated post-replacement using Yokogawa’s system diagnostic tools. If the cabinet also houses Vnet/IP communication modules, verify that the network topology remains intact after the bus coupler swap.

On the field wiring side, inspect terminal blocks and marshalling panels for loose connections that may have contributed to bus noise. Where signal isolation is required between field instruments and the DCS I/O, check that signal isolators and barriers (such as Yokogawa-compatible HART isolators) are functioning within specification. Finally, review the cabinet fuse and circuit breaker panel to confirm that no protection devices have operated silently during the fault period.

Site Replacement Workflow

Replacing the EC402-50 in a live CENTUM VP or CS3000 system requires a structured approach to minimize downtime and avoid secondary faults:

1. Pre-replacement verification: Confirm the replacement EC402-50 part number and firmware revision match the installed unit. Check Yokogawa’s compatibility matrix if the system has been upgraded from CS3000 to CENTUM VP.
2. System state backup: Export the current FCS configuration from the Engineering Workstation before any hardware intervention. This protects against configuration loss if the replacement triggers a cold restart.
3. Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. For hot-swap capable cabinets, confirm the redundancy module is active before removing the faulty EC402-50.
4. Physical replacement: Remove the module by releasing the backplane locking lever. Inspect the backplane connector for bent pins or contamination. Seat the new EC402-50 firmly and verify the locking lever engages.
5. Bus restoration and diagnostics: Power the module and observe the status LEDs. Use Yokogawa’s CENTUM VP system view to confirm all downstream I/O nodes return to normal communication status within the expected initialization window.
6. Documentation: Record the replacement in the site maintenance log, including the old module’s serial number, fault symptoms, and post-replacement test results. Retain the faulty unit for root cause analysis if required.

This workflow supports rapid downtime recovery while maintaining system integrity and audit traceability — both critical requirements for ISO 55001-aligned asset management programs.

Spare Parts Support FAQ

Q1: What is the expected service life of the EC402-50, and when should it be proactively replaced?
Yokogawa does not publish a fixed MTBF for the EC402-50, but industry practice for DCS bus coupler modules in continuous-process environments recommends proactive replacement at 8–12 years of service, or immediately upon detection of intermittent bus communication errors, increased error counters in the FCS diagnostic log, or visible physical damage to the backplane connector.

Q2: Is the EC402-50 compatible with both CENTUM VP and CS3000 systems?
Yes. The EC402-50 is designed for the ESB bus architecture shared by CENTUM CS3000 and CENTUM VP. However, always verify the specific FCS generation and cabinet configuration against Yokogawa’s compatibility documentation before installation, particularly on sites that have undergone partial migration from CS3000 to CENTUM VP.

Q3: What pre-shipment testing is performed on each EC402-50 unit?
Each unit undergoes visual inspection for physical damage, connector pin integrity check, and functional bus communication verification using Yokogawa-compatible test equipment. Units that do not pass all checks are not shipped. A 12-month warranty covers defects in materials and workmanship from the date of delivery.

Q4: Can you support long-term or blanket purchase orders for EC402-50 to support our site’s spare parts inventory strategy?
Yes. We support scheduled delivery agreements, consignment stock arrangements, and multi-unit orders for sites maintaining strategic spare parts inventories. Contact our team to discuss lead times, pricing tiers, and documentation requirements for your procurement process.
