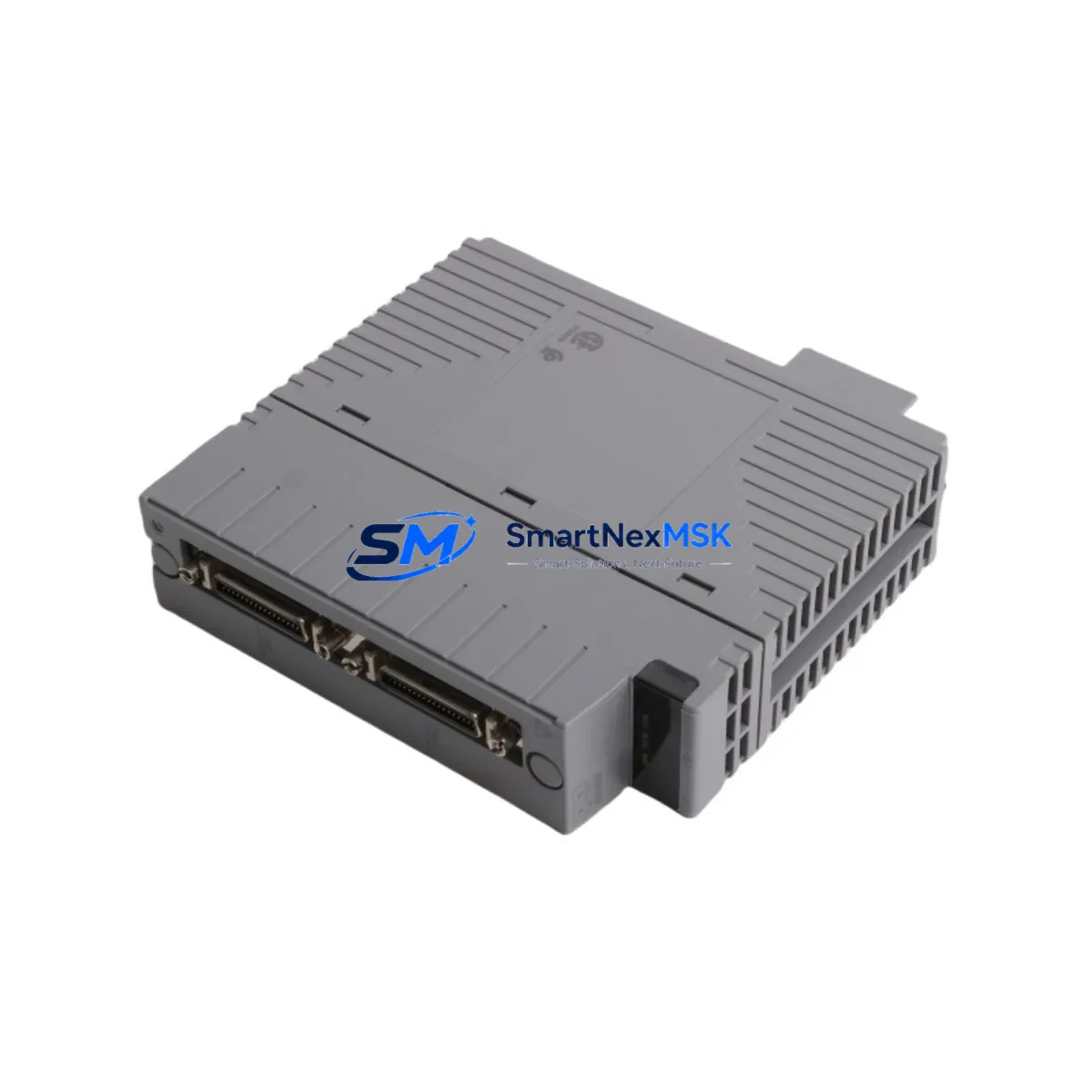

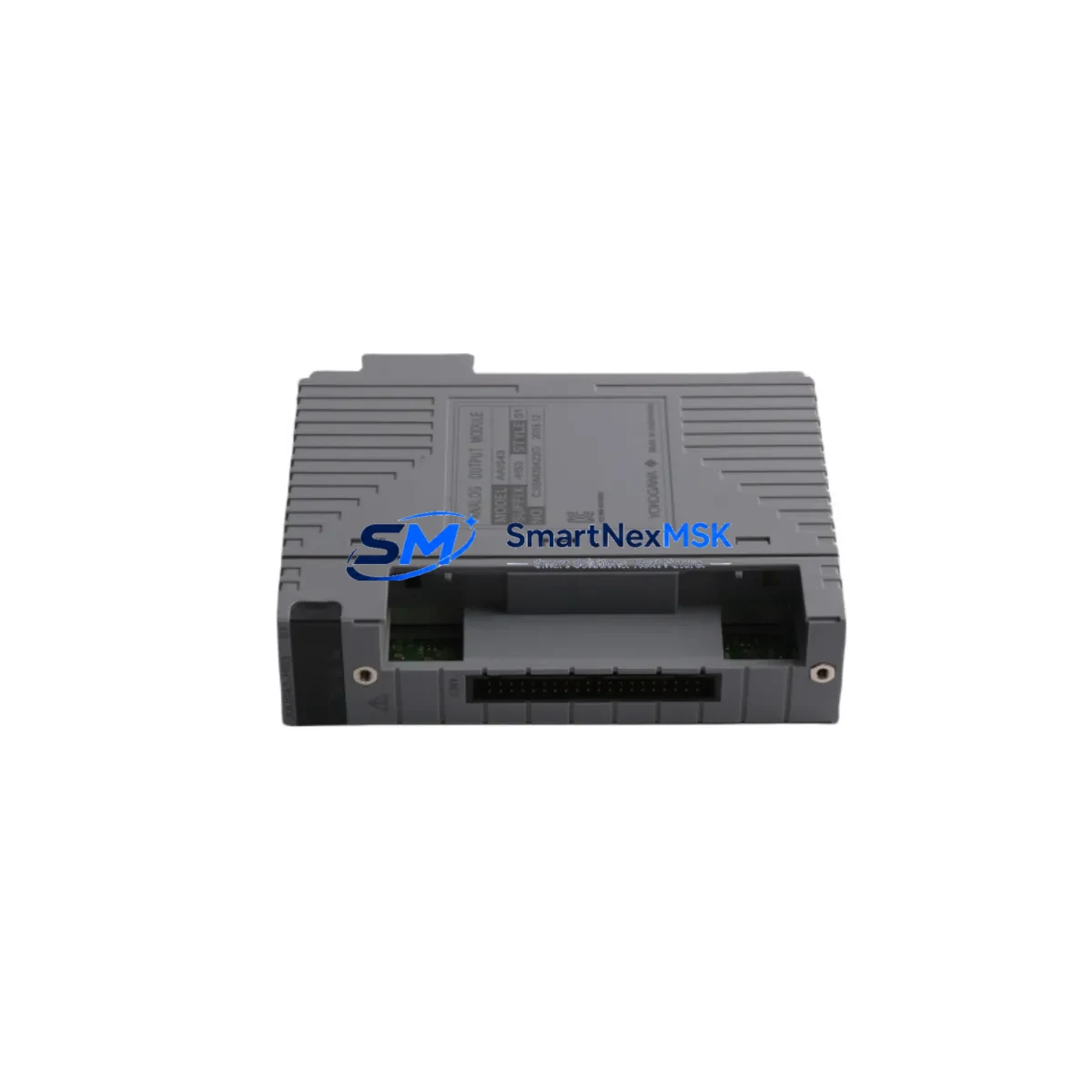

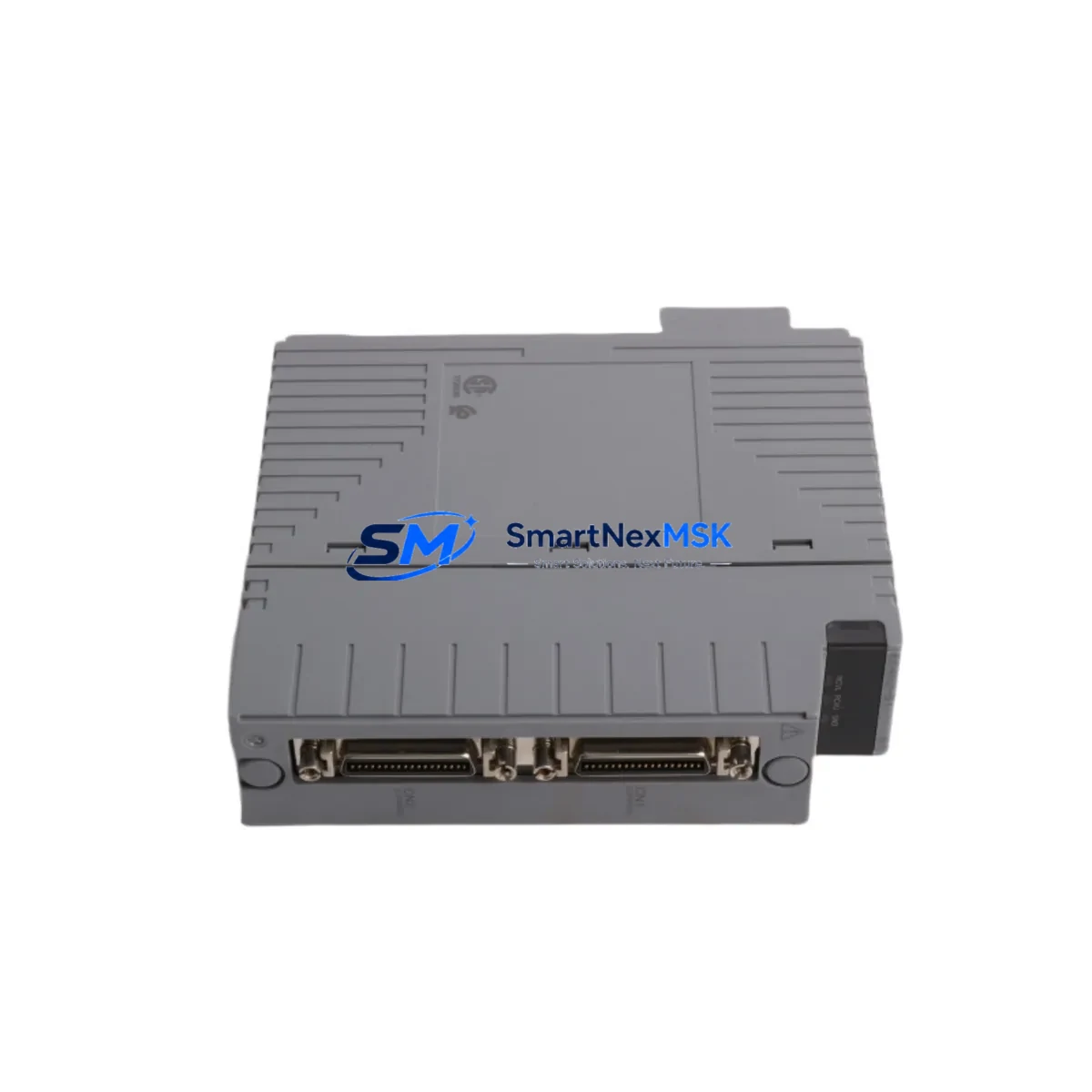

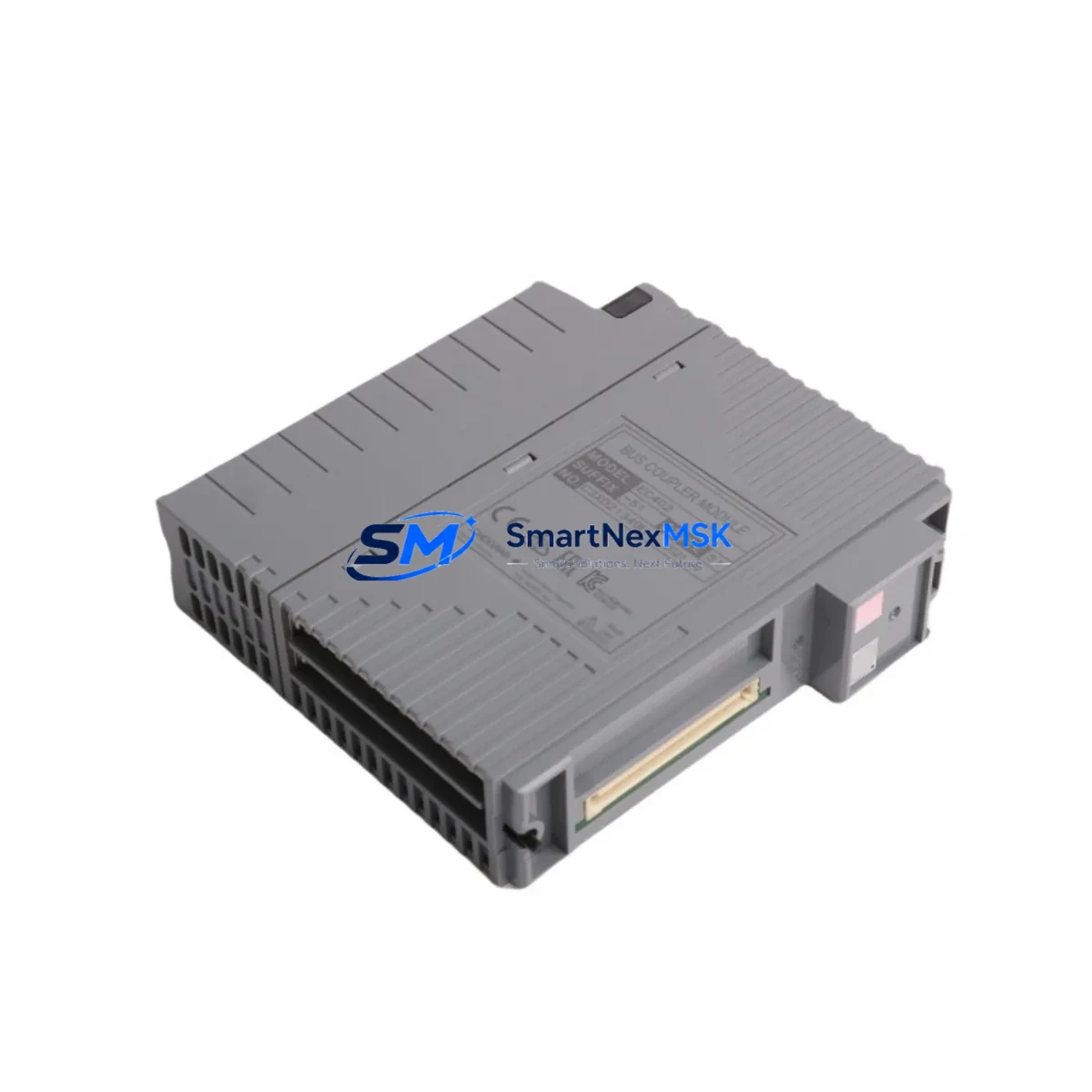

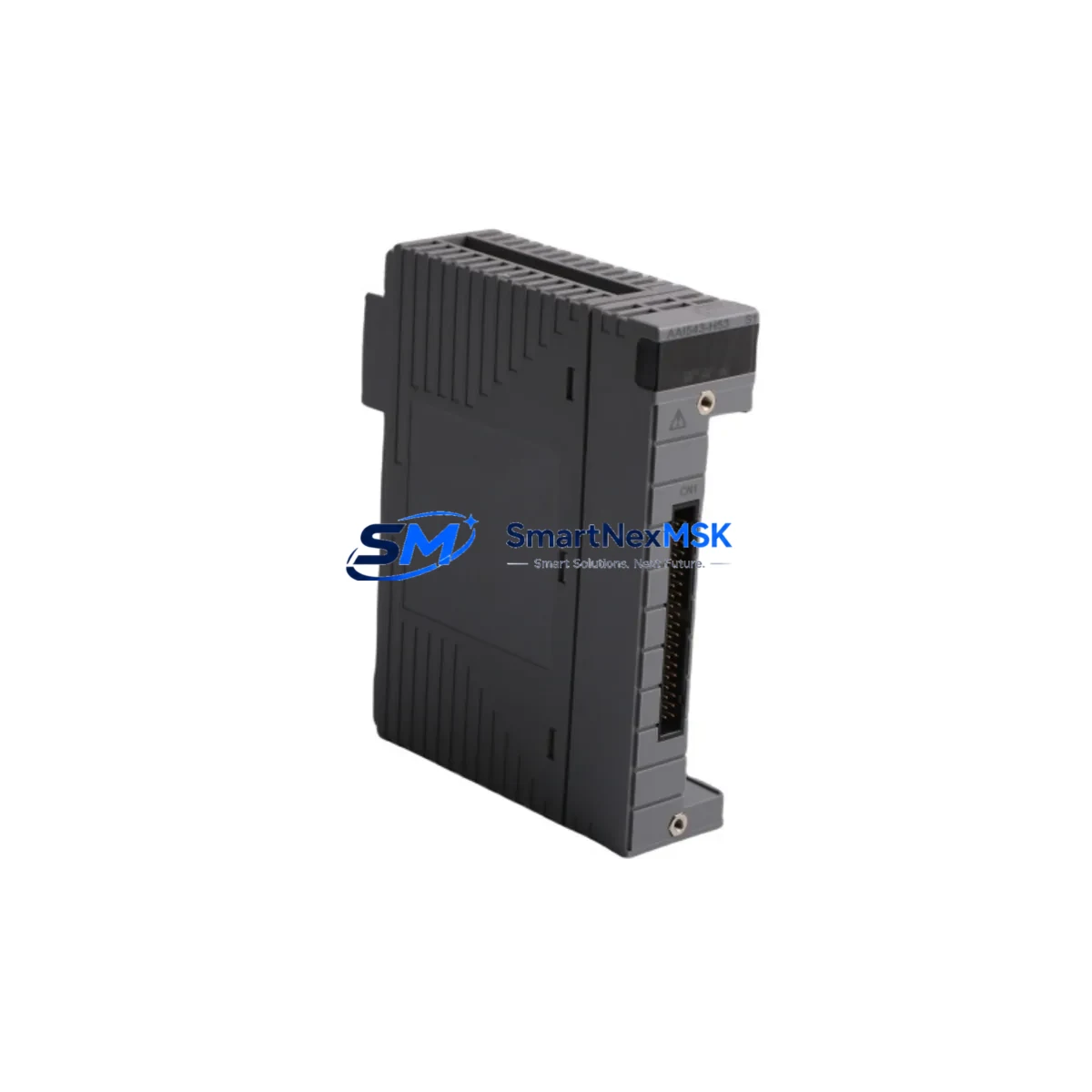

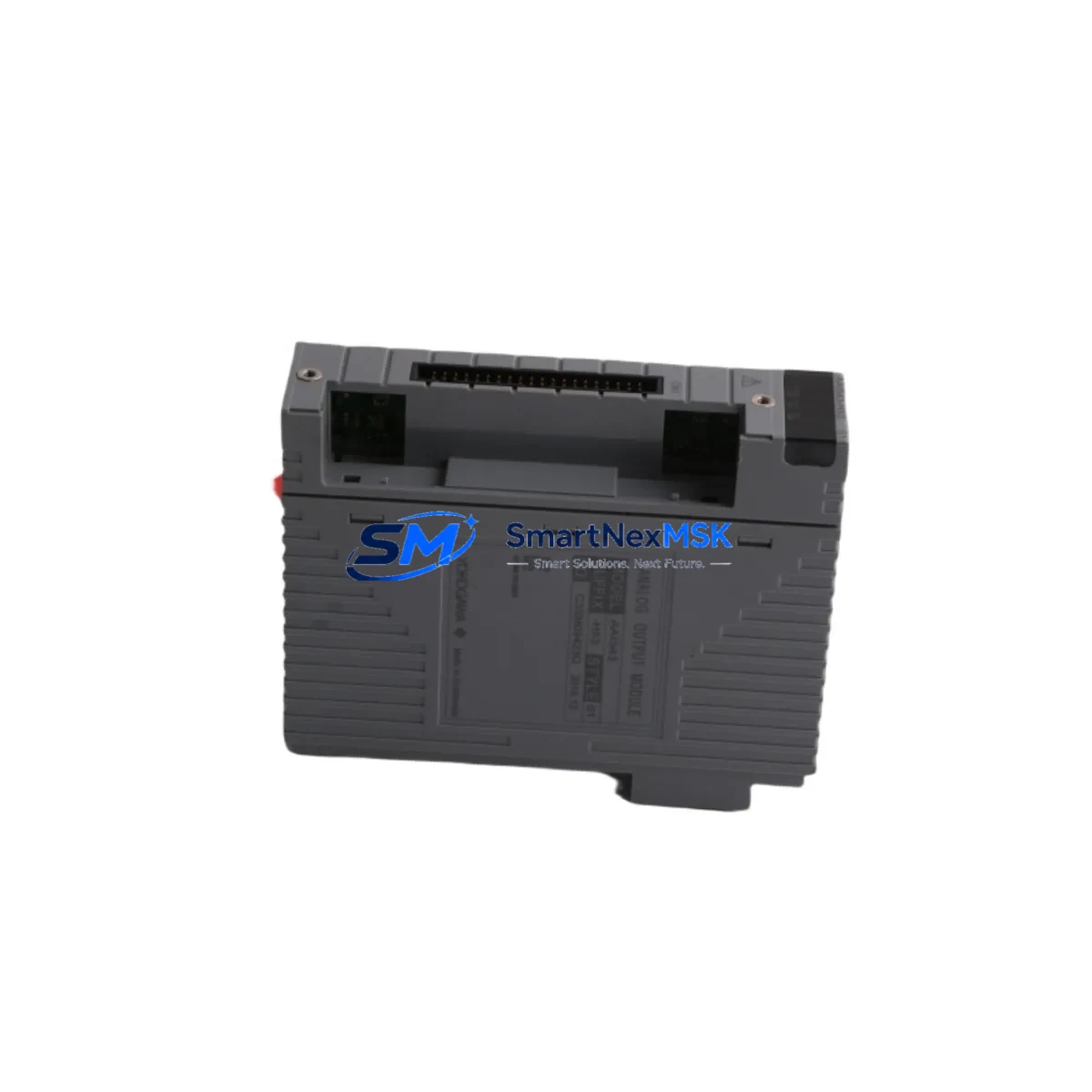

YOKOGAWA EC402-50 S1 Safety ESB Bus Coupler for Harsh Sites

YOKOGAWA EC402-50 S1 Safety ESB Bus Coupler for Harsh Industrial Sites

In high-stakes industrial environments — petrochemical complexes, power generation facilities, metallurgical plants, and continuous-process manufacturing lines — the integrity of the Enhanced Serial Bus (ESB) backbone is non-negotiable. The YOKOGAWA EC402-50 S1 ESB Bus Coupler Module is engineered to sustain uninterrupted communication between field control stations (FCS) and I/O subsystems within the CENTUM VP and CENTUM CS Distributed Control System (DCS) architectures. Designed for mission-critical control cabinets where signal fidelity, electrical isolation, and bus redundancy directly determine plant safety and uptime, the EC402-50 S1 delivers the reliability that industrial operators demand.

The EC402-50 S1 functions as the physical and logical bridge between the ESB highway and downstream I/O modules, including analog input cards such as the AAI141-S00, digital output modules like the ADO141-P00, and communication interface units. In a typical CENTUM VP control cabinet, the bus coupler works in concert with the AFV10D field control unit and the ESB10D bus interface card to maintain deterministic scan cycles even under severe electromagnetic interference (EMI) conditions. Its robust isolation circuitry prevents ground loops and common-mode noise — common failure vectors in heavy industrial sites — from propagating into the control loop and causing spurious trips or module mis-operation.

Surge and transient protection is a defining safety feature of the EC402-50 S1. In environments where high-voltage switching equipment, variable frequency drives (VFDs), and large inductive loads operate in close proximity to control infrastructure, voltage transients can reach destructive levels within microseconds. The EC402-50 S1’s internal protection architecture clamps these surges before they can damage downstream I/O cards or corrupt bus arbitration signals. This is especially critical in mining and mineral processing facilities, where blasting operations and heavy motor starts generate severe electrical disturbances across the plant power distribution network.

Power supply stability is equally important. The EC402-50 S1 is designed to operate reliably from a YOKOGAWA PW481 or equivalent 24 VDC DCS power supply module, tolerating input voltage fluctuations without resetting or dropping bus communication. In redundant power configurations — standard practice in safety-instrumented systems (SIS) and high-availability process control loops — the coupler maintains bus continuity during power source switchover events, eliminating the risk of a momentary outage cascading into a full control station restart.

Communication reliability is further reinforced by the module’s compatibility with the YOKOGAWA ESB-S redundant bus topology. When deployed in a dual-bus configuration alongside a secondary EC402-50 S1 or compatible coupler, the system achieves automatic failover at the bus level, ensuring that a single hardware fault does not interrupt process control. This architecture is mandated in many refinery and chemical plant designs where IEC 61511 functional safety requirements apply to the control layer.

For water treatment and municipal utility applications, where continuous operation is legally required and manual intervention is logistically difficult, the EC402-50 S1 provides the long-term stability needed to sustain SCADA-integrated DCS loops without scheduled maintenance interruptions. Its sealed, conformal-coated PCB construction resists humidity, condensation, and airborne contaminants — conditions routinely encountered in pump stations, filtration halls, and outdoor control enclosures.

Port operations and bulk material handling facilities benefit from the module’s vibration tolerance and wide operating temperature range, which allows it to function correctly in control rooms subject to structural vibration from conveyor systems, ship loaders, and heavy cranes. The EC402-50 S1 maintains bus synchronization and I/O scan integrity even when the control cabinet experiences mechanical stress that would cause lesser components to generate intermittent faults.

Every EC402-50 S1 unit supplied by SMARTNEXMSK undergoes a comprehensive pre-shipment functional test protocol. Each module is verified for bus communication integrity, power consumption within specification, isolation resistance, and correct identification by the CENTUM VP engineering station. Modules that do not meet OEM performance thresholds are quarantined and not offered for sale. This testing discipline ensures that replacement modules integrate into live systems without commissioning delays or unexpected compatibility issues.

Spare parts availability is a persistent operational concern for plants running legacy CENTUM CS 3000 or transitioning to CENTUM VP. SMARTNEXMSK maintains bonded inventory of the EC402-50 S1 and related ESB infrastructure components, including the EB401 ESB terminator, KS1-1 cable assemblies, and CP451-10 communication processor cards, enabling rapid dispatch to minimize mean time to repair (MTTR) during unplanned outages. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust CENTUM VP control cabinet deployment integrating the EC402-50 S1 typically includes a layered protection strategy across power, communication, and I/O domains. On the power side, the PW481 dual-redundant 24 VDC power supply module feeds the bus coupler and all connected I/O cards, with automatic changeover ensuring no interruption during supply unit failure. Upstream, a YOKOGAWA UPS-12 or equivalent uninterruptible power module buffers the entire control station against grid disturbances lasting up to several minutes — a critical safeguard in regions with unstable utility infrastructure.

I/O integrity is maintained through a combination of the EC402-50 S1 bus coupler and high-density analog input modules such as the AAI841-S, which provide 4–20 mA loop monitoring with open-circuit and short-circuit detection. Digital safety outputs are handled by modules like the ADO141-P00, which support forced-value override for emergency shutdown (ESD) sequences. The ALR111 relay output module provides hardwired interlock capability for critical actuators that must respond within milliseconds of a safety condition being detected.

Communication architecture resilience is achieved by pairing the EC402-50 S1 with a redundant CP451-10 communication processor, which manages Vnet/IP Ethernet communication between the field control station and the human-machine interface (HMI) servers. In plants where fieldbus integration is required, the ALF111 FOUNDATION Fieldbus H1 interface card connects to the ESB backbone through the same bus coupler infrastructure, allowing the EC402-50 S1 to serve as the common communication gateway for both legacy and modern field device networks.

Surge protection at the cabinet entry point is provided by DIN-rail mounted surge protective devices (SPDs) on all signal cables entering the enclosure, working in conjunction with the EC402-50 S1’s internal isolation to create a two-stage defense against externally induced transients. This architecture is standard practice in IEC 61000-4-5 compliant installations and is strongly recommended for cabinets located near high-voltage switchgear or outdoor field junction boxes.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the EC402-50 S1 is deployed in process control stations managing reactor temperature, pressure, and flow loops where a communication interruption could trigger an emergency shutdown or, worse, an uncontrolled process excursion. The module’s bus redundancy support allows the DCS to maintain control loop execution even if one ESB segment develops a fault, preventing the kind of partial system failure that can escalate into a safety incident.

In thermal and hydroelectric power generation facilities, the EC402-50 S1 supports turbine control and boiler management systems where scan cycle consistency is essential for governor response and combustion optimization. Any bus latency introduced by a degraded coupler can manifest as control instability, making the reliability of the EC402-50 S1 directly relevant to grid stability and plant efficiency.

In underground and open-pit mining operations, control systems managing ventilation, dewatering pumps, and conveyor drives operate in environments with extreme dust loading, vibration, and electrical noise. The EC402-50 S1’s conformal coating and EMI isolation make it suitable for these demanding conditions, where standard commercial-grade components would fail prematurely and create unplanned maintenance windows.

In municipal water treatment and wastewater facilities, the module supports continuous monitoring and dosing control loops that must operate 24/7 without interruption. Regulatory compliance requirements in many jurisdictions mandate that control system failures be logged and minimized, making the EC402-50 S1’s reliability record a compliance asset as well as an operational one.

In metallurgical and steel production plants, where electric arc furnaces and rolling mills generate some of the most severe EMI conditions in any industrial sector, the EC402-50 S1’s isolation architecture provides the signal integrity needed to maintain reliable DCS communication in close proximity to high-power electrical equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the EC402-50 S1?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as defined by YOKOGAWA’s CENTUM VP platform specifications. If a unit fails to perform its bus coupling function within the warranty period due to a component or assembly defect, SMARTNEXMSK will provide a replacement unit at no additional cost. The warranty period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each EC402-50 S1 unit?
Each unit undergoes a full functional verification test before dispatch. This includes bus communication integrity checks, power consumption measurement against OEM specification, isolation resistance testing, and confirmation of correct module identification by a CENTUM VP engineering station. Only units that pass all test criteria are released for shipment. Test records are retained and can be provided upon request.

Q3: Is the EC402-50 S1 compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The EC402-50 S1 is compatible with CENTUM VP, CENTUM CS 3000, and CENTUM CS 1000 DCS platforms. It is designed to integrate into existing ESB bus infrastructure without requiring firmware updates or hardware modifications to the host control station. Customers are advised to confirm their specific system revision with our technical team prior to ordering if they are operating a heavily customized or legacy configuration.

Q4: Can SMARTNEXMSK guarantee long-term supply of the EC402-50 S1 for ongoing maintenance programs?
SMARTNEXMSK maintains bonded inventory of the EC402-50 S1 and related CENTUM VP ESB infrastructure components to support planned maintenance, emergency replacement, and multi-year spare parts programs. We work with industrial operators to establish scheduled supply agreements that ensure critical spare parts are available when needed, reducing the risk of extended downtime due to parts unavailability. Contact our team to discuss volume pricing and supply commitment options.
