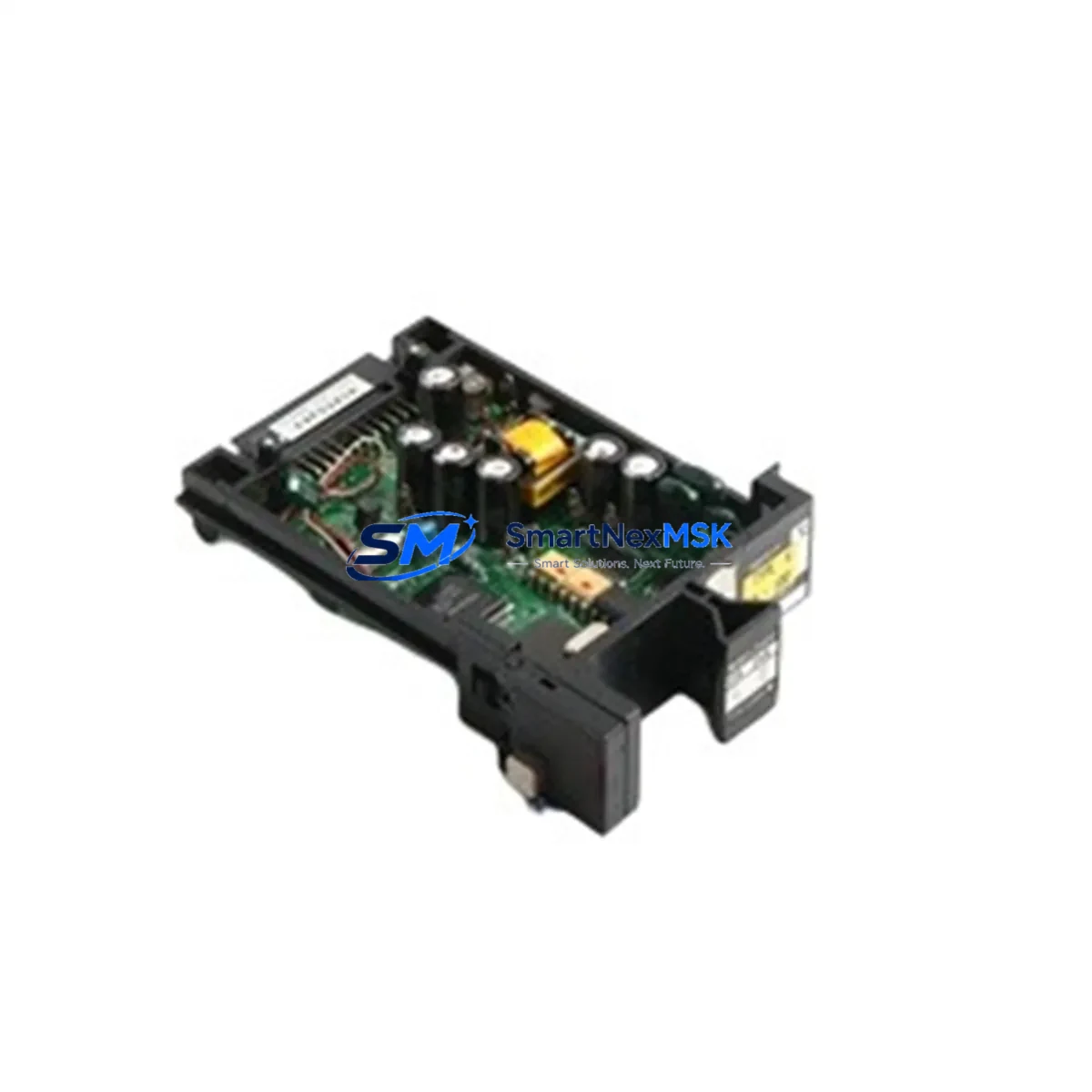

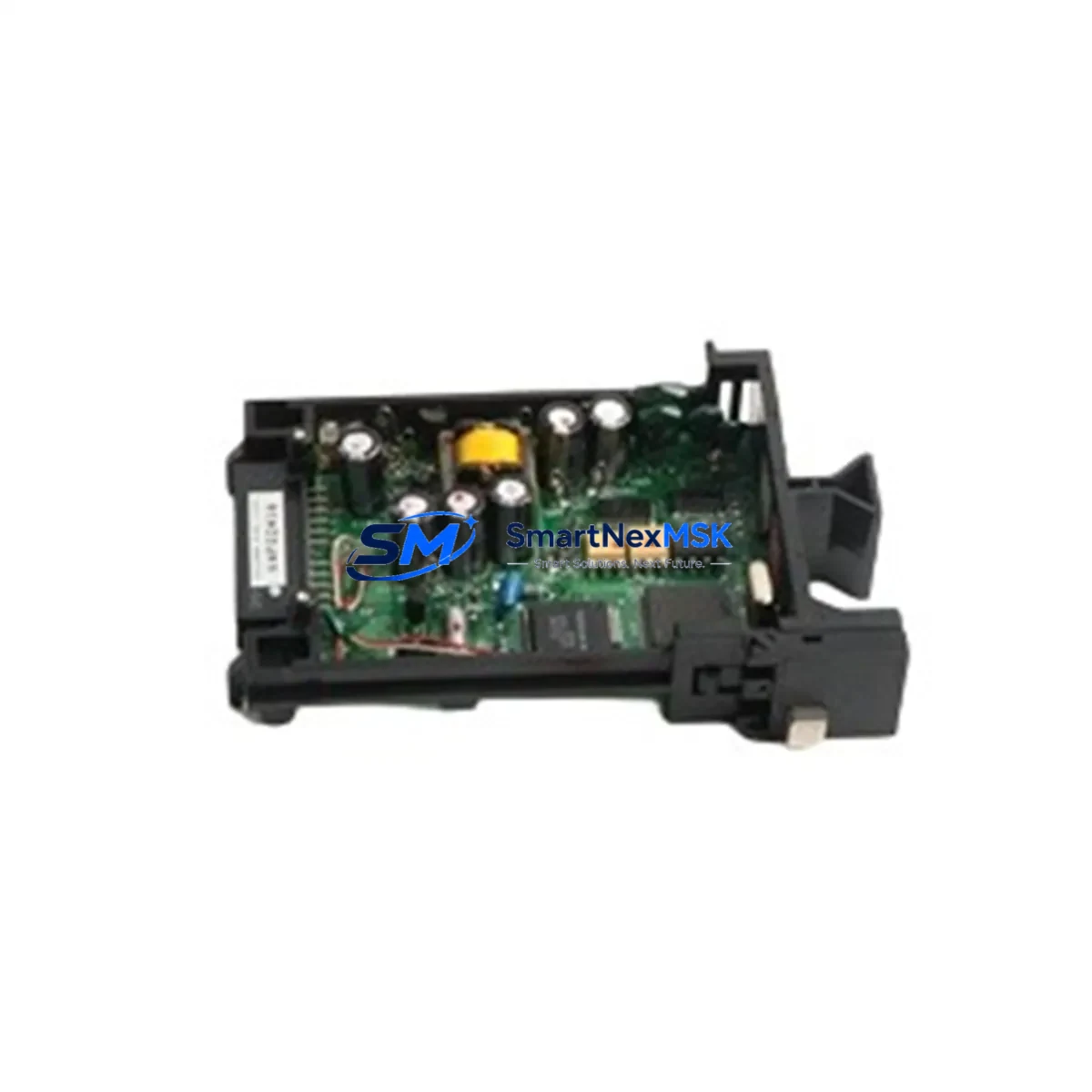

YOKOGAWA ET5*B Safety-Enhanced Signal Conditioner

YOKOGAWA ET5*B Safety-Enhanced Signal Conditioner for Harsh Industrial Sites

The YOKOGAWA ET5*B is a 3-way isolated thermocouple input signal conditioner engineered for mission-critical process control environments where signal integrity, electrical isolation, and continuous uptime are non-negotiable. Designed to operate reliably in high-noise, high-temperature, and electrically hostile industrial sites — including petrochemical plants, power generation facilities, metallurgical furnaces, mining control rooms, and water treatment automation systems — the ET5*B delivers stable, accurate signal transmission even under severe electromagnetic interference, ground loop disturbances, and power supply fluctuations.

In modern industrial control cabinets, thermocouple signals are inherently vulnerable to noise pickup, common-mode voltage, and ground potential differences between field instruments and DCS or PLC input cards. The ET5*B addresses these risks through galvanic 3-way isolation — separating input, output, and power supply circuits — which eliminates ground loops, suppresses surge transients, and prevents fault propagation across the control loop. This makes it an essential protective component in any safety-instrumented system (SIS) or critical interlock circuit where signal drift or module misoperation could trigger unplanned shutdowns or process hazards.

When integrated alongside YOKOGAWA DAQSTATION DX series recorders, CENTUM VP DCS I/O modules, or third-party PLC analog input cards, the ET5*B acts as a signal conditioning barrier that standardizes thermocouple millivolt outputs into clean 4–20 mA or 1–5 V DC signals. This ensures that upstream control hardware — including YOKOGAWA AAI141 analog input modules, Siemens S7-300 SM331 cards, or Rockwell 1756-IF16 ControlLogix inputs — receives a stable, calibrated signal regardless of field wiring conditions or ambient electrical noise.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest signal path. In high-load continuous production environments — such as a 24/7 chemical reactor control system or a rolling mill drive cabinet — even a single corrupted thermocouple signal can cause a DCS to misread process temperature, triggering false alarms, unnecessary shutdowns, or worse, undetected overtemperature conditions. The ET5*B eliminates this vulnerability by providing a clean, isolated analog signal to the control system, regardless of what is happening electrically in the field.

In a typical protection architecture, the ET5*B is installed on a DIN rail within the marshalling cabinet, positioned between the field thermocouple junction and the DCS or PLC analog input terminal. It works in concert with YOKOGAWA F3AD04-0N analog input modules in FACTORY ACE FA-M3 systems, or alongside YOKOGAWA AAT141 thermocouple input cards in CENTUM VP cabinets. For power supply protection, pairing the ET5*B with a YOKOGAWA UPS or a Phoenix Contact QUINT-PS 24 V DC power supply with integrated surge protection ensures that power line transients — common in heavy industrial environments near large motor drives or welding equipment — do not reach the signal conditioning stage.

In safety interlock circuits, the ET5*B is frequently deployed alongside YOKOGAWA ProSafe-RS SIL-rated safety I/O modules, where it provides the analog front-end isolation required to maintain SIL 2 loop integrity. Communication integrity is further protected when the downstream controller uses YOKOGAWA Vnet/IP or FOUNDATION Fieldbus H1 segments, as the clean 4–20 mA output from the ET5*B feeds directly into field-mounted YOKOGAWA EJA-series pressure transmitters or YTA-series temperature transmitters without introducing ground-referenced noise. For installations requiring additional surge protection at the cabinet entry point, DEHN or Phoenix Contact surge protective devices (SPDs) are commonly installed in series before the ET5*B input terminals.

Maintenance teams managing spare parts inventories for critical control systems should stock the ET5*B alongside compatible YOKOGAWA UT series digital indicating controllers and YOKOGAWA MW100 data acquisition units, ensuring that any signal conditioning failure in a critical loop can be resolved within a single maintenance shift without waiting for extended lead times.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units and catalytic cracking columns, precise temperature measurement is a primary safety parameter. The ET5*B isolates thermocouple signals from high-voltage interference generated by large pump motors and heat exchanger control valves, ensuring that the DCS receives accurate temperature data for feed-forward control and high-temperature shutdown interlocks.

Power Generation: In coal-fired and gas turbine power plants, thermocouple signals from boiler tubes, turbine bearings, and generator windings must be transmitted without noise corruption. The ET5*B’s 3-way isolation prevents ground loop currents — which are endemic in large generator halls — from introducing measurement errors that could mask developing equipment faults.

Metallurgy & Steel: Electric arc furnace (EAF) and continuous casting environments generate extreme electromagnetic interference. The ET5*B is rated for these conditions and is used to condition thermocouple signals from mold temperature sensors and ladle monitoring systems, where signal reliability directly impacts product quality and personnel safety.

Mining & Mineral Processing: In underground and surface mining operations, control cabinets are exposed to vibration, dust, and wide temperature swings. The ET5*B’s robust DIN rail construction and wide operating temperature range make it suitable for conveyor drive temperature monitoring and crusher motor protection circuits.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on continuous process monitoring. The ET5*B conditions temperature signals from heat exchangers and sterilization systems, providing reliable inputs to SCADA systems and ensuring that treatment processes remain within safe operating parameters around the clock.

Port & Bulk Material Handling: In port crane control systems and bulk material conveyor drives, the ET5*B protects motor temperature monitoring circuits from the electrical noise generated by variable frequency drives (VFDs), preventing nuisance trips and ensuring continuous cargo handling operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the YOKOGAWA ET5*B?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails to meet its specified performance parameters — including isolation integrity, output accuracy, or signal linearity — within the warranty period, we will provide a replacement or repair at no additional cost. The warranty applies to units that have been installed and operated within the published environmental and electrical specifications.

Q2: What pre-shipment testing is performed on each ET5*B unit?
Every YOKOGAWA ET5*B unit in our inventory undergoes functional verification before shipment. This includes output signal accuracy checks, isolation resistance testing between input/output/power circuits, and visual inspection for physical integrity. Units that do not pass functional testing are quarantined and not shipped. A test record is available upon request for critical applications requiring documented quality evidence.

Q3: Is the ET5*B compatible with all YOKOGAWA DCS and third-party PLC systems?
The ET5*B outputs a standard 4–20 mA or 1–5 V DC signal, which is universally compatible with analog input cards from YOKOGAWA CENTUM VP, Honeywell Experion, ABB 800xA, Siemens PCS 7, and all major PLC platforms including Rockwell ControlLogix and Siemens S7 series. The thermocouple input type is determined by the model suffix (e.g., ET5KB for Type K). Always verify the suffix against your thermocouple type before ordering.

Q4: Can you guarantee long-term supply and replacement support for the ET5*B?
Yes. We maintain dedicated stock of YOKOGAWA ET series signal conditioners to support long-term maintenance contracts and emergency replacement requirements. For critical production facilities that cannot tolerate extended downtime, we recommend establishing a consignment stock arrangement or pre-ordering a defined quantity of spare units. Our team can provide lead time commitments and support multi-year supply agreements for facilities with ongoing maintenance needs.
