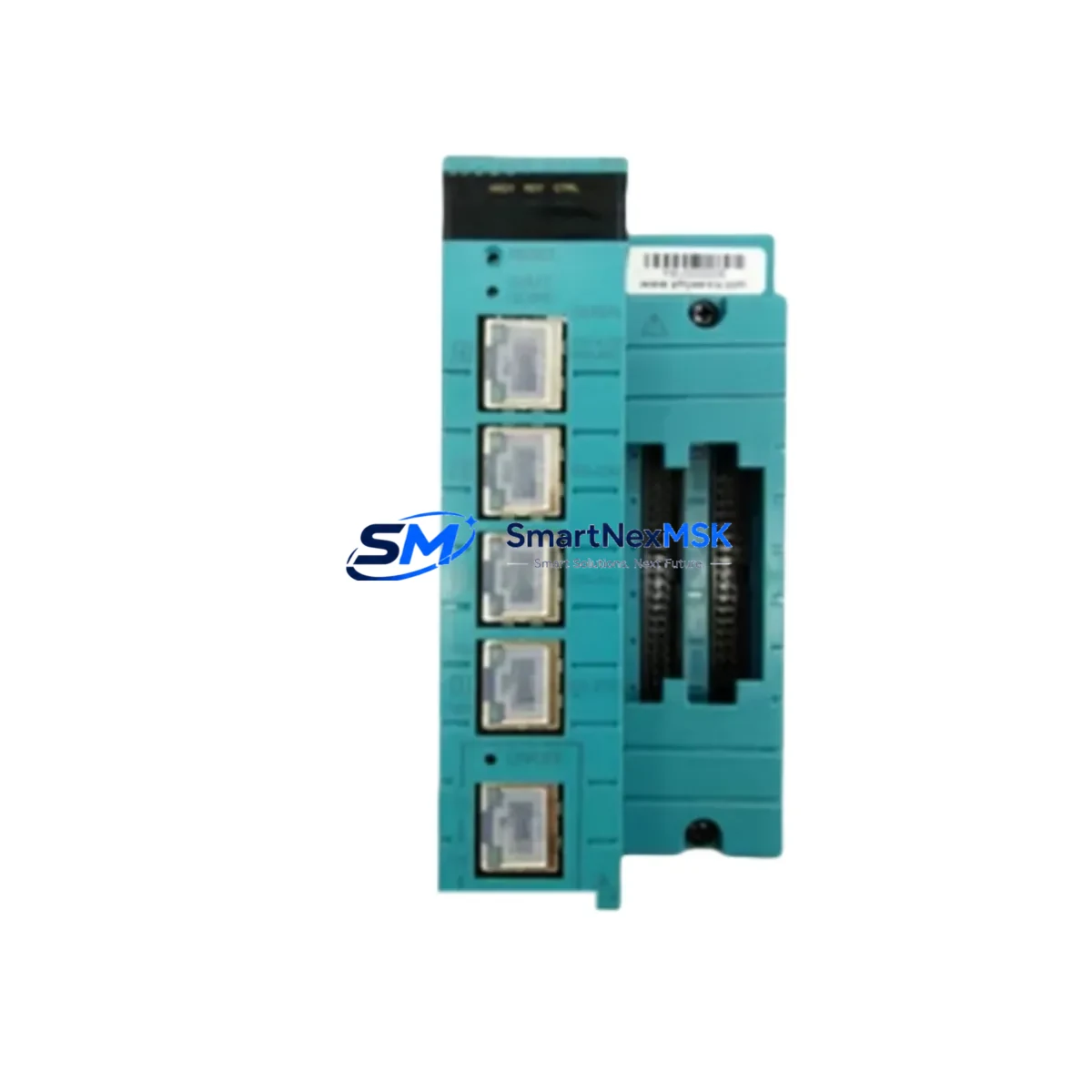

YOKOGAWA NFAP135-S00 Retrofit-Ready Pulse Input Module for STARDOM FCN/FCJ Control Systems
The YOKOGAWA NFAP135-S00 is a high-reliability pulse input module engineered for seamless integration into STARDOM FCN and FCJ distributed control platforms. As legacy automation infrastructure ages and OEM support windows close, the NFAP135-S00 has become a critical component in retrofit projects across petrochemical, water treatment, power generation, and discrete manufacturing facilities. Whether you are replacing a failed unit, upgrading an aging control cabinet, or migrating from an earlier STARDOM architecture, the NFAP135-S00 delivers verified compatibility, reduced commissioning time, and a 12-month warranty backed by in-stock global supply.

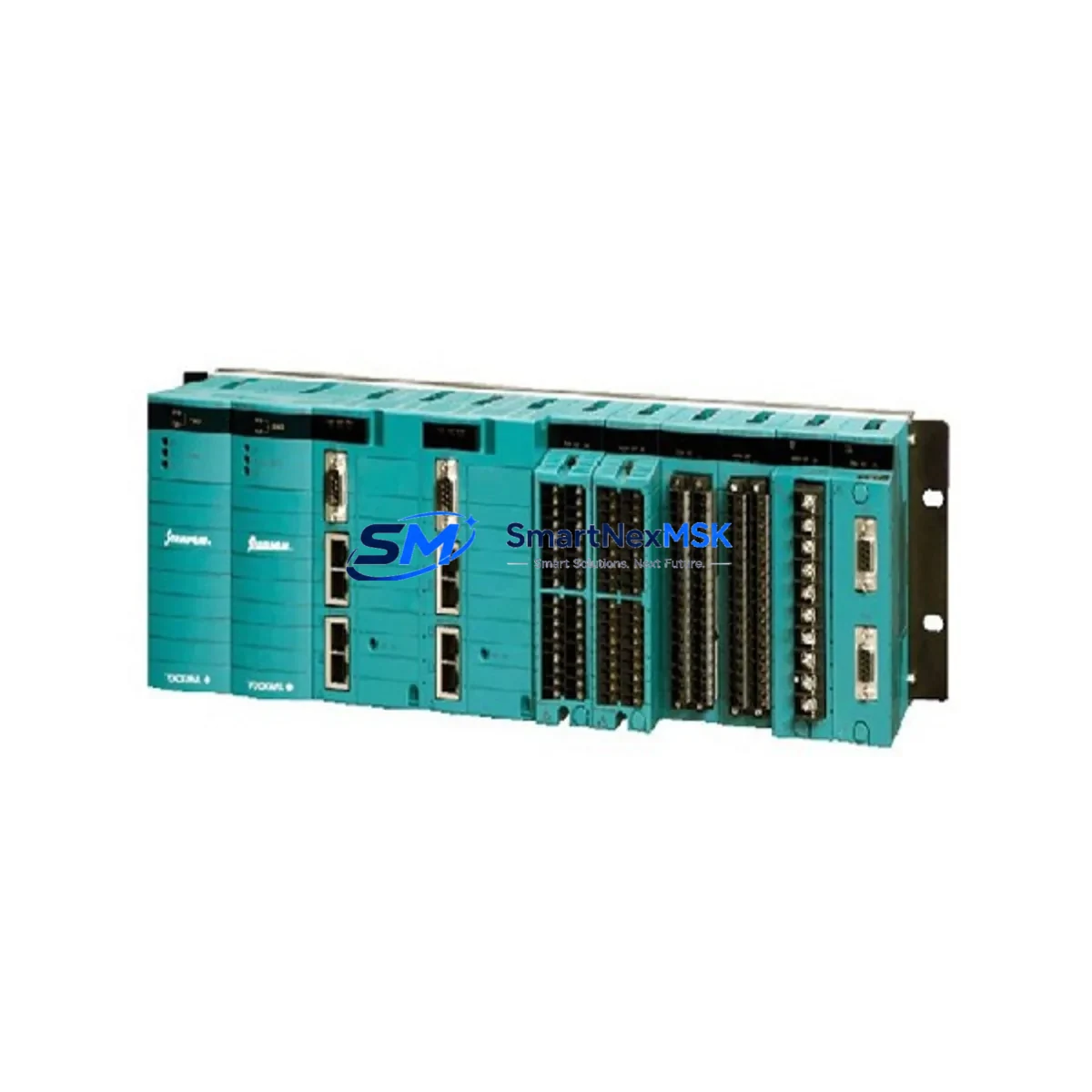

Industrial buyers sourcing this module typically operate STARDOM FCN100, FCN300, or FCJ controllers paired with NFBU100 or NFBU200 base units. The NFAP135-S00 slots directly into the standard STARDOM I/O backplane without requiring mechanical modification, making it a preferred choice for maintenance teams that need to minimize production downtime during unplanned failures or scheduled turnarounds.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Controllers | STARDOM FCN100, FCN300, FCJ |
| Compatible Base Units | NFBU100, NFBU200 |
| Module Type | Pulse Input (High-Speed Counter) |
| Backplane Interface | STARDOM standard I/O bus — direct slot insertion |
| Installation Requirement | No mechanical modification; hot-swap capable with controller support |
| Communication Compatibility | STARDOM internal I/O bus; compatible with Ethernet-based FCN supervisory links |
| Replacement Recommendation | Direct drop-in for failed or end-of-life NFAP135-S00 units |
| Commissioning Focus | Module address assignment, pulse scaling parameters, program tag re-mapping |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Origin | Japan |
| Shipping | In-stock; global express available |
Retrofit Planning for Existing Automation Systems
A successful NFAP135-S00 retrofit begins well before the module arrives on site. Engineers should start by auditing the existing STARDOM rack configuration, confirming available slot positions in the NFBU100 or NFBU200 base unit, and verifying that the FCN or FCJ controller firmware version supports the module’s feature set. In many aging installations, the NFBU100 base unit may already be populated with a mix of analog input modules such as the NFAI135 and digital output modules such as the NFDO135, leaving limited free slots. Careful slot mapping prevents address conflicts and avoids the need to re-download the entire controller program.
Power budget verification is a mandatory step. The STARDOM FCN power supply module — typically an NFPS100 or NFPS200 — must have sufficient headroom to support the additional pulse input module load. Technicians should calculate the total current draw across all installed I/O modules and confirm the power supply is operating within its rated capacity before inserting the NFAP135-S00.
Terminal wiring is another critical checkpoint. The NFAP135-S00 uses a standard STARDOM terminal block format compatible with the NFTB35 field terminal board. Engineers migrating from older wiring schemes should verify that pulse signal sources — flow meters, encoders, proximity switches — are wired to the correct input channels and that signal voltage levels match the module’s input specifications. Incorrect wiring is the most common cause of commissioning delays in pulse input retrofits.
On the software side, the STARDOM Resource Configurator (SRC) is used to assign the module address, configure pulse counting mode (single-phase, two-phase, or direction/pulse), and define scaling factors that translate raw pulse counts into engineering units. If the plant is running an older version of the FCN application program, engineers should confirm that the tag names and I/O addresses referenced in the existing logic still map correctly after the new module is inserted. In some cases, a partial program download — targeting only the affected I/O section — is sufficient to activate the new module without disrupting other running control loops.
For facilities that also operate YOKOGAWA CENTUM VP or ProSafe-RS safety systems in adjacent control rooms, the NFAP135-S00 retrofit can be coordinated with broader platform migration activities. Data historians connected via OPC-DA or OPC-UA links to the STARDOM FCN should be tested after commissioning to confirm that pulse-derived process values — flow totals, speed signals, batch counts — are being logged correctly. HMI screens built in FAST/TOOLS or third-party SCADA platforms should be reviewed to ensure that display tags referencing the pulse input channels reflect the updated scaling and engineering unit configuration.
Downtime Control During System Migration
Minimizing production downtime is the primary concern for any maintenance team executing a pulse input module replacement. The recommended approach is to prepare the replacement NFAP135-S00 on the bench before the maintenance window opens: verify the module powers up correctly, confirm firmware revision compatibility with the target FCN controller, and pre-configure module parameters using an offline copy of the SRC project file.
During the maintenance window, the sequence should follow a structured procedure: isolate the field wiring at the NFTB35 terminal board, remove the failed module, insert the NFAP135-S00 into the same backplane slot, reconnect field terminals, and perform a controlled module initialization from the FCN engineering workstation. If the controller supports hot-swap for I/O modules, the replacement can be completed without a full controller restart, preserving the execution state of all other running control loops and preventing nuisance alarms from propagating to the DCS or safety system.
After the module is online, a structured functional test should confirm that all pulse input channels are reading correctly, that pulse counts are accumulating at the expected rate, and that the values displayed on the HMI match the field instrument readings. A short-duration data log — typically 15 to 30 minutes — provides sufficient evidence that the replacement module is performing within specification before the maintenance team releases the system back to operations.
For sites where a spare NFAP135-S00 is not immediately available, SMARTNEXMSK maintains in-stock inventory with global express shipping options, enabling next-business-day delivery to most major industrial regions. All units are tested prior to shipment and include a 12-month warranty covering manufacturing defects and functional failure.
Retrofit Support FAQ
Q1: Is the NFAP135-S00 a direct replacement for an existing failed unit in my STARDOM FCN rack?
Yes. The NFAP135-S00 is a direct slot-compatible replacement for existing units of the same model installed in NFBU100 or NFBU200 base units. No mechanical modification is required. Module address and parameter configuration must be verified in the STARDOM Resource Configurator after installation.
Q2: What wiring checks are required before installing the replacement module?
Verify that field pulse signal sources are wired to the correct NFTB35 terminal positions, that signal voltage levels are within the module’s rated input range, and that cable shielding is properly grounded. Incorrect terminal wiring is the most frequent cause of commissioning issues in pulse input module replacements.
Q3: Will I need to modify my FCN application program after installing the NFAP135-S00?
In most cases, no program modification is required if the replacement module occupies the same backplane slot as the original. The existing I/O address mapping and tag assignments remain valid. A partial program download targeting the I/O configuration section may be required if the module address or pulse counting mode parameters have changed.
Q4: What does the 12-month warranty cover, and how is it handled?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. If a warranty claim is required, contact SMARTNEXMSK at sales@smartnexmsk.com with the module serial number and a description of the fault. Replacement or repair will be coordinated promptly to minimize impact on your production schedule.
