Yokogawa NFBU200-S05 S2 Retrofit-Ready DCS Base Unit

Yokogawa NFBU200-S05 S2 Retrofit-Ready DCS Base Unit for CENTUM VP Control Systems

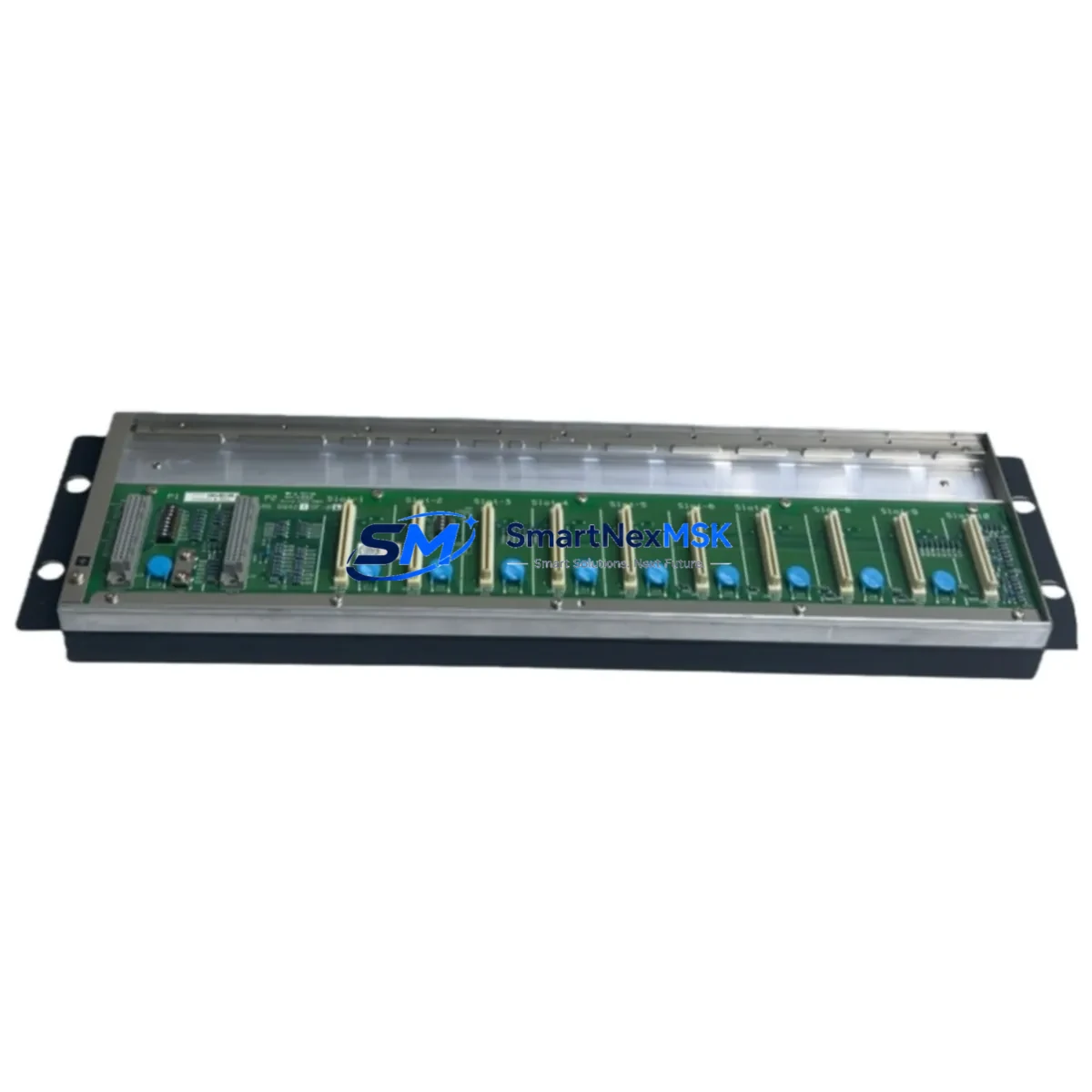

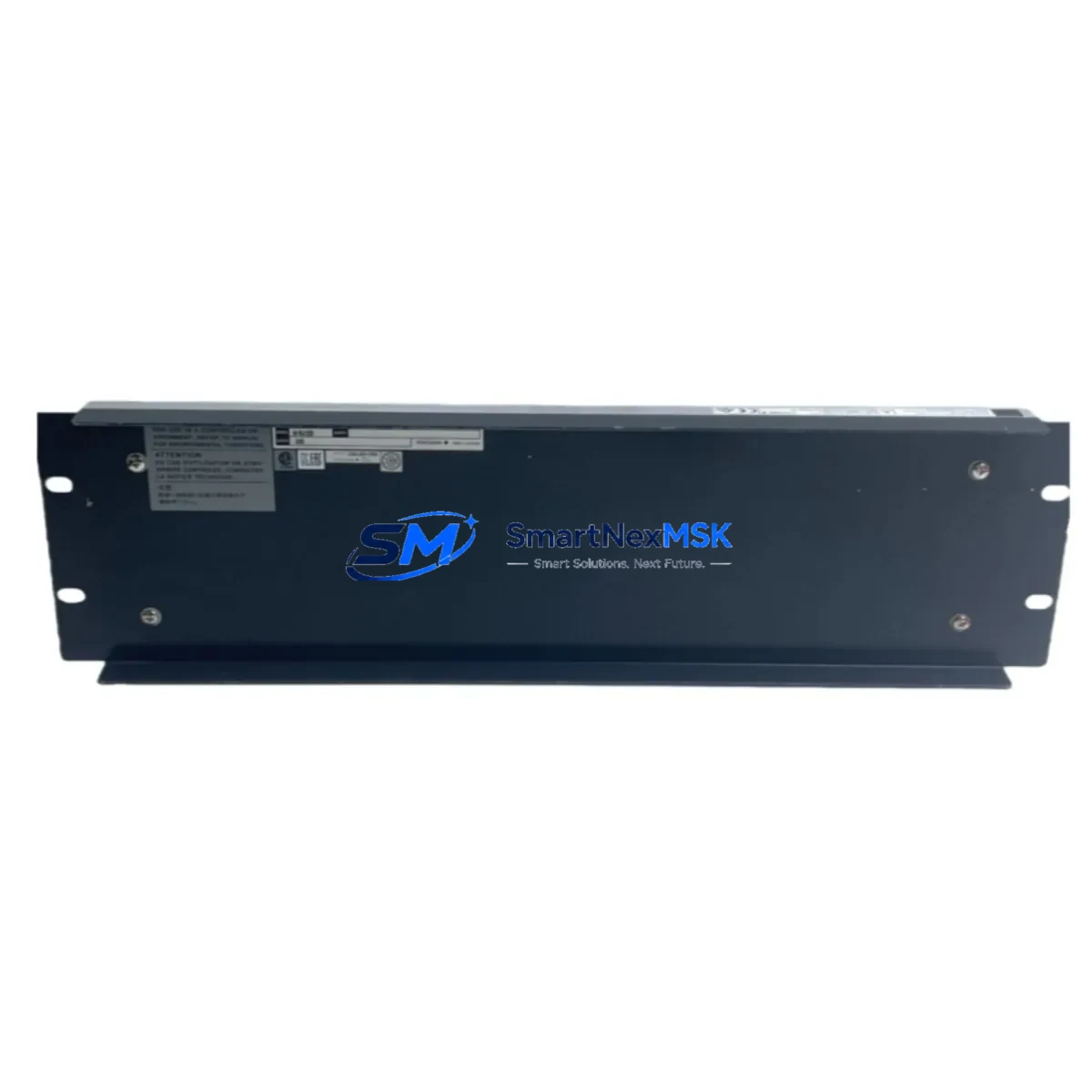

When a legacy distributed control system reaches end-of-life or a critical base unit fails on the production floor, every hour of unplanned downtime translates directly into lost output and safety risk. The Yokogawa NFBU200-S05 S2 is a 5-slot DCS base unit engineered for the CENTUM VP and CS 3000 control platforms, offering plant engineers a reliable, drop-in retrofit path that preserves existing wiring, module addressing, and control logic without requiring a full system overhaul.

Sourced from verified supply channels and fully tested prior to shipment, the NFBU200-S05 S2 is an essential stocking item for facilities running Yokogawa CENTUM VP or the earlier CS 3000 architecture. Its standardized backplane interface ensures direct mechanical and electrical compatibility with the existing field cabinet layout, allowing maintenance teams to complete a base unit swap during a scheduled maintenance window rather than an emergency shutdown.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NFBU200-S05 S2 retrofit begins well before the physical swap. Engineers should first audit the existing cabinet to confirm that the installed Yokogawa NFPS power supply module can sustain the full load of all five populated slots after replacement. Undersized power capacity is one of the most common causes of intermittent faults following a base unit change, particularly in cabinets that have been incrementally expanded over years of operation.

Next, document the current I/O module population. Modules such as the Yokogawa AAI141-S00 analog input card and the AAI841-S00 analog output card seat directly into the NFBU200-S05 S2 slots and retain their channel assignments without re-addressing, provided the replacement base unit occupies the same physical slot position in the field control station. Digital I/O modules including the ADV151-P00 and ADV551-P00 follow the same addressing convention and require no software changes in the CENTUM VP engineering environment.

Communication continuity is equally critical. The NFBU200-S05 S2 maintains the same Vnet/IP network node configuration as the outgoing unit. Before powering down, capture the node address and domain settings from the CENTUM VP HIS (Human Interface Station) engineering workspace. This ensures that after the swap, the field control station re-joins the control network without requiring a domain re-scan or node reassignment, which would otherwise force a temporary loss of supervisory visibility across the affected FCS segment.

For sites still running the older CS 3000 platform, the NFBU200-S05 S2 provides a compatible migration base. When combined with a Yokogawa NFCP100 field control processor, the retrofit can serve as the foundation for a phased upgrade from CS 3000 to CENTUM VP, allowing the plant to modernize one FCS segment at a time without disrupting adjacent control loops. The existing ESB bus cabling and terminal block wiring typically remain unchanged, significantly reducing field labor hours.

Wiring adaptation is straightforward: the NFBU200-S05 S2 uses the same terminal block pitch and connector type as its predecessors. However, engineers should inspect the condition of existing Yokogawa terminal block assemblies and field wiring harnesses before re-energizing, as aged insulation or corroded terminals can introduce ground faults that are difficult to diagnose after the fact. A pre-commissioning insulation resistance test on all field cables is strongly recommended.

Programming compatibility is preserved end-to-end. Control logic developed in Yokogawa CENTUM VP Engineering Environment (ENG) does not require modification when replacing a base unit of the same model. Function block diagrams, sequence tables, and PID loop parameters remain intact. HMI faceplates on the HIS operator station continue to display correctly without graphic re-linking, provided the FCS node address is unchanged.

Downtime Control During System Migration

Minimizing production interruption during a base unit replacement requires a structured pre-outage preparation protocol. Begin by placing all affected control loops in manual mode at the CENTUM VP HIS operator station, ensuring that field actuators hold their last commanded position during the power-off interval. For critical process loops — particularly those tied to safety instrumented functions — coordinate with the SIS team to confirm that the safety layer remains active and independent of the DCS base unit being replaced.

Once the NFBU200-S05 S2 is seated and all I/O modules are re-installed in their original slot positions, restore power in the sequence specified in the Yokogawa FCS startup procedure: power supply first, then field control processor, then I/O modules. Monitor the CENTUM VP system alarm window during startup for any module recognition errors or communication faults. In most direct-replacement scenarios, the FCS will complete its self-diagnostic cycle and return to automatic control within minutes, allowing loops to be transferred back from manual to automatic in a controlled, loop-by-loop sequence.

For sites where a cold spare NFBU200-S05 S2 is pre-staged in the maintenance store, the physical swap can typically be completed within a single shift, keeping total process interruption well within planned maintenance windows. Stocking a spare unit alongside compatible Yokogawa NFPS power supply modules and a set of populated I/O cards eliminates the risk of extended lead times for obsolete components driving unplanned outages.

All units supplied by SMARTNEXMSK undergo pre-shipment functional testing and are covered by a 12-month warranty from the date of shipment, giving maintenance planners confidence that the replacement unit will perform to specification from the moment it is installed.

Retrofit Support FAQ

Q1: Is the NFBU200-S05 S2 a direct drop-in replacement for the original CENTUM VP and CS 3000 base units?
Yes. The NFBU200-S05 S2 is mechanically and electrically compatible with the CENTUM VP and CS 3000 field control station architecture. It accepts the same I/O modules, uses the same backplane bus, and retains existing module addressing without requiring software changes in the CENTUM VP engineering environment.

Q2: What pre-shipment testing is performed on each unit?
Every NFBU200-S05 S2 unit is functionally tested prior to shipment to verify backplane integrity, slot connectivity, and power rail performance. A test report is available upon request. Units are shipped in anti-static protective packaging to prevent transit damage.

Q3: Will I need to re-configure my CENTUM VP control logic or HMI graphics after the replacement?
No re-configuration is required provided the replacement base unit is installed in the same physical position and the FCS node address is preserved. Control logic, PID parameters, and HIS faceplates remain fully intact. Only if the node address or domain assignment changes would any engineering workspace update be necessary.

Q4: What does the 12-month warranty cover, and what long-term supply support is available?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. SMARTNEXMSK maintains ongoing inventory of NFBU200-S05 S2 units and compatible Yokogawa CENTUM VP components to support long-term spare parts programs, ensuring supply continuity even as original manufacturer stock becomes scarce.
