Yokogawa NFCCC01 Maintenance-Ready Spare for CENTUM VP

Yokogawa NFCCC01 Maintenance-Ready Spare for CENTUM VP Automation

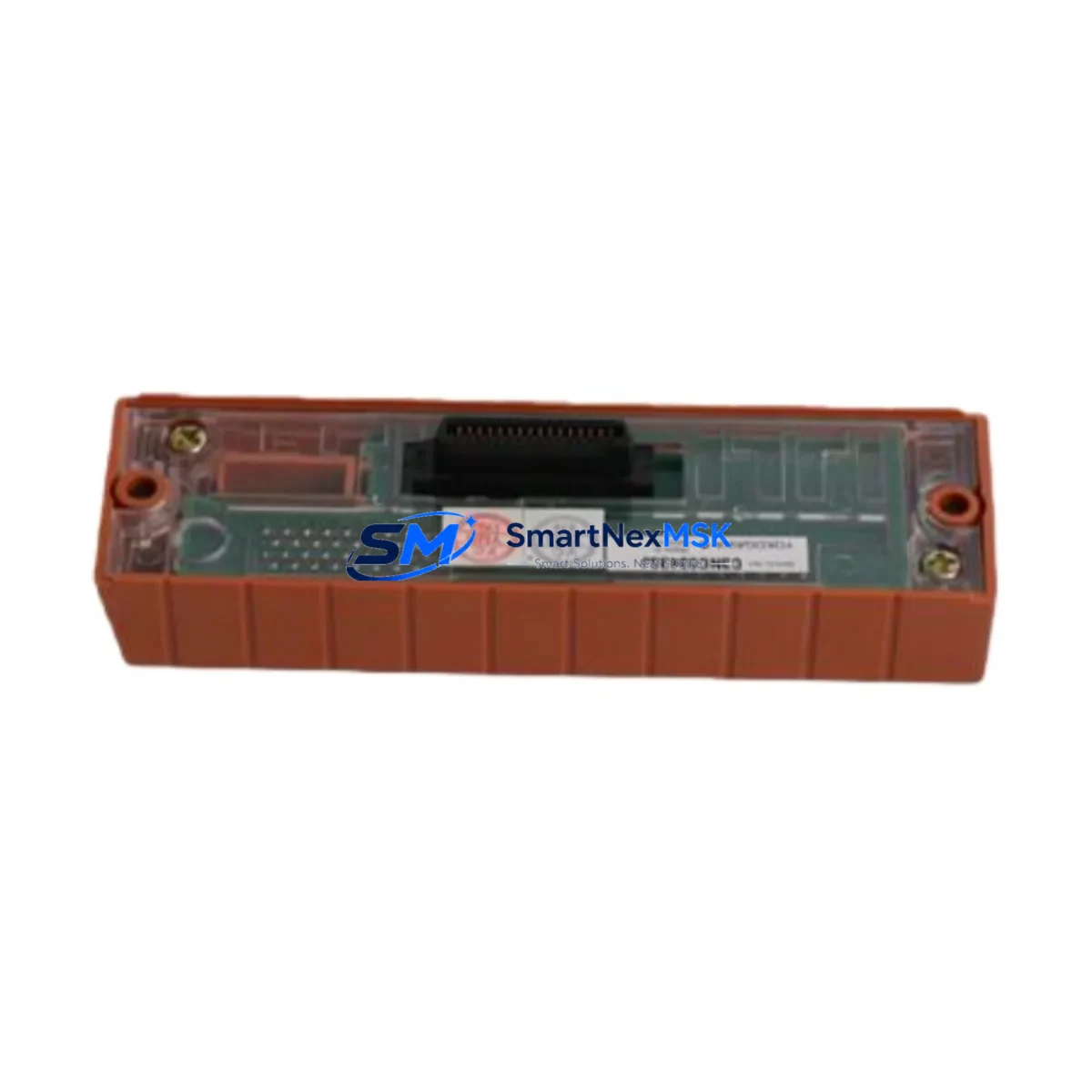

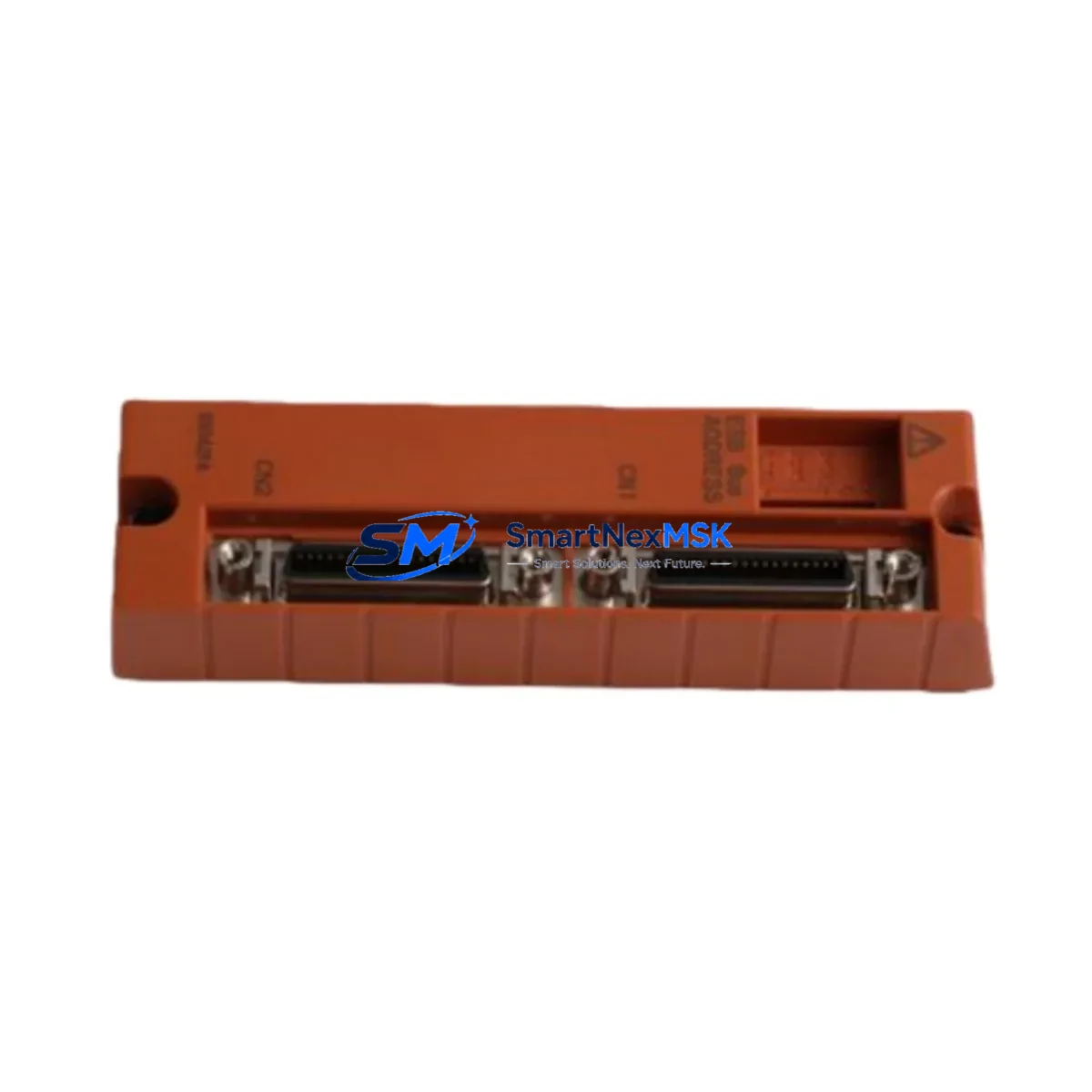

The Yokogawa NFCCC01 is an original MIL cable connector cover designed for use within the CENTUM VP distributed control system (DCS) platform. In industrial facilities where continuous process control is non-negotiable, the physical integrity of fieldbus connectors directly impacts signal reliability and system uptime. A damaged or missing connector cover on a CENTUM VP I/O node can expose critical wiring to contamination, vibration stress, and accidental disconnection — all of which can trigger unplanned shutdowns in refinery, chemical, or power generation environments.

Sourced as an original Yokogawa spare, the NFCCC01 is manufactured to the same mechanical and environmental tolerances as the components installed at commissioning. Maintenance engineers can install this cover during planned turnarounds or emergency interventions without concern for fitment mismatch or material degradation. Each unit is inspected and tested prior to dispatch, and is backed by a 12-month warranty covering manufacturing defects and functional integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a CENTUM VP cabinet inspection or I/O module replacement that involves the NFCCC01 connector cover, maintenance and procurement engineers should treat this as an opportunity to audit the surrounding hardware for wear, corrosion, or end-of-life indicators. A connector cover replacement rarely occurs in isolation — the following components in the same electrical circuit or control cabinet should be evaluated concurrently:

The NFBI141-S10 and NFBI141-S20 fieldbus interface modules share the same I/O node backplane and are subject to the same environmental stresses as the connector assembly. Inspect their terminal blocks and locking tabs during the same maintenance window. The NFCP100 node controller card governs communication between the I/O modules and the CENTUM VP engineering station — verify its firmware version and check for any communication fault logs before reassembling the connector. Power supply modules such as the PW481 and PW482 feed the I/O node; confirm output voltage stability and check capacitor condition, particularly in systems older than seven years.

Signal cables terminated at the MIL connector should be inspected for insulation cracking, shield continuity, and correct torque on terminal screws. If the facility uses KFCS2 or LFCS2 field control stations, cross-reference the I/O assignment map to confirm that the replaced connector corresponds to the correct loop. Relay output modules such as the AMR11D or AMR21D in adjacent slots should be tested for contact resistance if the cabinet has experienced vibration or thermal cycling. For systems with FOUNDATION Fieldbus or HART signal paths, a signal isolator or barrier — such as those in the Yokogawa MTL or YS series — should be checked for drift or alarm suppression faults. Finally, if the control cabinet includes an HIS (Human Interface Station) or operator panel connected via the Vnet/IP network, verify that the node reappears correctly on the network topology after the connector maintenance is complete.

Stocking the NFCCC01 alongside a small buffer of MIL connector housings, cable ties, and terminal ferrules in the site spare parts room eliminates the risk of a multi-day procurement delay during an emergency shutdown. For facilities running legacy CENTUM CS 3000 systems being extended through life, the NFCCC01 is also compatible with equivalent connector positions in that platform, making it a dual-purpose spare for mixed-generation DCS environments.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and confirm the I/O channel is in manual or safe state before opening the connector. For live-maintenance procedures permitted by site safety rules, use insulated tools and confirm the node is not in a critical control loop.

Step 2 — Remove the Damaged Cover: Release the MIL connector locking mechanism and slide the old NFCCC01 cover off the connector body. Inspect the connector pins and socket for contamination, bent contacts, or corrosion. Clean with approved contact cleaner if necessary.

Step 3 — Install the Replacement: Slide the new NFCCC01 onto the connector body and engage the locking tab until it clicks. Verify that the cable is correctly routed and that the strain relief is properly seated to prevent mechanical stress on the connector interface.

Step 4 — Functional Verification: Restore the I/O channel and confirm signal integrity at the CENTUM VP engineering station. Check for any I/O fault alarms or communication errors on the node. Document the replacement in the site maintenance management system (CMMS) with the part number, date, and technician ID.

Step 5 — Update Spare Parts Inventory: Record the consumption of the NFCCC01 and trigger a reorder if stock falls below the minimum buffer level. For facilities with long procurement lead times or remote locations, maintaining a minimum of two units per DCS cabinet is recommended.

This workflow applies equally to planned turnaround maintenance and emergency corrective actions. The NFCCC01’s tool-free installation design minimizes the skill threshold required for field replacement, reducing dependence on OEM service engineers and shortening mean time to repair (MTTR).

Spare Parts Support FAQ

Q1: Is the NFCCC01 compatible with both CENTUM VP and CENTUM CS 3000 systems?
Based on the MIL connector standard used across the CENTUM platform family, the NFCCC01 is mechanically compatible with connector positions in both CENTUM VP and CENTUM CS 3000 I/O assemblies. Customers are advised to verify the connector housing dimensions against their specific node model before installation, particularly for older CS 3000 revisions.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects, dimensional non-conformance, and functional failure under normal installation and operating conditions. It does not cover damage resulting from incorrect installation, chemical exposure beyond rated limits, or mechanical impact. Warranty claims are processed with photographic evidence and the original order reference.

Q3: Can I order the NFCCC01 in bulk for a planned turnaround or annual maintenance kit?
Yes. Bulk orders and blanket purchase agreements are supported. For turnaround planning, we recommend ordering alongside related consumables such as MIL connector housings, cable ferrules, and terminal block covers to consolidate shipping and reduce site logistics complexity. Contact our sales team for volume pricing.

Q4: How is the unit tested before shipment?
Each NFCCC01 unit undergoes visual inspection for surface defects, dimensional verification against OEM drawings, and a locking mechanism function check before packaging. Units are shipped in anti-static protective packaging with a packing slip confirming the part number and inspection status.
