YOKOGAWA NFDV561-P00 Maintenance-Ready Spare CENTUM VP

YOKOGAWA NFDV561-P00 Maintenance-Ready Spare CENTUM VP: Spare Replacement & Industrial Downtime Risk Control

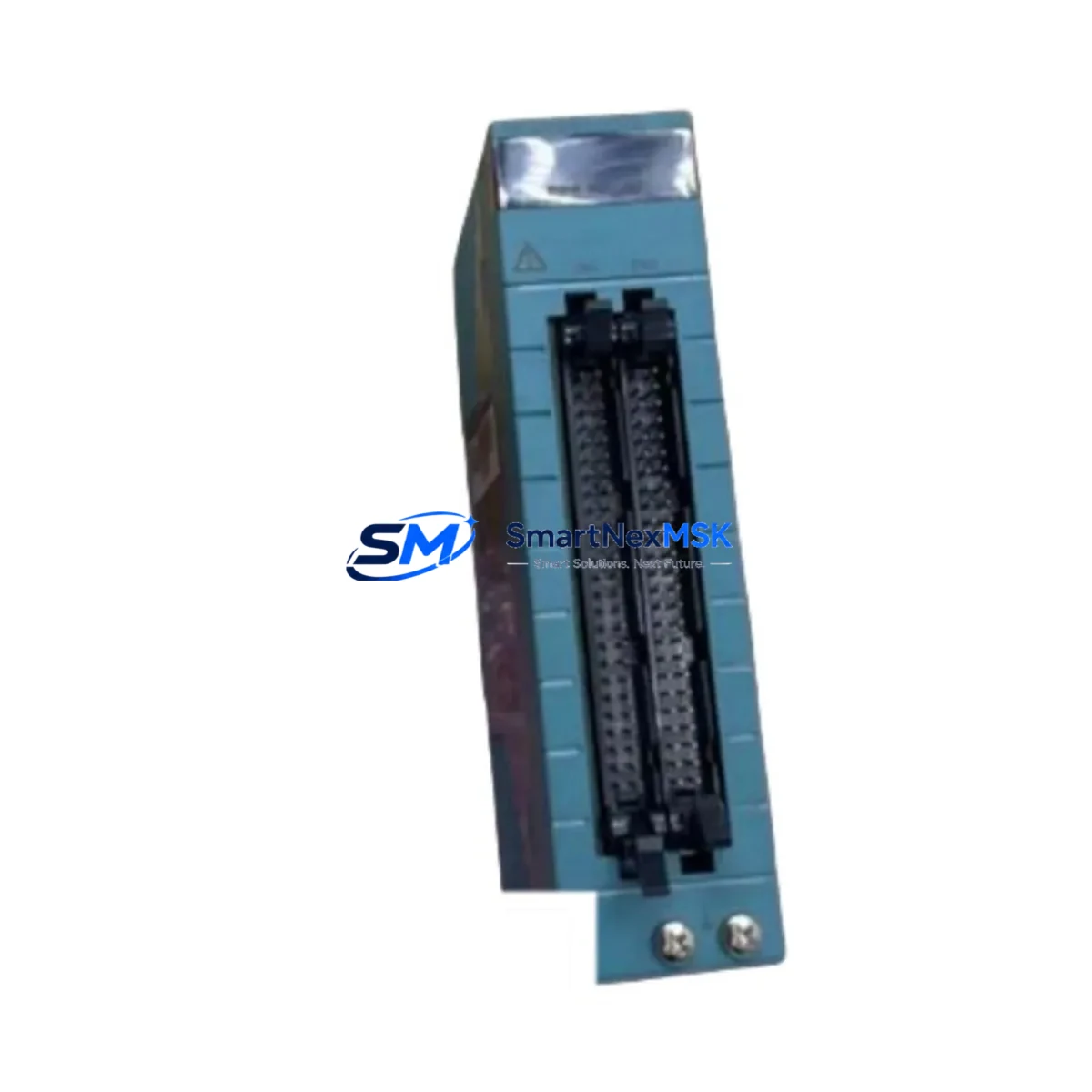

The YOKOGAWA NFDV561-P00 is an original digital output module designed for CENTUM VP distributed control systems. As a critical field device interface component, it governs discrete output signals to actuators, solenoid valves, motor starters, and relay-driven loads across process automation environments. When this module fails or degrades, the consequences extend beyond a single I/O channel — they can cascade into unplanned shutdowns, safety interlock trips, and extended maintenance windows. Maintaining a verified spare of the NFDV561-P00 in your site inventory is a fundamental element of any responsible DCS maintenance strategy.

This unit is sourced as an original YOKOGAWA component, fully tested prior to shipment, and backed by a 12-month warranty. It is suitable for direct replacement in CENTUM VP control stations without firmware reconfiguration in most standard configurations. Each unit undergoes functional verification covering output channel integrity, power rail stability, and backplane communication before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CENTUM VP digital output module such as the NFDV561-P00 is flagged for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding control cabinet and I/O subsystem is essential to prevent repeat failures and ensure a clean return to service.

Begin by verifying the CENTUM VP field control station (FCS) power supply modules — units such as the NFPS561 or equivalent station power supply — since degraded bus voltage is a common root cause of intermittent DO channel faults. Inspect the I/O terminal assembly and field wiring terminal blocks for corrosion, loose terminations, or insulation breakdown, particularly in high-humidity or chemically aggressive environments. If the NFDV561-P00 is driving inductive loads, check the surge suppression diodes or RC snubber circuits on the field side, as repeated inductive kickback can accelerate module wear.

For systems where the DO module interfaces with safety-critical outputs, cross-reference the status of associated safety relay modules and interlock relay panels. Modules such as the NFAI141 (analog input) or NFDI141 (digital input) in the same I/O unit should be inspected for alarm history and channel drift, as a failing output module sometimes masks upstream input faults. Review the CENTUM VP engineering station (EWS) alarm logs for any prior channel fault codes associated with this I/O unit slot.

Communication integrity should also be confirmed: check the V-net communication cables and terminators connecting the FCS to the HIS (Human Interface Station). A degraded V-net segment can cause sporadic output command failures that are misdiagnosed as module faults. If the plant uses FOUNDATION Fieldbus or HART multiplexers in adjacent cabinets, verify that their power conditioners and segment couplers are within specification.

For aging CENTUM VP installations approaching end-of-support milestones, it is advisable to audit the full I/O module population and identify all NFDV5xx-series digital output modules, NFAI5xx analog input modules, and NFCP701 or NFCP702 field control processors that may be approaching their recommended replacement interval. Proactive spare stocking of these components — alongside backplane connectors, module ejector handles, and I/O bus terminators — significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Replacing the NFDV561-P00 in a live CENTUM VP system requires coordination between the DCS engineer, the field maintenance technician, and the control room operator. The following workflow reflects best practice for minimizing downtime and ensuring system integrity:

1. Pre-replacement verification: Confirm the replacement module’s part number and revision suffix match the installed unit. The “-P00” suffix designates a specific hardware revision; substituting an incompatible revision may require engineering station reconfiguration. Download and archive the current FCS configuration from the CENTUM VP engineering workstation before any hardware change.

2. Output isolation: Place all output channels on the target module into manual hold or force-off state via the CENTUM VP HIS operator console. Notify field operators of the affected output tags. For safety-instrumented outputs, follow the site Management of Change (MOC) and bypass authorization procedure.

3. Hot-swap or cold-swap assessment: CENTUM VP supports online module replacement (hot-swap) for certain I/O module types. Verify with the site DCS engineer whether the NFDV561-P00 slot supports online replacement in the installed FCS version. If not, a controlled FCS shutdown of the affected station is required.

4. Module extraction and insertion: Use the module ejector handle to disengage the backplane connector. Insert the replacement NFDV561-P00 firmly until the locking tab engages. Verify the module status LED sequence on power-up — a steady green indicates successful backplane communication and self-test pass.

5. Post-replacement validation: From the engineering station, confirm all 16 output channels are recognized and in the expected state. Perform a channel-by-channel output test in coordination with field personnel before returning the module to automatic control. Update the site maintenance log and spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the NFDV561-P00 compatible with all CENTUM VP revisions?
The NFDV561-P00 is designed for CENTUM VP field control stations. Compatibility is confirmed for CENTUM VP R4.xx through R6.xx. For earlier CENTUM-V or CS 3000 systems, the module is not directly interchangeable. Always verify the FCS hardware revision and I/O unit type (e.g., NFIO5xx series) before ordering. Our technical team can assist with compatibility confirmation based on your FCS model and software revision.

Q2: What testing is performed before shipment?
Each NFDV561-P00 unit undergoes power-on functional testing, output channel verification across all 16 channels, and backplane communication integrity checks. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical plant applications. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage NFDV561-P00 spare inventory for a multi-unit plant?
For plants operating more than four CENTUM VP field control stations, we recommend maintaining a minimum of two NFDV561-P00 units in site inventory. For critical process units (e.g., reactor control, compressor surge control), a dedicated hot-spare kept in the control room cabinet is advisable. Spare modules should be stored in anti-static packaging at 10°C–40°C with humidity below 80% non-condensing. Annual functional verification of stored spares is recommended for long-term inventory programs.

Q4: Can you supply NFDV561-P00 units on a long-term or blanket order basis?
Yes. We support long-term supply agreements for CENTUM VP spare parts, including the NFDV561-P00 and related I/O modules. Blanket orders with scheduled releases are available for MRO procurement teams seeking to stabilize spare parts costs and ensure supply continuity for aging DCS installations. Contact our sales team to discuss volume pricing, lead times, and consignment stocking options.
