YOKOGAWA NFDV561-P00 S2 Safety-Enhanced Relay DO for CENTUM VP

YOKOGAWA NFDV561-P00 S2 Safety-Enhanced Relay DO for CENTUM VP

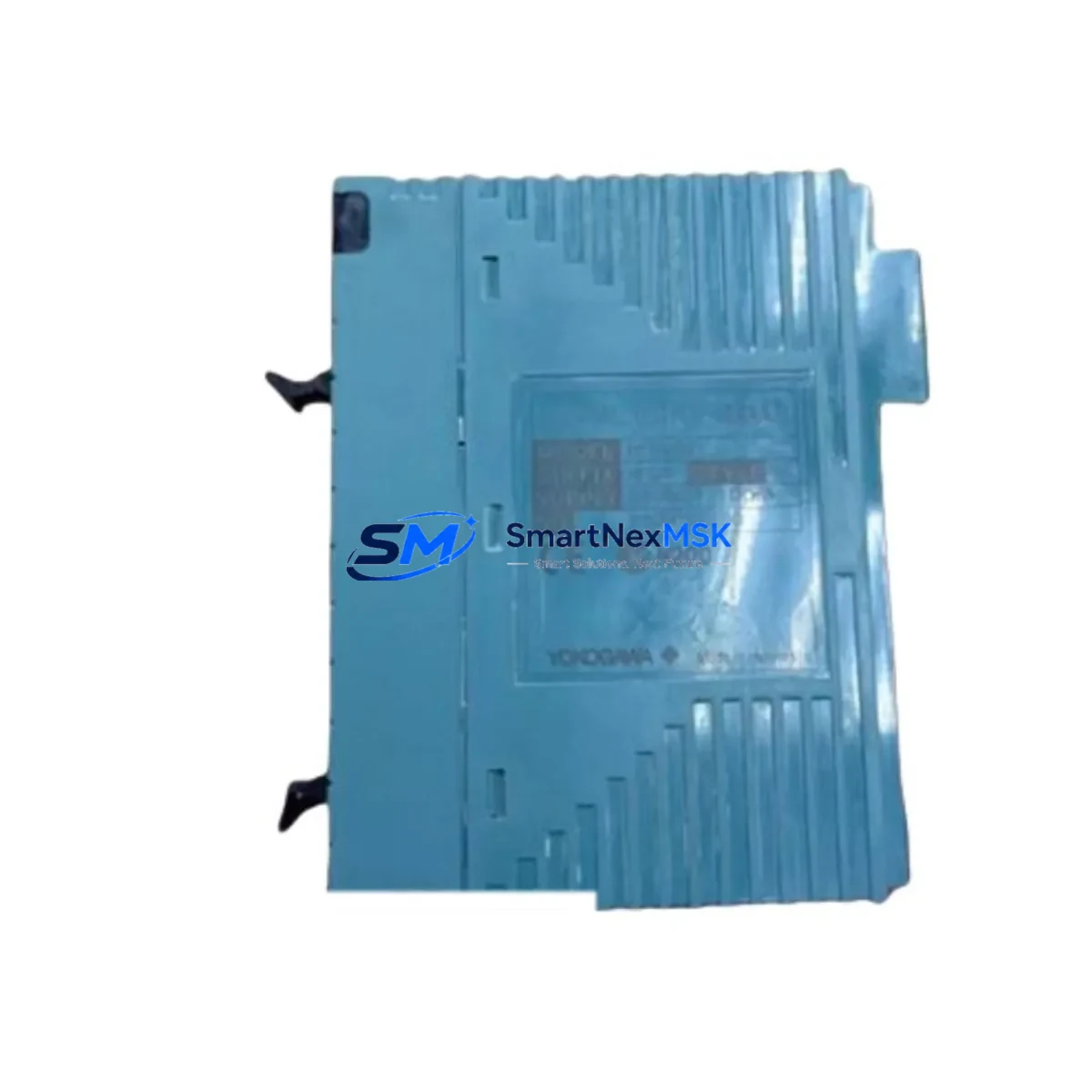

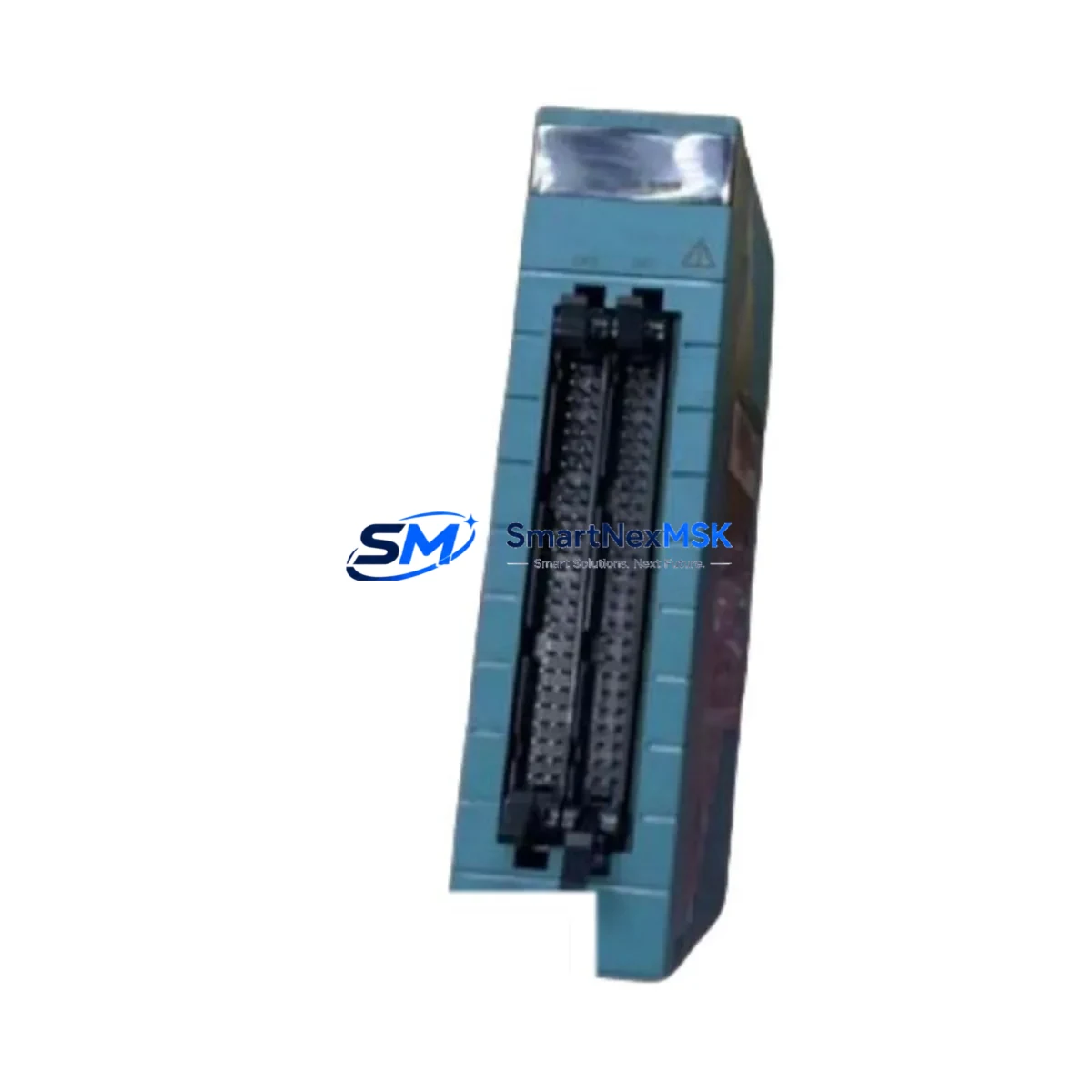

The YOKOGAWA NFDV561-P00 S2 is a 16-channel relay digital output module engineered for the CENTUM VP distributed control system, purpose-built to deliver reliable switching performance in the most demanding industrial environments. Whether deployed in petrochemical processing units, power generation facilities, metallurgical plants, or continuous manufacturing lines, this module provides the output integrity and electrical isolation that safety-critical control loops demand. Its relay contact architecture ensures galvanic separation between the field device and the control backplane, protecting the CENTUM VP system from voltage transients, ground loops, and inductive kickback generated by motors, solenoid valves, and contactor coils in heavy industrial cabinets.

In high-load environments where output modules are subjected to frequent switching cycles, the NFDV561-P00 S2 maintains contact reliability through its rated operational life. Engineers specifying this module for interlock and shutdown circuits benefit from its deterministic response characteristics, which are essential when the module is integrated into emergency shutdown sequences alongside the YOKOGAWA CENTUM VP Field Control Station (FCS). The module slots directly into the CENTUM VP node unit, sharing the same backplane bus as analog input modules such as the AAI141-S00 and analog output modules such as the AAV141-S00, enabling a compact and fully integrated I/O architecture within a single control cabinet.

Signal integrity is a persistent concern in facilities where variable frequency drives, high-voltage switchgear, and large transformer banks operate in close proximity to control panels. The NFDV561-P00 S2 addresses this through its inherent relay isolation, which decouples field-side noise from the CENTUM VP communication bus. This isolation is particularly valuable in mining and port automation applications where cable runs are long and electromagnetic interference levels are elevated. When paired with the YOKOGAWA CENTUM VP communication module and the node unit power supply, the complete I/O assembly maintains stable operation even during power quality events such as voltage sags and momentary interruptions.

For facilities managing legacy field devices that require dry contact outputs — including motor starters, pilot lights, alarm annunciators, and pneumatic valve positioners — the NFDV561-P00 S2 provides the contact ratings and wiring flexibility needed to interface directly without additional signal conditioning. Terminal wiring follows the standard CENTUM VP field terminal block layout, simplifying replacement of earlier-generation relay output modules and reducing the risk of wiring errors during maintenance windows. Technicians familiar with the CENTUM VP I/O wiring conventions will find the module’s terminal assignment consistent with other modules in the NFDV series, including the NFDV141 discrete input module and the NFDV521 transistor output module used in lower-voltage DC output applications.

In water treatment and municipal utility control systems, where continuous uptime is a regulatory requirement, the NFDV561-P00 S2 supports hot-swap capability within the CENTUM VP node unit, allowing module replacement without shutting down the entire I/O station. This feature is critical for operators who must maintain pump control, valve actuation, and chemical dosing outputs without interrupting the treatment process. The module’s status LEDs provide immediate visual confirmation of output state, enabling field technicians to verify relay energization without connecting a handheld tester, which accelerates fault diagnosis and reduces mean time to repair.

Every NFDV561-P00 S2 unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing that verifies relay contact continuity, output channel addressing, and backplane communication integrity. Units are shipped with original YOKOGAWA packaging and are covered by a 12-month warranty against manufacturing defects. Stock is maintained in Xiamen for rapid dispatch to customers across Asia, the Middle East, and Eastern Europe who require fast delivery of CENTUM VP spare parts to minimize unplanned downtime.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the NFDV561-P00 S2 as part of a comprehensive control cabinet protection strategy requires attention to the full power and signal chain within the CENTUM VP node unit. The node unit power supply — typically a YOKOGAWA PW481 or equivalent redundant power module — must be sized to support the relay coil energization current across all 16 channels simultaneously, particularly in applications where all outputs may be energized during a system startup sequence or a safety interlock reset. Undersized power supplies are a common source of intermittent relay dropout in high-density I/O cabinets, and verifying power budget before commissioning is a critical step.

Surge protection at the field terminal level is equally important. Inductive loads such as solenoid valves and motor contactors generate voltage spikes when de-energized, and without adequate suppression — typically achieved through flyback diodes on DC loads or RC snubber circuits on AC loads — these transients can degrade relay contact life and introduce noise onto the CENTUM VP backplane. The NFDV561-P00 S2’s relay isolation provides a first line of defense, but field-side surge suppressors installed at the terminal block remain best practice in petrochemical and power plant environments.

For cabinets that also house YOKOGAWA CENTUM VP communication modules such as the ESB bus coupler or the Vnet/IP network interface card, physical separation of high-current relay wiring from low-level communication cables is essential. Cable segregation, ferrite cores on communication cables, and proper cabinet grounding to a single-point earth bus collectively reduce the risk of communication errors and watchdog faults in the FCS. When the NFDV561-P00 S2 is used alongside analog modules such as the AAI835-S00 or the AAT141-S00 thermocouple input module, maintaining clean ground references across the I/O assembly prevents common-mode interference from corrupting analog measurements.

In safety instrumented system (SIS) adjacent applications — where the CENTUM VP operates in close coordination with a YOKOGAWA ProSafe-RS safety controller — the relay outputs of the NFDV561-P00 S2 are often used for non-safety-rated final elements, while the ProSafe-RS handles certified SIL-rated outputs. Understanding this boundary and documenting it clearly in the control narrative prevents misapplication of the module in safety loops that require IEC 61508 certified components.

Critical Industrial Safety Applications

In petrochemical refineries and LNG terminals, the NFDV561-P00 S2 controls motor-operated valves, pump start/stop circuits, and flare system actuators within CENTUM VP-based process control systems. Its relay contact isolation is essential in these environments, where field devices may be located in hazardous classified areas and where ground potential differences between field and control room can reach several volts. The module’s robust contact ratings support the inrush currents associated with motor starter coils without contact welding or premature wear.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on CENTUM VP systems for boiler control, turbine governor interfaces, and auxiliary equipment sequencing. The NFDV561-P00 S2 provides the relay outputs needed to drive annunciator panels, trip relay coils, and auxiliary contact blocks in generator protection circuits. Its deterministic switching behavior supports the tight timing requirements of turbine protection sequences, where output response delays must be minimized to prevent equipment damage during fault conditions.

In metallurgical plants and steel mills, where high-power drives, arc furnaces, and rolling mill motors create severe electromagnetic environments, the NFDV561-P00 S2’s relay isolation architecture provides the noise immunity needed to maintain reliable output switching. The module is used to control cooling water valves, hydraulic press solenoids, and conveyor drive enable circuits within CENTUM VP-managed production lines. Its ability to operate continuously in ambient temperatures up to 55°C makes it suitable for installation in control rooms adjacent to furnace areas without requiring additional cooling infrastructure.

Water treatment and desalination plants operating under continuous production mandates use the NFDV561-P00 S2 to control dosing pump enables, UV sterilizer contactors, and filter backwash valve actuators. The module’s hot-swap capability allows maintenance teams to replace units during scheduled maintenance windows without interrupting the treatment process, supporting the uptime requirements of municipal water supply systems.

Safety and Quality FAQ

Q: What warranty coverage is provided with the NFDV561-P00 S2?
A: Every unit is covered by a 12-month warranty against manufacturing defects from the date of shipment. Warranty claims are supported by SMARTNEXMSK with replacement or repair, and all units undergo pre-shipment functional testing before dispatch.

Q: How is the module tested before shipment?
A: Each NFDV561-P00 S2 undergoes a full functional test covering relay contact continuity on all 16 channels, backplane communication verification, and output channel addressing confirmation. Test records are available upon request for quality-critical procurement processes.

Q: Is the NFDV561-P00 S2 compatible with all CENTUM VP node unit configurations?
A: The module is designed for the YOKOGAWA CENTUM VP node unit and is compatible with standard CENTUM VP I/O slot configurations. Customers should verify node unit generation and firmware revision with their CENTUM VP system documentation before installation, particularly in systems that have undergone software upgrades.

Q: Can long-term supply be guaranteed for ongoing maintenance requirements?
A: SMARTNEXMSK maintains dedicated stock of CENTUM VP I/O modules including the NFDV561-P00 S2 to support customers with ongoing spare parts programs. Customers with annual maintenance contracts or multi-unit requirements are encouraged to contact our sales team to discuss scheduled supply arrangements and volume pricing.

—
