YOKOGAWA NFLR121-S00 Spare for STARDOM Automation

YOKOGAWA NFLR121-S00 Spare for STARDOM Automation: Spare Replacement & Industrial Downtime Risk Control

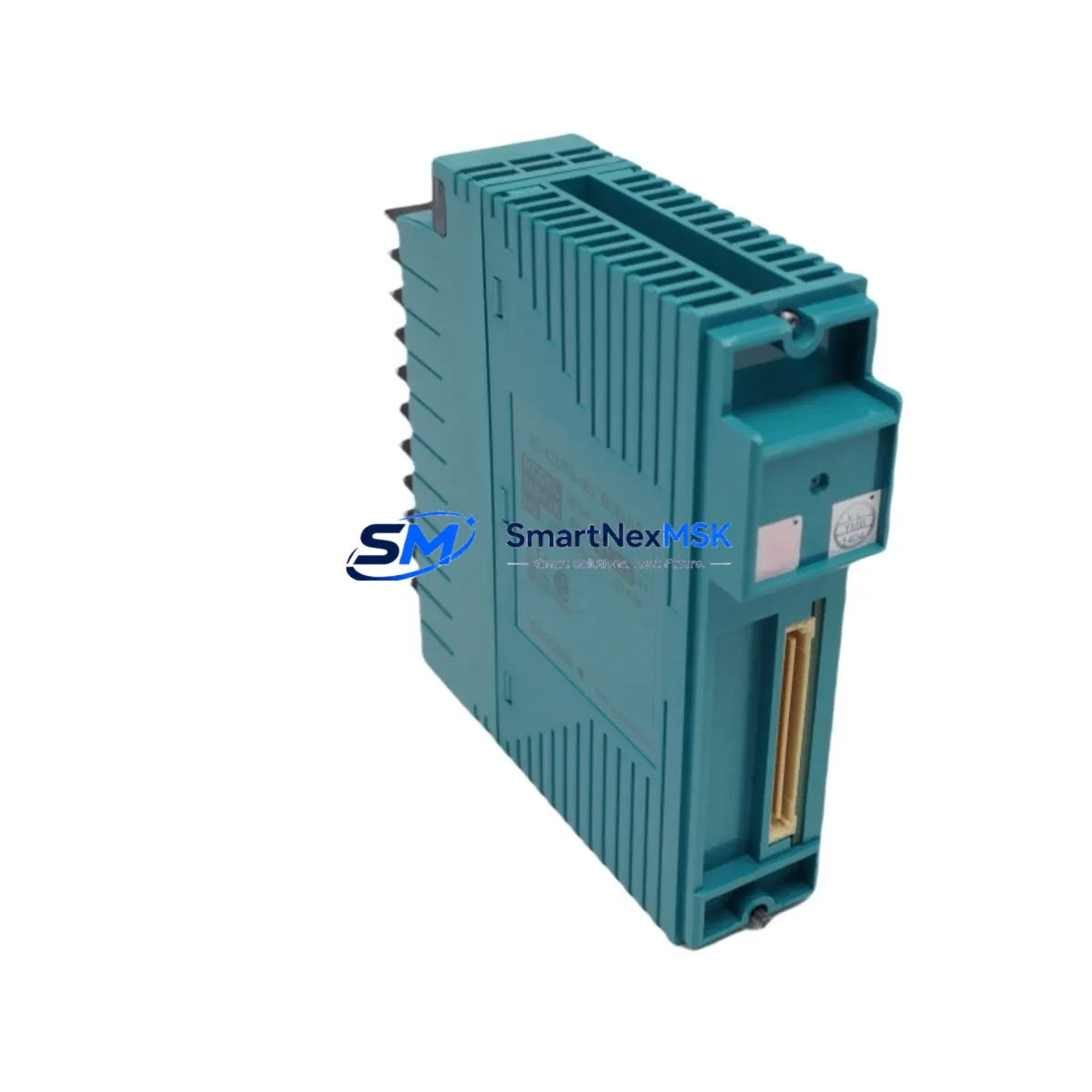

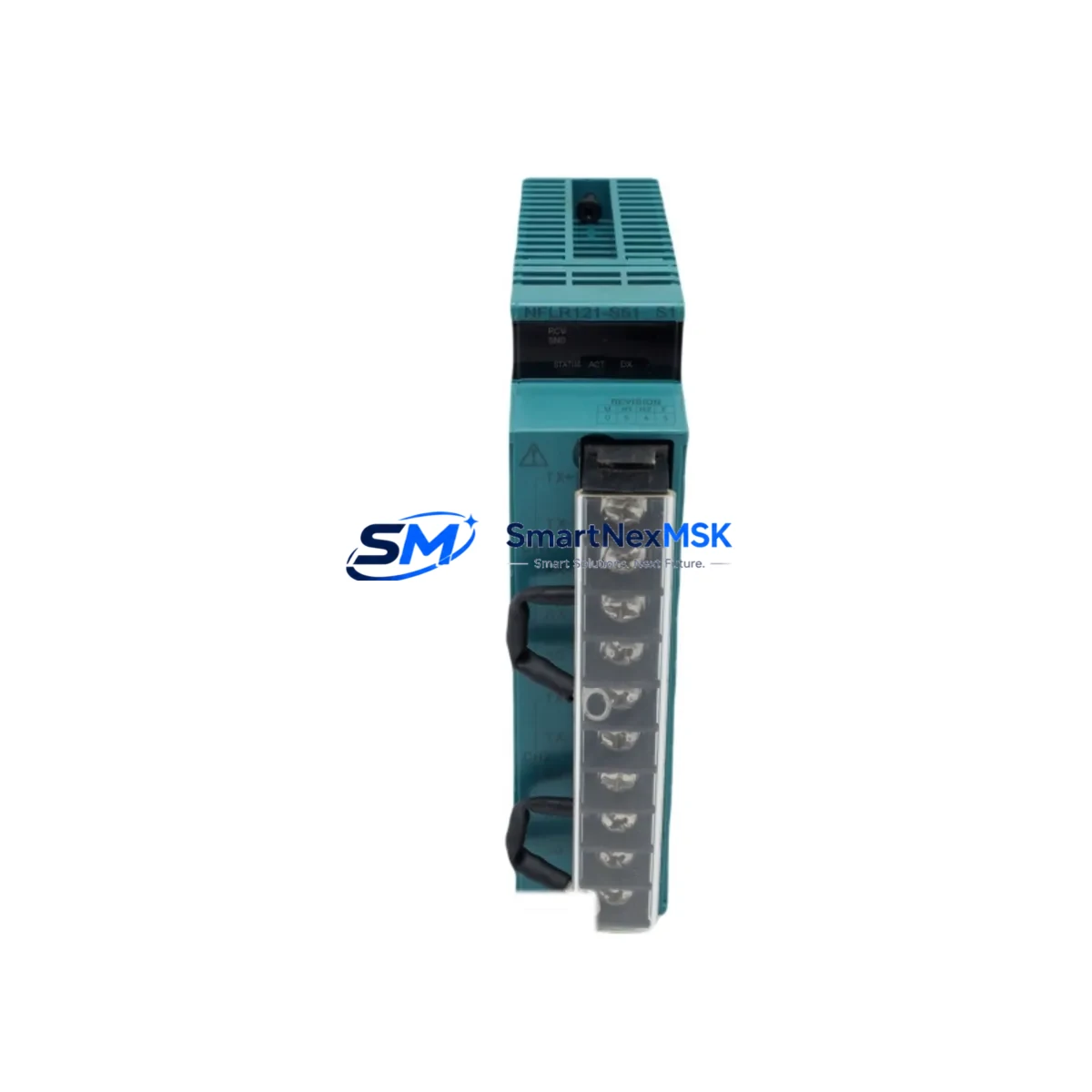

The YOKOGAWA NFLR121-S00 is an original serial communication module designed for the STARDOM FCN/FCJ autonomous controller platform. In industrial automation environments where continuous operation is non-negotiable, maintaining a verified spare of the NFLR121-S00 is a frontline strategy against unplanned downtime. This module supports RS-232C and RS-485 serial communication protocols, enabling reliable data exchange between field devices, PLCs, and supervisory systems. Whether you are managing a water treatment facility, a chemical processing plant, or a discrete manufacturing line running on YOKOGAWA STARDOM architecture, the NFLR121-S00 is a critical node in your communication backbone.

Sourced as an original YOKOGAWA component, each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification. Our inventory is maintained to support both planned maintenance cycles and emergency replacement scenarios, with fast dispatch and a 12-month warranty covering manufacturing defects and functional integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies a communication fault traced to the NFLR121-S00, the replacement workflow rarely ends with the module itself. A thorough site inspection should accompany any serial communication module swap to prevent repeat failures and ensure the restored system operates within specification.

Begin by inspecting the STARDOM FCN/FCJ backplane for physical damage, corrosion on the module slot contacts, or signs of thermal stress. A faulty backplane can cause premature failure of a newly installed NFLR121-S00. Next, verify the NFCP100 CPU module firmware version — communication module compatibility is firmware-dependent, and a mismatch can prevent the serial port from initializing correctly after replacement.

Check the NFAI143 analog input modules and NFDI141 digital input modules in the same rack. Serial communication faults are sometimes symptomatic of broader power distribution issues within the controller chassis. Inspect the NFPS100 power supply module output voltage under load — an under-voltage condition can cause intermittent communication errors that mimic module failure.

On the field wiring side, inspect RS-485 termination resistors, cable shielding continuity, and grounding integrity. Improperly terminated RS-485 buses are a leading cause of communication instability that can damage serial ports over time. If the NFLR121-S00 was connected to a YOKOGAWA UT series temperature controller or a YOKOGAWA MW100 data acquisition unit via Modbus RTU, verify that the baud rate, parity, and stop bit settings on both ends match the new module configuration.

For sites using YOKOGAWA FAST/TOOLS SCADA or a third-party HMI connected through the serial port, confirm that the communication driver is re-initialized after module replacement. Some SCADA configurations cache the previous module’s hardware address and require a manual refresh or controller restart to re-establish the link.

Maintenance engineers managing aging STARDOM installations should also consider stocking the NFLR111 RS-232C single-port communication module as a complementary spare, particularly in systems where the NFLR121-S00 handles both RS-232C and RS-485 simultaneously. Having both variants on the shelf eliminates ambiguity during emergency callouts and reduces mean time to repair (MTTR) significantly.

Finally, review the NFBU100 base unit and any NFEX100 expansion units for slot integrity. Loose or oxidized module connectors are a common root cause of intermittent communication faults in high-vibration or high-humidity environments. A proactive inspection during planned downtime is far less costly than an emergency replacement during production.

Site Replacement Workflow

Step 1 — Isolation and Safety: Place the STARDOM FCN/FCJ controller in maintenance mode via the engineering workstation. Confirm that the serial communication channel handled by the NFLR121-S00 is safely isolated from active process control loops before proceeding. For safety-instrumented systems, coordinate with the SIS engineer before any module removal.

Step 2 — Module Removal: Power down the controller chassis if hot-swap is not supported for the installed firmware version. Carefully extract the NFLR121-S00 from its backplane slot using the module ejector levers. Avoid touching the gold connector pins. Label the removed module with the fault date and symptom for traceability.

Step 3 — Compatibility Verification: Confirm that the replacement NFLR121-S00 carries the same hardware revision as the removed unit, or verify compatibility with the installed NFCP100 firmware version using YOKOGAWA’s compatibility matrix. SMARTNEXMSK provides hardware revision details upon request prior to shipment.

Step 4 — Installation and Configuration: Insert the replacement module firmly into the backplane slot until the ejector levers click into place. Power up the controller and verify that the NFLR121-S00 is recognized by the CPU module. Use YOKOGAWA’s STARDOM engineering tool to re-apply the serial port configuration — baud rate, protocol, station address — matching the previous setup documented in your maintenance records.

Step 5 — Communication Test: Initiate a loopback test or verify live data exchange with the connected field device or HMI. Confirm that all Modbus RTU or proprietary serial protocol transactions are completing without errors. Document the replacement in the site maintenance log and update the spare parts inventory accordingly.

This workflow is designed to minimize downtime, maintain system compatibility, and ensure that the restored communication link meets the original design specification. For legacy STARDOM installations where the original configuration files are unavailable, SMARTNEXMSK’s technical team can assist with parameter recovery guidance based on the installed system architecture.

Spare Parts Support FAQ

Q1: Is the NFLR121-S00 supplied by SMARTNEXMSK an original YOKOGAWA component?
Yes. All NFLR121-S00 units in our inventory are original YOKOGAWA components sourced through verified supply channels. Each unit is individually inspected and functionally tested before shipment. We do not supply counterfeit, refurbished-without-disclosure, or third-party substitute modules. A certificate of authenticity is available upon request for quality-assurance documentation purposes.

Q2: What is the warranty coverage and what does it include?
Every NFLR121-S00 shipped by SMARTNEXMSK carries a 12-month warranty from the date of delivery. The warranty covers manufacturing defects, functional failure under normal operating conditions, and DOA (dead-on-arrival) scenarios. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling on site. In the event of a warranty claim, we provide a replacement unit or full refund based on the confirmed fault assessment.

Q3: How do I verify compatibility before ordering if my STARDOM system is an older revision?
Provide us with your FCN/FCJ controller model number, the installed NFCP100 firmware version, and the current hardware revision of the module you are replacing. Our technical team will cross-reference this information against YOKOGAWA’s compatibility documentation and confirm whether the available NFLR121-S00 stock is a direct drop-in replacement. We recommend this verification step for any STARDOM installation older than five years, as hardware revisions may affect slot compatibility.

Q4: Can SMARTNEXMSK support long-term or blanket spare parts orders for ongoing maintenance contracts?
Yes. We support long-term supply agreements for maintenance contractors, OEMs, and end-user facilities managing multiple STARDOM installations. Blanket orders allow you to lock in pricing, reserve inventory, and schedule phased deliveries aligned with your planned maintenance windows. Contact our sales team to discuss volume pricing, lead time commitments, and documentation requirements for your procurement process.
