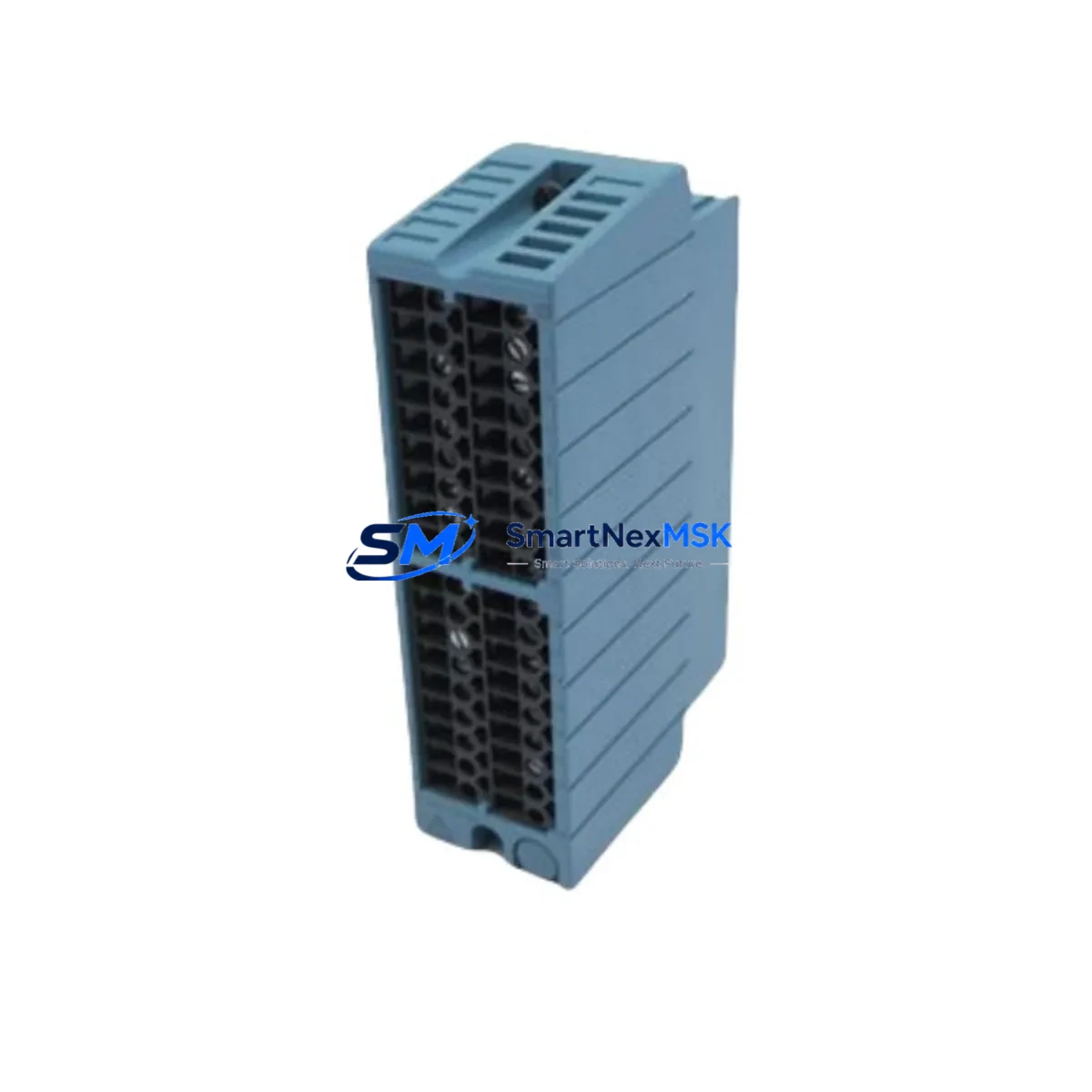

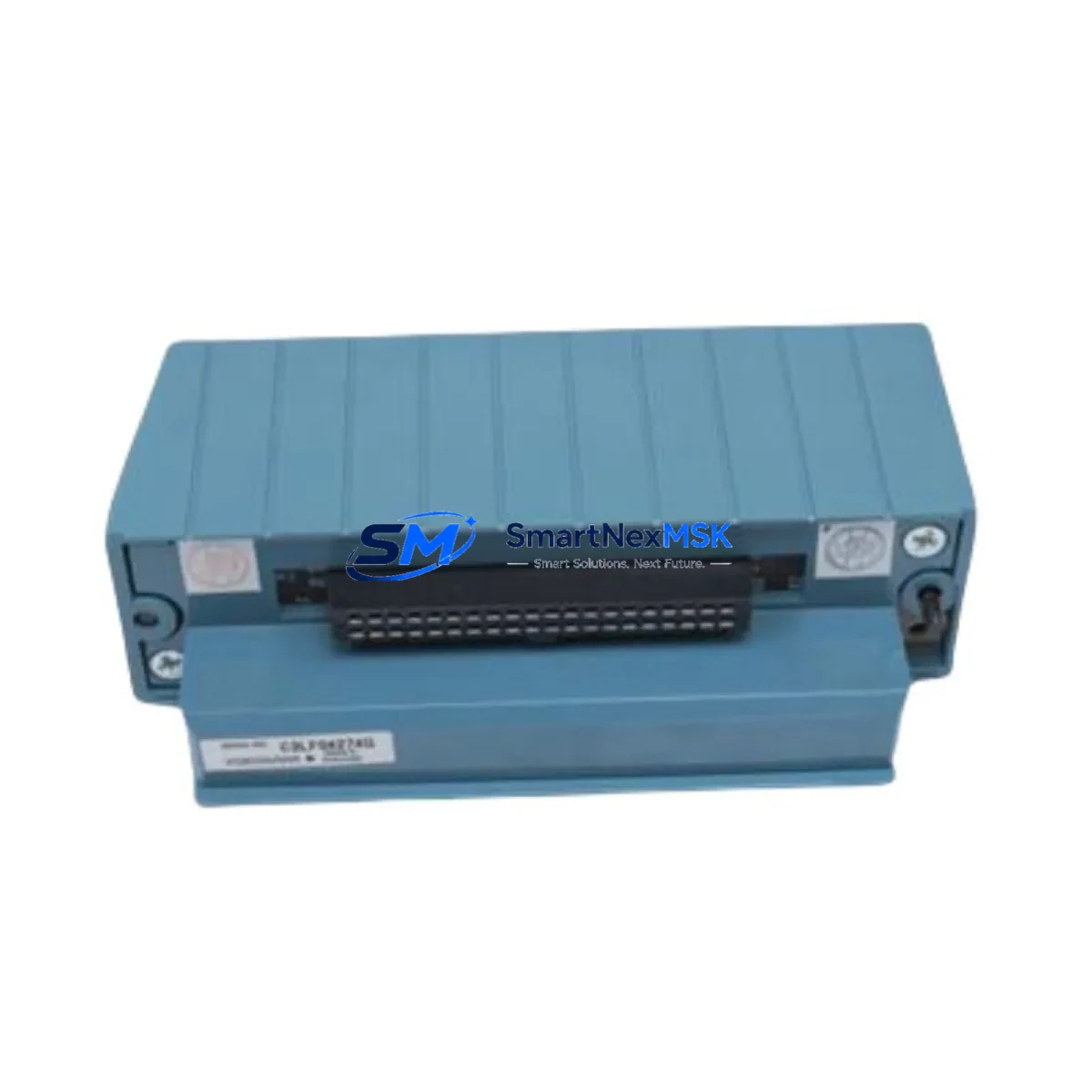

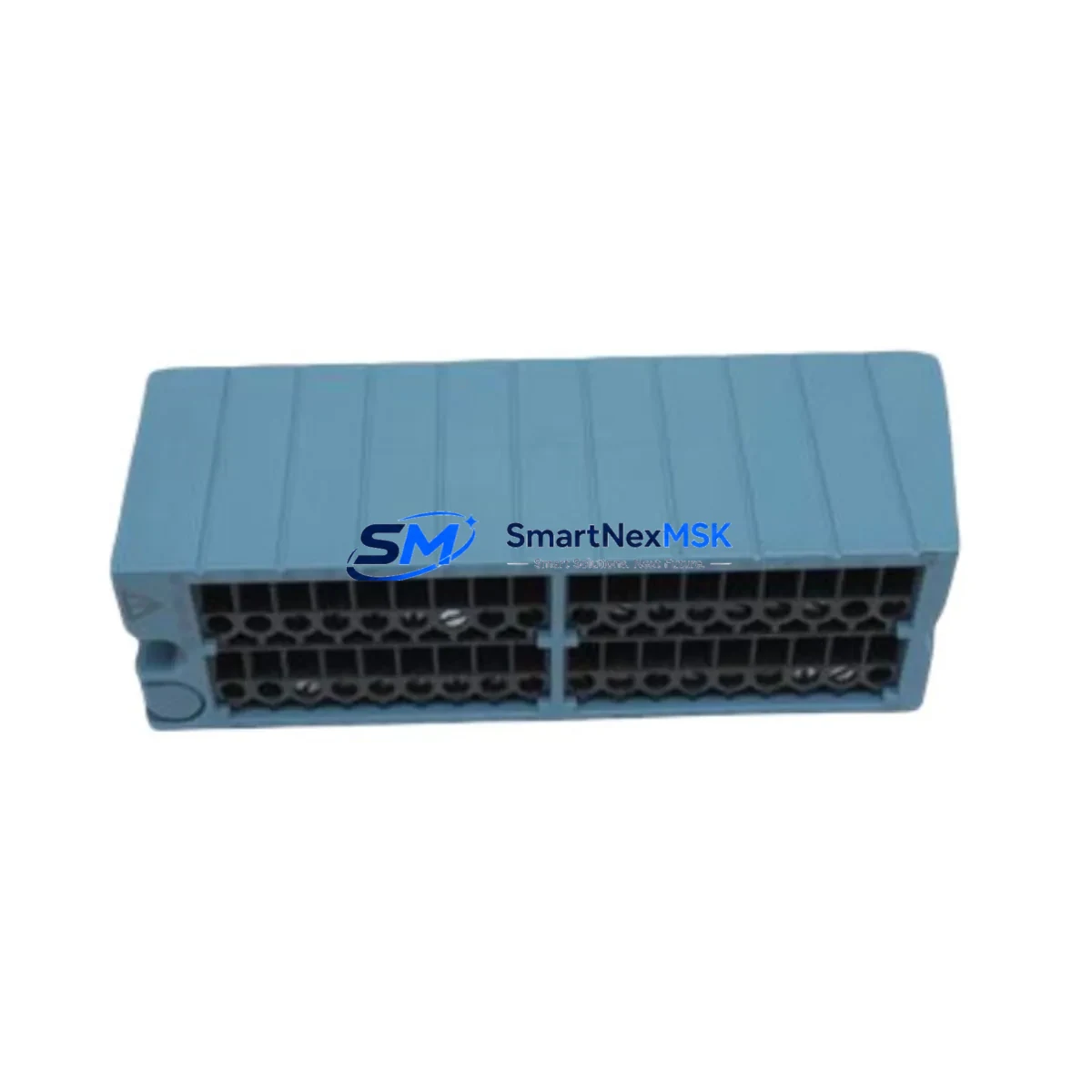

YOKOGAWA NFTR8S-10 Safety-Enhanced Terminal Block Module

YOKOGAWA NFTR8S-10 Safety-Enhanced Terminal Block Module: Reliable Control in Harsh Industrial Sites

The YOKOGAWA NFTR8S-10 is an 8-channel ruggedized terminal block module engineered for mission-critical signal termination within YOKOGAWA CENTUM VP and CS 3000 Distributed Control Systems. Designed to operate continuously in high-interference, high-load industrial environments, the NFTR8S-10 serves as a hardened interface between field instrumentation and DCS I/O cards — a role where signal integrity, mechanical robustness, and long-term reliability are non-negotiable.

In continuous process industries such as petrochemical refining, power generation, metallurgical smelting, and water treatment, control loop interruptions caused by terminal degradation, loose wiring, or signal drift can trigger costly unplanned shutdowns or, worse, safety system failures. The NFTR8S-10 addresses these risks directly through its ruggedized construction, vibration-resistant terminal design, and compatibility with YOKOGAWA’s proven DCS architecture. Each channel provides a stable, low-resistance termination point that maintains signal fidelity even under sustained electrical noise, ground loops, and ambient temperature fluctuations common in heavy industrial control cabinets.

When integrated into a CENTUM VP field control station alongside the YOKOGAWA NFDV141 digital input module or the NFAI135 analog input module, the NFTR8S-10 ensures that field signals from pressure transmitters, flow meters, and temperature sensors arrive at the I/O bus without attenuation or distortion. This is particularly critical in safety instrumented systems (SIS) where signal accuracy directly governs the response of emergency shutdown (ESD) logic. Pairing the NFTR8S-10 with the YOKOGAWA NFDO141 digital output module in interlock circuits further reduces the risk of spurious trips caused by wiring faults or contact bounce.

Power supply stability is equally important in harsh-environment control cabinets. The NFTR8S-10 is typically deployed alongside YOKOGAWA NFPS128 or equivalent DCS power supply units that deliver regulated 24 VDC to field devices. Surge events from nearby motor starters, variable frequency drives (VFDs), or switching equipment can propagate through field wiring and damage unprotected terminal interfaces. The NFTR8S-10’s robust insulation and shielded terminal design, combined with external surge protection devices such as the YOKOGAWA NFBU100 bus unit or dedicated SPD modules, creates a layered defense against transient overvoltage that protects both the terminal block and the connected I/O cards.

In mining and mineral processing facilities, where vibration from crushers and conveyors is constant, terminal block integrity is a persistent maintenance concern. Loose connections at the field termination layer are a leading cause of intermittent signal faults that are difficult to diagnose and can mask genuine process anomalies. The NFTR8S-10’s screw-clamp terminal design maintains consistent contact force over extended service intervals, reducing the frequency of preventive maintenance inspections and lowering the risk of nuisance alarms in the YOKOGAWA CENTUM VP HIS operator station. For port and bulk material handling operations, where control cabinets are exposed to dust ingress and humidity, the module’s rated operating environment ensures continued performance without derating.

Communication integrity within the DCS is preserved when the NFTR8S-10 is used as part of a well-structured field wiring architecture. Proper signal segregation at the terminal block level — separating analog signals from digital outputs and power conductors — minimizes crosstalk that could otherwise corrupt data transmitted over the YOKOGAWA Vnet/IP or ESB bus to the field control unit (FCU). In critical interlock loops, such as those protecting fired heaters, compressors, or high-pressure reactors, even minor signal anomalies at the termination layer can propagate into the control logic and cause erroneous actuator commands. The NFTR8S-10 eliminates this vulnerability by providing a clean, stable termination environment for each of its eight channels.

For facilities operating under IEC 61511 functional safety requirements, the NFTR8S-10 supports systematic documentation of the field termination layer, enabling safety engineers to verify wiring integrity as part of the safety lifecycle management process. When used in conjunction with the YOKOGAWA ProSafe-RS safety controller or integrated SIS modules, the terminal block contributes to the overall hardware fault tolerance of the safety instrumented function (SIF). Replacement of aging or damaged terminal blocks during planned turnarounds is straightforward, as the NFTR8S-10 is a direct drop-in replacement within the CENTUM VP and CS 3000 I/O subsystem without requiring reconfiguration of the DCS database.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust CENTUM VP control cabinet deployment pairs the NFTR8S-10 with a coordinated set of I/O, power, and communication components to achieve maximum uptime and safety. The YOKOGAWA NFAI135 analog input module handles 4–20 mA field signals from pressure and flow transmitters, while the NFDI141 digital input module captures discrete status signals from limit switches and valve position feedback. On the output side, the NFDO141 digital output module drives solenoid valves and motor contactors in interlock circuits where the NFTR8S-10 provides the field termination interface.

Power distribution within the cabinet relies on the YOKOGAWA NFPS128 power supply module, which delivers stable 24 VDC to field devices through the terminal block layer. To protect against voltage spikes from inductive loads, transient voltage suppression components are installed at the cabinet entry point, working in concert with the NFTR8S-10’s insulated terminal design. The YOKOGAWA NFBU100 bus unit manages internal communication between I/O modules and the field control unit, ensuring that any wiring disturbance at the terminal layer does not propagate into the control bus. For facilities requiring redundant communication paths, the YOKOGAWA Vnet/IP dual-ring network architecture provides automatic failover, maintaining control continuity even during partial network faults. The YOKOGAWA NFFCS100 field control unit coordinates all I/O data and executes control logic, making the integrity of the NFTR8S-10 termination layer directly relevant to overall system safety performance.

Critical Industrial Safety Applications

Petrochemical & Refining: In crude distillation units and hydrocracker control systems, the NFTR8S-10 terminates signals from temperature and pressure transmitters monitoring critical process variables. Reliable termination prevents signal drift that could mask dangerous pressure buildup or temperature excursions, supporting the integrity of high-integrity pressure protection systems (HIPPS).

Power Generation: In coal-fired and gas turbine power plants, the NFTR8S-10 is used in boiler control and turbine protection circuits. Its vibration-resistant terminals maintain connection integrity in environments subject to continuous mechanical vibration from rotating machinery, preventing nuisance trips that reduce generation capacity.

Mining & Mineral Processing: Conveyor control systems, crusher automation, and flotation cell management rely on stable I/O termination. The NFTR8S-10 withstands the high-dust, high-vibration conditions of underground and surface mining operations, reducing unplanned downtime caused by wiring faults.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use CENTUM VP DCS for pump control, chemical dosing, and effluent monitoring. The NFTR8S-10 provides reliable signal termination in control panels exposed to high humidity and chemical vapors, supporting continuous 24/7 operation.

Metallurgy & Steel: Electric arc furnace control, rolling mill automation, and continuous casting systems generate intense electromagnetic interference. The NFTR8S-10’s shielded terminal design and compatibility with properly grounded cable shields helps maintain signal integrity in these high-EMI environments, protecting control loop accuracy.

Port & Bulk Material Handling: Ship loader and stacker-reclaimer automation systems require reliable I/O termination in outdoor and semi-outdoor control enclosures. The NFTR8S-10’s rated operating range supports deployment in variable-temperature environments typical of port operations.

Safety and Quality FAQ

Q1: What warranty does the YOKOGAWA NFTR8S-10 carry?
All NFTR8S-10 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty replacement or repair is handled directly by our technical team with priority turnaround to minimize your downtime.

Q2: What pre-shipment testing is performed on the NFTR8S-10?
Each unit undergoes functional verification testing prior to shipment, including terminal continuity checks, insulation resistance verification, and visual inspection for mechanical integrity. Units sourced as surplus new are inspected and tested to confirm they meet original YOKOGAWA specifications before dispatch.

Q3: Is the NFTR8S-10 compatible with both CENTUM VP and CS 3000 systems?
Yes. The NFTR8S-10 is designed for use within the YOKOGAWA CENTUM VP and CS 3000 I/O subsystem architecture. It is a direct replacement for existing installations in both platforms without requiring DCS database modifications. Always verify the specific I/O nest and module slot configuration with your system documentation before installation.

Q4: Can SMARTNEXMSK support long-term or repeat supply of the NFTR8S-10?
Yes. We maintain stock of the NFTR8S-10 and related CENTUM VP components to support both immediate replacement needs and planned maintenance programs. For facilities managing multi-year spare parts strategies, we offer reserved stock arrangements and advance procurement support. Contact our team at sales@smartnexmsk.com or +86 18259474341 to discuss your supply requirements.
