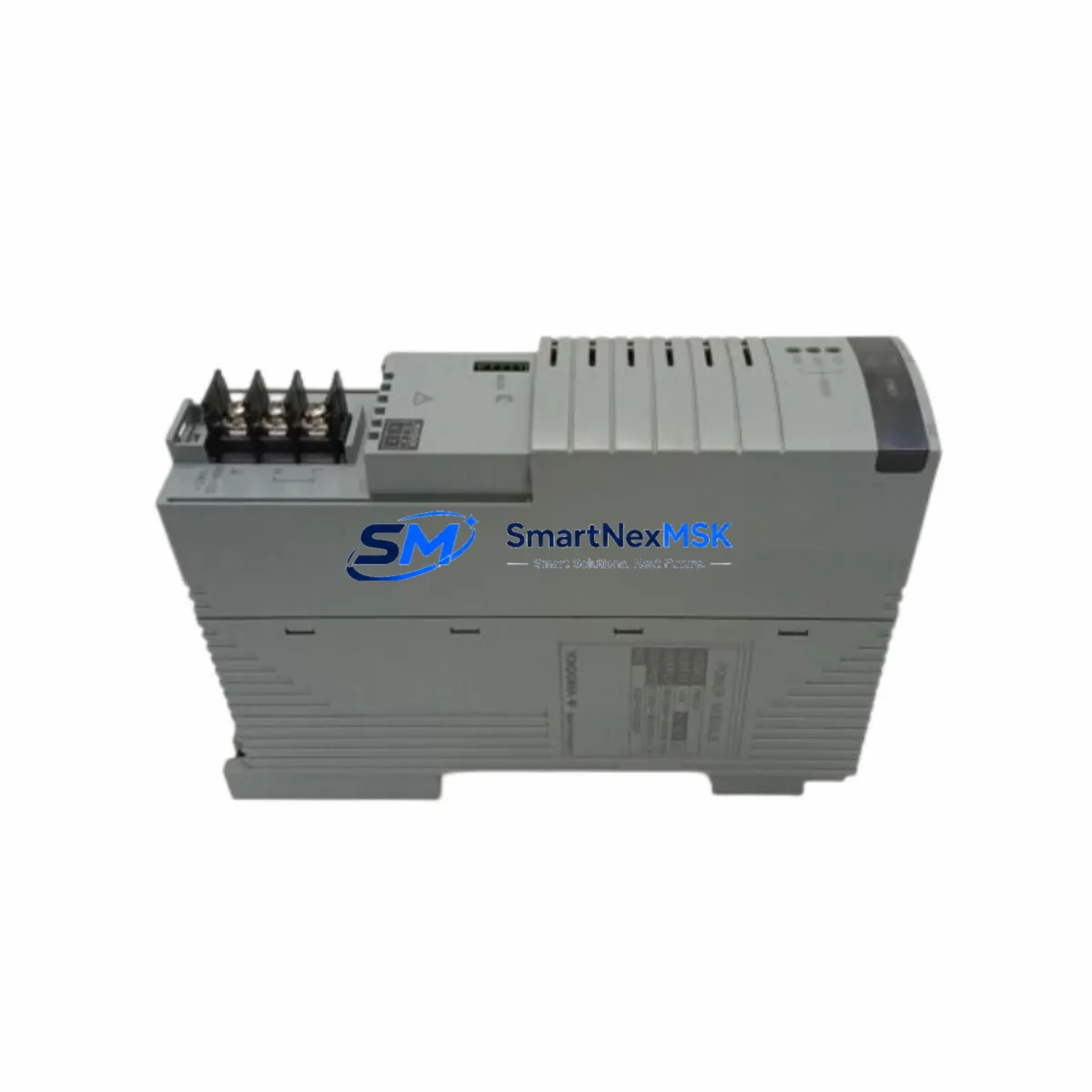

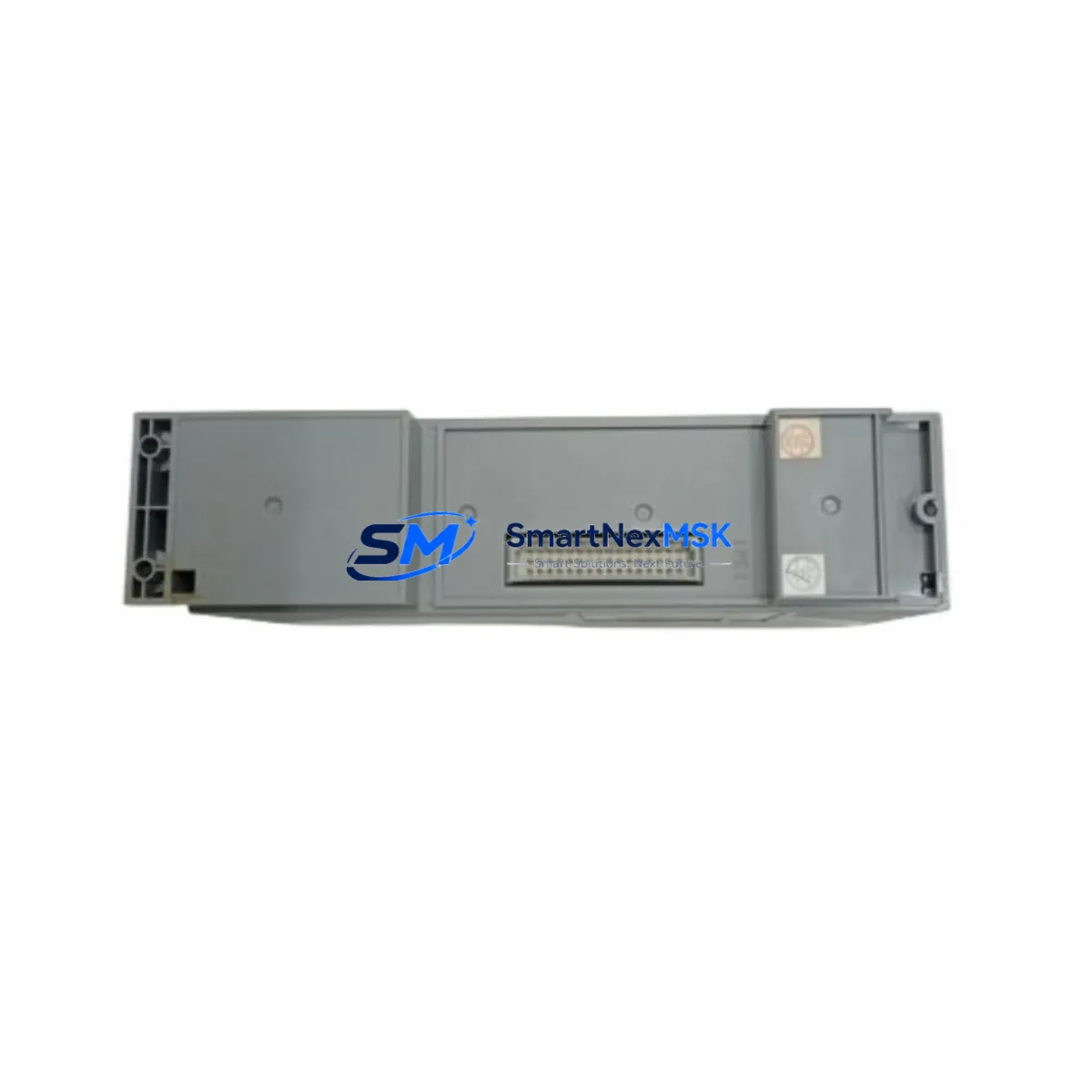

YOKOGAWA PW481-10 S2 Retrofit-Ready Power Supply for CENTUM VP Control Systems
The YOKOGAWA PW481-10 S2 is a redundant power supply module engineered for seamless integration into CENTUM VP and CENTUM CS 3000 distributed control system (DCS) architectures. As legacy power infrastructure ages and original components reach end-of-life, the PW481-10 S2 provides a verified drop-in replacement path that preserves existing backplane wiring, rack mounting geometry, and system power budgets — minimizing retrofit risk and eliminating the need for costly cabinet redesign.
For facilities operating aging CENTUM CS 3000 installations, the transition to CENTUM VP-compatible hardware is a critical step in extending plant lifecycle without full system replacement. The PW481-10 S2 supports this migration by maintaining electrical compatibility with the existing ESB bus backplane, accepting the same 100–240 VAC input range, and delivering the regulated 24 VDC output required by field control stations (FCS) and I/O modules across the rack. Engineers replacing a failed or end-of-life PW481 unit should verify the input terminal block orientation, confirm the redundancy link connector alignment with the paired supply, and check that the total connected load — including all I/O modules, communication modules, and the FCS processor — remains within the module’s rated output capacity.
During retrofit planning, it is essential to audit the full power distribution chain within the control cabinet. Modules such as the YOKOGAWA PW482 (the companion redundant supply in dual-feed configurations), ANB10S node bus interface units, and ACM12 communication modules all draw from the same regulated bus. The ADM12 and ADM51E analog I/O modules, along with AAI141 and AAI543 signal conditioning cards, must be accounted for in the load calculation before commissioning the replacement PW481-10 S2. Failure to validate total bus load can result in undervoltage faults or nuisance trips during startup.
Backplane and rack compatibility should be confirmed against the installed EB401 or EB501 field control station chassis. The PW481-10 S2 occupies the designated power slot and connects via the integrated bus connector — no adapter or interposer is required for standard CENTUM VP rack configurations. If the existing installation uses an older EB301 chassis from a CS 3000 system, a rack adapter assessment is recommended before ordering.
Program logic and HMI screen integrity are unaffected by a power supply swap, as the PW481-10 S2 replacement does not alter the FCS processor state or the Vnet/IP communication link. However, best practice during hot-swap or planned maintenance windows includes verifying that the redundant supply is fully online before removing the primary unit, confirming that the CENTUM VP Engineering Environment (CAMS for HIS) shows no active power alarms, and documenting the pre-swap power rail voltages using the onboard LED status indicators. For sites using Vnet/IP or legacy V-net communication rings, the network topology should remain stable throughout the swap provided the FCS remains powered via the redundant feed.
All PW481-10 S2 units supplied by SMARTNEXMSK are sourced from verified industrial channels, functionally tested prior to dispatch, and shipped with full traceability documentation. Each unit carries a 12-month warranty covering manufacturing defects and operational failures under normal DCS operating conditions. Units are available from stock for immediate dispatch, supporting urgent breakdown recovery and planned maintenance schedules alike.
Upgrade Compatibility Table
| Parameter | PW481-10 S2 Specification | Retrofit Notes |
|---|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz | Compatible with standard industrial AC feeds; no transformer required |
| Output Voltage | 24 VDC regulated | Matches CENTUM VP / CS 3000 bus voltage; direct replacement |
| Redundancy | Dual-supply hot-standby | Pair with PW482 for N+1 redundancy; link connector must be seated |
| Rack Compatibility | EB401, EB501 (CENTUM VP) | EB301 (CS 3000) requires compatibility assessment |
| Communication Impact | None | Vnet/IP and V-net rings unaffected during hot-swap |
| Installation | Tool-free module insertion | Confirm bus connector alignment before seating |
| Commissioning Check | LED status + CAMS alarm clear | Verify no power alarms in Engineering Environment post-swap |
| Warranty | 12 Months | Covers manufacturing defects and operational failures |
Retrofit Planning for Existing Automation Systems
A successful PW481-10 S2 retrofit begins with a complete inventory of the installed control cabinet. In a typical CENTUM VP field control station, the power slot is flanked by the FCS processor card, Vnet/IP communication modules, and multiple I/O cards including analog input modules such as the AAI141-S00 and digital output modules such as the ADV151. Each of these draws regulated power from the bus supplied by the PW481-10 S2, making accurate load profiling a prerequisite for safe commissioning.
For sites migrating from CS 3000 to CENTUM VP, the power supply replacement is often the first hardware step in a phased upgrade. Subsequent phases typically involve replacing legacy ACM12 communication modules with ACM22 Vnet/IP-compatible units, updating I/O marshalling with YOKOGAWA STARDOM or CENTUM VP-native I/O, and reconfiguring the HIS (Human Interface Station) displays to reflect the new FCS tag structure. The PW481-10 S2 supports this phased approach by providing a stable power foundation throughout the transition.
Terminal block wiring should be photographed and documented before any module removal. The input terminal block on the PW481-10 S2 uses the same pitch and labeling convention as the predecessor unit, simplifying rewiring. Confirm that cable ferrules are correctly crimped and that the protective earth connection is torqued to specification before energizing the replacement module.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern during any DCS power supply replacement. The PW481-10 S2 supports hot-swap replacement in redundant configurations — provided the paired supply (typically a PW482) is confirmed healthy and carrying full load before the primary unit is removed. The recommended procedure is to monitor the redundancy status LED on both units, confirm load transfer via the CENTUM VP system alarm display, remove the failed or end-of-life unit, insert the replacement PW481-10 S2, and verify LED status and CAMS alarm clearance before returning the system to normal redundant operation.
For single-supply installations without redundancy, a planned maintenance window is required. Pre-staging the replacement unit, pre-testing it on a bench supply at rated load, and coordinating with the process control team to place the affected FCS in manual mode will reduce the active outage window to under 30 minutes in most cases. Original program logic stored in the FCS non-volatile memory is preserved throughout the power cycle, and HMI faceplates will resume normal display once the FCS completes its restart sequence — typically within 2–5 minutes of power restoration.
Retrofit Support FAQ
Q: Is the PW481-10 S2 a direct drop-in replacement for the original PW481 in a CENTUM CS 3000 system?
A: The PW481-10 S2 is designed for CENTUM VP rack configurations (EB401/EB501). For CS 3000 installations using EB301 chassis, a physical compatibility assessment is recommended. Contact our technical team with your rack model and slot configuration for confirmation before ordering.
Q: Will replacing the power supply affect my existing FCS program or HMI screens?
A: No. The PW481-10 S2 is a power infrastructure component and does not interact with FCS program memory, tag databases, or HMI display configurations. Program logic and HMI faceplates are preserved in non-volatile memory and resume automatically after power restoration.
Q: What pre-shipment testing is performed on each unit?
A: Every PW481-10 S2 unit is functionally tested at rated load prior to dispatch. Output voltage regulation, redundancy link signaling, and LED status indicators are verified. Units are shipped with traceability documentation and are covered by a 12-month warranty from the date of delivery.
Q: How quickly can a replacement unit be dispatched for an emergency breakdown?
A: SMARTNEXMSK maintains stock of the PW481-10 S2 for immediate dispatch. Orders confirmed before the daily cut-off are typically shipped same day. Express courier options are available for urgent breakdown recovery globally.
