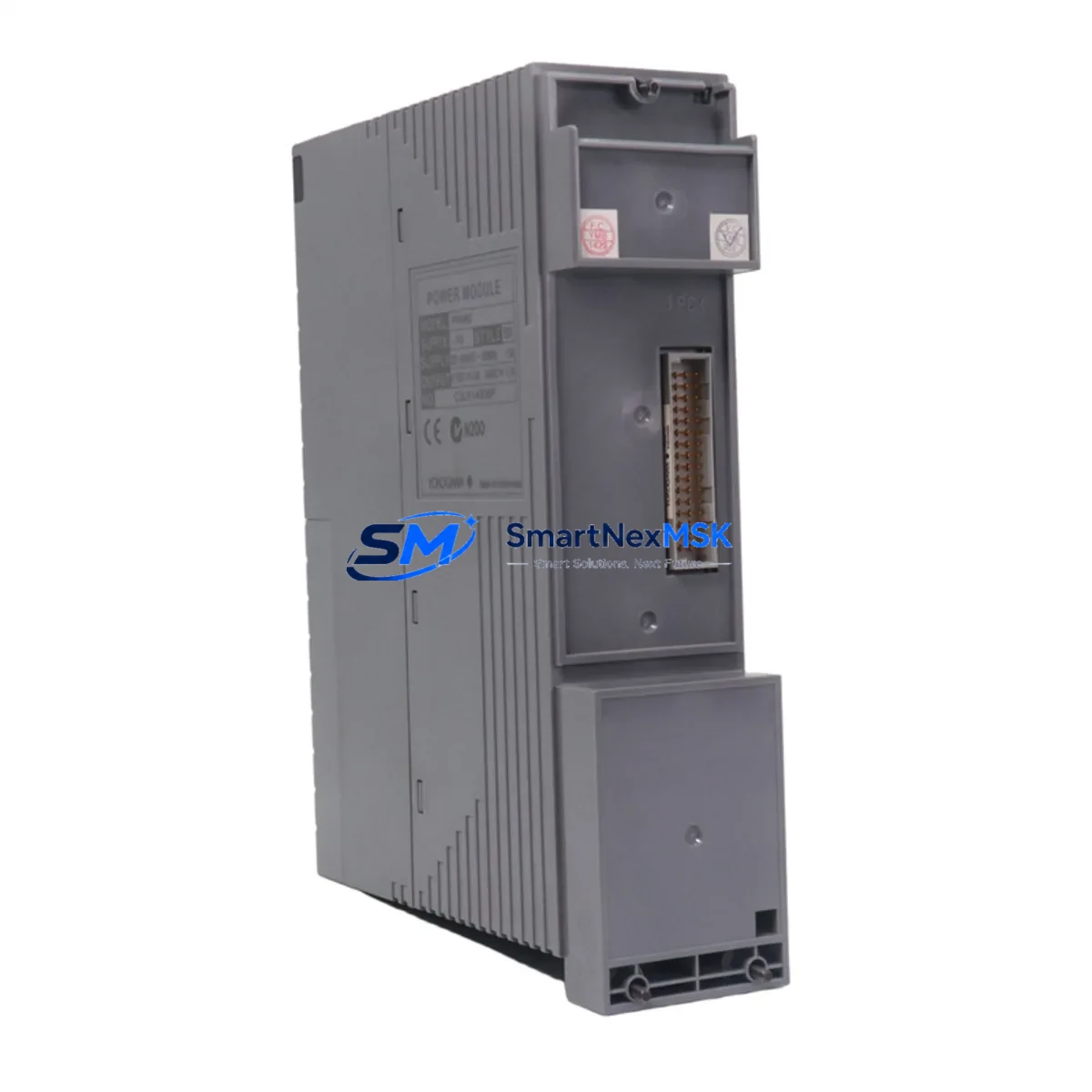

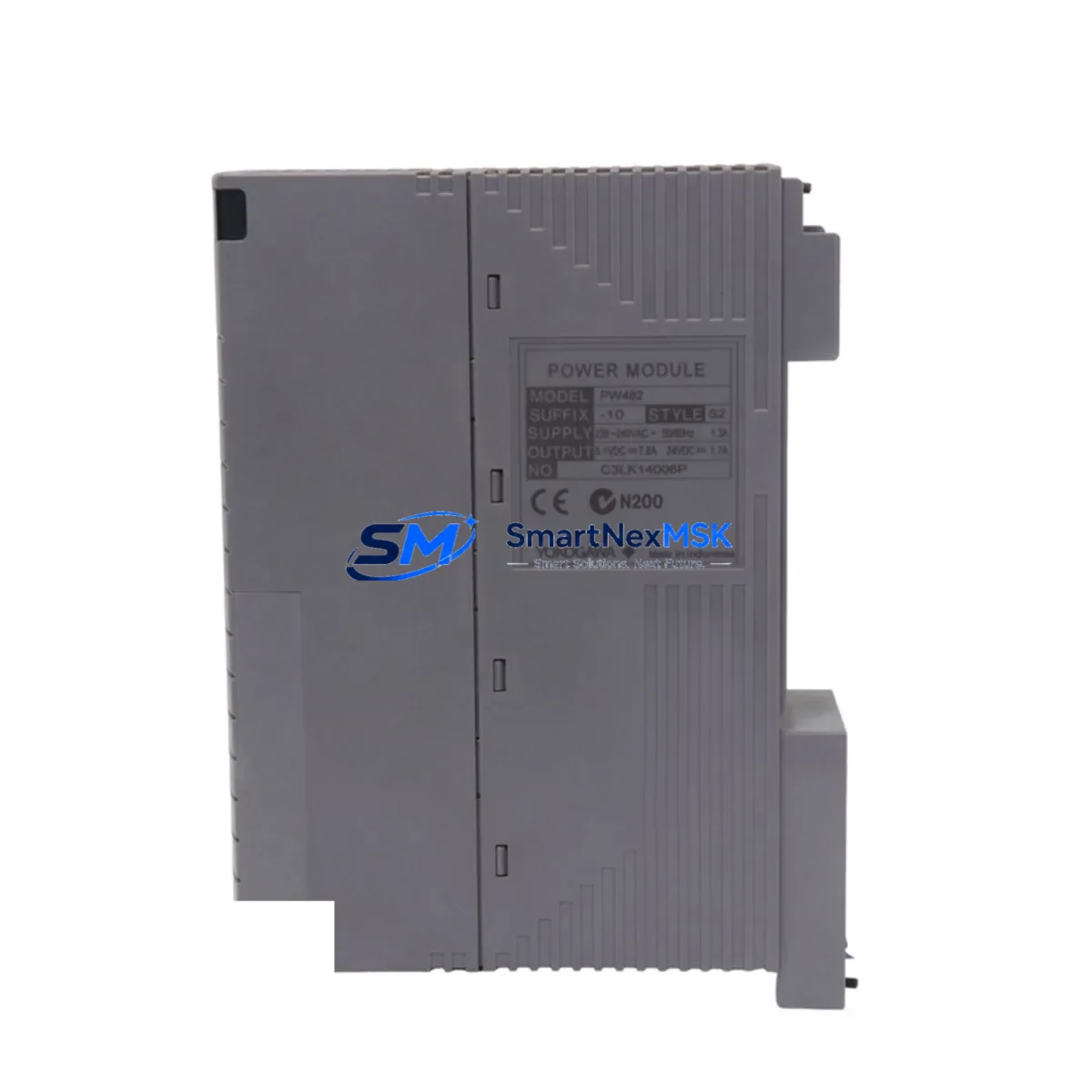

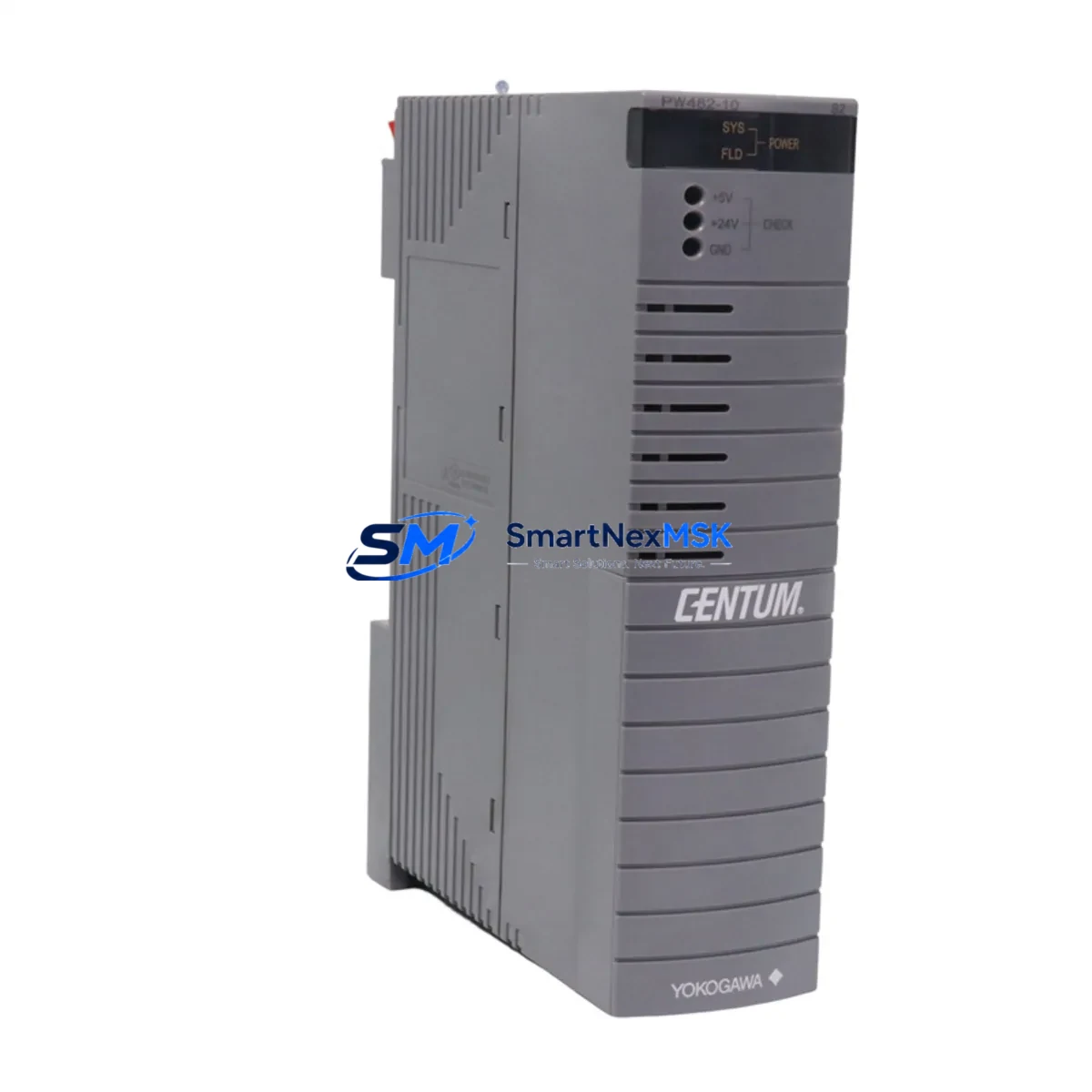

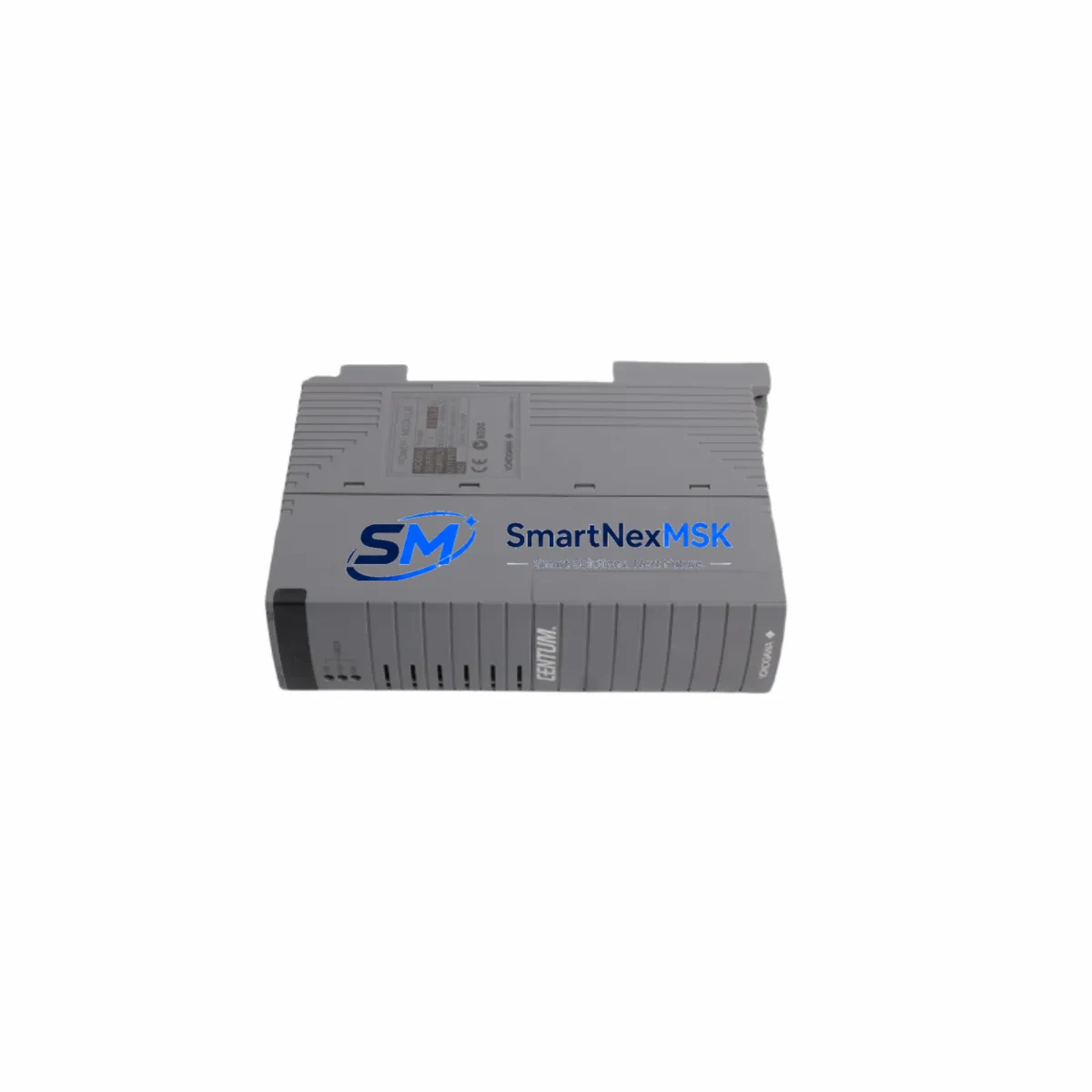

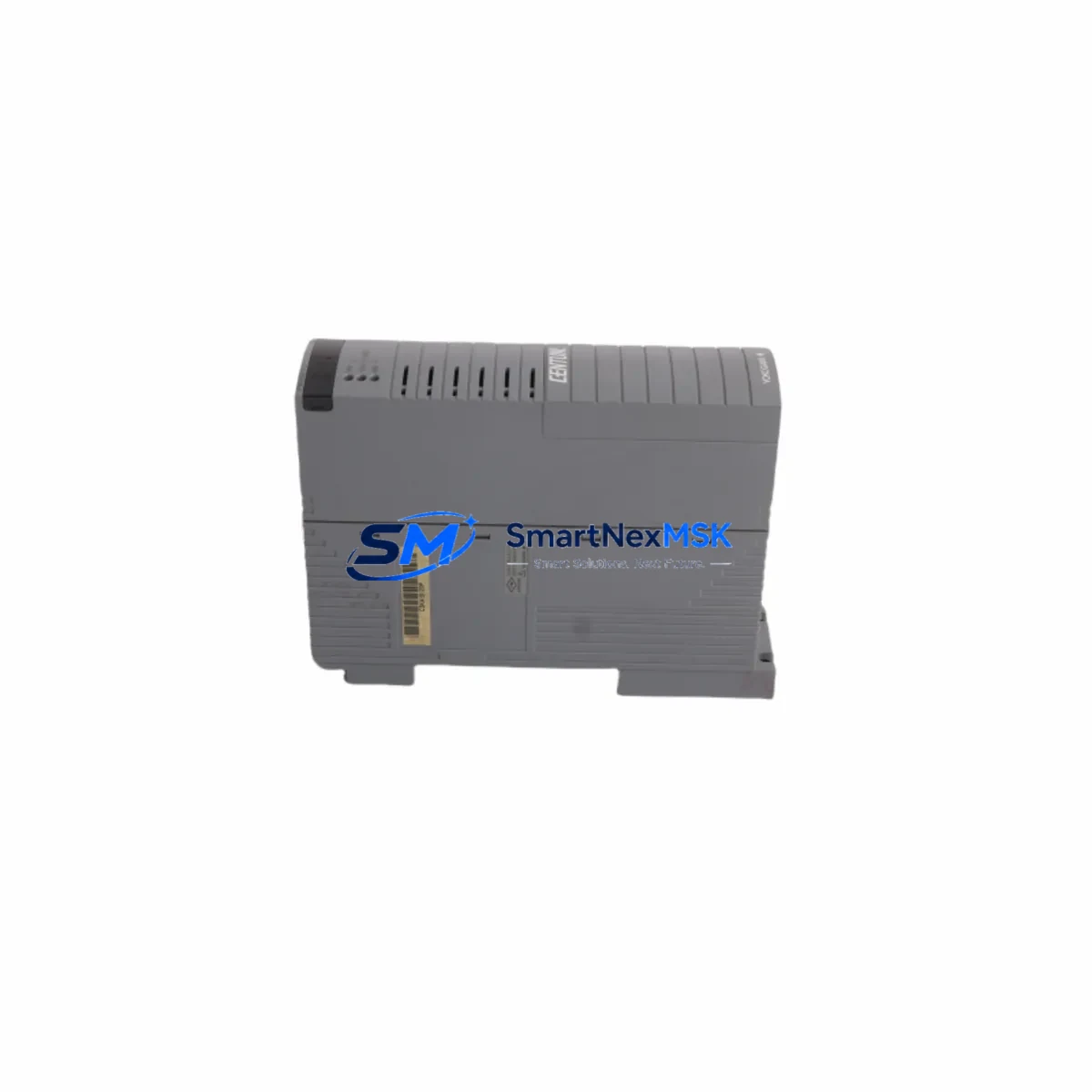

YOKOGAWA PW482-10 S2 Retrofit-Ready DCS Power Supply

YOKOGAWA PW482-10 S2 Retrofit-Ready DCS Power Supply for CENTUM VP & CS 3000 Control Systems

The YOKOGAWA PW482-10 S2 is a proven retrofit-ready power supply module engineered for seamless integration into CENTUM VP and CS 3000 distributed control system architectures. As aging CS 3000 installations approach end-of-support milestones and plant operators seek to extend operational life without full system replacement, the PW482-10 S2 delivers a cost-effective, drop-in upgrade path that preserves existing wiring infrastructure, backplane connections, and control logic — minimizing engineering rework and unplanned downtime.

This module is purpose-built for industrial environments where power supply reliability is non-negotiable. It provides stable DC output to field I/O modules, communication cards, and controller nodes within the CENTUM VP cabinet architecture. Engineers replacing legacy power supply units in CS 3000 racks will find the PW482-10 S2 dimensionally and electrically compatible with standard YOKOGAWA field control station (FCS) enclosures, requiring no modification to existing terminal blocks or bus connectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the PW482-10 S2 into an operating plant begins well before the physical swap. Engineers should start by auditing the existing power budget across the FCS cabinet — accounting for all installed I/O modules such as AAI141-S, AAI543-H, and AAB841 analog I/O cards, as well as digital I/O modules like ADV151-P and ADV551-P that draw regulated DC power from the supply bus. Overloading a replacement power supply due to undocumented I/O expansion is one of the most common causes of post-retrofit instability.

The backplane and rack assembly must be inspected for corrosion, loose bus connectors, and mechanical wear before the new module is seated. In CS 3000 installations that have been in service for over a decade, the AFV10D or AFV30D field control station chassis may show connector fatigue that can cause intermittent power faults even with a new supply module installed. Addressing rack integrity before module replacement prevents misdiagnosis of the new unit.

Communication continuity is equally critical. Plants running Vnet/IP topology should verify that the ACM12 or ACM22 communication modules remain powered and synchronized during the supply changeover window. In redundant power configurations, the standby supply should be confirmed healthy before the primary is removed. For sites using the CENTUM VP HIS (Human Interface Station) with active process graphics, operators should coordinate with the control room to suppress nuisance alarms during the brief power transition and confirm that HMI tag bindings remain intact after the FCS restarts.

Where the retrofit involves migrating from a CS 3000 platform toward CENTUM VP R6, the PW482-10 S2 supports the intermediate hardware layer, allowing I/O modules and field wiring to remain unchanged while the controller and engineering software are upgraded. This phased approach — retaining proven field hardware while modernizing the control layer — is the most cost-effective migration strategy for continuous-process industries where full shutdowns are prohibitively expensive.

Programming compatibility should be validated using the CENTUM VP Engineering Environment. Function block diagrams (FBDs) and sequence control charts (SCCs) migrated from CS 3000 Builder must be re-compiled and downloaded to the updated FCS. Verify that all module addresses, I/O channel assignments, and alarm setpoints are correctly mapped before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing mean time to restore (MTTR) during a power supply retrofit requires a structured pre-outage checklist. Before isolating the affected FCS, export a full backup of the control database from the CENTUM VP ENG station and store it on an offline medium. This protects against data loss if the FCS fails to restart cleanly after the module swap.

Where process conditions permit, switch critical control loops to manual mode at the HIS before powering down the FCS. Document the current output values of all PID controllers and cascade loops so operators can maintain process stability manually during the changeover window. For loops that cannot tolerate manual operation — such as safety-instrumented functions interfaced via the ProSafe-RS safety controller — coordinate with the safety system engineer to confirm that the SIS remains in a safe state throughout the procedure.

Physical replacement of the PW482-10 S2 typically takes under 15 minutes for a trained technician familiar with YOKOGAWA FCS hardware. The majority of retrofit time is consumed by pre-work (backup, loop transfer to manual, alarm suppression) and post-work (FCS restart, I/O verification, loop return to automatic, alarm reinstatement). A well-prepared team can complete the full procedure — including functional verification of all I/O channels and communication links — within a two-hour maintenance window.

After the FCS restarts, confirm that all I/O modules are recognized by the controller, that Vnet/IP communication links are re-established, and that the CENTUM VP HIS displays correct process values before returning loops to automatic. Log the completed retrofit in the plant maintenance management system (CMMS) and update the as-built documentation to reflect the new module serial number and installation date.

Retrofit Support FAQ

Q1: Is the PW482-10 S2 a direct replacement for the original CS 3000 power supply without any wiring changes?
In the vast majority of CS 3000 installations, yes. The PW482-10 S2 is designed to be dimensionally and electrically compatible with standard YOKOGAWA FCS power supply slots. However, engineers should verify the output voltage specification and connector type against the unit being replaced, as minor hardware revisions across CS 3000 generations may affect compatibility. Our technical team can assist with cross-referencing your existing part number before shipment.

Q2: What commissioning steps are required after installing the PW482-10 S2?
After physical installation, power up the FCS and confirm that the module is recognized in the CENTUM VP Engineering Environment. Verify that all downstream I/O modules — including analog input, analog output, and digital I/O cards — are reporting correctly. Check Vnet/IP communication status and confirm that the HIS is receiving live process data. Run a channel-by-channel I/O verification against the pre-outage baseline before returning any loops to automatic control.

Q3: Does the unit ship pre-tested, and what does the 12-month warranty cover?
Yes. Every PW482-10 S2 unit undergoes functional testing prior to shipment, including output voltage verification and load testing. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported directly through our sales team at sales@smartnexmsk.com.

Q4: Can this module be used in a CENTUM VP R6 system, or is it limited to CS 3000?
The PW482-10 S2 is compatible with both CS 3000 and CENTUM VP hardware generations, making it particularly valuable in phased migration projects where the control software is being upgraded to CENTUM VP R6 while existing field hardware and I/O infrastructure are retained. Confirm rack and backplane compatibility with your specific CENTUM VP FCS model before ordering.
