Yokogawa S9344FA Safety-Enhanced ESB Bus Repeater Module

Yokogawa S9344FA Safety-Enhanced ESB Bus Repeater Module: Reliable Control in Harsh Industrial Sites

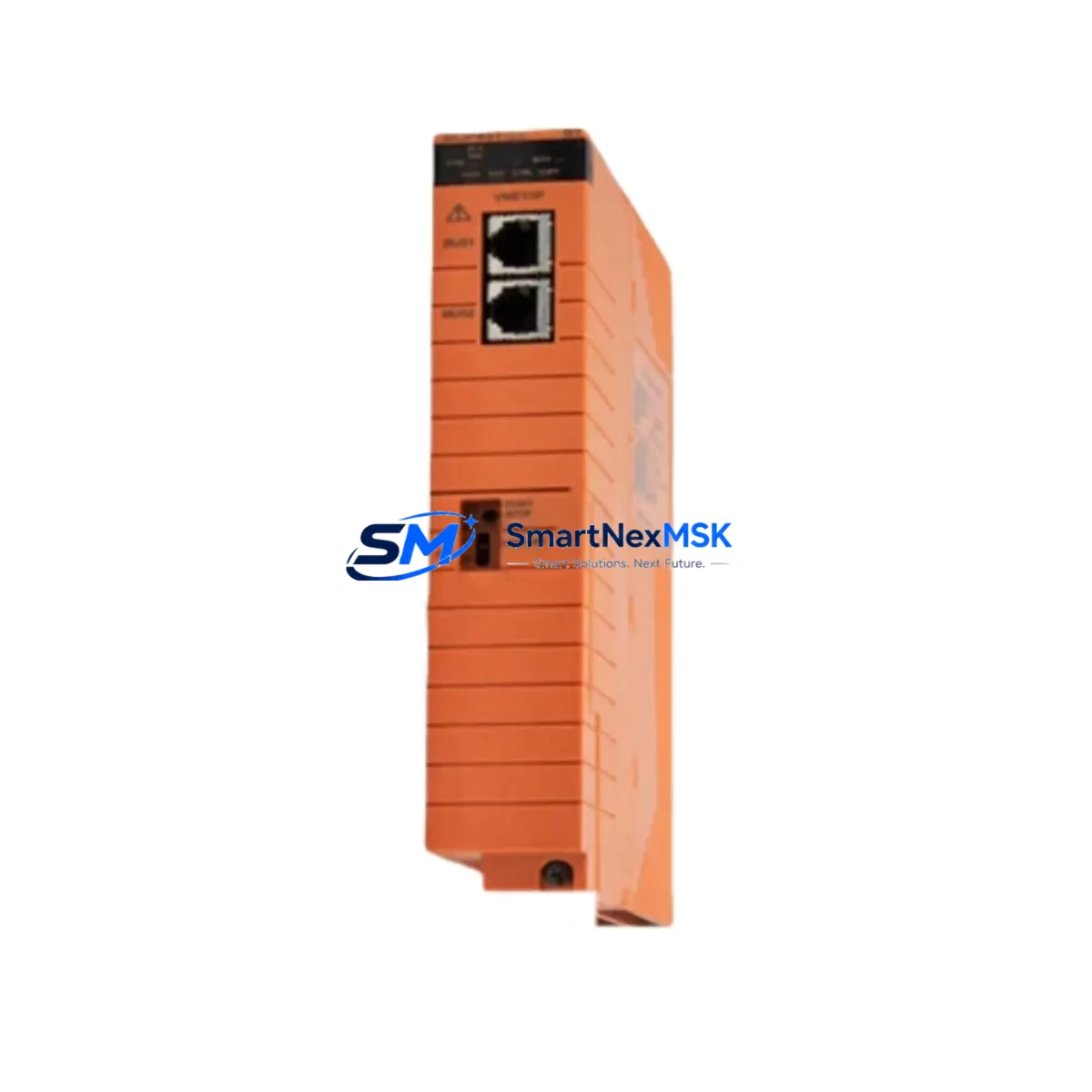

The Yokogawa S9344FA is a ruggedized ESB (Extended Serial Backplane) Bus Repeater Slave Module engineered for the CENTUM CS3000 Distributed Control System platform. Designed to operate reliably in high-noise, high-load, and continuous-production industrial environments, the S9344FA extends and regenerates ESB bus signals across field cabinets, ensuring uninterrupted communication between field control stations (FCS) and I/O modules even under severe electromagnetic interference, power fluctuations, and thermal stress.

In critical process industries — including petrochemical refining, power generation, metallurgical smelting, water treatment, and port logistics — control communication integrity is a non-negotiable safety requirement. The S9344FA addresses this directly by providing robust bus signal regeneration that prevents signal attenuation, data corruption, and communication timeouts that could otherwise trigger spurious shutdowns or, worse, mask genuine process faults. Its hardened design supports continuous 24/7 operation in control cabinets exposed to vibration, humidity, and wide temperature swings.

When deployed alongside the Yokogawa S9344FB ESB Bus Repeater Master Module, the S9344FA forms a redundant bus extension pair that dramatically reduces the risk of single-point communication failure in large-scale DCS architectures. This master-slave pairing is a proven strategy in safety instrumented systems (SIS) and high-availability process control loops where any communication dropout can cascade into costly production interruptions or safety incidents.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust CENTUM CS3000 control cabinet deployment requires more than a single reliable module — it demands a coordinated protection architecture across communication, power, and I/O layers. The S9344FA plays a central role in this strategy by maintaining ESB bus integrity, but its effectiveness is maximized when paired with complementary components in the same control system.

On the power supply side, the Yokogawa PW481 and PW482 dual-redundant power supply modules ensure that the FCS and its associated bus infrastructure never experience a power-induced communication dropout. These units provide hot-standby redundancy, meaning a power module failure causes zero interruption to the S9344FA’s bus repeater function. For additional surge protection at the cabinet entry point, industrial-grade surge protective devices (SPDs) rated for 24VDC control circuits are recommended to shield the backplane from external transient events caused by nearby motor starts, arc flash incidents, or lightning-induced surges on field cable runs.

At the I/O layer, Yokogawa AAI141-S00 analog input modules and AAI841-S00 analog output modules rely directly on the ESB bus communication maintained by the S9344FA. Any signal drift or bus timeout at the repeater level would immediately affect the accuracy and responsiveness of these I/O channels, potentially causing false readings in flow, pressure, or temperature control loops. Similarly, ADV151-P00 digital input modules used in safety interlock circuits depend on uninterrupted bus communication to relay emergency shutdown (ESD) signals without latency.

For communication architecture integrity, the Yokogawa CP451-10 Vnet/IP communication processor connects the FCS to the plant-wide control network. Maintaining clean ESB bus communication via the S9344FA ensures that the CP451-10 receives accurate, timely data from all field nodes, preventing communication queue overflows or watchdog timeouts that could force an FCS restart. In multi-cabinet installations, the S9344FB ESB Bus Repeater Master Module works in tandem with the S9344FA to create a fully extended, signal-conditioned bus backbone across physically separated control enclosures.

For safety loop integrity monitoring, integrating the Yokogawa YFGW410 Field Wireless Management Station alongside wired ESB infrastructure provides an additional layer of process visibility, enabling operators to detect field device anomalies before they escalate into control system faults. This layered approach — combining reliable bus communication, redundant power, protected I/O, and network-level monitoring — forms the foundation of a resilient industrial control cabinet strategy.

Critical Industrial Safety Applications

The Yokogawa S9344FA is deployed across a wide range of demanding process industries where control communication reliability directly impacts operational safety and regulatory compliance.

In petrochemical and refinery operations, the S9344FA supports continuous monitoring and control of distillation columns, reactor temperature loops, and pressure safety valves. ESB bus integrity is critical in these environments because a communication fault in a high-pressure control loop can delay the activation of safety instrumented functions (SIFs), increasing the risk of overpressure events.

In thermal and hydroelectric power generation, the module maintains reliable communication between turbine control stations and remote I/O panels located in high-vibration, high-temperature generator halls. The S9344FA’s ruggedized design ensures that bus signal quality is maintained even when cabinet temperatures approach the upper operating limit during peak load periods.

In metallurgical and smelting facilities, where strong electromagnetic fields from arc furnaces and induction heaters are common, the S9344FA’s EMI-hardened bus repeater function prevents signal corruption that could cause erratic behavior in temperature and flow control loops managing molten metal processes.

In municipal and industrial water treatment plants, the module supports SCADA-integrated DCS architectures controlling dosing pumps, filtration systems, and effluent monitoring stations. Reliable ESB bus communication ensures that chemical dosing control loops respond accurately to sensor inputs, preventing under- or over-dosing events that could compromise water quality compliance.

In mining and mineral processing, the S9344FA is used in conveyor control systems, crusher automation, and flotation cell management, where continuous operation is essential and unplanned control system downtime results in significant production loss and potential equipment damage.

Safety and Quality FAQ

Q1: What warranty does the S9344FA carry?
All S9344FA units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Yokogawa CENTUM CS3000 system specifications. Warranty replacement or repair is handled directly, with priority turnaround to minimize your system downtime.

Q2: How is the S9344FA tested before shipment?
Every unit undergoes a full functional outgoing inspection prior to dispatch. This includes bus communication verification, power-on self-test confirmation, and physical inspection for connector integrity and board condition. Units that do not pass inspection are not shipped. A test report is available upon request for critical safety applications.

Q3: Is the S9344FA compatible with both CENTUM CS3000 and CS1000 systems?
The S9344FA is primarily designed for the CENTUM CS3000 platform. Compatibility with CS1000 configurations depends on the specific FCS model and ESB nest revision in your installation. We recommend providing your FCS model number and system revision when ordering to allow our technical team to confirm compatibility before shipment.

Q4: Can long-term supply be guaranteed for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated inventory of legacy Yokogawa CENTUM CS3000 modules, including the S9344FA, to support long-term spare parts programs for plants operating extended system lifecycles. We can accommodate blanket orders, scheduled releases, and emergency expedite requests. Contact our sales team to discuss a supply agreement tailored to your maintenance schedule.
