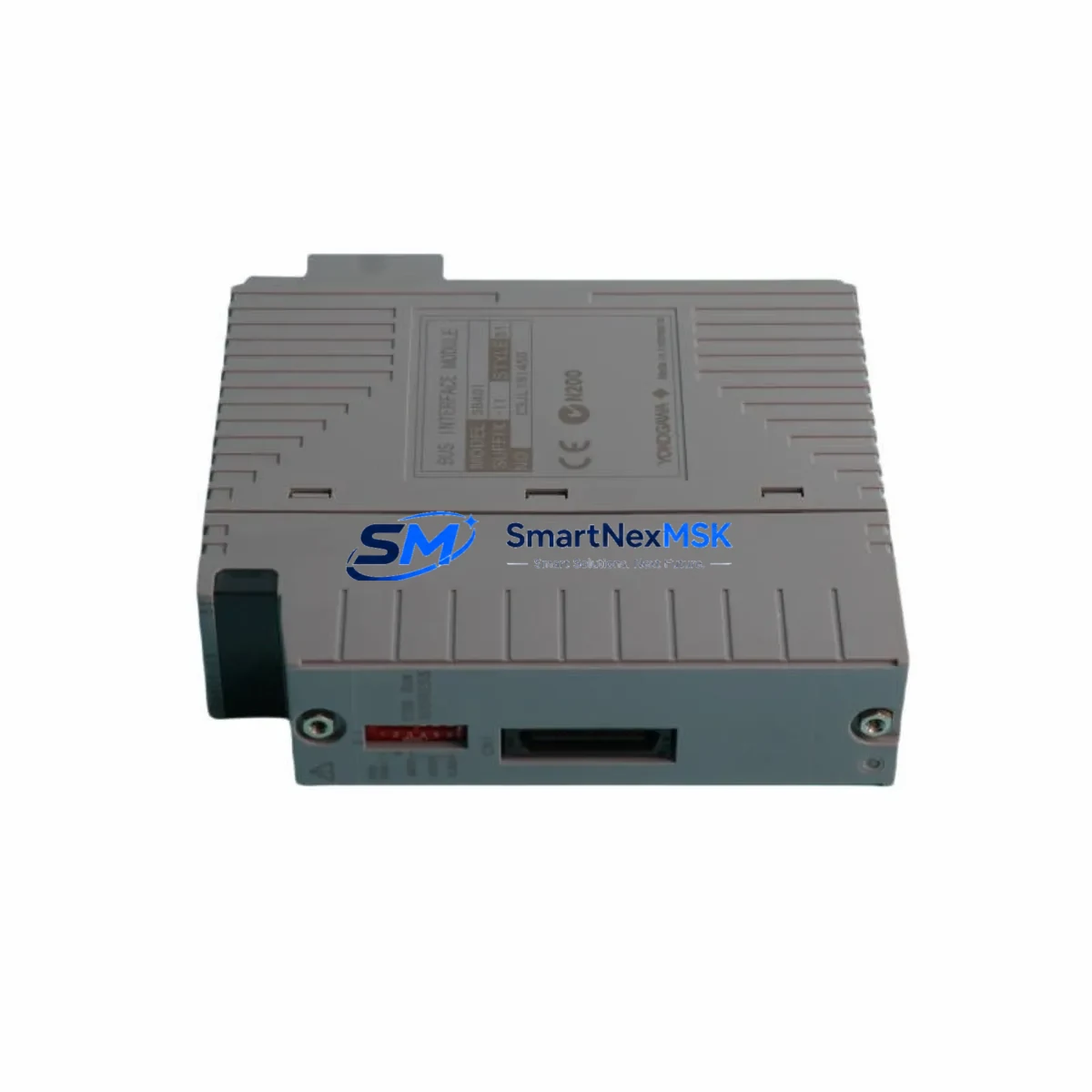

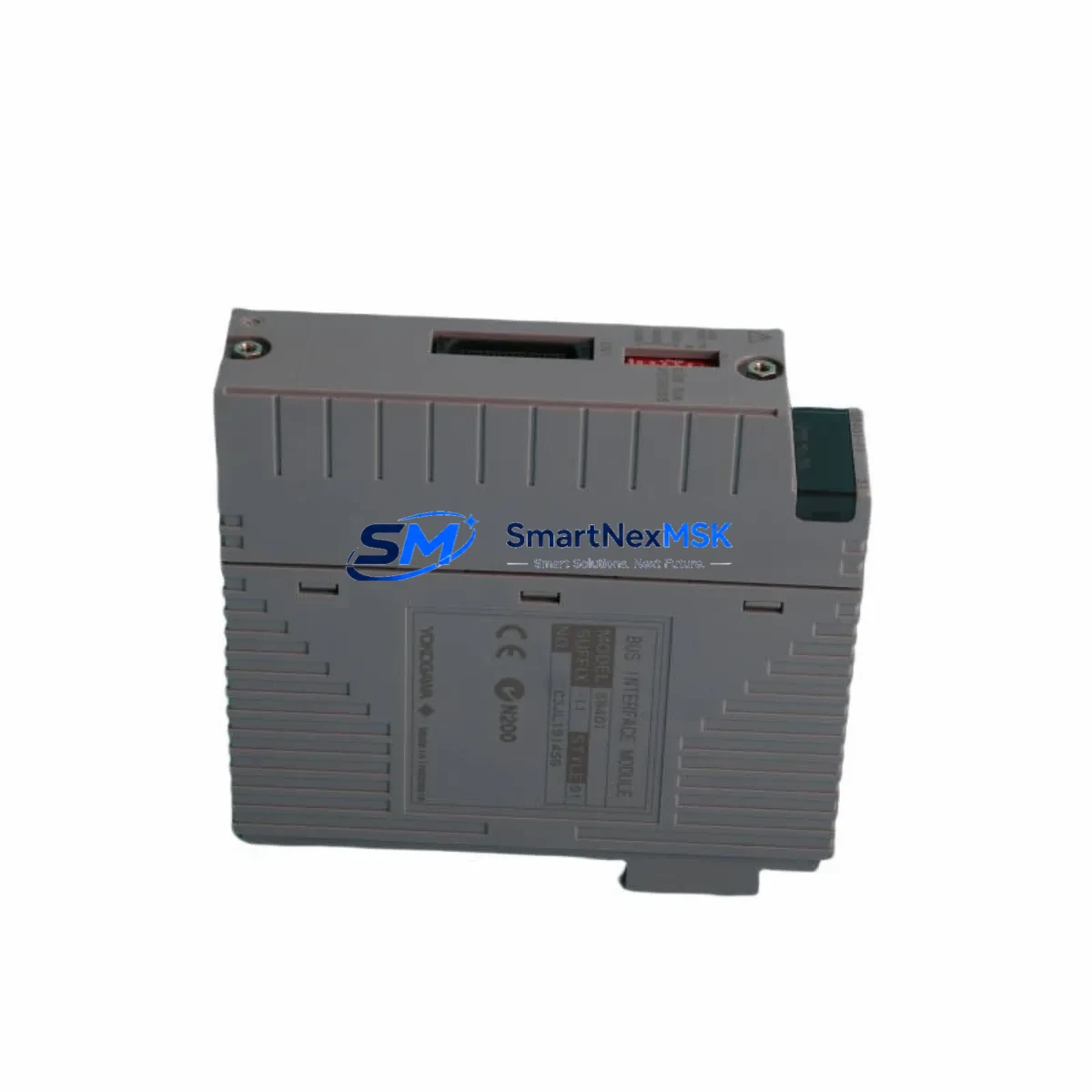

Yokogawa SB401-51-S1 Retrofit-Ready Bus Interface for CENTUM VP Control Systems
The Yokogawa SB401-51-S1 is a Bus Interface Module engineered for seamless integration into CENTUM VP distributed control system architectures. As legacy CENTUM CS 3000 and earlier CENTUM VP installations approach end-of-life, the SB401-51-S1 has become a critical component in retrofit and upgrade projects across petrochemical, power generation, pharmaceutical, and pulp-and-paper industries. Whether you are replacing a failed unit on an active production line or executing a planned control system modernization, the SB401-51-S1 provides the electrical and mechanical compatibility required to minimize engineering risk and reduce unplanned downtime.
This module serves as the communication bridge between the field control station (FCS) processor and the V-net/R bus backplane, enabling reliable data exchange across the control network. Its compact form factor and standardized terminal layout allow direct substitution in existing cabinet installations without requiring backplane modifications or additional wiring adapters. Engineers performing cabinet upgrades alongside the AFV10D or AFV30D field control units will find the SB401-51-S1 fully compatible with the standard Yokogawa nest and power supply architecture.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Series | CENTUM VP, CENTUM CS 3000 (with engineering review) |
| Module Type | Bus Interface Module (V-net/R) |
| Installation | Standard Yokogawa nest / backplane slot — no mechanical modification required |
| Communication Compatibility | V-net/R bus protocol; compatible with ESB bus architecture in CENTUM VP FCS |
| Terminal Wiring | Wiring-compatible with existing SB401 series field wiring; verify terminal block torque spec before reconnection |
| Replacement Recommendation | Direct drop-in for failed or end-of-life SB401-51-S1 units; confirm firmware revision of paired processor module |
| Commissioning Notes | Module address must be re-confirmed in CENTUM VP Engineering Environment (ENG) after installation; perform loop check before returning to AUTO mode |
| Warranty | 12 months from date of shipment; covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the SB401-51-S1 into an operating CENTUM VP system requires careful pre-engineering to avoid configuration conflicts and signal interruptions. Before removing the existing module, engineers should export the current FCS configuration from the CENTUM VP Engineering Environment and document all I/O assignments, module addresses, and communication link parameters. This baseline snapshot is essential for restoring the system to its pre-retrofit state if unexpected compatibility issues arise during commissioning.
Power supply capacity is the first constraint to verify. The Yokogawa PW481 or PW482 power supply modules installed in the field control station must have sufficient headroom to support the SB401-51-S1 alongside co-installed modules such as the AAI141-S00 analog input module, the AAI841-S00 analog output module, and any AAT141-S00 temperature input modules sharing the same nest. Overloading the nest power budget is a common cause of intermittent communication faults that are difficult to diagnose after the retrofit is complete.
Backplane slot assignment must be confirmed against the existing nest configuration. In CENTUM VP installations using the ANB10D or ANB11D node interface units, the physical slot position of the SB401-51-S1 determines its logical address on the V-net/R bus. Changing the slot position without updating the FCS configuration in the Engineering Environment will result in a module address mismatch and prevent the FCS from recognizing the replacement unit. Always verify the slot address in the hardware configuration tool before powering up the new module.
For sites migrating from CENTUM CS 3000 to CENTUM VP, the SB401-51-S1 retrofit is often performed in parallel with replacing the SCP401 or SCP451 sequence control processors and updating the HMI graphics in CENTUM VP HIS (Human Interface Station). During this transition, the existing Vnet communication cables and junction boxes can typically be reused, reducing cabling costs and installation time. However, the communication link parameters — including station address, baud rate, and redundancy settings — must be re-entered in the new FCS configuration to match the physical network topology.
Sites that include Yokogawa STARDOM FCN/FCJ controllers or third-party Modbus RTU devices connected through the ALR111 serial communication module should verify that the bus interface changes do not affect the polling cycle of these peripheral devices. Communication latency introduced by a misconfigured SB401-51-S1 can cascade into timeout errors on connected SCADA systems and historian servers, triggering nuisance alarms that complicate the commissioning process.
Downtime Control During System Migration
Minimizing production downtime during an SB401-51-S1 replacement requires a structured hot-swap or planned-outage strategy depending on the redundancy configuration of the target FCS. In fully redundant CENTUM VP field control stations, the bus interface function is duplicated across primary and secondary modules, allowing the failed unit to be replaced while the redundant path maintains control continuity. Engineers should confirm the redundancy status in the CENTUM VP System View before initiating the swap to ensure the secondary path is healthy and actively synchronized.
For non-redundant FCS configurations, a planned outage window must be scheduled with the operations team. The recommended sequence is: place all control loops in manual mode at the HIS operator station, inhibit all interlock and sequence logic in the SFC (Sequential Function Chart) editor, isolate the affected nest from the V-net/R bus using the engineering tool, replace the SB401-51-S1, restore the bus connection, verify module recognition in System View, and then return loops to AUTO mode one section at a time. This staged return-to-service approach protects the original program logic stored in the FCS processor and prevents spurious output changes during the transition.
Pre-shipment functional testing of the SB401-51-S1 is performed at our Xiamen facility before dispatch. Each unit undergoes power-on self-test verification, bus communication handshake testing, and visual inspection of connector pins and PCB condition. A test report is available upon request for projects requiring documented incoming inspection records. Units are shipped in anti-static packaging with desiccant to protect against humidity damage during international transit.
Retrofit Support FAQ
Q: Is the SB401-51-S1 a direct replacement for all SB401 series variants?
A: The SB401-51-S1 is compatible with standard CENTUM VP nest configurations using V-net/R bus architecture. Compatibility with earlier SB401-51 or SB401-11 variants depends on the firmware revision of the paired FCS processor. We recommend providing your FCS model number and current firmware version so our technical team can confirm compatibility before shipment.
Q: What wiring changes are required when installing the SB401-51-S1?
A: In most CENTUM VP installations, no wiring changes are required. The SB401-51-S1 uses the same backplane connector and terminal block layout as the original module. However, engineers should inspect existing terminal block screws for corrosion and re-torque all connections to the specified value (typically 0.5–0.6 N·m for M3 screws) before powering up the replacement unit.
Q: How do I re-configure the module address after installation?
A: After physical installation, open the CENTUM VP Engineering Environment, navigate to the hardware configuration for the target FCS, and verify that the module address assigned to the SB401-51-S1 slot matches the pre-retrofit configuration. Download the configuration to the FCS and perform a communication check in System View to confirm the module is recognized. Do not return loops to AUTO mode until the module status shows normal in System View.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage, reverse polarity, or physical impact. Warranty claims are processed through our Xiamen office. Replacement units are dispatched within 3 business days of claim approval, and a pre-paid return label is provided for the defective unit.
