YOKOGAWA SDV531-S23 S1 Retrofit-Ready DI Module for CENTUM VP

YOKOGAWA SDV531-S23 S1 Retrofit-Ready DI Module for CENTUM VP Control Systems

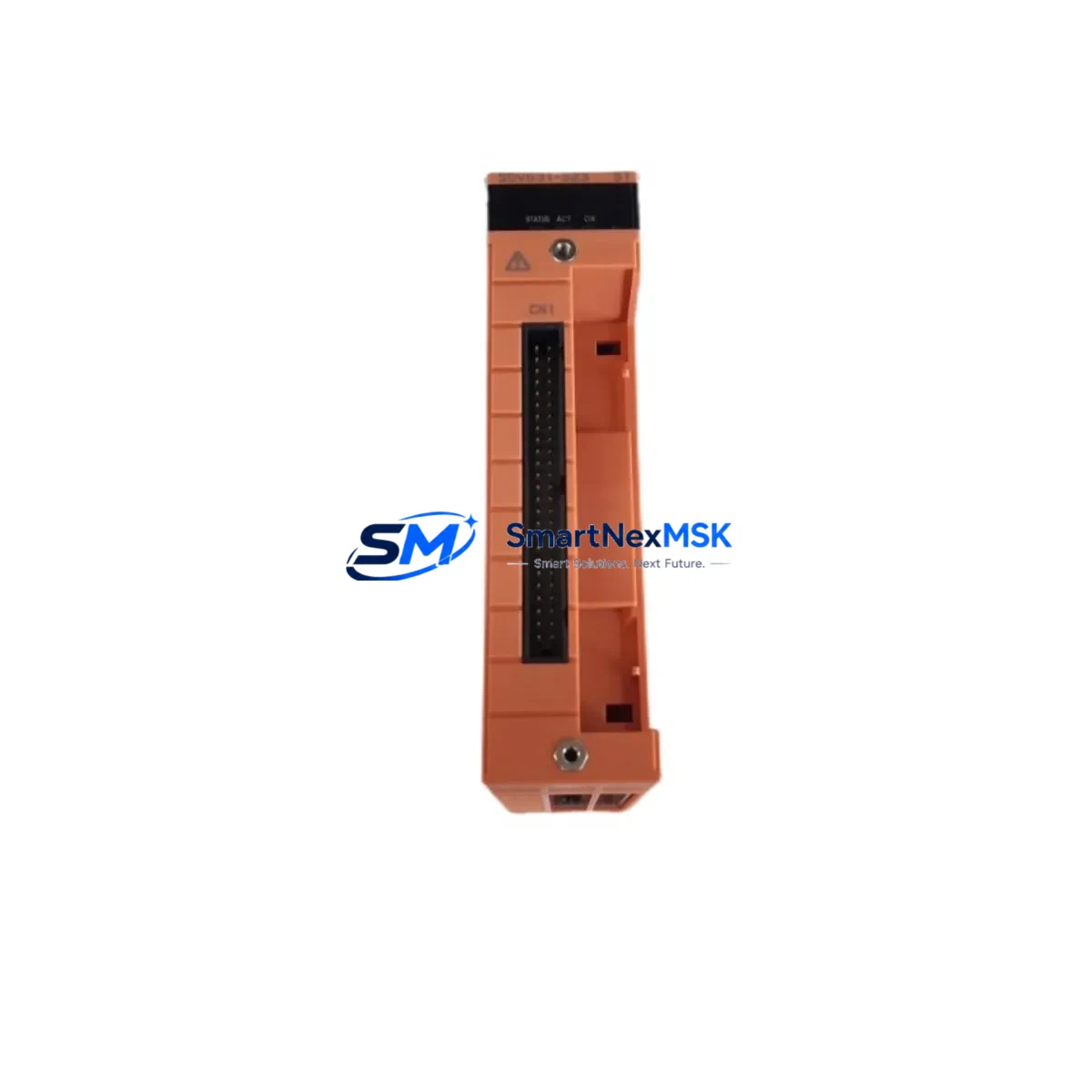

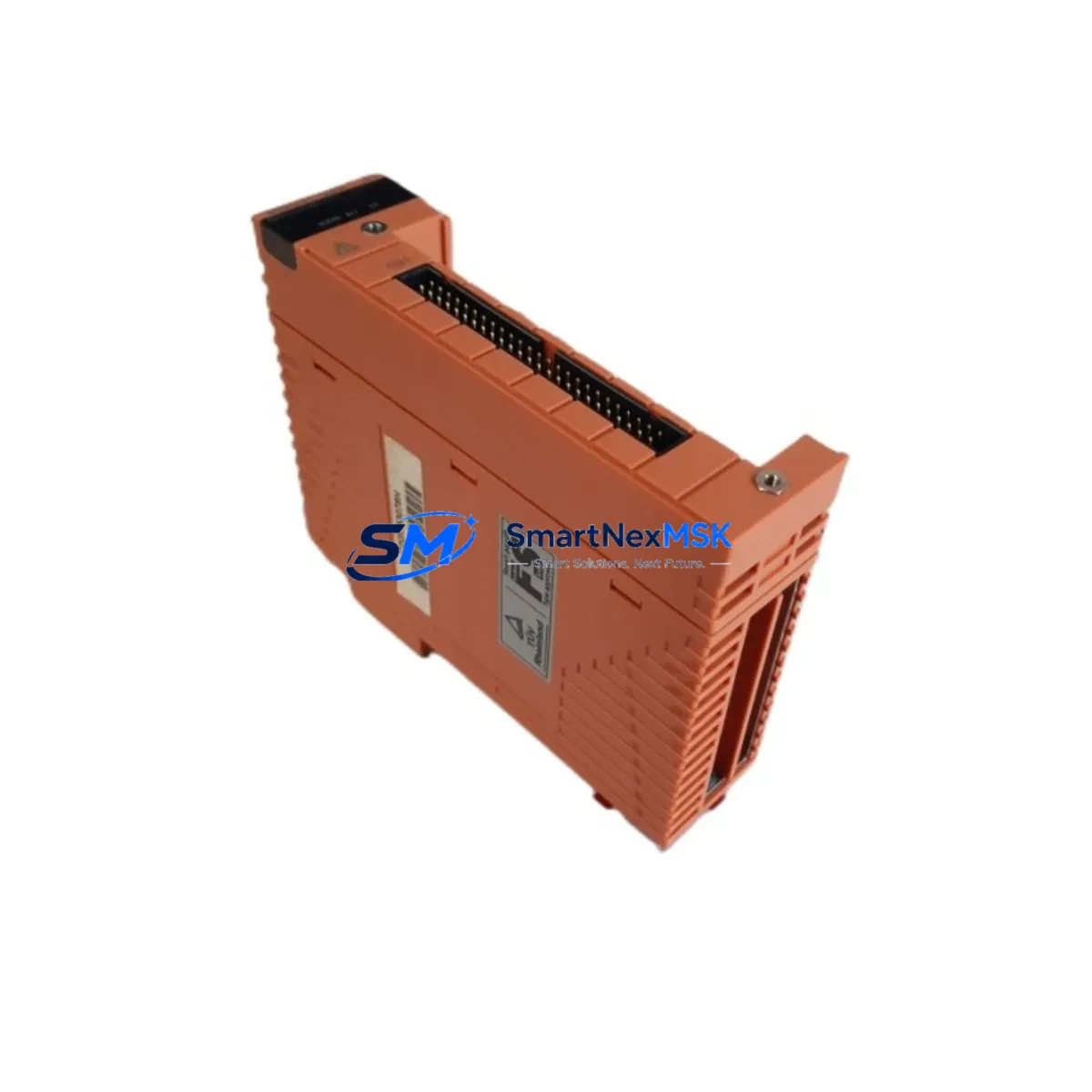

The YOKOGAWA SDV531-S23 S1 is a 32-channel digital input (DI) module engineered for the CENTUM VP distributed control system platform. As legacy CENTUM CS 3000 and early CENTUM VP installations reach end-of-support milestones, the SDV531-S23 S1 has become a critical retrofit component for engineers managing aging control cabinets, expanding I/O capacity, or executing phased system upgrades without full DCS replacement. SMARTNEXMSK maintains verified stock of this module, fully tested and backed by a 12-month warranty, ready for immediate dispatch to minimize unplanned downtime.

Whether you are replacing a failed card in a live production environment, restoring a mothballed unit, or upgrading a control loop from an older CENTUM CS 3000 architecture, the SDV531-S23 S1 delivers the signal integrity and backplane compatibility required for seamless integration into existing field wiring and HMI configurations. Each unit undergoes pre-shipment functional testing to confirm channel-level response, terminal continuity, and communication handshake with the FCU (Field Control Unit) before leaving our facility.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the SDV531-S23 S1 begins well before the module arrives on site. Engineers should audit the existing I/O nest configuration, confirming that the target slot is occupied by a compatible module type and that the ANB10D or ANB10S nest has sufficient available slots. If the control cabinet is running at full I/O density, consider whether an additional nest expansion is required before the SDV531-S23 S1 can be installed without displacing an active module.

Power budget verification is a non-negotiable step. The PW481 or PW482 power supply module feeding the nest must have sufficient headroom to support the additional 32-channel DI load. Overloaded power modules are a common root cause of intermittent faults following I/O expansion, and this check should be completed during the planning phase rather than during the maintenance window.

Terminal block wiring is another critical checkpoint. The SDV531-S23 S1 uses the S23 terminal block variant, and field cables must be mapped accordingly. If the existing installation used a different terminal suffix, a terminal block adapter or rewiring may be required. Document all field signal assignments before disconnecting any wiring, and cross-reference against the CENTUM VP loop diagrams stored in the Engineering Environment (ENG) project database.

For sites migrating from CENTUM CS 3000 to CENTUM VP, the SDV531-S23 S1 fits within the broader migration strategy that typically also involves replacing the FCU (Field Control Unit), updating Vnet/IP communication cards, and reconfiguring HMI tag assignments in CENTUM VP HIS (Human Interface Station). The DI module itself does not require firmware flashing, but the IOM address must be reassigned in the CENTUM VP Builder after installation. Communication links between the FCU and the ESB (Engineering Station Bus) should be verified using the built-in network diagnostic tools before returning the loop to automatic control.

Sites that also require analog input expansion alongside digital input upgrades often pair the SDV531-S23 S1 with the SAV144 or SAV148 analog input modules, which share the same nest and backplane architecture. For digital output requirements in the same control cabinet, the SDV541 series digital output modules are the natural complement. If the retrofit involves communication gateway upgrades — for example, migrating field devices from HART to FOUNDATION Fieldbus — the ALF111 Fieldbus communication module may also be part of the bill of materials. Programming cable access for offline configuration typically uses the KS1-USB or equivalent CENTUM VP engineering connection.

Downtime Control During System Migration

Minimizing production downtime during a DCS I/O retrofit requires a structured approach to change management. For the SDV531-S23 S1, the recommended practice is to pre-configure the replacement module’s IOM address and channel assignments in the CENTUM VP Engineering Environment offline, using a cloned copy of the live project database. This allows the engineering team to validate tag mappings, alarm setpoints, and interlock logic against the new module configuration before any physical work begins on the control cabinet.

During the maintenance window, the sequence should follow: isolate the affected field signals at the marshalling panel, remove the failed or legacy module from the nest, insert the SDV531-S23 S1, and download the pre-validated IOM configuration from the engineering station. Channel-by-channel verification using the CENTUM VP IOM diagnostic view confirms that all 32 digital inputs are reading correctly before the loop is returned to service. For critical interlock loops, a secondary verification against the field device — using a loop calibrator or signal simulator — is recommended before releasing the system to automatic control.

Where a hot-swap is required without a full maintenance window, CENTUM VP supports online IOM replacement for certain module types. Confirm with your CENTUM VP system documentation whether the SDV531-S23 S1 supports online replacement in your specific FCU revision, and ensure that the HMI operator screens on the HIS (Human Interface Station) display appropriate maintenance mode indicators during the swap to prevent false alarm responses from the control room team.

Maintaining a spare SDV531-S23 S1 in the site spare parts inventory is strongly recommended for aging CENTUM VP installations where this module is deployed across multiple nests. SMARTNEXMSK can supply multiple units from the same verified batch to ensure consistency across your spare parts program.

Retrofit Support FAQ

Q1: Is the SDV531-S23 S1 a direct drop-in replacement for other SDV531 variants?
The SDV531-S23 S1 is compatible with the SDV531 module family within the CENTUM VP platform. The S23 suffix designates the terminal block type — confirm that your existing field wiring and terminal block match the S23 configuration before installation. If the original module used a different terminal suffix, a terminal block change or adapter may be required. Contact our technical team with your existing module label for cross-reference confirmation.

Q2: What commissioning steps are required after installing the SDV531-S23 S1?
After physical installation, the IOM address must be assigned or confirmed in the CENTUM VP Engineering Environment. Download the IOM configuration to the FCU, then use the IOM diagnostic view to verify all 32 channels are reading correctly. For loops with interlock functions, perform a functional test of each interlock before returning to automatic mode. Document all commissioning steps in the site maintenance log.

Q3: How do I verify wiring compatibility before installation?
Review the CENTUM VP I/O module wiring diagram for the SDV531-S23 S1 and compare against your existing field terminal block layout. Confirm signal polarity, contact type (dry or wet), and cable gauge compatibility. If the existing installation used a different SDV531 terminal variant, consult the CENTUM VP hardware manual for terminal block cross-reference tables. SMARTNEXMSK can provide technical documentation support upon request.

Q4: What does the 12-month warranty cover?
All SDV531-S23 S1 units supplied by SMARTNEXMSK are covered by a 12-month warranty against functional failure under normal operating conditions. Each unit is tested prior to shipment to verify channel-level operation and backplane communication. The warranty covers repair or replacement of defective units. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications. Contact sales@smartnexmsk.com to initiate a warranty claim.
