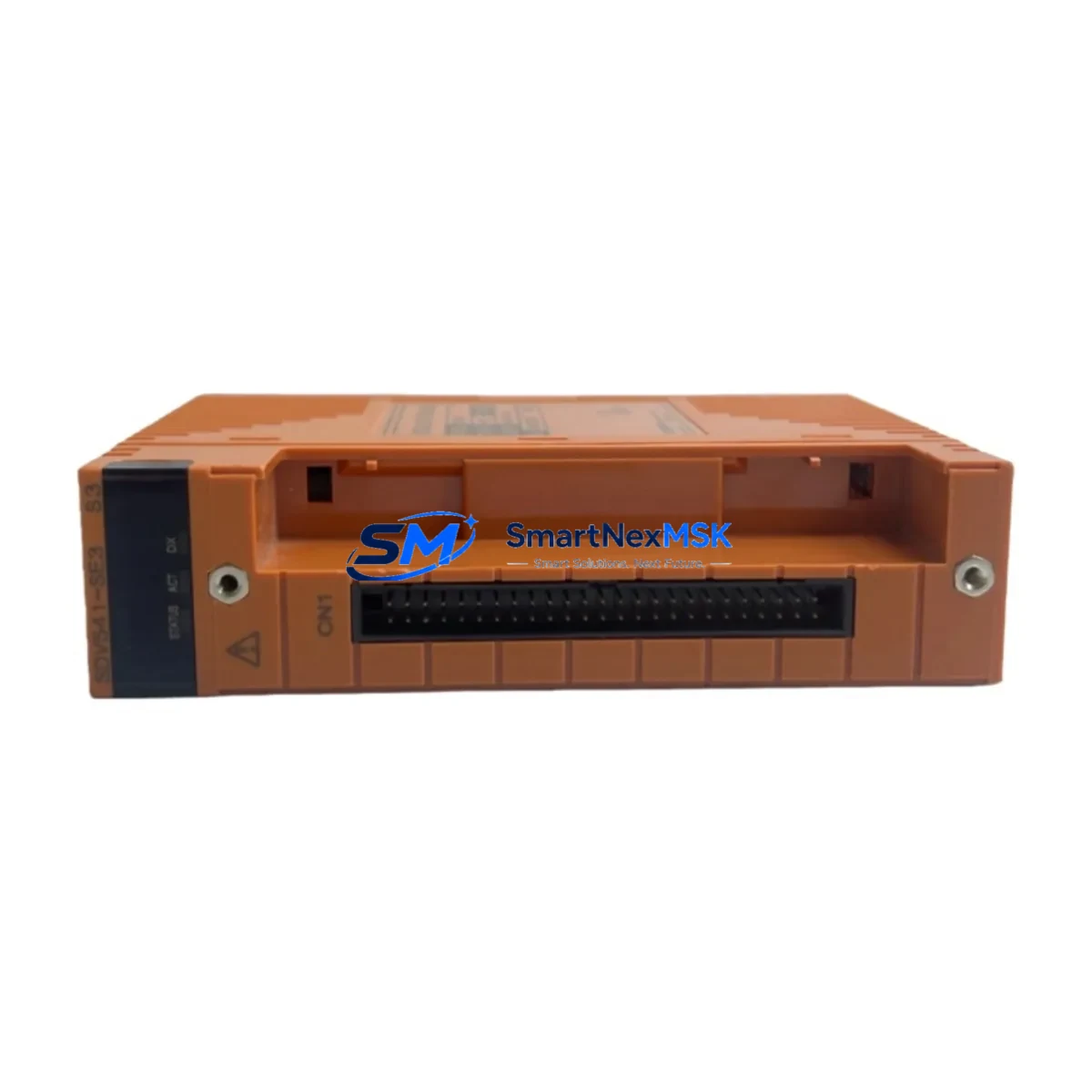

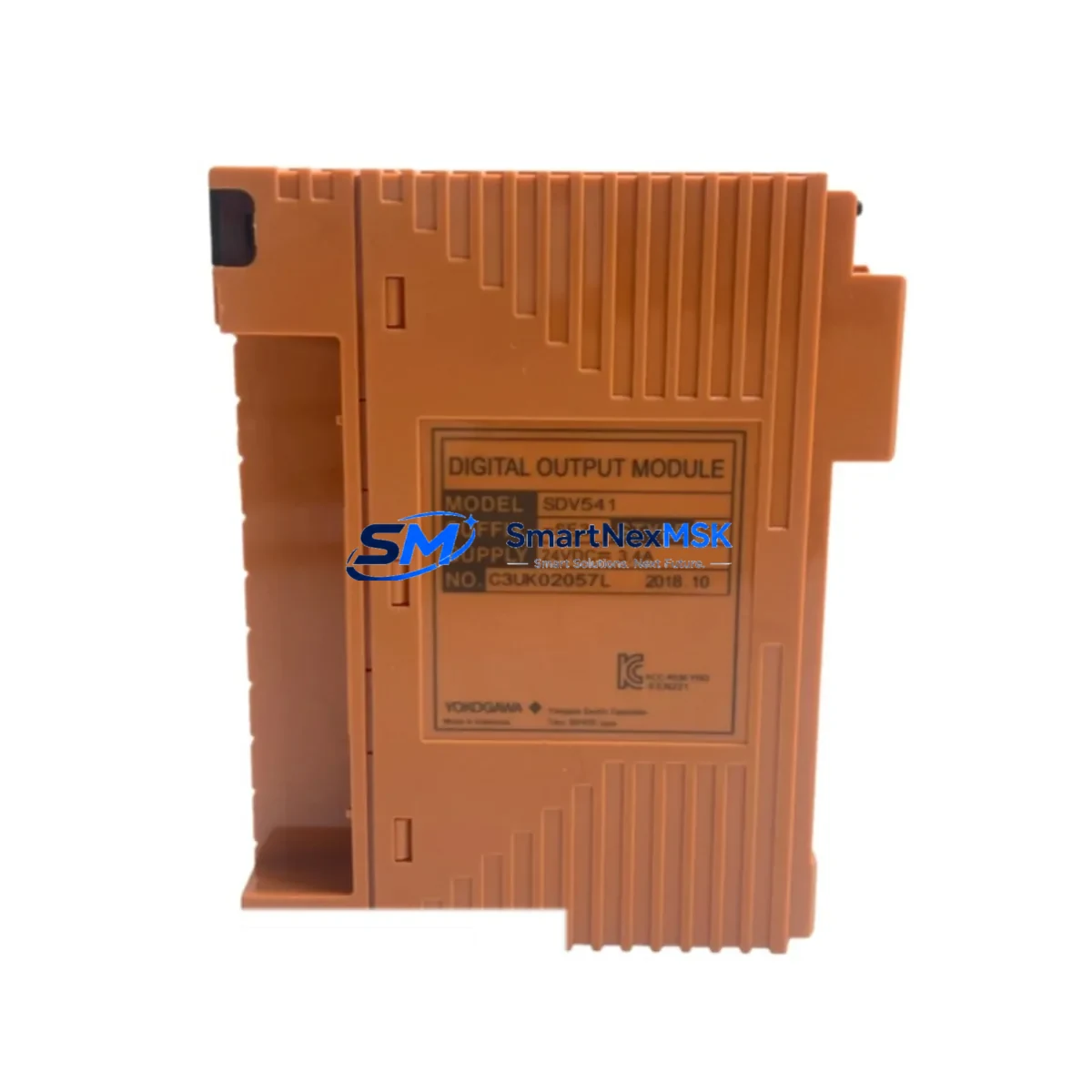

YOKOGAWA SDV541-SE3 Retrofit-Ready Digital Output Module for CENTUM VP Control Systems
The YOKOGAWA SDV541-SE3 is a 32-channel digital output module designed for the CENTUM VP distributed control system platform. As legacy CENTUM CS 3000 and early CENTUM VP installations reach end-of-life, the SDV541-SE3 has become one of the most sought-after retrofit components for engineers tasked with modernizing aging control cabinets without full system replacement. Whether you are replacing a failed module on an active production line, upgrading a discontinued spare, or migrating I/O capacity to a consolidated rack, the SDV541-SE3 delivers direct compatibility with existing CENTUM VP field control stations (FCS) and their associated I/O bus architecture.
This module slots directly into the YOKOGAWA Vnet/IP-based FCS node racks, maintaining full compatibility with the existing node unit (NU) and ESB bus wiring. Engineers performing a like-for-like swap from an older SDV541 variant will find that terminal block assignments, module addressing, and FCS builder configuration remain consistent, significantly reducing commissioning time and the risk of logic errors during cutover.
Upgrade Compatibility Table
| Parameter | SDV541-SE3 (This Module) | Notes / Retrofit Guidance |
|---|---|---|
| Module Type | 32-ch Digital Output (DO) | Direct replacement for SDV541 series variants |
| Compatible Platform | CENTUM VP FCS (FieldMate-compatible) | Also compatible with CENTUM CS 3000 migration paths |
| Rack / Backplane Interface | ESB Bus (Node Unit slot) | Verify NU slot availability before installation |
| Terminal Wiring | Screw-terminal field wiring unit (FWU) | Existing FWU harness reusable; confirm SDV541 FWU suffix |
| Output Signal | 24 VDC transistor output | Confirm field device sink/source compatibility |
| Module Address | Set via FCS Builder (IOM address) | Match original address to avoid FCS alarm on restart |
| Communication Protocol | Vnet/IP (internal ESB) | No additional protocol configuration required |
| HMI Compatibility | CENTUM VP HIS / FAST/TOOLS | No HMI tag remapping required for like-for-like swap |
| Power Consumption | Supplied via node power unit (NPU) | Verify NPU capacity before adding modules to existing rack |
| Warranty | 12-Month Warranty | Covers manufacturing defects; includes pre-shipment function test |
Retrofit Planning for Existing Automation Systems
Successful integration of the SDV541-SE3 into an existing CENTUM VP installation requires a structured pre-cutover checklist. Before pulling the old module, engineers should document the current IOM address assignment in FCS Builder and export the relevant function block (FB) definitions to confirm no address conflicts exist with adjacent I/O modules such as the SDV531 (16-ch DO) or SDV521 (8-ch DO) that may occupy neighboring slots in the same node unit.
Power budget verification is a critical step often overlooked during emergency replacements. The node power unit — typically an NPU-type module — must have sufficient headroom to support the SDV541-SE3’s load alongside other installed modules including analog input cards such as the AAI141-S or AAI543-S, and any communication interface modules like the ALR111 or ACM12. If the existing NPU is already near capacity, a supplemental power supply or rack expansion via an additional ESB node may be required before the new DO module can be safely commissioned.
For sites migrating from CENTUM CS 3000 to CENTUM VP, the SDV541-SE3 is frequently specified as part of a phased I/O migration strategy. In this scenario, the existing field wiring units (FWU) are often retained and reconnected to the new CENTUM VP node rack, while the control logic is re-imported using the CENTUM VP engineering environment. Engineers should verify that the FWU suffix (e.g., TER141-S) matches the SDV541-SE3’s terminal specification to avoid rewiring the field cable marshalling panel.
Communication link integrity should be confirmed at the Vnet/IP switch level. If the FCS node being upgraded shares a Vnet/IP segment with other field control stations, a brief network interruption during module hot-swap may trigger redundancy switchover on adjacent FCS nodes. Coordinating with the control room operator and temporarily suppressing non-critical alarms in the CENTUM VP HIS before the swap will help maintain production continuity. After module insertion, the FCS Builder download should be performed in online mode to minimize the window during which the DO channel outputs are in an undefined state.
For sites that also require I/O expansion — not just replacement — the SDV541-SE3 can be added to an existing node unit with available slots, or deployed in a new ESB node connected via the existing Vnet/IP backbone. In either case, the YOKOGAWA FieldMate device management tool can be used to verify module recognition and channel status before the FCS goes back online.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any control system retrofit. For the SDV541-SE3, the fastest path to restoration is a pre-tested, pre-configured spare module that arrives with the IOM address pre-set and the function test report included in the shipment package. Our pre-shipment testing protocol verifies all 32 output channels under load conditions before the module leaves the warehouse, reducing the risk of a DOA unit extending your maintenance window.
Where the original CENTUM VP FCS supports redundant I/O, the SDV541-SE3 swap can be performed with the redundant path active, keeping field device outputs energized throughout the replacement. For non-redundant configurations, the recommended approach is to place the affected FCS node in manual output hold mode via the CENTUM VP HIS operator station before removing the failed module. This preserves the last known output state on the field devices — such as control valves, motor starters, and solenoids — preventing uncontrolled process changes during the swap window.
After module insertion and FCS Builder download, a channel-by-channel output verification using the CENTUM VP diagnostic function or a handheld loop tester confirms that all 32 DO channels are responding correctly before the node is returned to automatic control. Total swap time for a prepared team with a pre-tested SDV541-SE3 is typically under 30 minutes, including FCS download and output verification.
For sites with strict change management requirements, we can provide advance documentation including the module datasheet, wiring diagram, and pre-shipment test report to support your management of change (MOC) approval process before the module ships.
Retrofit Support FAQ
Q: Is the SDV541-SE3 a direct drop-in replacement for the SDV541-SE2 or SDV541-SE1?
A: In most CENTUM VP installations, yes. The SE3 suffix denotes a hardware revision with improved output driver reliability. The IOM address, FWU terminal assignment, and FCS Builder configuration are compatible with earlier SE-suffix variants. We recommend confirming the FWU suffix on your existing installation before ordering to ensure terminal block compatibility.
Q: What pre-shipment testing is performed on the SDV541-SE3?
A: Each module undergoes a full 32-channel functional output test under 24 VDC load conditions. A test report is included with every shipment. Modules that fail any channel during testing are quarantined and not shipped. Our 12-month warranty covers all manufacturing defects identified after installation.
Q: Can the SDV541-SE3 be used in a CENTUM CS 3000 rack?
A: The SDV541-SE3 is designed for the CENTUM VP ESB bus architecture and is not directly compatible with CENTUM CS 3000 RIO bus racks. For CS 3000 installations, the equivalent module is from the SDV series with CS 3000 bus compatibility. Contact our technical team to confirm the correct part number for your CS 3000 node configuration.
Q: What is the lead time and do you hold stock?
A: We maintain warehouse stock of the SDV541-SE3 in Xiamen for immediate dispatch. Standard lead time for in-stock units is 3–5 business days to most destinations. For urgent requirements, expedited air freight is available. All units ship with a 12-month warranty and pre-shipment test report.
