YOKOGAWA SEC402-51 S1 Retrofit-Ready ESB Bus Coupler for CENTUM CS3000/VP Control Systems

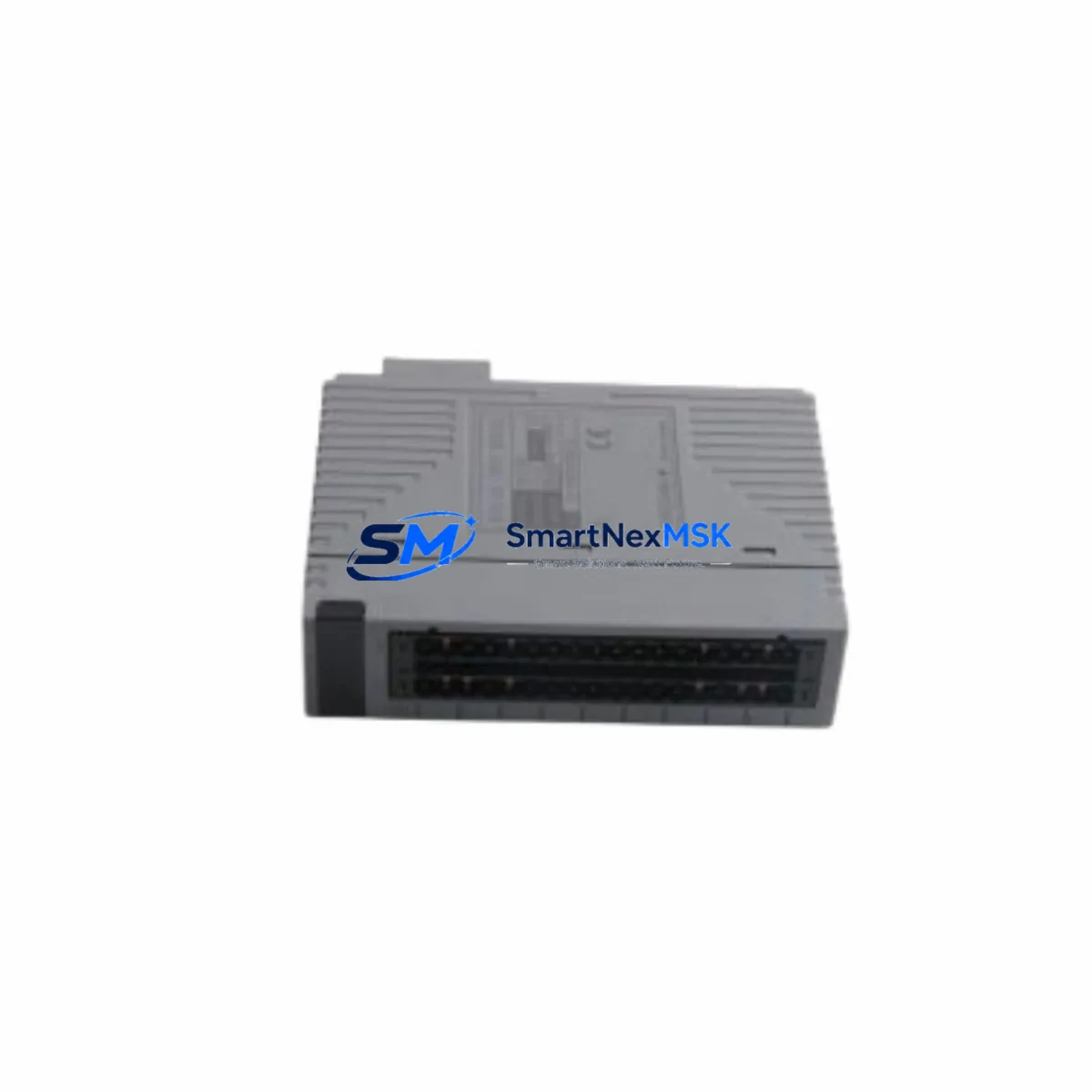

The YOKOGAWA SEC402-51 S1 is an ESB (Enhanced Signal Bus) Bus Coupler module designed for seamless integration into CENTUM CS3000 and CENTUM VP distributed control system architectures. As legacy CENTUM CS3000 installations approach end-of-support milestones, plant engineers and automation managers are increasingly sourcing verified replacement units to sustain production continuity without committing to a full DCS platform migration. The SEC402-51 S1 addresses this need directly: it is a drop-in retrofit module that restores ESB bus communication integrity, maintains existing I/O node addressing, and eliminates the need to re-engineer the control cabinet backplane layout.
Whether you are replacing a failed coupler on an active production line, building a critical-spare inventory for a remote facility, or executing a phased upgrade from CS3000 to CENTUM VP, the SEC402-51 S1 is a verified, shelf-ready solution. Each unit shipped by SMARTNEXMSK undergoes pre-dispatch functional testing and is covered by a 12-month warranty from the date of delivery.
Upgrade Compatibility Table
| Parameter | SEC402-51 S1 Specification | Retrofit Notes |
|---|---|---|
| Compatible Platform | CENTUM CS3000, CENTUM VP | Direct slot replacement; no backplane modification required |
| Bus Interface | ESB (Enhanced Signal Bus) | Verify ESB segment address matches original coupler configuration |
| Installation Format | Rack-mount, standard YOKOGAWA node unit slot | Compatible with ANB10D, ANB11D, and ANR10D node units |
| Power Requirement | 24 VDC (supplied via backplane) | Confirm PSU capacity before hot-swap; check PWR701 or PWR702 load margin |
| Communication Protocol | YOKOGAWA V-net / ESB proprietary | No protocol conversion required for CS3000-to-VP migration path |
| Terminal Wiring | Backplane connector (no field wiring on coupler) | Inspect backplane connector pins for oxidation before insertion |
| Module Address | Set via DIP switch on module face | Record original address before removal; replicate exactly on replacement unit |
| HMI Compatibility | CENTUM VP HIS, CS3000 HIS | No HMI screen rebuild required; tag database remains intact |
| Firmware | Factory-loaded; field-upgradeable via CENTUM engineering station | Confirm firmware revision matches node unit requirements post-installation |
| Warranty | 12 Months from delivery date | Covers manufacturing defects; includes pre-dispatch functional test certificate |
Retrofit Planning for Existing Automation Systems
A successful SEC402-51 S1 retrofit begins well before the module arrives on site. The first step is a full audit of the affected ESB segment: document the node unit type (typically an ANB10D or ANB11D field control station), the number of I/O modules installed in the associated racks, and the current ESB segment address assigned to the coupler being replaced. In multi-node installations, the ESB bus may carry signals from AAI141-S00 analog input modules, AAI543-H00 analog output modules, ADV151-P00 digital input modules, and ADV551-P00 digital output modules — all of which will be temporarily offline during the coupler swap if a hot-standby redundant path is not available.
Power budget verification is a critical pre-installation step that is frequently overlooked. The CENTUM CS3000 node unit draws backplane power from a PWR701 or PWR702 power supply module. Before inserting the SEC402-51 S1, confirm that the combined load of all installed I/O modules plus the replacement coupler does not exceed the rated output of the power supply. If the existing PWR701 is operating near capacity, this is an appropriate time to upgrade to a PWR702 or to redistribute I/O modules across an additional rack using a secondary ANR10D remote node unit.
For sites migrating from CENTUM CS3000 to CENTUM VP, the SEC402-51 S1 supports the phased migration approach recommended by YOKOGAWA. The coupler can remain in service during the transition period while the FCS (Field Control Station) is upgraded from an SFCS to a PFCS or VFCS controller. The V-net communication link between the FCS and the HIS (Human Interface Station) running CENTUM VP Builder does not require reconfiguration at the coupler level, which significantly reduces engineering hours and the risk of introducing configuration errors during the migration window.
Sites that rely on FOUNDATION Fieldbus or HART-enabled I/O should also verify the compatibility of their ALF111 FOUNDATION Fieldbus communication module and any AIP829 HART multiplexer units installed in the same node. These modules communicate upstream through the ESB coupler, so a coupler replacement directly affects their availability during the maintenance window. Coordinate with the DCS vendor’s field service team or your in-house control systems engineer to schedule the swap during a planned shutdown or low-production period.
Finally, if the control system includes a CENTUM VP Exaopc OPC server for third-party SCADA or historian integration, verify that the OPC data path is restored and that all process variable tags are updating correctly after the coupler is brought back online. This is particularly important in facilities where the PI System or similar process historian is configured to alarm on data quality degradation.
Downtime Control During System Migration
Minimizing unplanned downtime during a DCS coupler replacement requires a structured, pre-tested procedure. Before any hardware is touched, export a full backup of the FCS control database using CENTUM VP Engineering Environment or CS3000 System Builder. This backup preserves all function block configurations, loop tuning parameters, interlock logic, and I/O tag assignments. If the replacement coupler requires a firmware update after installation, having a verified database backup ensures that a rollback is possible within minutes rather than hours.
Where process conditions permit, place affected control loops in manual mode at the operator station before initiating the coupler swap. This prevents runaway outputs or spurious alarms from propagating to downstream equipment during the brief period when the ESB segment is offline. For critical loops — such as reactor temperature control or compressor surge protection — coordinate with the process safety team to confirm that manual mode operation is within the safe operating envelope defined in the process hazard analysis.
The physical swap of the SEC402-51 S1 is straightforward: release the module locking lever, withdraw the failed coupler, inspect the backplane connector, insert the replacement unit, and confirm the DIP switch address matches the recorded original setting. Power-up sequencing in CENTUM CS3000 and VP is automatic; the node unit will re-initialize the ESB segment and re-establish communication with all downstream I/O modules within approximately 30 to 60 seconds under normal conditions. Monitor the system alarm banner and the node status display in the HIS to confirm that all I/O modules return to normal communication status before returning control loops to automatic mode.
For sites without a redundant ESB path, the total process impact window — from loop transfer to manual through coupler swap to loop return to automatic — is typically 5 to 15 minutes when the procedure is pre-rehearsed and all materials are staged in advance. SMARTNEXMSK recommends maintaining at least one SEC402-51 S1 as a critical spare in the site instrument store to eliminate lead-time risk in the event of an unplanned failure.
Retrofit Support FAQ
Q1: Is the SEC402-51 S1 a direct replacement for all ESB Bus Coupler variants used in CENTUM CS3000?
The SEC402-51 S1 is compatible with the standard ESB bus coupler slot in CENTUM CS3000 and CENTUM VP node units including the ANB10D and ANB11D field control stations. If your installation uses an earlier SEC401 or SEC402 variant without the S1 suffix, verify the hardware revision compatibility with the node unit firmware version before installation. SMARTNEXMSK’s technical team can assist with compatibility verification prior to order confirmation.
Q2: What pre-dispatch testing is performed on each unit?
Every SEC402-51 S1 unit shipped by SMARTNEXMSK undergoes a functional power-on test and ESB communication verification using a YOKOGAWA-compatible test bench. A test certificate is available upon request. All units are covered by a 12-month warranty from the delivery date, covering manufacturing defects and communication failures under normal operating conditions.
Q3: Do I need to reconfigure my HMI or reprogram the FCS after installing the replacement coupler?
No FCS reprogramming or HMI screen modification is required provided the replacement SEC402-51 S1 is configured with the same DIP switch address as the original unit. The CENTUM CS3000 and VP control database references the ESB segment address, not the physical module serial number. Confirm the address setting before powering up the node unit to avoid an address conflict that could affect adjacent ESB segments.
Q4: What is the lead time and are export restrictions applicable?
SMARTNEXMSK maintains verified stock of the SEC402-51 S1 and targets same-day or next-business-day dispatch for confirmed orders. International shipments are subject to applicable export control regulations. Buyers are responsible for confirming import eligibility in their jurisdiction. Contact our sales team at [email protected] or +86 18259474341 for stock confirmation and shipping timeline before placing your order.
